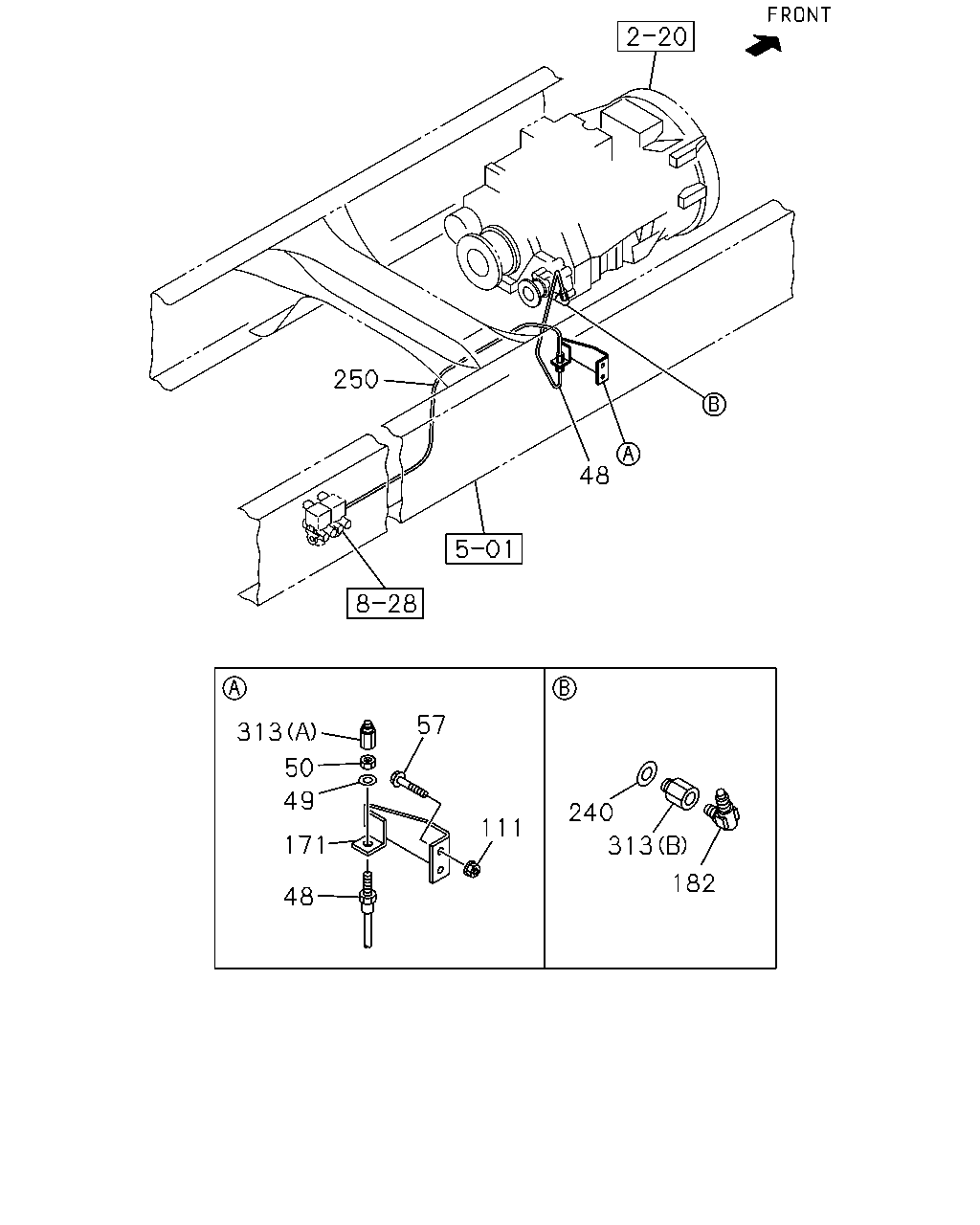

2-85 — POWER TAKE OFF CONTROL (#119891) — 12 parça

250 313 50 49 171 48 57 111 240 313 182 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO PTO ZF TRANS RR<BDM> L=400	1-09363-606-0	01	1	1305-	●	●
49	WASHER; LK,FLEX HOSE PTO ZF TRANS RR<BDM> ID=12.2	0-91510-512-0	01	1	1305-	●	●
50	NUT; FLEX HOSE PTO ZF TRANS RR<BDM> M12	9-09840-280-0	01	1	1305-	●	●
57	BOLT; BRKT PTO ZF TRANS RR<BDM> M8X35 FLANGE THA	0-28650-835-0	02	1	1305-	●	●
111	NUT; BRKT PTO ZF TRANS RR<BDM> M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
171	BRACKET; FLEX HOSE PTO ZF TRANS RR<BDM> THA	8-98086-261-0	01	1	1305-	●	●
182	CONNECTOR; FLARE PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-	●	●
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR<BDM> ID=12.2	1-09630-084-0	01	1	1305-1312	●	●
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR<BDM> ID=12.2	8-98251-344-0	01	1	1401-	●	●
250	TUBE; NYLON PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1305-	●	●
313	ADAPTER PTO ZF TRANS RR<BDM> (B)	1-09654-396-0	01	1	1305-	●	●
313	ADAPTER PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1305-	●	●
