1-31 — AIR DUCT (#119882) — 63 parça

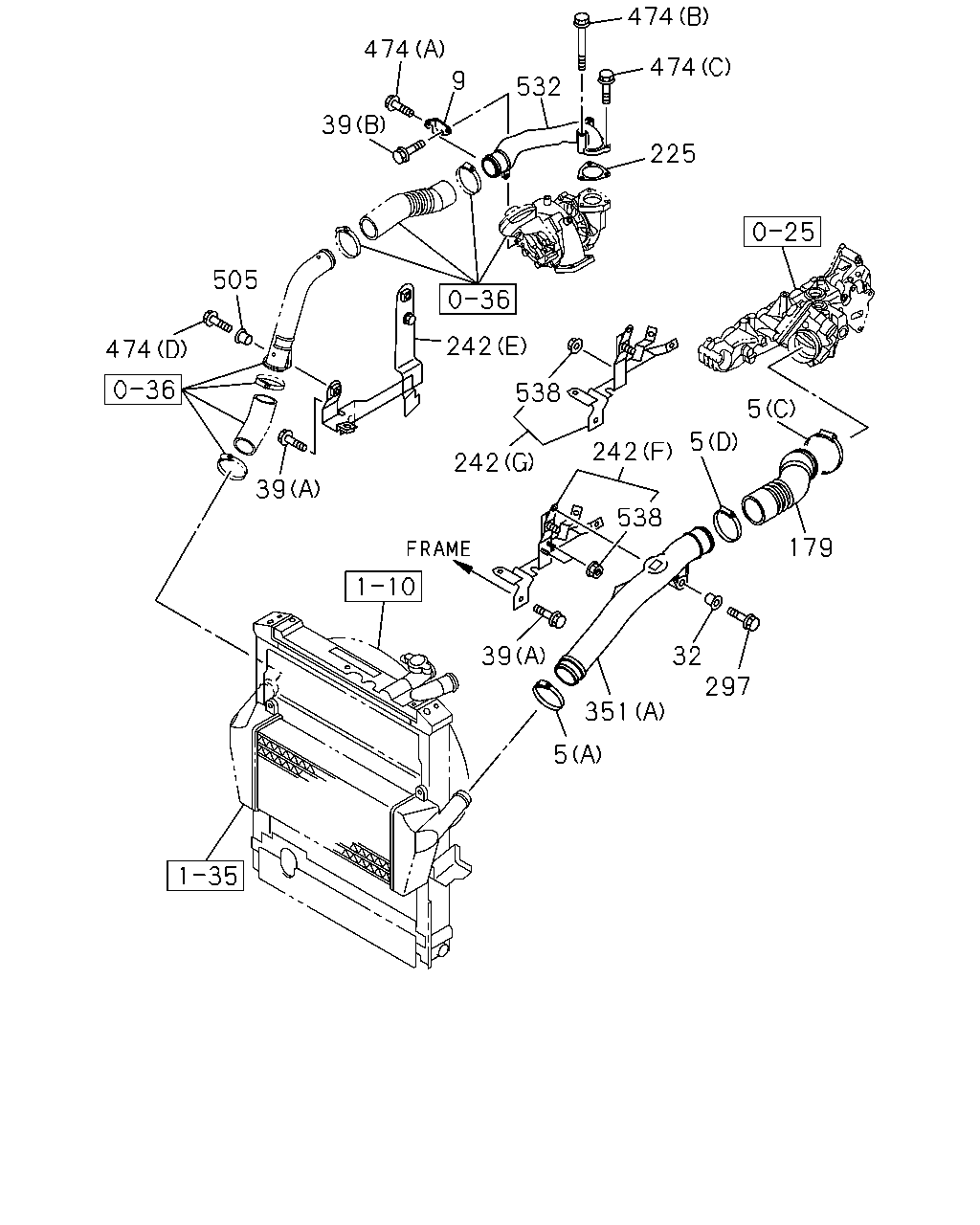

çizim 350449
474 532 9 474 474 225 242 505 474 39 242 538 39 5 5 242 538 39 5 351 32 297 179
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=127 IMA 		1-14239-263-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 IMA 		8-98133-348-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 IMA 		8-98133-349-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 IMA 		8-98133-350-0 01 1 1304- ● ●
9 BRACKET; INT PIPE
IMA 		8-98009-086-0 01 1 1304- ● ●
32 RUBBER; AIR DUCT MTG
OD=23 IMA 		8-97105-689-6 01 1 1304- ● ●
39 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 02 1 1304- ● ●
39 BOLT; BRKT
(B) M8X14 FLANGE IMA 		8-97378-075-0 01 1 1304- ● ●
179 HOSE; AIR INT 8-98050-920-2 01 1 1304- ● ●
225 GASKET; AIR PIPE
ID=47 IMA 		8-97202-328-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(E) IMA 		8-97384-140-2 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(B) IMA 		8-98067-764-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(C) IMA 		8-98067-765-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(D) IMA 		8-98067-766-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(A) IMA 		8-98067-767-4 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(F) IMA 		8-98100-224-2 01 1 1304-1411 ● ●
242 BRACKET; AIR DUCT
(G) 		8-98108-313-1 01 1 1412- ● ●
297 BOLT; DUCT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1304- ● ●
351 DUCT; AIR
(A) IMA 		8-98067-267-0 01 1 1304- ● ●
351 DUCT; AIR
(B) IMA 		8-98115-594-0 01 1 1304- ● ●
474 BOLT; PIPE
(B) M6X70 FLANGE IMA 		0-28050-670-0 02 1 1304- ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304- ● ●
474 BOLT; PIPE
(C) M6X30 FLANGE THA 		0-28650-630-0 01 1 1304- ● ●
474 BOLT; PIPE
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 1304- ● ●
505 RUBBER; MTG
OD=23 IMA 		8-97105-689-6 01 1 1304- ● ●
532 PIPE; INTAKE
IMA 		8-98237-771-1 01 1 1304- ● ●
538 NUT; PLATE,AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 1304- ● ●

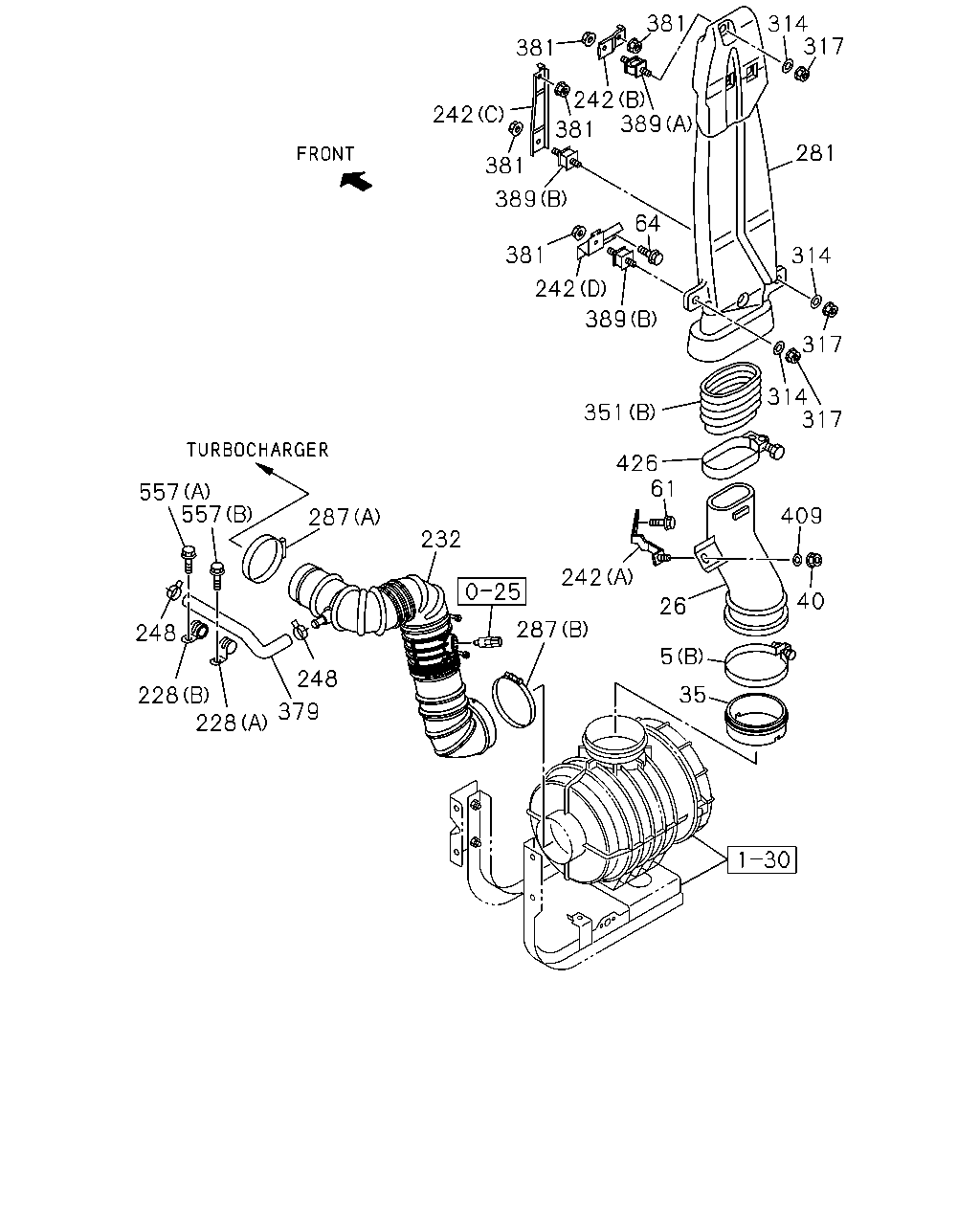

çizim 352210
35 5 26 242 61 426 351 409 40 317 314 317 314 281 317 314 381 242 381 389 64 389 242 287 232 287 248 379 228 228 248 557 557 381 389 381 381 242
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=127 IMA 		1-14239-263-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 IMA 		8-98133-348-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 IMA 		8-98133-349-0 01 1 1304- ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 IMA 		8-98133-350-0 01 1 1304- ● ●
26 DUCT; AIR INT
IMA 		8-98023-339-0 01 1 1304- ● ●
35 SEAL; DUCT,INT
IMA 		8-98029-332-0 01 1 1304- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304- ● ●
64 BOLT; BRKT,AIR DUCT
M8X16 IMA 		0-52000-816-0 01 1 1304- ● ●
228 CLIP; PCV HOSE
(B) ID=22 L=22 IMA 		8-98120-916-0 01 1 1304- ● ●
228 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 IMA 		8-98149-024-0 01 1 1304- ● ●
232 HOSE; CONN 8-98048-540-0 01 1 1304-1409 ● ●
232 HOSE; CONN
IMA 		8-98269-834-0 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(E) IMA 		8-97384-140-2 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(B) IMA 		8-98067-764-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(C) IMA 		8-98067-765-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(D) IMA 		8-98067-766-1 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(A) IMA 		8-98067-767-4 01 1 1304- ● ●
242 BRACKET; AIR DUCT
(F) IMA 		8-98100-224-2 01 1 1304-1411 ● ●
242 BRACKET; AIR DUCT
(G) 		8-98108-313-1 01 1 1412- ● ●
248 CLIP; RUBBER HOSE
ID=21.7 IMA 		8-97203-074-0 02 1 1304- ● ●
281 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 1304- ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 IMA 		8-98133-350-0 01 1 1304- ● ●
287 CLIP; AIR DUCT
(B) ID=117 IMA 		9-09915-075-1 01 1 1304- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 IMA 		0-91614-810-0 03 1 1304- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER THA 		8-97581-234-0 03 1 1304- ● ●
351 DUCT; AIR
(A) IMA 		8-98067-267-0 01 1 1304- ● ●
351 DUCT; AIR
(B) IMA 		8-98115-594-0 01 1 1304- ● ●
379 HOSE; RUBBER
THA 		8-98045-343-0 01 1 1304- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA 		8-97581-234-0 05 1 1304- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) IMA 		8-98036-825-0 01 1 1304- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) IMA 		8-98036-826-0 02 1 1304- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 IMA 		0-91614-810-0 01 1 1304- ● ●
426 CLIP; DUCT
D=101.6 IMA 		9-09915-502-1 01 1 1304- ● ●
557 BOLT; HOSE CLIP
(A) M6X10 FLANGE THA 		0-28050-610-0 01 1 1304- ● ●
557 BOLT; HOSE CLIP
(B) M8X12 HEX SOCKET IMA 		0-58330-812-0 01 1 1304- ● ●
