3-45 — LOAD SENSING PROPORTIONING VALVE (#11988) — 87 parça

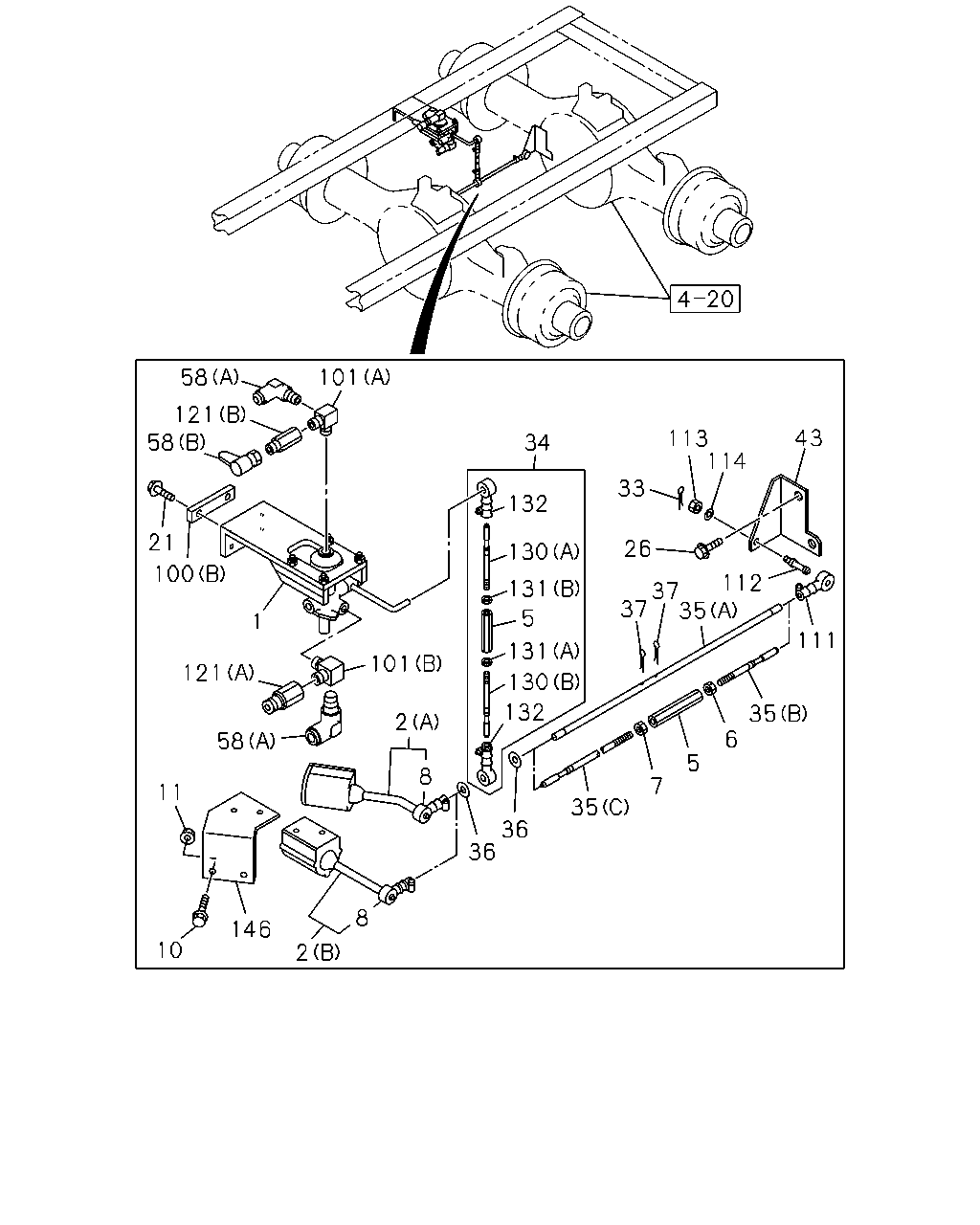

101 58 21 58 21 100 1 121 58 11 10 146 2 8 8 2 101 34 132 130 131 5 131 130 132 36 36 35 7 5 6 35 111 35 112 37 37 26 33 113 114 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	0105-
2	DAMPER BRAKE REGULATION ECE<TDV> (A)	1-47725-016-0	01	1	0105-0407
2	DAMPER BRAKE REGULATION ECE<TDV> (B)	1-47725-047-0	01	1	0408-
5	JOINT BRAKE REGULATION ECE<TDV> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-
5	JOINT BRAKE REGULATION ECE<TDV> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	0105-0407
5	JOINT NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-09768-091-0	02	1	0408-
6	NUT; LK,UPR BRAKE REGULATION ECE<TDV> M8	9-09111-408-0	01	1	0408-0512
6	NUT; LK,UPR BRAKE REGULATION ECE<TDV> M8	0-91111-508-0	01	1	0601-
7	NUT; LK,LWR BRAKE REGULATION ECE<TDV> LH THREAD	1-09409-002-0	01	1	0408-
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0105-
10	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0408-0512
10	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
11	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0408-0602
11	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	0105-0512
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	04	1	0601-
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28050-812-0	02	1	0601-
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	0105-0606
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	0-81122-025-0	01	1	0607-
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	0105-
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV> (C)	1-09765-318-0	01	1	0408-
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV> (A)	1-09740-086-0	01	1	0105-0407
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV> (B)	1-09765-282-0	01	1	0408-
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0105-0605
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	0105-0606
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	0-81122-025-0	02	1	0607-
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	0105-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-245-0	01	1	0105-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-147-0	01	1	0105-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-09656-557-1	01	1	0105-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0105-
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0105-
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	0105-
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0105-0602
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	01	1	0603-
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0105-0605
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	0105-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	0105-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	0105-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	0105-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	0105-
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	0408-0410
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0408-0410
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	0105-0407
132	RUBBER ASM; CONN NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV>	1-47723-001-0	03	1	0408-0410
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	0411-
146	BRACKET; DAMPER BRAKE REGULATION ECE<TDV>	1-42129-510-0	01	1	0408-

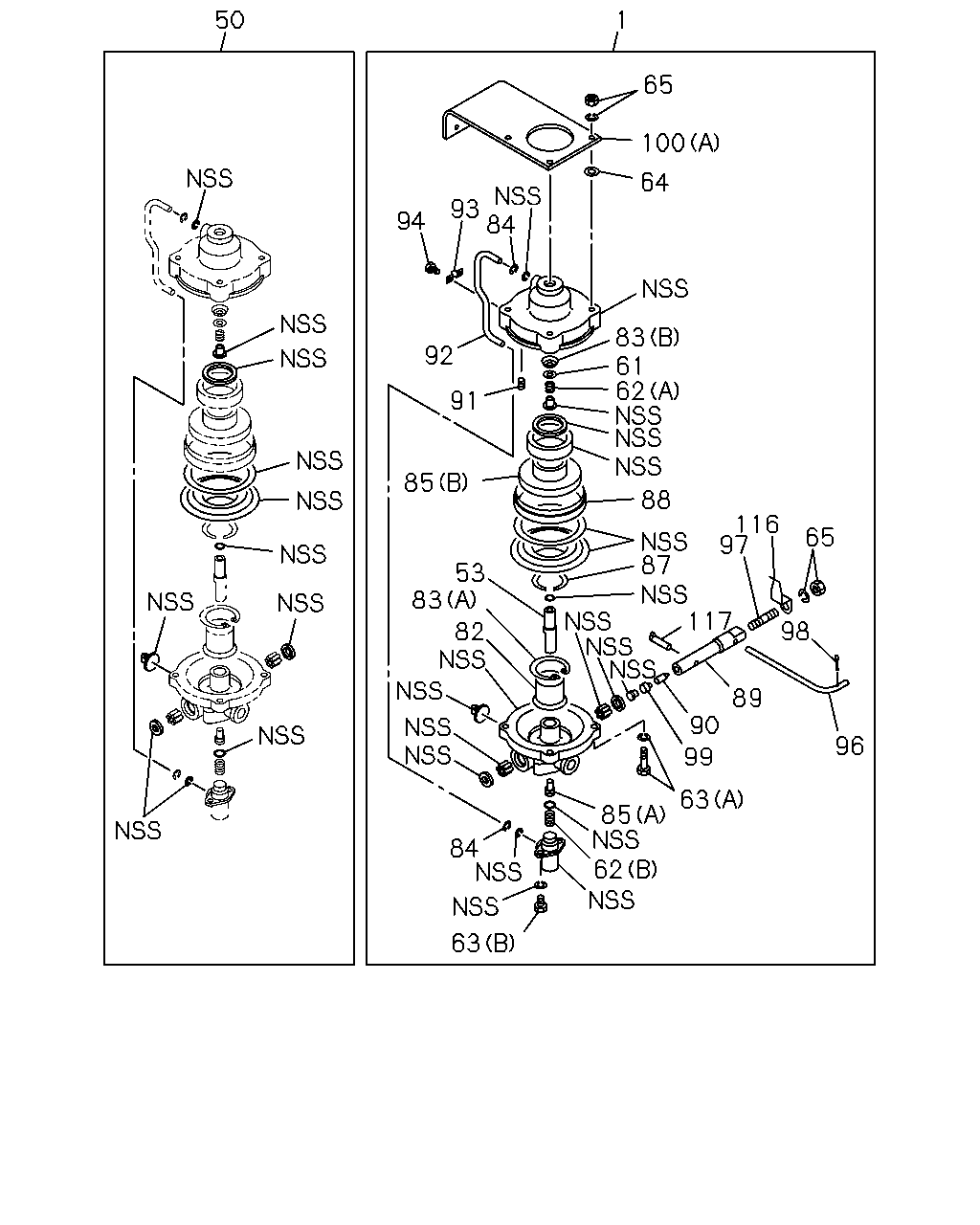

50 1 65 100 64 83 61 62 88 87 97 116 65 98 96 89 117 90 99 63 85 62 63 84 82 83 53 85 91 92 84 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	0105-
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-088-0	01	1	0105-
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	0105-
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-026-0	01	1	0105-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-025-0	01	1	0105-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-042-0	01	1	0105-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	0105-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-094-0	04	1	0105-
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-079-0	04	1	0105-
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	0105-
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	0105-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	0105-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-027-0	01	1	0105-
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-021-0	02	1	0105-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-023-0	01	1	0105-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-043-0	01	1	0105-
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	0105-
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	0105-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	0105-
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	0105-
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	0105-
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	0105-
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	0105-
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-144-0	02	1	0105-
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-143-0	01	1	0105-
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	0105-
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	0105-
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-055-0	01	1	0105-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-245-0	01	1	0105-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-147-0	01	1	0105-
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	0105-
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	0105-
