6-52 — REAR DOOR LOCK AND HANDLE (#119871) — 75 parça

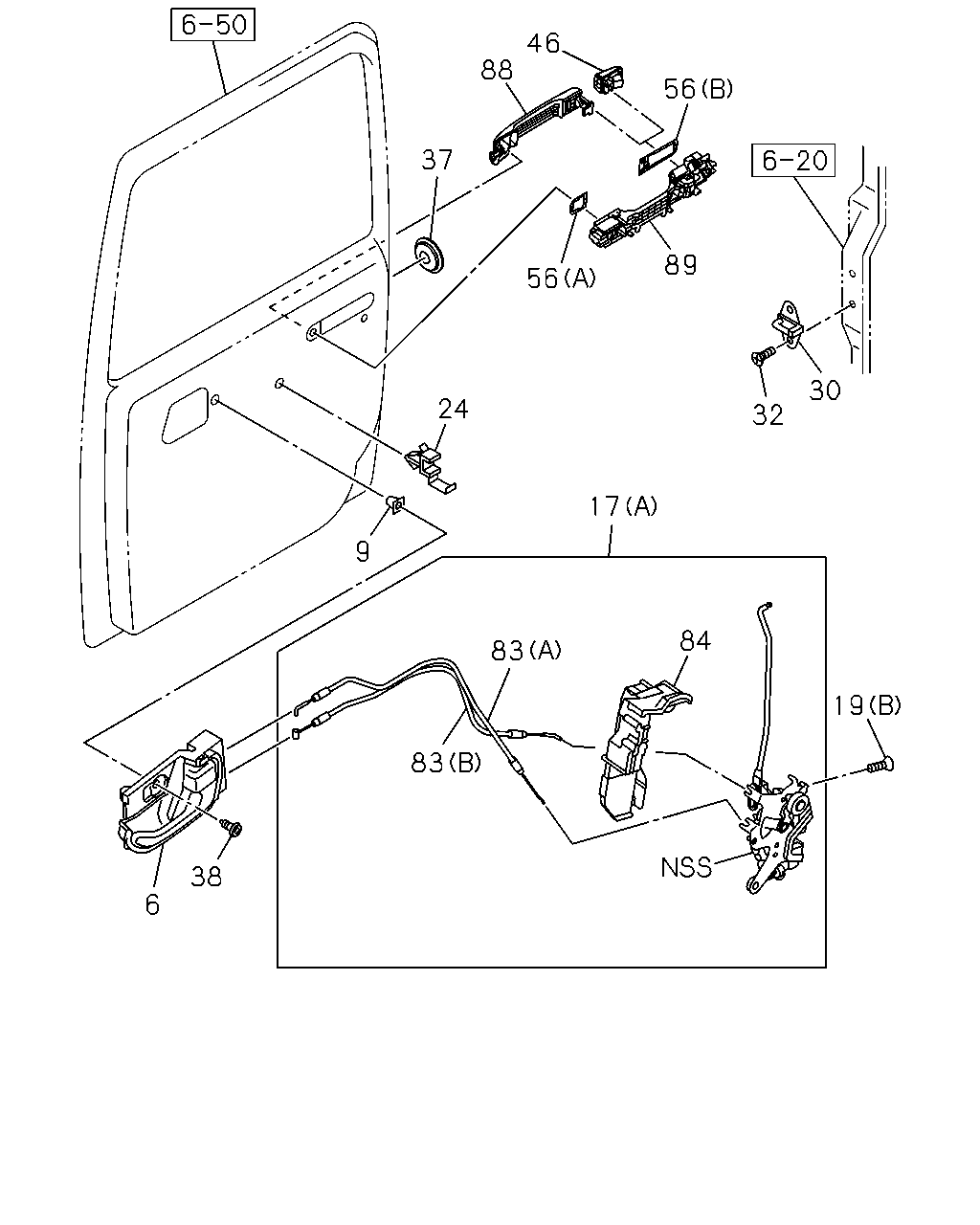

46 88 37 56 89 56 30 32 24 17 9 83 84 19 83 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) BLACK	8-97416-726-4	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) BLACK	8-97416-728-4	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) BLACK	8-97416-730-3	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-730-3	01	1	1305-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) BLACK	8-97416-732-3	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-732-3	01	1	1305-		●
9	GROMMET; SCREW,INSIDE HANDLE	8-94152-494-0	02	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-988-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-989-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-986-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-987-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98103-984-0	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98103-985-0	01	1	1305-	●	●
19	BOLT; RR DOOR LOCK AUTO DOOR LOCK<AU4> (A) M6X8 FLANGE	8-98048-996-0	02	1	1305-	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5	8-98004-342-0	06	1	1305-	●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE	8-97251-932-0	02	1	1305-	●	●
30	STRIKER; RR DOOR	8-98012-203-0	02	1	1305-	●	●
32	SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1305-	●	●
37	GROMMET; RR DOOR OD=26	8-94141-484-0	02	1	1305-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK M5X14 TAPPING	8-98184-363-0	02	1	1305-	●	●
46	COVER; OUTSIDE HANDLE OUTSIDE HANDLE CHROME<E20> PLATED	8-98176-465-1	02	1	1305-	●	●
46	COVER; OUTSIDE HANDLE EXC. OUTSIDE HANDLE CHROME<E20> BLACK	8-98176-463-1	02	1	1305-	●	●
56	GASKET; HANDLE,RR DOOR (A)	8-98176-466-0	02	1	1305-	●	●
56	GASKET; HANDLE,RR DOOR (B)	8-98176-467-2	02	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (A)	8-98193-715-0	01	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (B)	8-98193-716-0	02	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (A)	8-98193-717-0	01	1	1305-	●	●
84	COVER; DOOR LOCK	8-97351-079-0	01	1	1305-	●	●
84	COVER; DOOR LOCK	8-97351-080-0	01	1	1305-	●	●
88	GRIP; RR DOOR OUTSIDE HANDLE CHROME<E20> PLATED	8-98176-458-0	02	1	1305-	●	●
88	GRIP; RR DOOR EXC. OUTSIDE HANDLE CHROME<E20>	8-98176-456-0	02	1	1305-	●	●
89	BRACKET; GRIP,DOOR	8-98176-472-4	01	1	1305-	●	●
89	BRACKET; GRIP,DOOR	8-98176-473-4	01	1	1305-	●	●

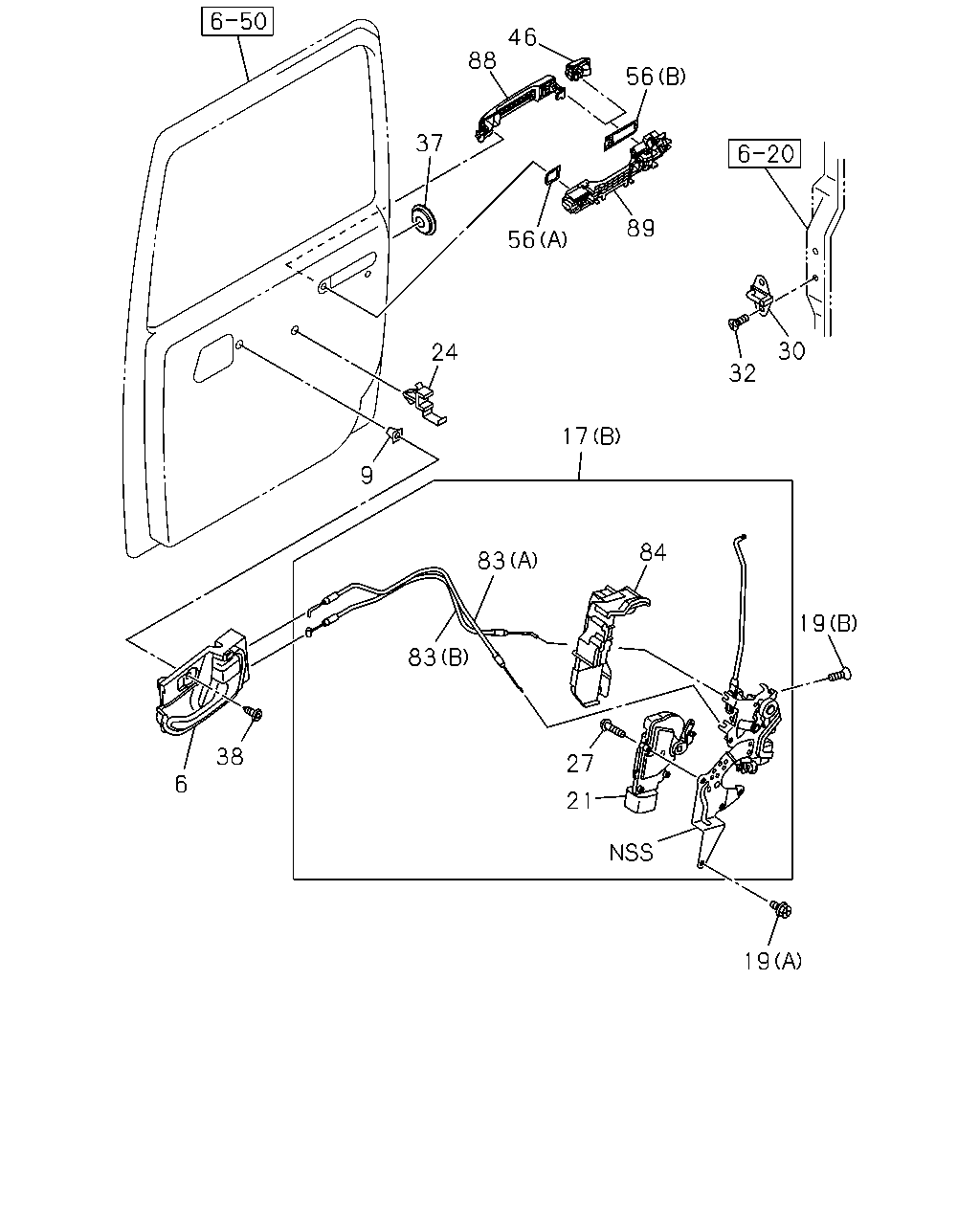

19 21 19 27 84 83 83 38 6 9 17 24 56 37 88 46 56 89 30 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) BLACK	8-97416-726-4	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) BLACK	8-97416-728-4	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) BLACK	8-97416-730-3	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-730-3	01	1	1305-		●
6	BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) BLACK	8-97416-732-3	01	1	1305-	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-732-3	01	1	1305-		●
9	GROMMET; SCREW,INSIDE HANDLE	8-94152-494-0	02	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-988-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-989-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-986-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B)	8-98103-987-1	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98103-984-0	01	1	1305-	●	●
17	LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98103-985-0	01	1	1305-	●	●
19	BOLT; RR DOOR LOCK AUTO DOOR LOCK<AU4> (A) M6X8 FLANGE	8-98048-996-0	02	1	1305-	●	●
19	BOLT; RR DOOR LOCK (B) SCREW M6X14.5	8-98004-342-0	06	1	1305-	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-083-0	01	1	1305-1502	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-020-0	01	1	1503-	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-084-0	01	1	1305-1502	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-019-0	01	1	1503-	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-081-0	01	1	1305-1502	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-018-0	01	1	1503-	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-082-0	01	1	1305-1502	●	●
21	ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-017-0	01	1	1503-	●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE	8-97251-932-0	02	1	1305-	●	●
27	SCREW; RR DOOR LOCK AUTO DOOR LOCK<AU4>	8-97349-997-0	04	1	1305-	●	●
30	STRIKER; RR DOOR	8-98012-203-0	02	1	1305-	●	●
32	SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1305-	●	●
37	GROMMET; RR DOOR OD=26	8-94141-484-0	02	1	1305-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK M5X14 TAPPING	8-98184-363-0	02	1	1305-	●	●
46	COVER; OUTSIDE HANDLE OUTSIDE HANDLE CHROME<E20> PLATED	8-98176-465-1	02	1	1305-	●	●
46	COVER; OUTSIDE HANDLE EXC. OUTSIDE HANDLE CHROME<E20> BLACK	8-98176-463-1	02	1	1305-	●	●
56	GASKET; HANDLE,RR DOOR (A)	8-98176-466-0	02	1	1305-	●	●
56	GASKET; HANDLE,RR DOOR (B)	8-98176-467-2	02	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (A)	8-98193-715-0	01	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (B)	8-98193-716-0	02	1	1305-	●	●
83	CABLE ASM; LOCK CONTROL (A)	8-98193-717-0	01	1	1305-	●	●
84	COVER; DOOR LOCK	8-97351-079-0	01	1	1305-	●	●
84	COVER; DOOR LOCK	8-97351-080-0	01	1	1305-	●	●
88	GRIP; RR DOOR OUTSIDE HANDLE CHROME<E20> PLATED	8-98176-458-0	02	1	1305-	●	●
88	GRIP; RR DOOR EXC. OUTSIDE HANDLE CHROME<E20>	8-98176-456-0	02	1	1305-	●	●
89	BRACKET; GRIP,DOOR	8-98176-472-4	01	1	1305-	●	●
89	BRACKET; GRIP,DOOR	8-98176-473-4	01	1	1305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
