6-20 — SIDE PANEL AND STEP (#119867) — 54 parça

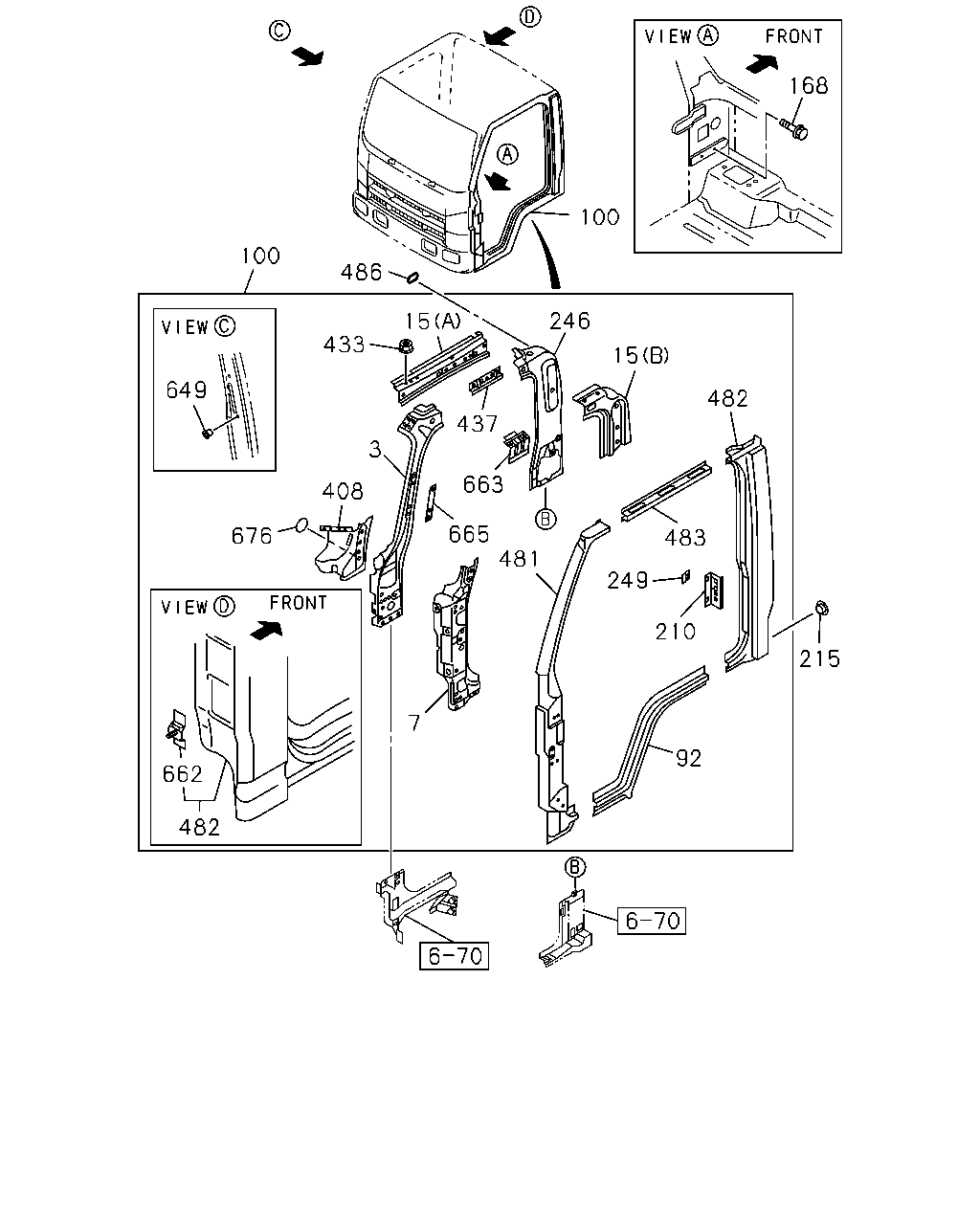

çizim 351283
482 662 649 100 486 100 168 15 433 3 408 676 437 663 665 246 15 482 483 249 481 210 215 92 7
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR
VIN MODEL YEAR 2011<VZB> IMA 		8-98058-237-1 01 1 1304- ● ●
3 PANEL; CLOSING,FRT PILLAR
IMA 		8-98058-236-1 01 1 1304- ● ●
7 REINFORCEMENT; HINGE
VIN MODEL YEAR 2011<VZB> 		8-97585-244-4 01 1 1304-1312 ● ●
7 REINFORCEMENT; HINGE
VIN MODEL YEAR 2011<VZB> THA 		8-97927-059-0 01 1 1401- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1304-1312 ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1401- ● ●
15 PANEL; CANT RAIL SIDE
VIN MODEL YEAR 2011<VZB> (A) THA 		8-97585-295-2 01 1 1304- ● ●
15 PANEL; CANT RAIL SIDE
VIN MODEL YEAR 2011<VZB> (B) THA 		8-97585-303-2 01 1 1304- ● ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-294-2 01 1 1304- ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-302-1 01 1 1304- ● ●
92 PANEL; SIDE SILL,CAB
IMA 		8-98055-461-1 01 1 1304- ● ●
92 PANEL; SIDE SILL,CAB
IMA 		8-98055-462-1 01 1 1304- ● ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2011<VZB> 		8-98180-846-0 01 1 1304-1308 ● ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2011<VZB> THA 		8-97948-573-1 01 1 1309- ● ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1304-1308 ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-556-1 01 1 1309- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1304- ● ●
210 PANEL; DOOR STRIKER REINF
VIN MODEL YEAR 2011<VZB> IMA 		8-97585-261-4 01 1 1304- ● ●
210 PANEL; DOOR STRIKER REINF
IMA 		8-97585-260-4 01 1 1304- ● ●
215 GROMMET; RR PILLAR
OD=35 IMA 		8-94122-971-0 01 1 1304- ● ●
246 PANEL; RR PILLAR,INNER
VIN MODEL YEAR 2011<VZB> THA 		8-97585-301-3 01 1 1304- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1304- ● ●
249 REINFORCEMENT; RR PILLAR
IMA 		8-98012-287-1 01 1 1304- ● ●
249 REINFORCEMENT; RR PILLAR
VIN MODEL YEAR 2011<VZB> IMA 		8-98012-287-1 01 1 1304- ● ●
408 GUSSET; PILLAR
VIN MODEL YEAR 2011<VZB> THA 		8-98180-850-0 01 1 1304- ● ●
408 GUSSET; PILLAR
IMA 		8-97585-316-3 01 1 1304- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304- ● ●
433 NUT; HEADER SHELF
VIN MODEL YEAR 2011<VZB> M6 THA 		9-09114-086-0 02 1 1304- ● ●
437 BRACKET; ROOF RAIL
VIN MODEL YEAR 2011<VZB> IMA 		8-98039-020-0 01 1 1304- ● ●
437 BRACKET; ROOF RAIL
IMA 		8-98039-019-0 01 1 1304- ● ●
481 PANEL; SIDE FRT PILLAR
IMA 		8-98055-451-0 01 1 1304- ● ●
481 PANEL; SIDE FRT PILLAR
IMA 		8-98055-470-0 01 1 1304- ● ●
482 PANEL; SIDE RR PILLAR
IMA 		8-98055-463-0 01 1 1304- ● ●
482 PANEL; SIDE RR PILLAR
IMA 		8-98055-464-0 01 1 1304- ● ●
483 PANEL; SIDE CANTRAIL
IMA 		8-98055-458-0 01 1 1304- ● ●
483 PANEL; SIDE CANTRAIL
IMA 		8-98055-460-0 01 1 1304- ● ●
486 SEAL; BODY SIDE
OD=20 T=0.05 WHITE IMA 		8-98059-421-0 04 1 1304- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1304- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1304-1308 ● ●
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1309- ● ●
663 BRACKET; AIR
VIN MODEL YEAR 2011<VZB> 		8-97585-208-2 01 1 1304-1308 ● ●
663 BRACKET; AIR
VIN MODEL YEAR 2011<VZB> THA 		8-97948-278-0 01 1 1309- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1304-1308 ● ●
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1309- ● ●
665 REINFORCEMENT; GRIP,ASSIST
IMA 		8-97585-314-0 01 1 1304- ● ●
665 REINFORCEMENT; GRIP,ASSIST
VIN MODEL YEAR 2011<VZB> IMA 		8-97585-314-0 01 1 1304- ● ●
676 SEAL
OD=20 T=0.05 BLACK IMA 		5-76777-036-0 01 1 1304- ● ●

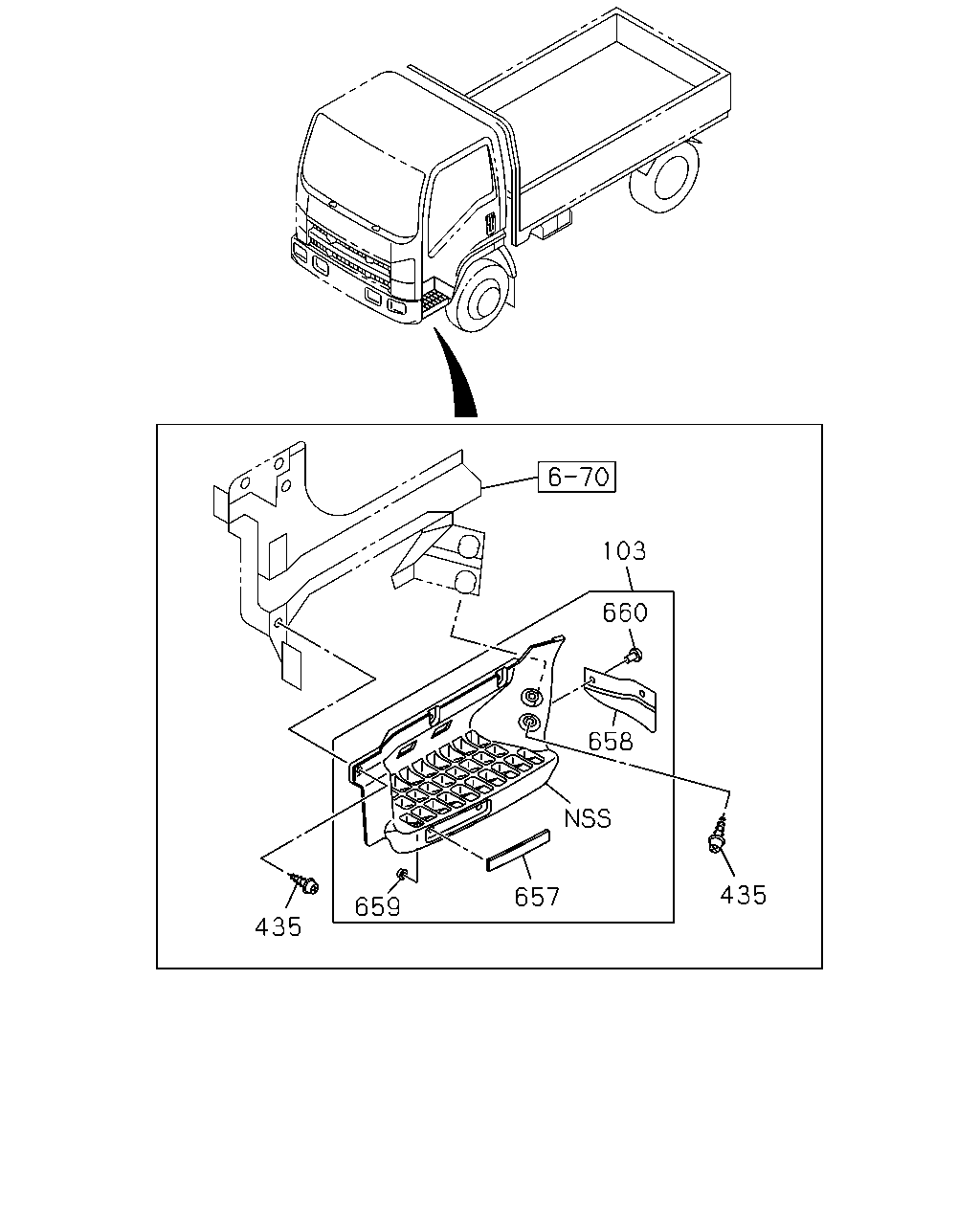

çizim 351294
103 660 658 657 659 435 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
IMA 		8-98022-774-3 01 1 1304- ● ●
103 PLATE; STEP
IMA 		8-98022-775-3 01 1 1304- ● ●
435 BOLT; RR STEP
M8X18 IMA 		8-98004-345-0 12 1 1304- ● ●
657 REFLECTOR; REFLEX
IMA 		8-97378-910-0 02 1 1304- ● ●
658 FLAP; STEP
IMA 		8-98037-560-1 02 1 1304- ● ●
659 CLIP; SPRING NUT
IMA 		8-97811-510-0 04 1 1304- ● ●
660 CLIP; FLAP
IMA 		8-98111-558-0 04 1 1304- ● ●
