1-11 — RADIATOR HOSE AND SUB TANK (#119865) — 13 parça

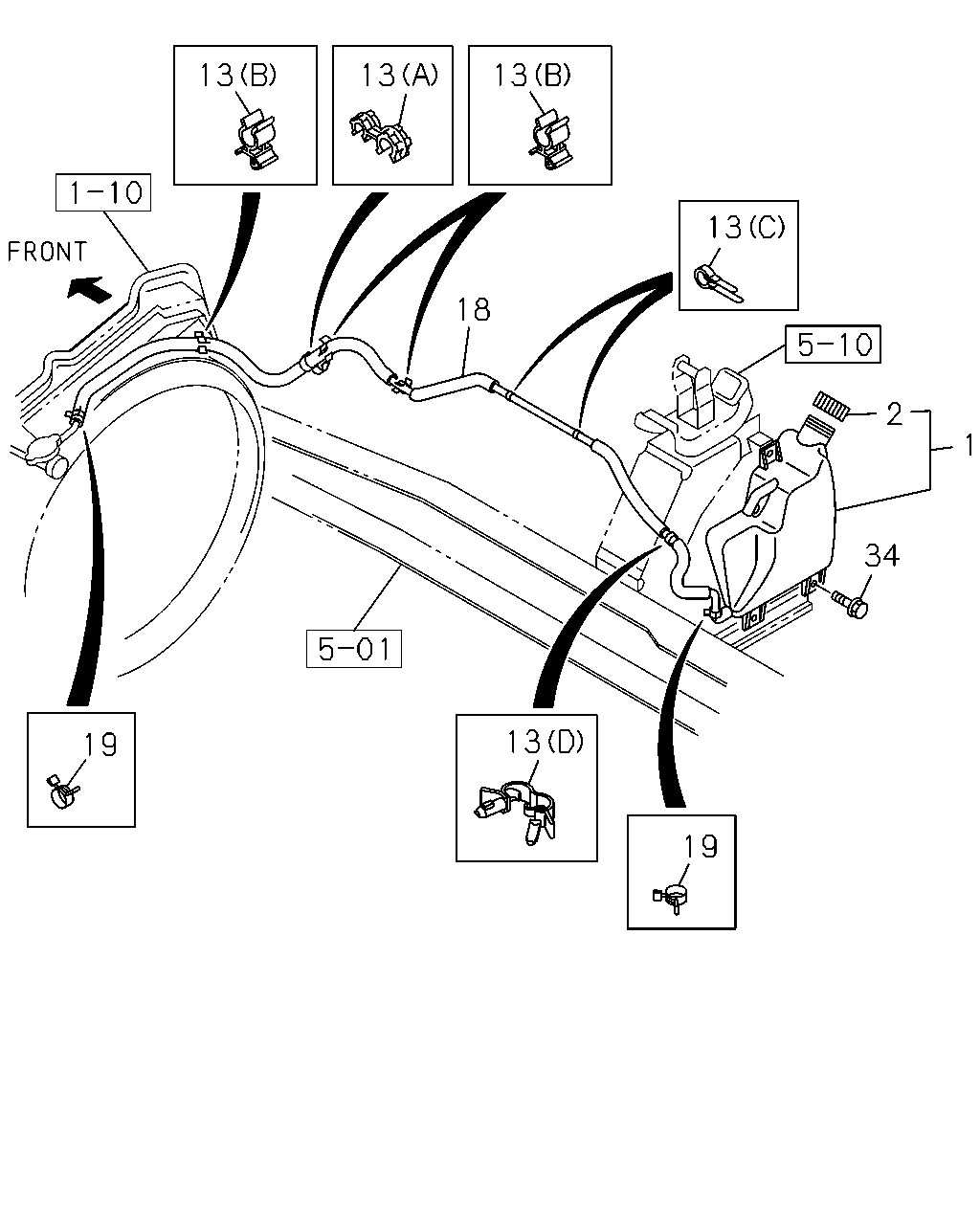

çizim 350430
34 1 2 13 13 13 13 18 19 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD
IMA 		8-98178-179-0 01 1 1304- ● ●
2 CAP; SURGE TANK
IMA 		8-98178-074-0 01 1 1304- ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=13-18 L=14.5 IMA 		1-09709-290-0 01 1 1304- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 IMA 		5-09700-319-0 02 1 1304- ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 IMA 		8-94416-613-0 01 1 1304- ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=12 IMA 		8-98029-256-0 03 1 1304- ● ●
18 HOSE; RAD TO SURGE TANK
THA 		8-98065-255-0 01 1 1304- ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 IMA 		8-98150-358-0 02 1 1304- ● ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER IMA 		1-09030-042-0 03 1 1304- ● ●
çizim 350444
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 HOSE; WATER,RAD OUTLET
THA 		8-97923-128-1 01 1 1304- ● ●
56 CLIP; WATER HOSE,RAD
ID=48 IMA 		8-98133-956-0 02 1 1304- ● ●
56 CLIP; WATER HOSE,RAD
ID=48 IMA 		8-98133-956-0 02 1 1304- ● ●
128 HOSE; WATER,RAD INL
THA 		8-97383-812-1 01 1 1304- ● ●
