◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51492 - NPR BUS CHAS(THAI) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#119864) — 18 parça

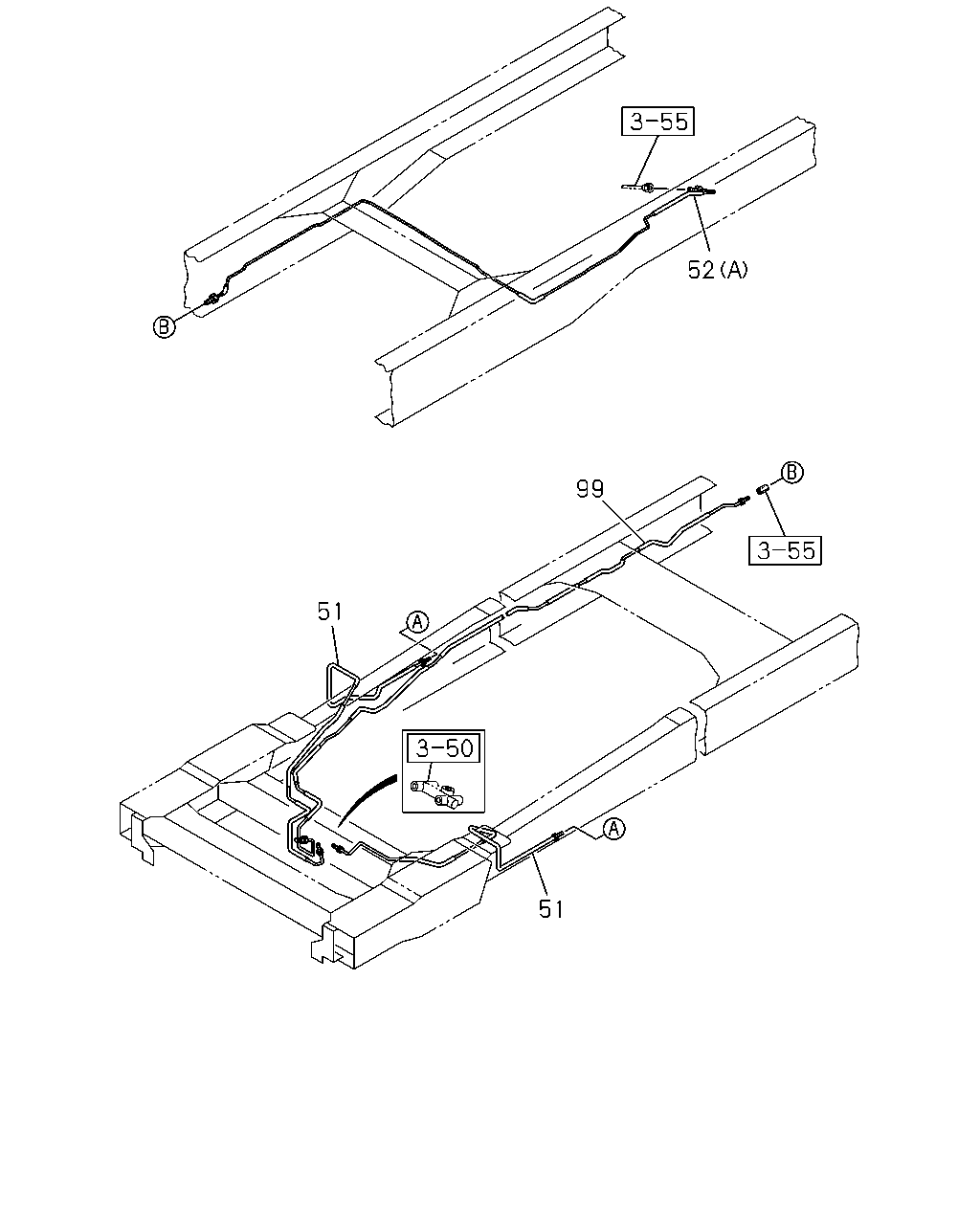

çizim 350899
52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date
51 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT THA 		8-98136-043-0 01 1 1304-
51 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT THA 		8-98136-044-0 01 1 1304-
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT THA 		8-98065-765-1 01 1 1304-
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT THA 		8-98065-766-1 01 1 1304-
52 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-264-0 01 1 1304-
52 PIPE; BRK
(B) THA 		8-97924-251-0 01 1 1304-
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR THA 		8-98057-259-0 01 1 1304-
çizim 350901
94 9 1 9
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1304-
1 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> IMA 		8-97039-543-1 02 1 1304-
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 02 1 1304-1402
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 02 1 1403-
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 02 1 1403-
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-705-0 02 1 1304-1402
94 PIPE; BRK,W/C TO W/C
FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-705-0 02 1 1403-

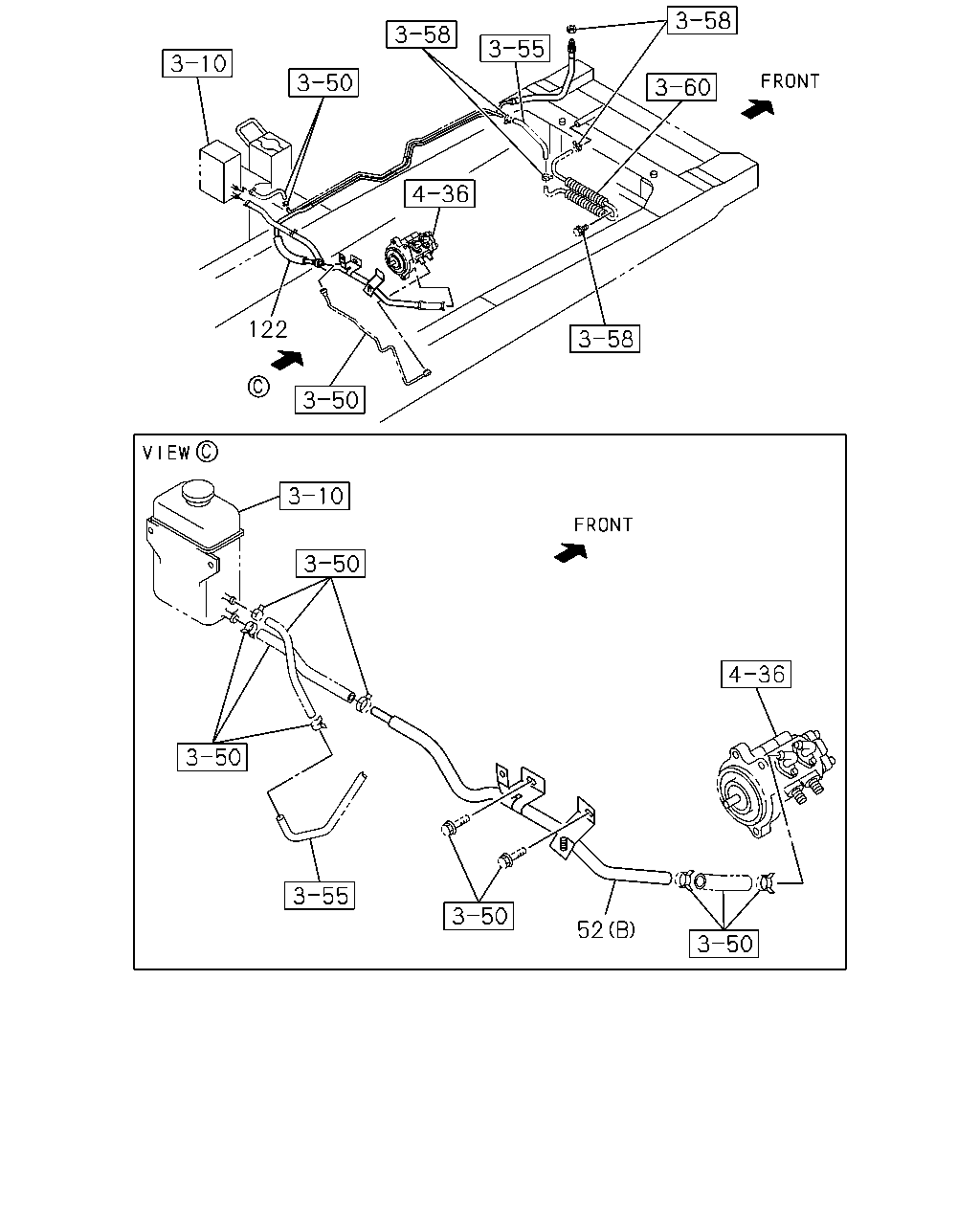

çizim 352302
122 52
BalonParca AdiParca NoAdetTipApplied Date
52 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR THA 		8-98057-264-0 01 1 1304-
52 PIPE; BRK
(B) THA 		8-97924-251-0 01 1 1304-
122 PIPE ASM; BRK,2 WAY
FRAME STRAIGHT TYPE<7KJ> L=1839 		8-98136-573-0 01 1 1304-

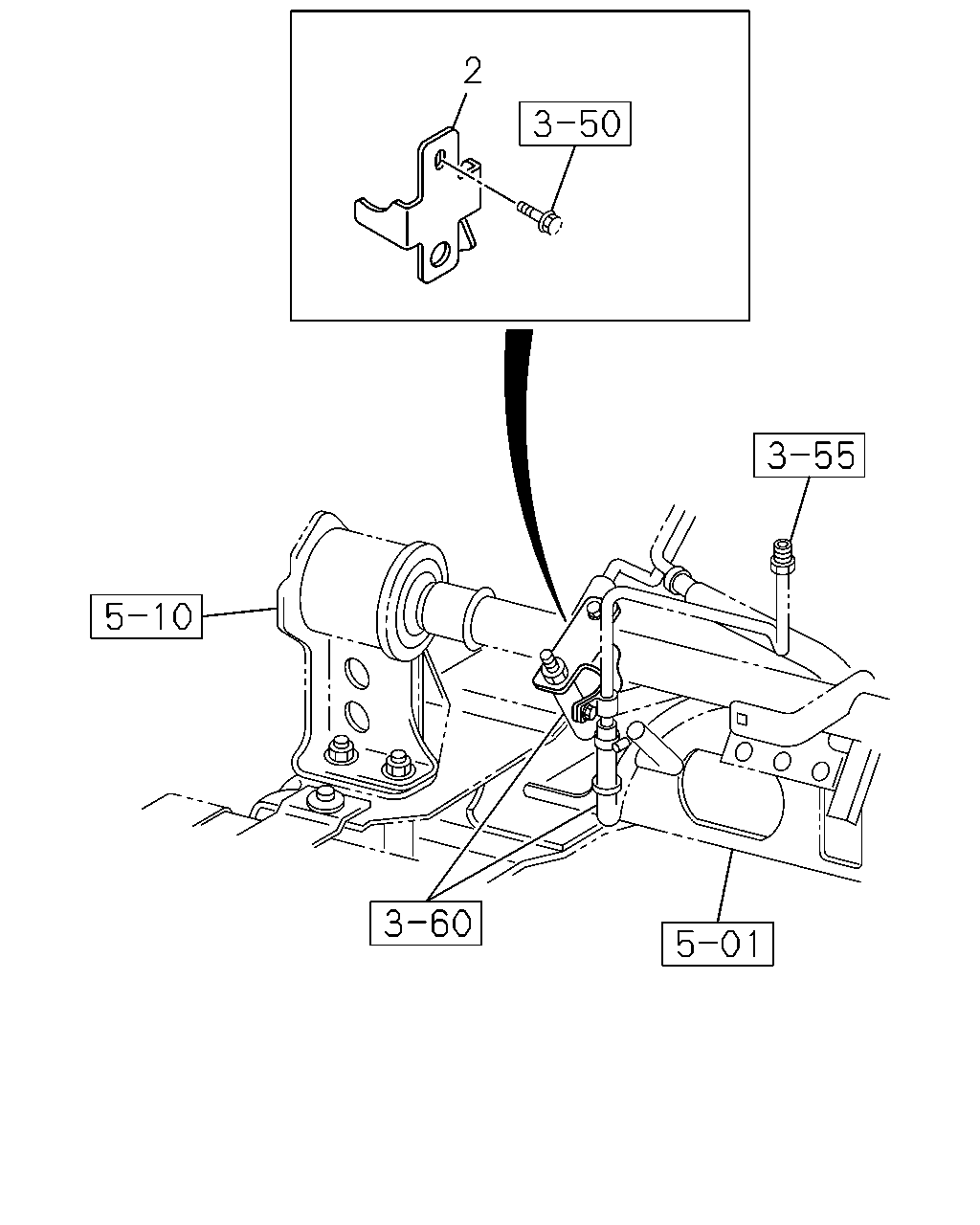

çizim 352469
2
BalonParca AdiParca NoAdetTipApplied Date
2 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> IMA 		8-98136-577-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
