0-31 — THERMOSTAT AND HOUSING (#119861) — 13 parça

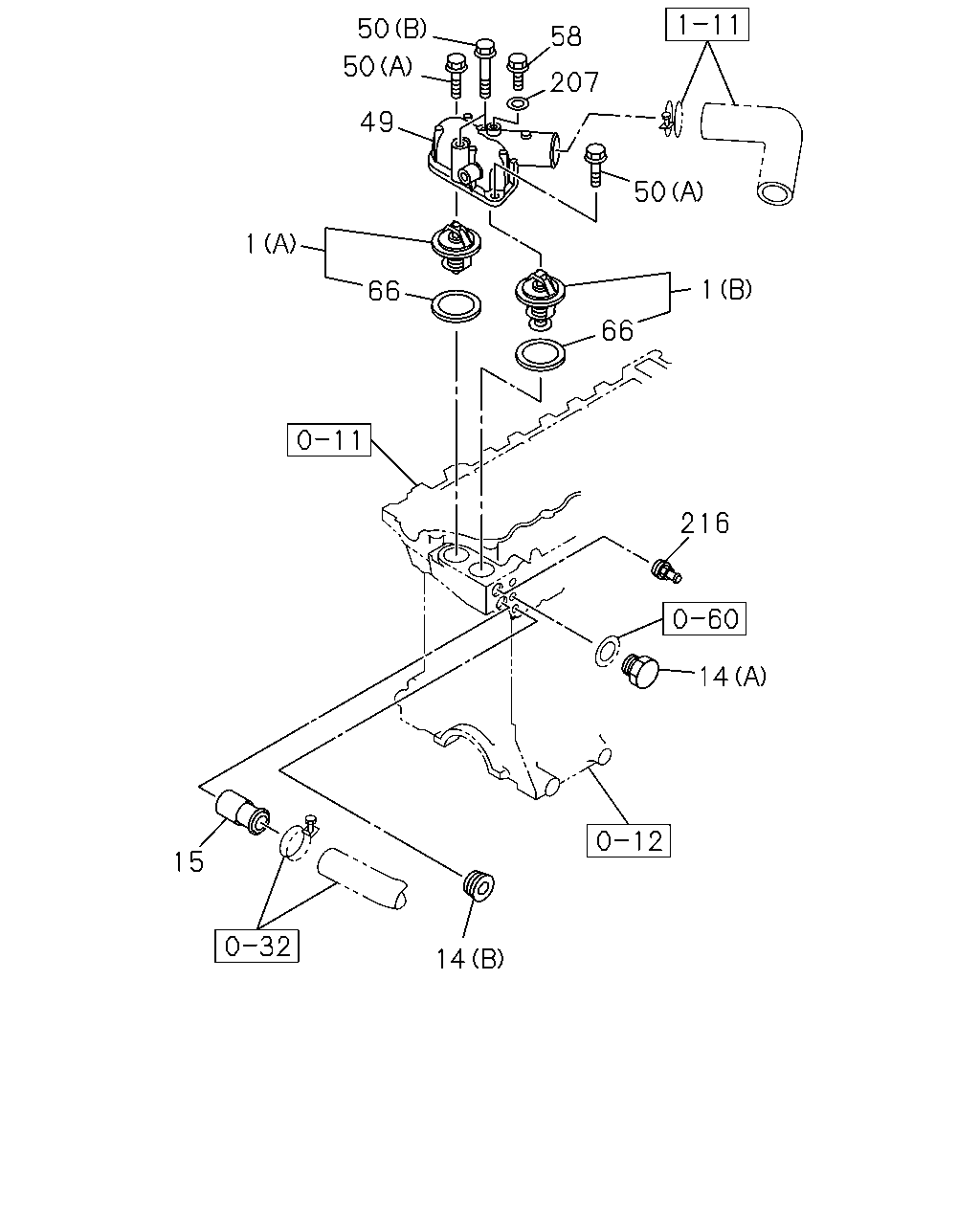

çizim 351947
50 50 49 1 66 58 207 50 1 66 216 14 14 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 1304- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 1304- ● ●
14 PLUG; SW
(B) PT3/8 IMA 		5-09605-005-0 01 1 1304- ● ●
14 PLUG; SW
(A) M16X8 PLUG IMA 		9-09661-005-0 01 1 1304- ● ●
15 PIPE; BYPASS
IMA 		8-94342-574-0 01 1 1304- ● ●
49 PIPE; WATER OUTLET
IMA 		8-97329-914-0 01 1 1304- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1304- ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE IMA 		1-09044-072-1 02 1 1304- ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 IMA 		8-97021-211-1 01 1 1304- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 IMA 		8-97300-793-0 02 1 1304-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 IMA 		1-09630-082-0 01 1 1304- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN
IMA 		8-97358-699-0 01 1 1304- ● ●
