◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶

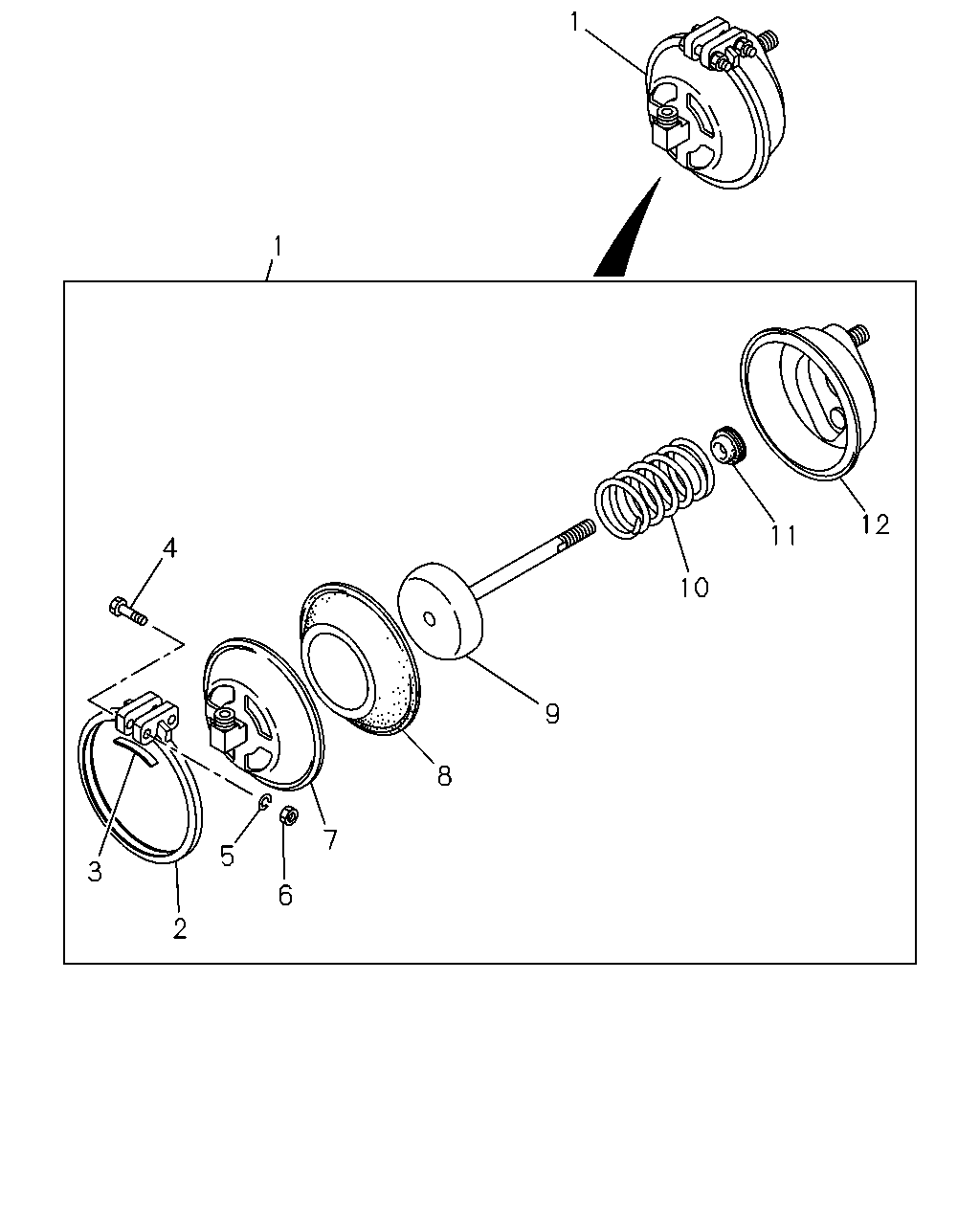

3-40 — FRONT BRAKE POWER CHAMBER (#11986) — 38 parça
çizim 21678
1 1 12 11 10 9 8 7 6 5 2 3 4
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-338-0 02 1 0105-0203
1 CHAMBER ASM; POWER,FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-062-2 02 1 0204-
1 CHAMBER ASM; POWER,FRT BRK
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> 		1-48250-425-0 02 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-425-0 01 1 0105-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-518-0 01 1 0105-
2 RING; CLAMP,SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-001-0 02 1 0105-
2 RING; CLAMP,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		9-48259-049-0 02 1 0105-
3 RETAINER; DIAPH
ANTILOCK BRAKE SYSTEM(BFA) 		9-48259-016-0 04 1 0105-0203
3 RETAINER; DIAPH
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> 		9-48259-016-0 02 1 0204-
3 RETAINER; DIAPH
EXC. DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV> 		9-48259-016-0 02 1 0204-
3 RETAINER; DIAPH
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> 		9-48259-016-0 02 1 0105-0203
3 RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		9-48259-016-0 01 1 0105-
3 RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48250-044-0 01 1 0105-
4 BOLT; CLAMP RING
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> 		1-48259-002-0 04 1 0105-
4 BOLT; CLAMP RING
EXC. DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV> 		1-48259-002-0 04 1 0105-
4 BOLT; CLAMP RING
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-002-0 04 1 0105-
5 WASHER; LK,CLAMP RING
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> ID=10.2 		9-09150-510-0 04 1 0105-
5 WASHER; LK,CLAMP RING
EXC. DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV> ID=10.2 		9-09150-510-0 04 1 0105-
5 WASHER; LK,CLAMP RING
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=10.2 		9-09150-510-0 04 1 0105-
6 NUT; CLAMP RING
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> M10 		9-09110-010-0 04 1 0105-
6 NUT; CLAMP RING
EXC. DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV> M10 		9-09110-010-0 04 1 0105-
6 NUT; CLAMP RING
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 		9-09110-010-0 04 1 0105-
7 COVER ASM; UPR,SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48251-039-0 02 1 0105-
7 COVER ASM; UPR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> 		1-48251-050-0 02 1 0105-
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48251-050-0 01 1 0105-
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48251-051-0 01 1 0105-
8 DIAPHRAGM; SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48252-006-0 02 1 0105-0203
8 DIAPHRAGM; SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48252-054-0 02 1 0204-
8 DIAPHRAGM; SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48252-009-0 02 1 0105-
9 PISTON; SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48253-001-0 02 1 0105-
9 PISTON; SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48253-003-0 02 1 0105-
10 SPRING; PISTON,SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48255-001-0 02 1 0105-
10 SPRING; PISTON,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		9-48255-012-0 02 1 0105-
11 SEAL; PISTON,SPR CHAMBER
BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> 		1-48252-025-0 02 1 0105-
11 SEAL; PISTON,SPR CHAMBER
EXC. DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV> 		1-48252-025-0 02 1 0105-
11 SEAL; PISTON,SPR CHAMBER
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48252-025-0 02 1 0105-
12 COVER ASM; LWR,SPR CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48251-019-0 02 1 0105-
12 COVER ASM; LWR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-48251-023-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
