Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

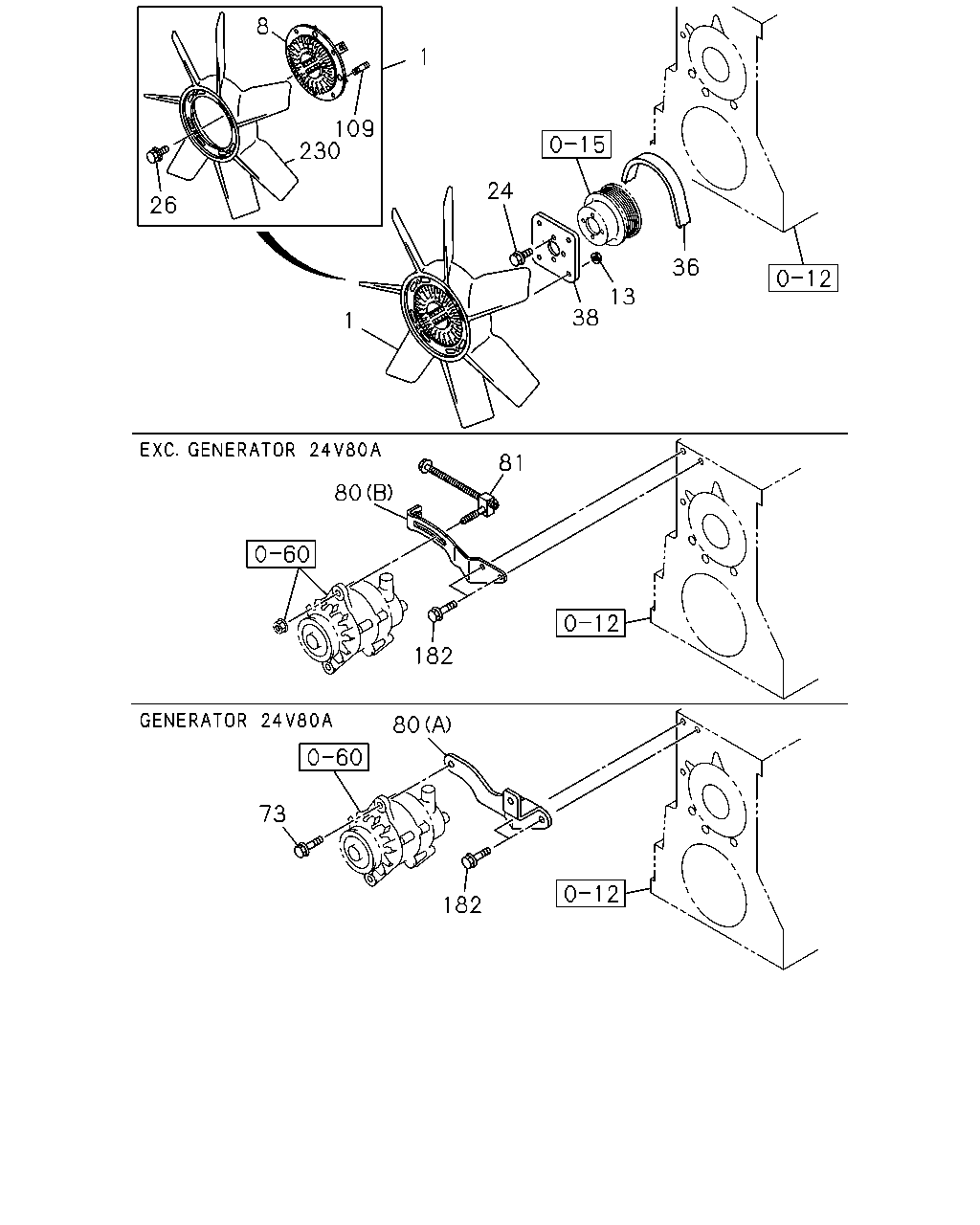

0-33 — FAN AND FAN BELT
(#119856) — 23 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀
[033A] NO.2 (6 parça)
[033A] NO.1 (17 parça)
▶
147
147
144
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
36
BELT; COOLING FAN
GENERATOR 24V80A<7YN> L=1121 THA
8-98038-423-0
01
1
1304-
●
●
36
BELT; COOLING FAN
EXC. GENERATOR 24V80A<7YN> L=1046
8-98003-187-0
01
1
1304-
●
●
36
BELT; COOLING FAN
GENERATOR 24V80A<7YN> BEST VALUE PARTS THA
5-87610-102-0
01
1
1304-
●
●
36
BELT; COOLING FAN
EXC. GENERATOR 24V80A<7YN> BEST VALUE PARTS
5-87610-101-0
01
1
1304-
●
●
144
TENSIONER; DRIVE BELT
1-GROOVE IMA
8-98031-811-1
01
1
1304-
●
●
147
BOLT; BELT TENSIONER
M10X20 FLANGE THA
0-28151-020-0
03
1
1304-
●
●
1
8
230
109
26
1
24
38
13
36
81
80
182
80
73
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
OD=510 IMA
8-98190-148-1
01
1
1304-
●
●
8
CLUTCH; COOLING FAN
IMA
8-98019-743-0
01
1
1304-
●
●
13
NUT; COOLING FAN
M8 FLANGE THA
0-91180-108-0
04
1
1304-
●
●
24
BOLT; FAN
M8X18 FLANGE IMA
0-28080-818-0
04
1
1304-
●
●
26
BOLT; FAN TO CLU
IMA
8-94389-764-0
04
1
1304-
●
●
36
BELT; COOLING FAN
GENERATOR 24V80A<7YN> L=1121 THA
8-98038-423-0
01
1
1304-
●
●
36
BELT; COOLING FAN
EXC. GENERATOR 24V80A<7YN> L=1046
8-98003-187-0
01
1
1304-
●
●
36
BELT; COOLING FAN
GENERATOR 24V80A<7YN> BEST VALUE PARTS THA
5-87610-102-0
01
1
1304-
●
●
36
BELT; COOLING FAN
EXC. GENERATOR 24V80A<7YN> BEST VALUE PARTS
5-87610-101-0
01
1
1304-
●
●
38
SPACER; FAN
IMA
8-97108-643-0
01
1
1304-
●
●
73
BOLT; GEN TO ADJ PLATE
GENERATOR 24V80A<7YN> M8X35 FLANGE THA
0-28650-835-0
01
1
1304-
●
●
80
PLATE; ADJ
GENERATOR 24V80A<7YN> (A) IMA
8-98036-550-1
01
1
1304-
●
●
80
PLATE; ADJ
EXC. GENERATOR 24V80A<7YN> (B)
8-98035-085-0
01
1
1304-
●
●
81
PIECE; SLIDING
EXC. GENERATOR 24V80A<7YN>
8-98075-762-0
01
1
1304-
●
●
109
STUD; FAN CLU
M8X13.5 L=22 IMA
8-97049-577-1
04
1
1304-
●
●
182
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1304-
●
●
230
FAN; COOLING
IMA
8-98190-058-0
01
1
1304-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
