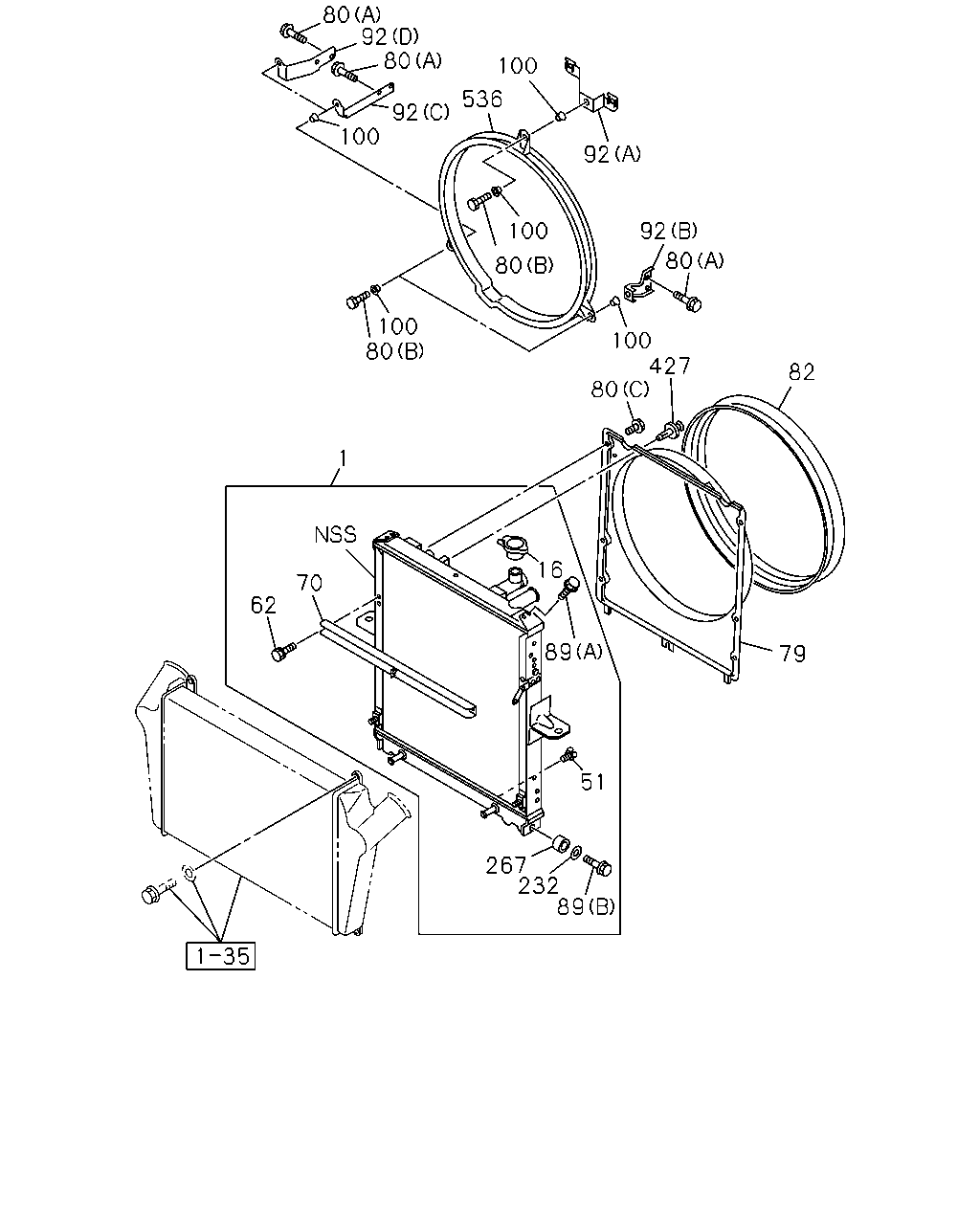

1-10 — RADIATOR (#119855) — 43 parça

80 92 80 100 92 536 100 92 100 80 100 80 1 70 62 16 89 51 267 232 89 79 82 100 80 427 92 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98174-420-0	01	1	1304-1411
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB>	8-98301-164-0	01	1	1412-
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB>	8-98046-661-0	01	1	1304-1403
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB> IMA	8-97948-953-0	01	1	1404-
16	CAP; RAD VIN MODEL YEAR 2011<VZB> THA	8-98096-226-0	01	1	1304-
16	CAP; RAD EXC. VIN MODEL YEAR 2011<VZB> THA	8-97239-187-0	01	1	1304-
51	PLUG; DRAIN W/GASKET THA	8-97171-437-0	01	1	1304-
62	BOLT; STAY M8X12 FLANGE THA	0-28050-812-0	02	1	1304-
70	STAY; RAD THA	8-98018-941-0	01	1	1304-
79	GUIDE; FAN,RAD VIN MODEL YEAR 2011<VZB> IMA	8-98172-924-0	01	1	1304-
79	GUIDE; FAN,RAD EXC. VIN MODEL YEAR 2011<VZB> THA	8-98006-477-0	01	1	1304-
80	BOLT; FAN GUIDE GENERATOR 24V80A<7YN> EXC. VIN MODEL YEAR 2011<VZB> (A) M10X20 FLANGE THA	0-28151-020-0	04	1	1304-
80	BOLT; FAN GUIDE (C) M6X16 THA	1-21559-481-0	04	1	1304-
80	BOLT; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB> (B) M8X30 FLANGE THA	0-28650-830-0	03	1	1304-
80	BOLT; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB>,GENERATOR 24V80A<7YN> (A) M10X20 FLANGE THA	0-28151-020-0	02	1	1304-
82	COVER; FAN,RAD EXC. VIN MODEL YEAR 2011<VZB> IMA	8-98006-478-0	01	1	1304-
89	BOLT (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1304-
89	BOLT (B) M8X25 THA	1-21469-153-0	02	1	1304-
92	BRACKET; FAN GUIDE GENERATOR 24V80A<7YN> EXC. VIN MODEL YEAR 2011<VZB> (D)	8-98032-526-0	01	1	1304-
92	BRACKET; FAN GUIDE (A) IMA	8-97382-827-2	01	1	1304-
92	BRACKET; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB> (B) IMA	8-97386-233-0	01	1	1304-
92	BRACKET; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB>,GENERATOR 24V80A<7YN> (C) IMA	8-97350-997-0	01	1	1304-
100	RUBBER; MTG EXC. VIN MODEL YEAR 2011<VZB> IMA	1-09337-027-0	06	1	1304-
232	COLLAR; DIST,CUSHION RUBBER EXC. VIN MODEL YEAR 2011<VZB> THA	8-98141-232-0	02	1	1404-1411
232	COLLAR; DIST,CUSHION RUBBER THA	8-98141-232-0	02	1	1412-
232	COLLAR; DIST,CUSHION RUBBER THA	1-87410-723-0	02	1	1304-1403
232	COLLAR; DIST,CUSHION RUBBER VIN MODEL YEAR 2011<VZB> THA	1-87410-723-0	02	1	1404-1411
267	RUBBER; CUSHION THA	1-21467-023-0	02	1	1304-
427	CLIP; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB> IMA	1-09470-009-0	01	1	1304-
536	SHROUD; FAN EXC. VIN MODEL YEAR 2011<VZB> IMA	8-97350-995-0	01	1	1304-

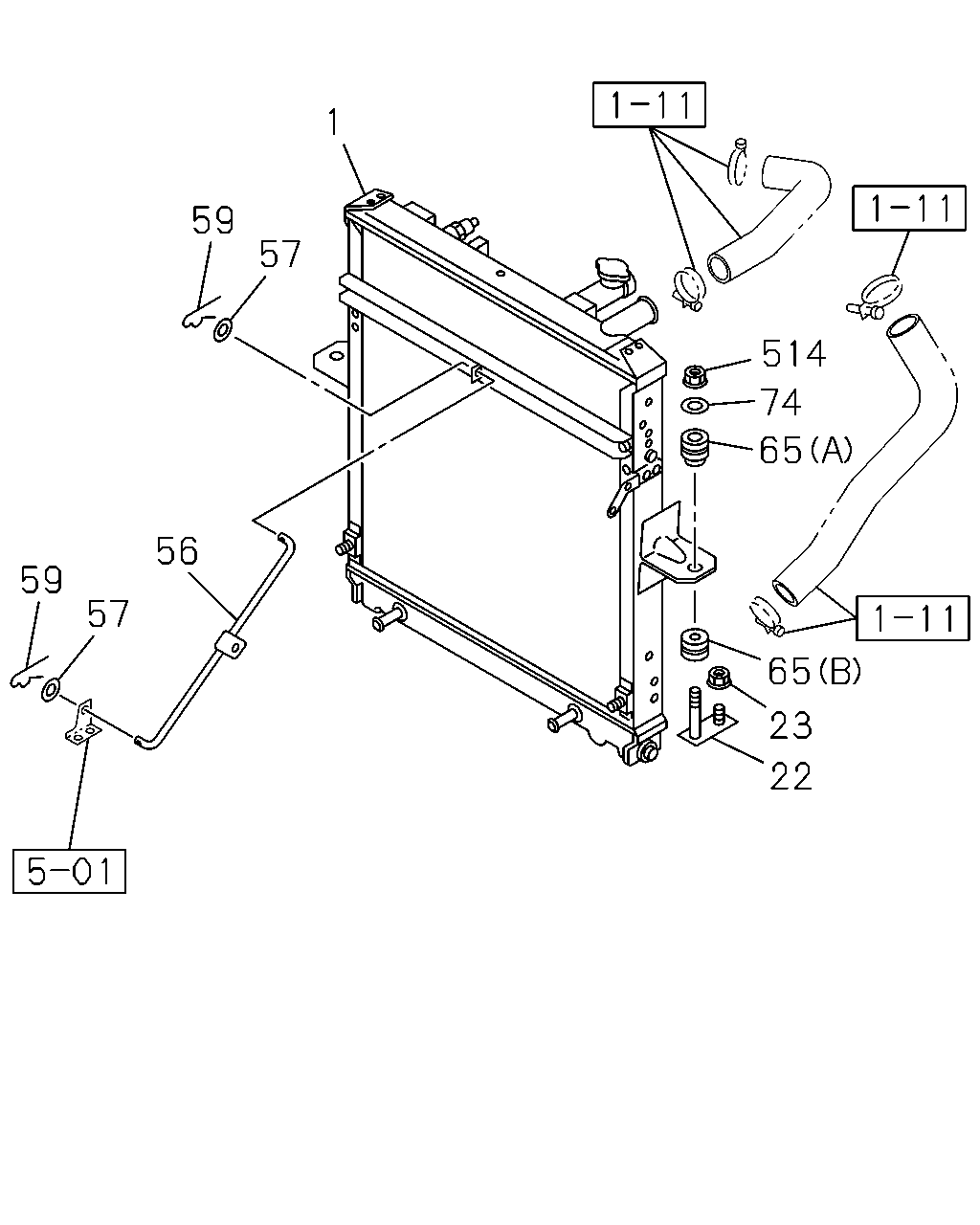

514 65 74 65 23 22 56 57 59 59 57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98174-420-0	01	1	1304-1411
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB>	8-98301-164-0	01	1	1412-
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB>	8-98046-661-0	01	1	1304-1403
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB> IMA	8-97948-953-0	01	1	1404-
22	BRACKET; RAD MTG IMA	8-97330-527-1	02	1	1304-
23	NUT; RAD MTG M8 FLANGE THA	0-91180-108-0	02	1	1304-
56	STAY; RAD IMA	8-98049-051-0	01	1	1304-
57	WASHER; PL,STAY ID=10.5 IMA	0-91610-510-0	02	1	1304-
59	PIN; SNAP,STAY L=32.6 IMA	8-97359-052-0	02	1	1304-
65	INSULATOR; RAD (A) IMA	8-94249-346-0	02	1	1304-
65	INSULATOR; RAD (B) IMA	8-94249-347-0	02	1	1304-
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36 IMA	8-97359-049-1	02	1	1304-
514	NUT; RAD M8 FLANGE THA	0-91180-108-0	02	1	1304-
