◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#119851) — 16 parça

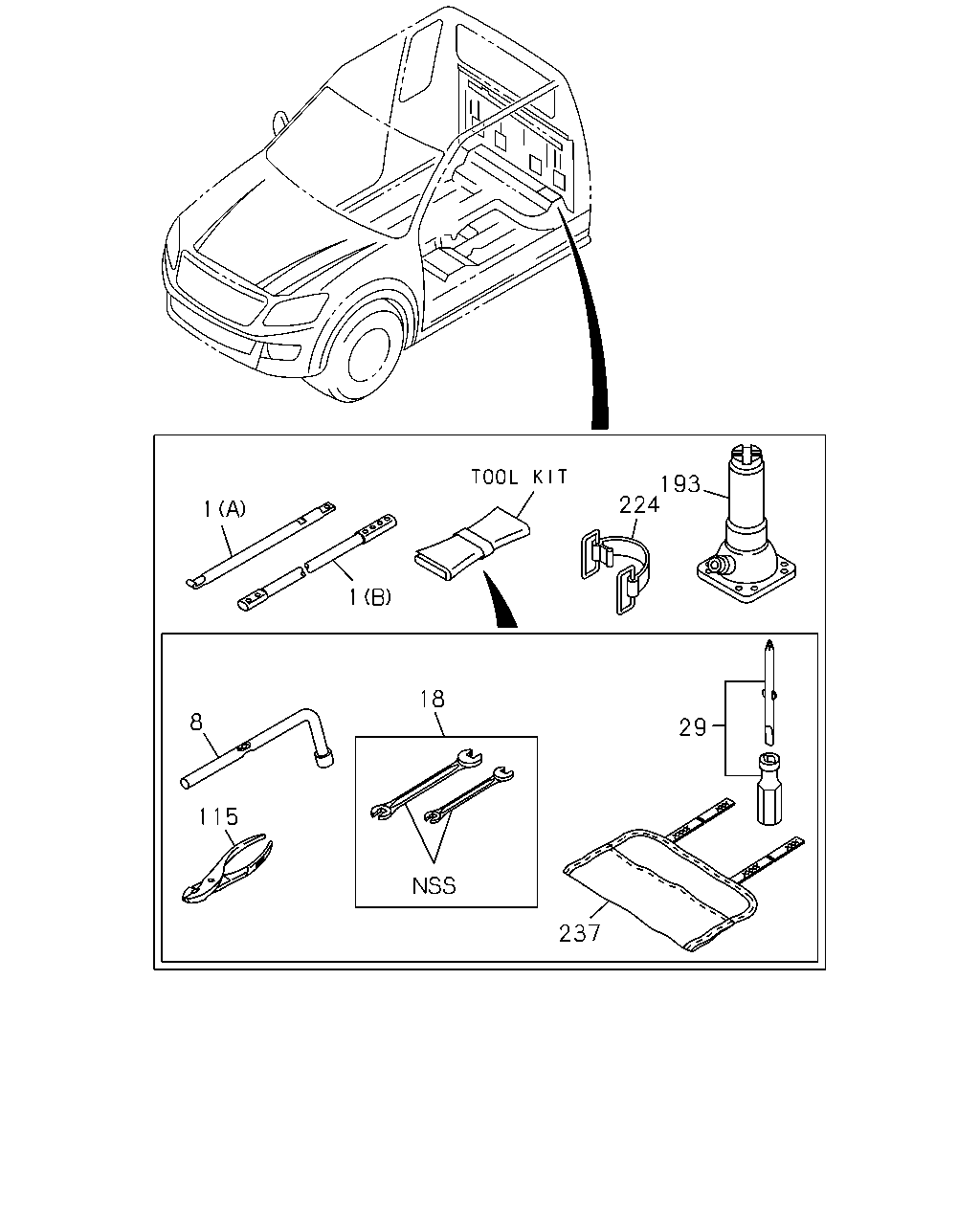

çizim 352115
1 1 224 193 29 237 18 115 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-98153-978-0 01 1 1305- ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		8-98153-999-0 03 1 1305- ● ● ● ●
8 WRENCH; WHEEL
L=19 		8-98027-834-0 01 1 1305- ● ● ● ●
18 WRENCH KIT
8X10,12X14 		8-97945-273-0 01 1 1305- ● ● ● ●
29 DRIVER; SCREW 8-98027-833-0 01 1 1305- ● ● ● ●
115 PLIER 8-98099-659-0 01 1 1305- ● ● ● ●
193 JACK ASM 8-98154-177-1 01 1 1305-1312 ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98154-177-1 01 1 1305-1312 ●
193 JACK ASM 8-98269-208-0 01 1 1401- ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98269-208-0 01 1 1401- ●
193 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-98162-092-1 01 1 1305-1312 ●
193 JACK ASM 8-98162-092-1 01 1 1305-1312 ● ●
193 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-98269-209-0 01 1 1401- ●
193 JACK ASM 8-98269-209-0 01 1 1401- ● ●
224 BAND; RUBBER,JACK 8-98178-626-0 01 1 1305- ● ● ● ●
237 BAG; TOOL 8-97945-395-0 01 1 1305- ● ● ● ●
