Sayfa 2-81 - Isuzu EPC

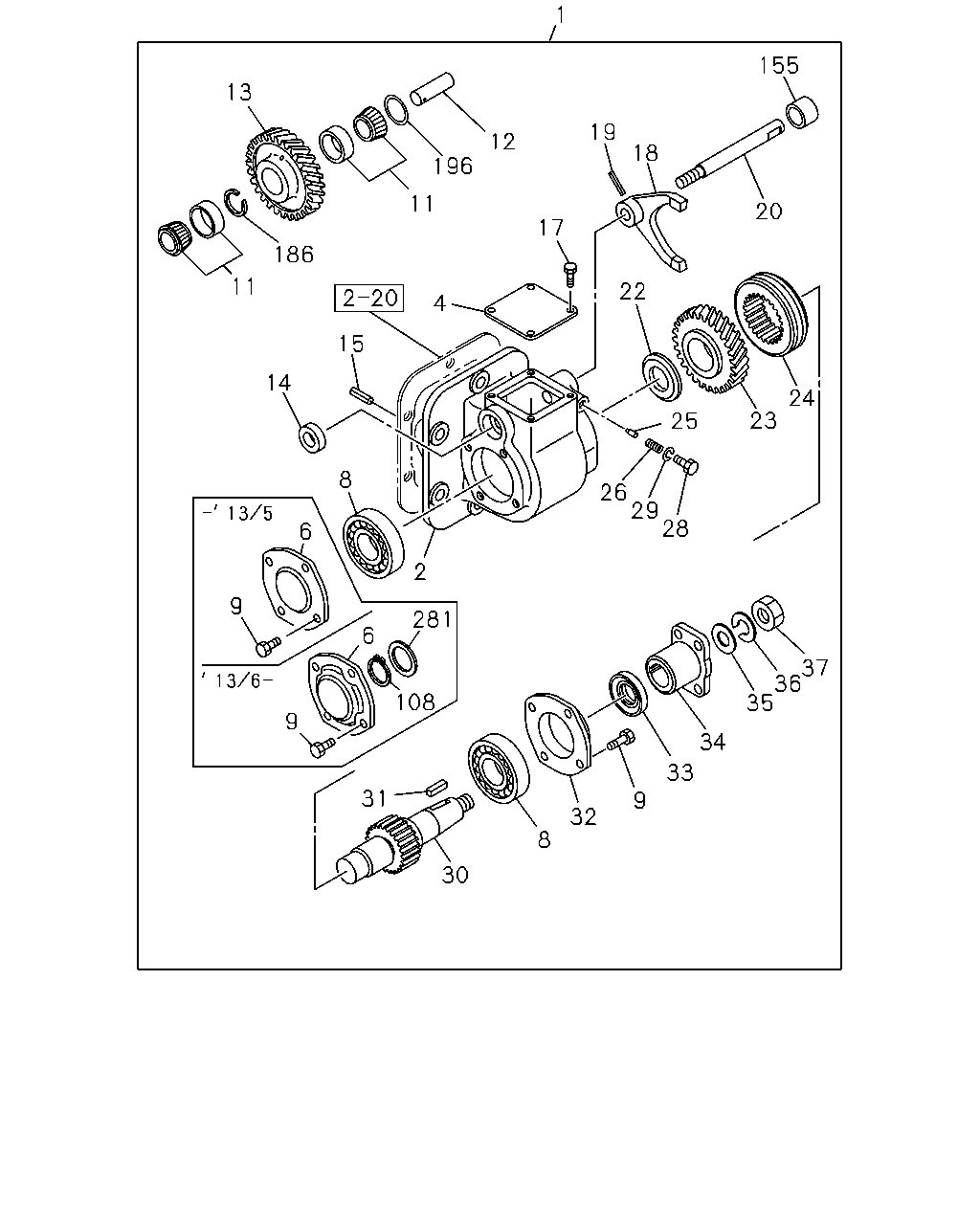

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#119850) — 123 parça

37 36 35 34 33 9 32 8 30 31 108 281 6 9 9 6 8 2 26 25 29 23 24 28 22 17 4 15 14 11 186 11 196 12 13 19 20 155 18 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NO IDENTIFICATION	8-98047-033-0	01	1	1304-	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG	8-98223-523-0	01	1	1304-1305		●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG	8-98233-783-1	01	1	1306-		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97308-689-2	01	1	1304-1409		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98282-381-0	01	1	1410-		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-239-1	01	1	1304-	●
4	COVER; UPR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-613-0	01	1	1304-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98233-778-0	01	1	1306-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-612-0	01	1	1304-1305	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-612-0	01	1	1306-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=25 OD=62	8-94343-031-1	02	1	1304-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97106-734-0	02	1	1304-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98068-087-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-38211-606-0	01	1	1304-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-817-0	01	1	1304-	●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=31	8-97308-700-0	01	1	1304-		●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=36	8-97305-810-0	01	1	1304-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98028-789-0	01	1	1304-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09625-358-0	01	1	1304-	●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=16	9-09878-613-0	01	1	1304-		●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=20 OD=4	9-09678-514-0	01	1	1304-	●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA	0-28050-820-0	04	1	1304-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97224-702-0	01	1	1304-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98009-081-0	01	1	1304-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 OD=5	8-94135-771-0	01	1	1304-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97306-596-0	01	1	1304-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-623-0	01	1	1304-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-934-0	01	1	1304-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-38245-603-1	01	1	1304-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98068-086-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=27	8-98120-609-0	01	1	1304-		●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=26	8-97305-798-0	01	1	1304-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97231-316-1	01	1	1304-		●
25	PIN; LK,SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-94169-071-0	01	1	1304-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-09940-380-0	01	1	1304-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-246-0	01	1	1304-	●
28	BOLT; SPRING,SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8	8-98038-424-0	01	1	1304-		●
29	WASHER; LK,SPRING,SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2 THA	0-91510-808-0	01	1	1304-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97374-129-1	01	1	1304-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98223-518-0	01	1	1304-1305		●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98233-777-0	01	1	1306-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25	8-98068-088-0	01	1	1304-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-794-0	01	1	1304-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-38159-007-0	01	1	1304-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98223-519-0	01	1	1304-		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=15 IMA	0-91610-514-0	01	1	1304-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2 IMA	0-91510-814-0	01	1	1304-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14 IMA	0-91111-514-0	01	1	1304-	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=23.2 IMA	9-09180-025-0	01	1	1306-		●
155	PLUG; SHIFTER ROD 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98037-770-0	01	1	1304-		●
155	PLUG; SHIFTER ROD 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-248-0	01	1	1304-	●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97106-730-0	01	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.50	8-97106-724-0	02	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.60	8-97106-725-0	02	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.65	8-97106-726-0	02	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.70	8-97106-727-0	02	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.80	8-97106-728-0	02	1	1304-		●
196	PIECE; THRUST 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.85	8-97106-729-0	02	1	1304-		●
281	SHIM; OUTPUT SHAFT 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> T=1.85	8-97106-729-0	01	1	1306-		●

9 37 36 35 32 33 8 30 14 49 2 49 49 155 65 59 61 58 53 58 51 8 6 31 23 22 15 50 13 55 55 12 11 64 54 53 52 63 205 50 56 20 21 1 26 51 66 19 18 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NO IDENTIFICATION	8-98047-033-0	01	1	1304-	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG	8-98223-523-0	01	1	1304-1305		●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IDENTIFICATION=YG	8-98233-783-1	01	1	1306-		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97308-689-2	01	1	1304-1409		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98282-381-0	01	1	1410-		●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-239-1	01	1	1304-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98233-778-0	01	1	1306-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-612-0	01	1	1304-1305	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-612-0	01	1	1306-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=25 OD=62	8-94343-031-1	02	1	1304-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE THA	0-28050-820-0	08	1	1304-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NSK	8-97106-734-0	02	1	1304-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98068-087-0	01	1	1304-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-38211-606-0	01	1	1304-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-817-0	01	1	1304-	●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=31	8-97308-700-0	01	1	1304-		●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=36	8-97305-810-0	01	1	1304-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98028-789-0	01	1	1304-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09625-358-0	01	1	1304-	●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=16	9-09878-613-0	01	1	1304-		●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=20 OD=4	9-09678-514-0	01	1	1304-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97224-702-0	01	1	1304-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98009-081-0	01	1	1304-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 OD=5	8-94135-771-0	01	1	1304-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97306-596-0	01	1	1304-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-623-0	01	1	1304-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-934-0	01	1	1304-	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-619-0	01	1	1304-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-38245-603-1	01	1	1304-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98068-086-0	01	1	1304-	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=27	8-98120-609-0	01	1	1304-		●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=26	8-97305-798-0	01	1	1304-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-09940-380-0	01	1	1304-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-246-0	01	1	1304-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97374-129-1	01	1	1304-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98223-518-0	01	1	1304-1305		●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98233-777-0	01	1	1306-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25	8-98068-088-0	01	1	1304-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-794-0	01	1	1304-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-38159-007-0	01	1	1304-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=15 IMA	0-91610-514-0	01	1	1304-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2 IMA	0-91510-814-0	01	1	1304-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14 IMA	0-91111-514-0	01	1	1304-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98037-773-0	03	1	1304-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	1-38226-058-1	01	1	1304-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-818-0	01	1	1304-	●
51	RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=6 IMA	0-91805-506-0	01	1	1304-	●
51	RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=8	0-91805-508-0	01	1	1304-	●
52	LEVER; CONT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98049-416-0	01	1	1304-	●
53	BUSHING; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09330-023-0	02	1	1304-	●
54	COLLAR; DIST,CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-38321-003-1	01	1	1304-	●
55	PLATE; LEVER JOINT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-938-0	02	1	1304-	●
56	PIN; PLATE TO LVR & ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98046-942-0	01	1	1304-	●
58	WASHER; PL,CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.5 IMA	0-91610-510-0	02	1	1304-	●
59	PIN; PTO CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	0-82154-025-0	01	1	1304-	●
61	WASHER; LK,CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.2 IMA	0-91510-810-0	01	1	1304-	●
63	BRACKET; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98049-415-0	01	1	1304-	●
64	BOLT; CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X60 FLANGE THA	0-28051-060-0	01	1	1304-	●
65	NUT; CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 THA	0-91110-510-0	01	1	1304-	●
66	BALL; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-00097-009-0	01	1	1304-	●
155	PLUG; SHIFTER ROD 4HK1-TCN ENG<RDQ> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98037-770-0	01	1	1304-		●
155	PLUG; SHIFTER ROD 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97309-248-0	01	1	1304-	●
205	BOLT; BRKT,PTO,TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X16 FLANGE THA	0-28151-016-0	02	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
