2-06 — CLUTCH SLAVE CYLINDER (#119847) — 16 parça

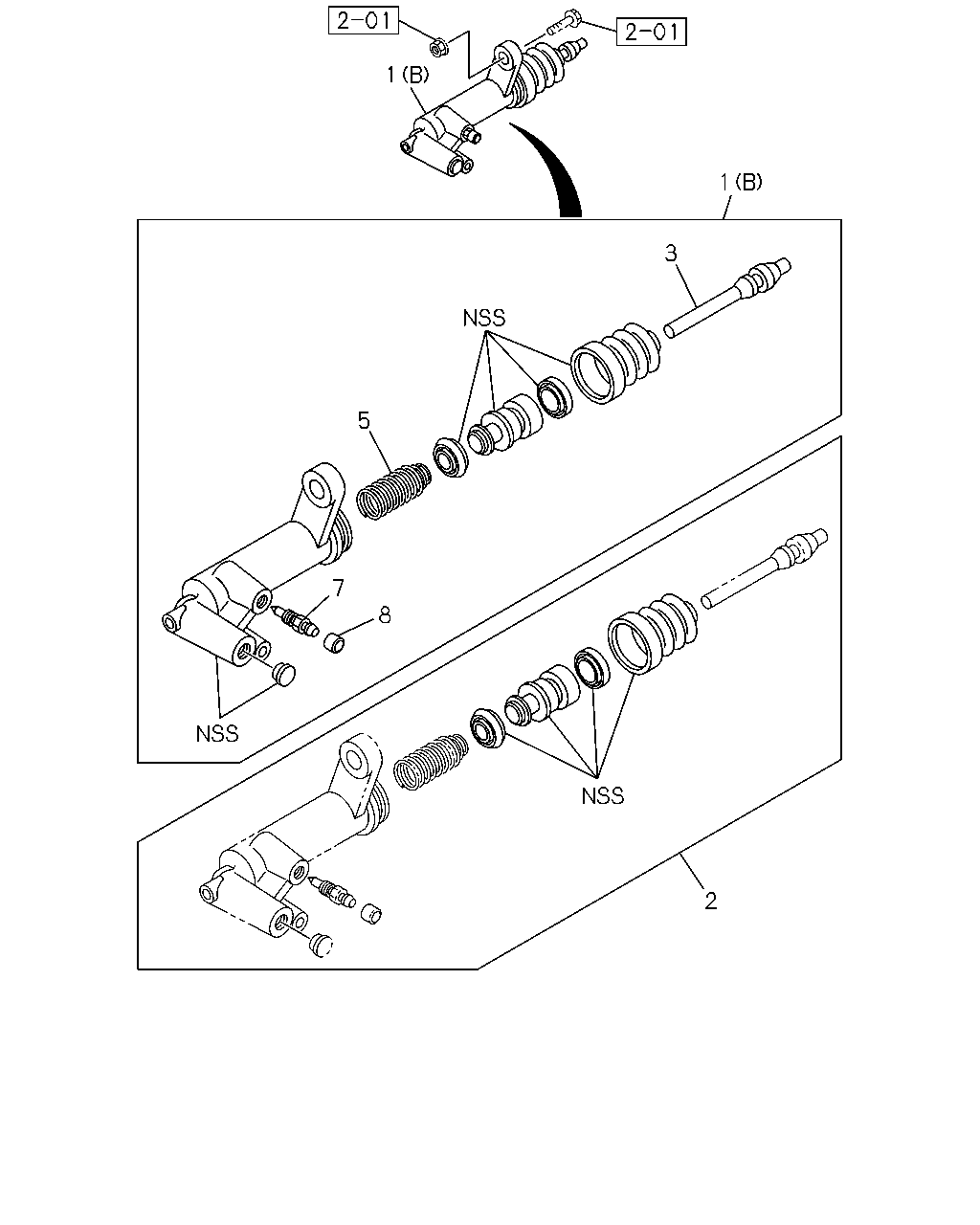

çizim 350590
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1305- ●
1 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1305- ●
1 CYLINDER; SLAVE,CLU
4X4(TFS***) (A) 		8-97946-625-1 01 1 1305- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1305- ● ●
3 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1305- ● ●
5 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1305- ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1305- ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1305- ● ●
çizim 350596
1 3 5 7 8 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1305- ●
1 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1305- ●
1 CYLINDER; SLAVE,CLU
4X4(TFS***) (A) 		8-97946-625-1 01 1 1305- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1305- ● ●
3 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1305- ● ●
5 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1305- ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1305- ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1305- ● ●
