8-50 — AIR CONDITIONING SYSTEM; FRONT (#119846) — 30 parça

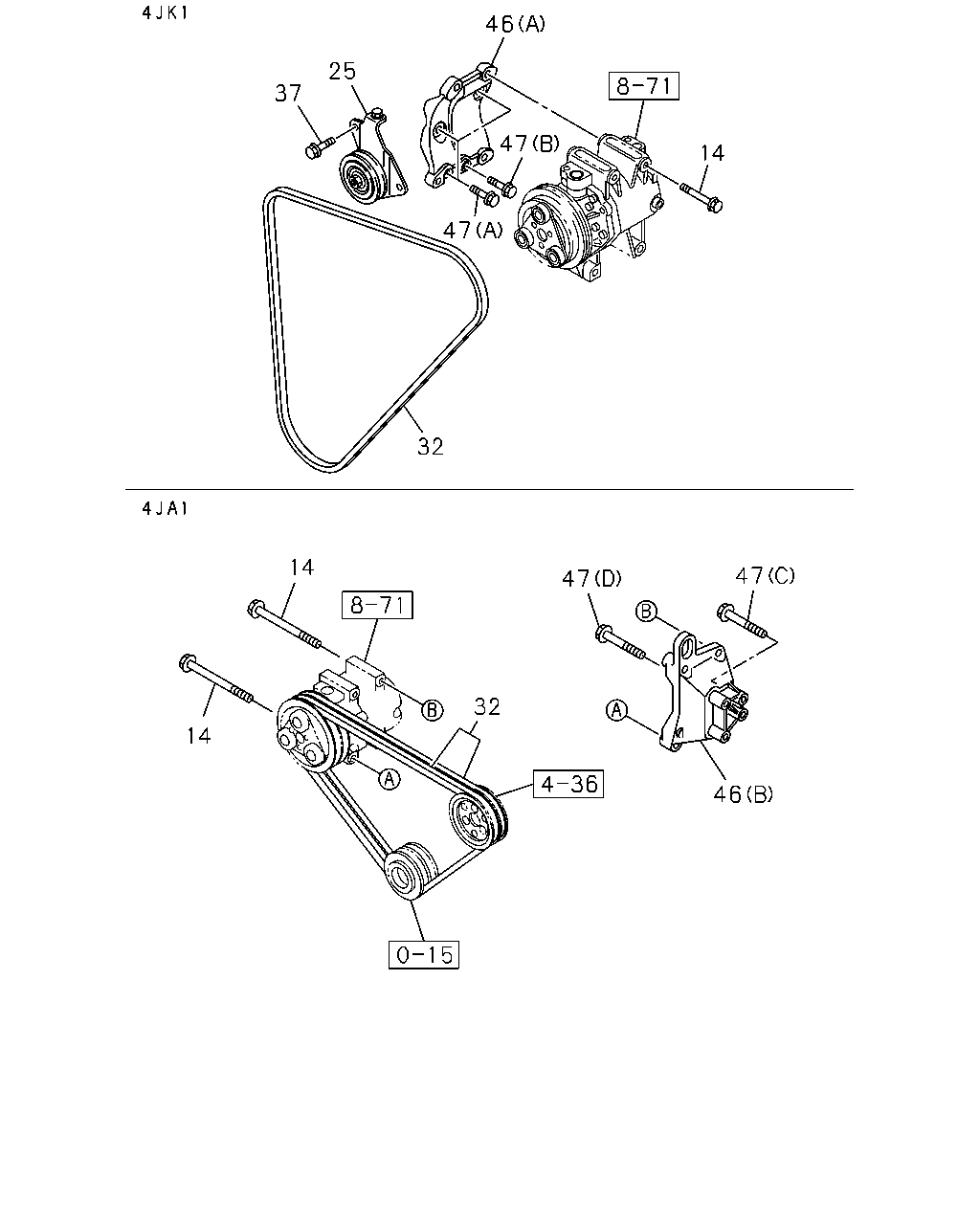

çizim 351752
14 46 25 47 47 37 32 14 47 47 46 32 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 BOLT; CMPR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M10X100 FLANGE 		0-28151-000-0 04 1 1305- ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98130-204-0 01 1 1305- ● ●
25 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98130-204-0 01 1 1305- ●
32 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 1305- ● ●
32 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 1305- ● ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1305- ● ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1305- ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1445 BANDO 		8-97985-122-0 01 1 1305- ● ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) L=1445 BANDO 		8-97985-122-0 01 1 1305- ●
37 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X16 FLANGE 		0-28050-816-0 02 1 1305- ● ●
37 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
46 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-563-0 01 1 1305- ●
46 BRACKET; CMPR
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97358-563-0 01 1 1305- ●
46 BRACKET; CMPR
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98039-618-0 01 1 1305- ● ●
46 BRACKET; CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98039-618-0 01 1 1305- ●
47 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (C) M8X40 FLANGE 		0-28050-840-0 02 1 1305- ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (D) M10X45 FLANGE 		0-28051-045-0 02 1 1305- ● ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1305- ● ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1305- ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1305- ● ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1305- ●
çizim 352717
99 262 262 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
99 BOLT; BRKT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M6X16 FLANGE 		0-28650-616-0 02 1 1305- ● ● ● ●
262 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98103-644-0 01 1 1305- ● ● ● ●
262 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98103-645-0 01 1 1305- ● ● ● ●
çizim 352721
211 199 78 378 211 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
69 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) ID=10.5 OD=22 		0-91614-610-0 01 1 1305- ● ● ● ●
78 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1305- ● ●
199 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) M10 FLANGE 		0-91180-110-0 01 1 1305- ● ● ● ●
211 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B) 		8-98173-569-0 01 1 1305- ● ● ● ●
211 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1) (A) ID=22 L=35 		8-97375-643-0 01 1 1305- ● ●
378 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1305- ● ● ● ●
