Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#119845) — 73 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

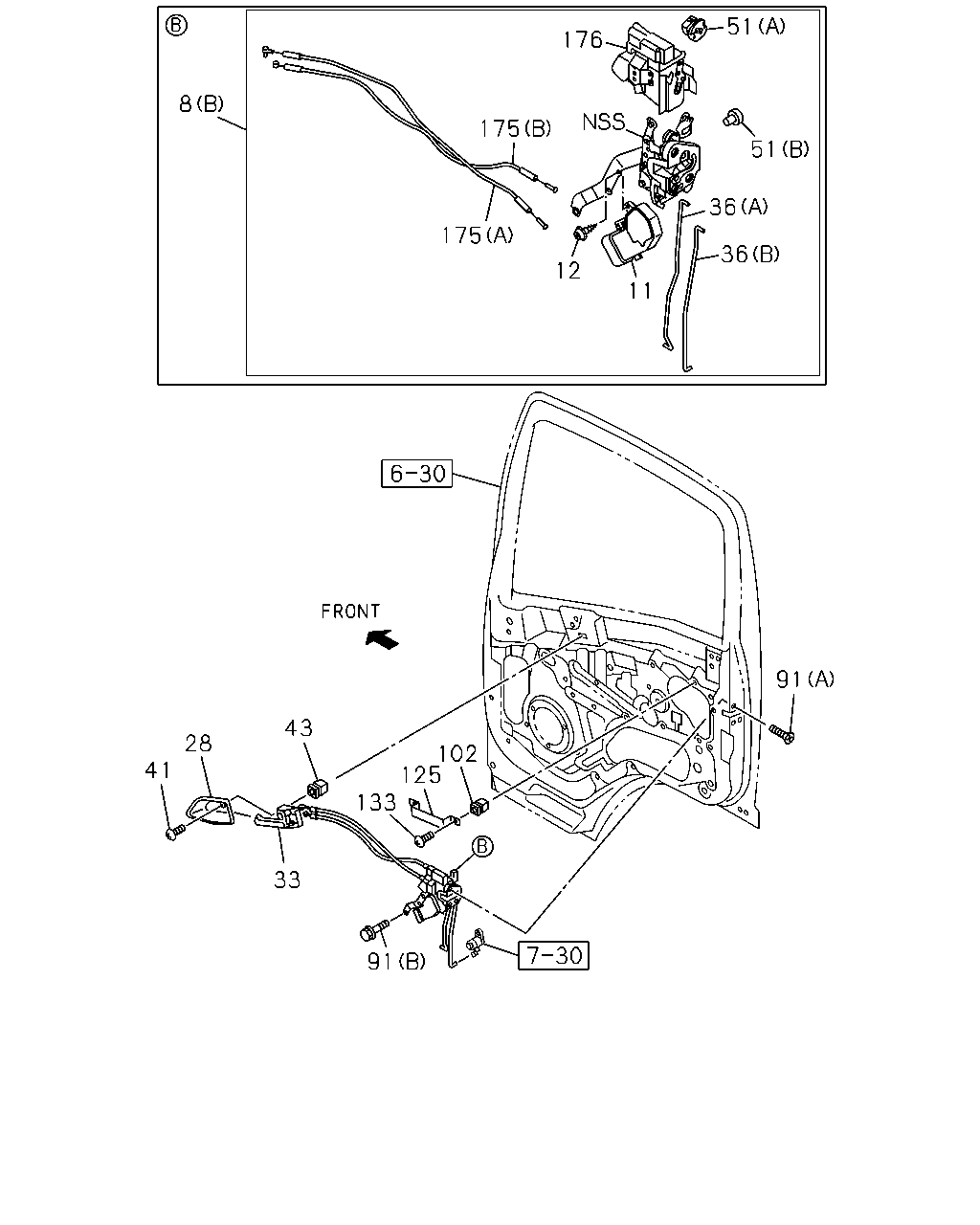

[632A] NO.2 GXZ (33 parça)
[632A] NO.3 (10 parça)
[632A] NO.1 FXZ (30 parça)
▶
51
51
36
36
11
12
175
175
176
8
28
41
43
125
133
102
91
33
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
LOCK; DOOR,FRT DOOR
(A)
8-98029-053-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(A)
8-98029-052-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(B)
8-98029-055-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(B)
8-98029-054-3
01
1
1305-
●
11
ACTUATOR; DOOR LK,FRT
8-98058-231-0
01
1
1305-
●
11
ACTUATOR; DOOR LK,FRT
8-98058-234-0
01
1
1305-
●
12
SCREW; DOOR LK
THA
8-97310-549-0
04
1
1305-
●
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-312-0
01
1
1305-
●
●
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-311-0
01
1
1305-
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97405-310-1
01
1
1305-
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97405-309-1
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(A)
8-98058-532-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(B)
8-98058-536-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(A)
8-98058-531-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(B)
8-98058-535-0
01
1
1305-
●
●
41
SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
02
1
1305-
●
●
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-227-0
02
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-226-0
02
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-229-0
01
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-228-0
01
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-227-0
01
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-226-0
01
1
1305-
●
91
BOLT; DOOR LOCK
(A) M6X14.5 THA
8-98004-342-0
06
1
1305-
●
●
91
BOLT; DOOR LOCK
(B) M6X10 FLANGE THA
0-28050-610-0
02
1
1305-
●
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1305-
●
●
125
BRACKET; DOOR PULL
8-97585-927-0
02
1
1305-
●
●
133
SCREW; DOOR PULL STAY
T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(B)
8-98058-539-0
02
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(A)
8-98058-538-0
01
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(A)
8-98058-537-0
01
1
1305-
●
●
176
COVER; DOOR LOCK
THA
8-98058-239-0
01
1
1305-
●
●
176
COVER; DOOR LOCK
THA
8-98058-238-0
01
1
1305-
●
●

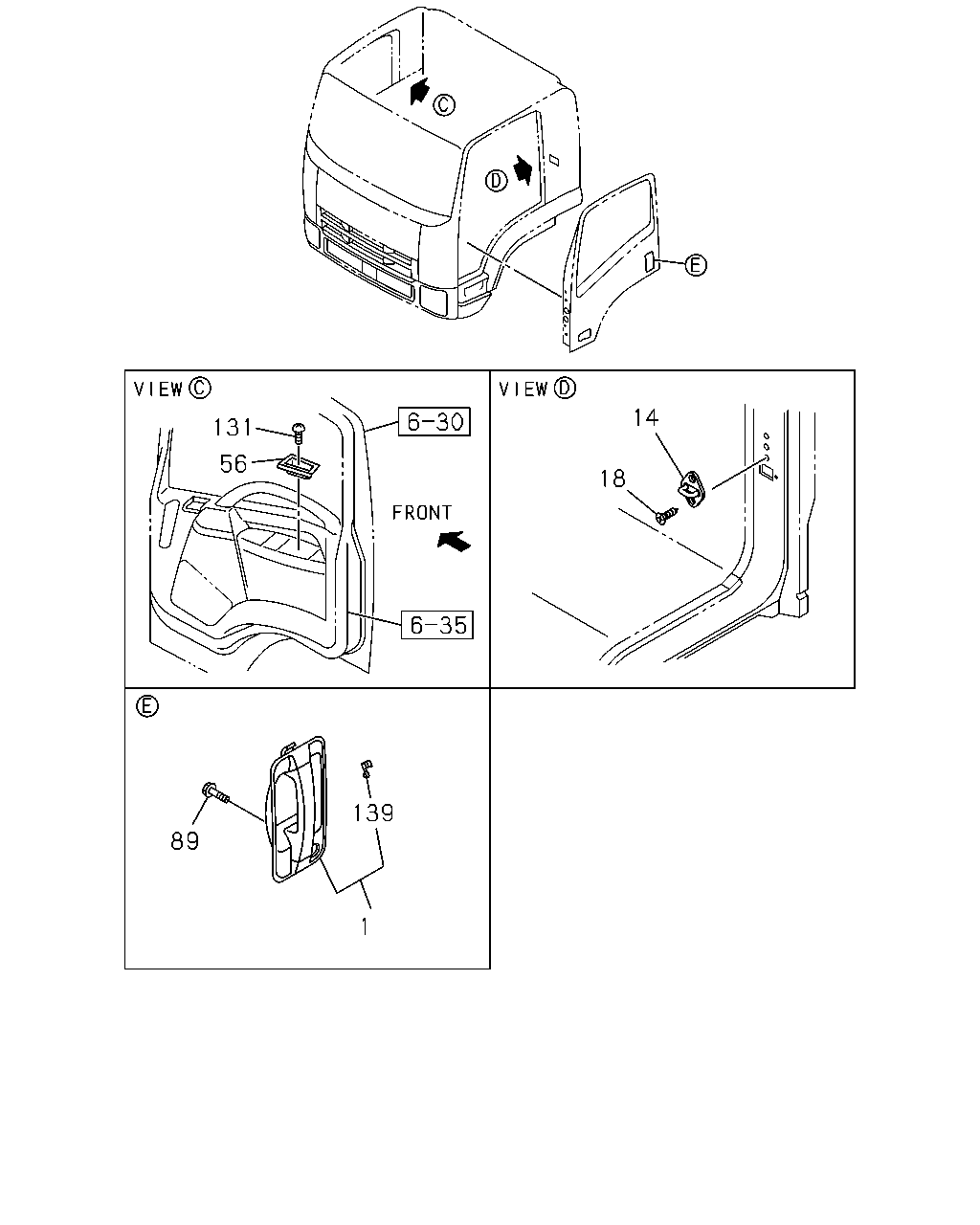

14
18
56
131
89
139
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANDLE; OUTSIDE,FRT DOOR
8-98037-100-2
01
1
1305-
●
●
1
HANDLE; OUTSIDE,FRT DOOR
8-98037-101-2
01
1
1305-
●
●
14
STRIKER; FRT DOOR
8-98029-173-2
02
1
1305-
●
●
18
SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
1305-
●
●
56
ESCUTCHEON; LOCK KNOB
GRAY
8-97405-314-1
01
1
1305-
●
●
56
ESCUTCHEON; LOCK KNOB
GRAY
8-97405-315-1
01
1
1305-
●
●
89
BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE THA
0-28050-610-0
04
1
1305-
●
●
131
SCREW; ESCUTCHEON,DOOR PULL
T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
02
1
1305-
●
●
139
HOLDER; ROD,DOOR HANDLE
WHITE
8-97333-303-0
01
1
1305-
●
●
139
HOLDER; ROD,DOOR HANDLE
BLACK
8-98095-813-0
01
1
1305-
●
●

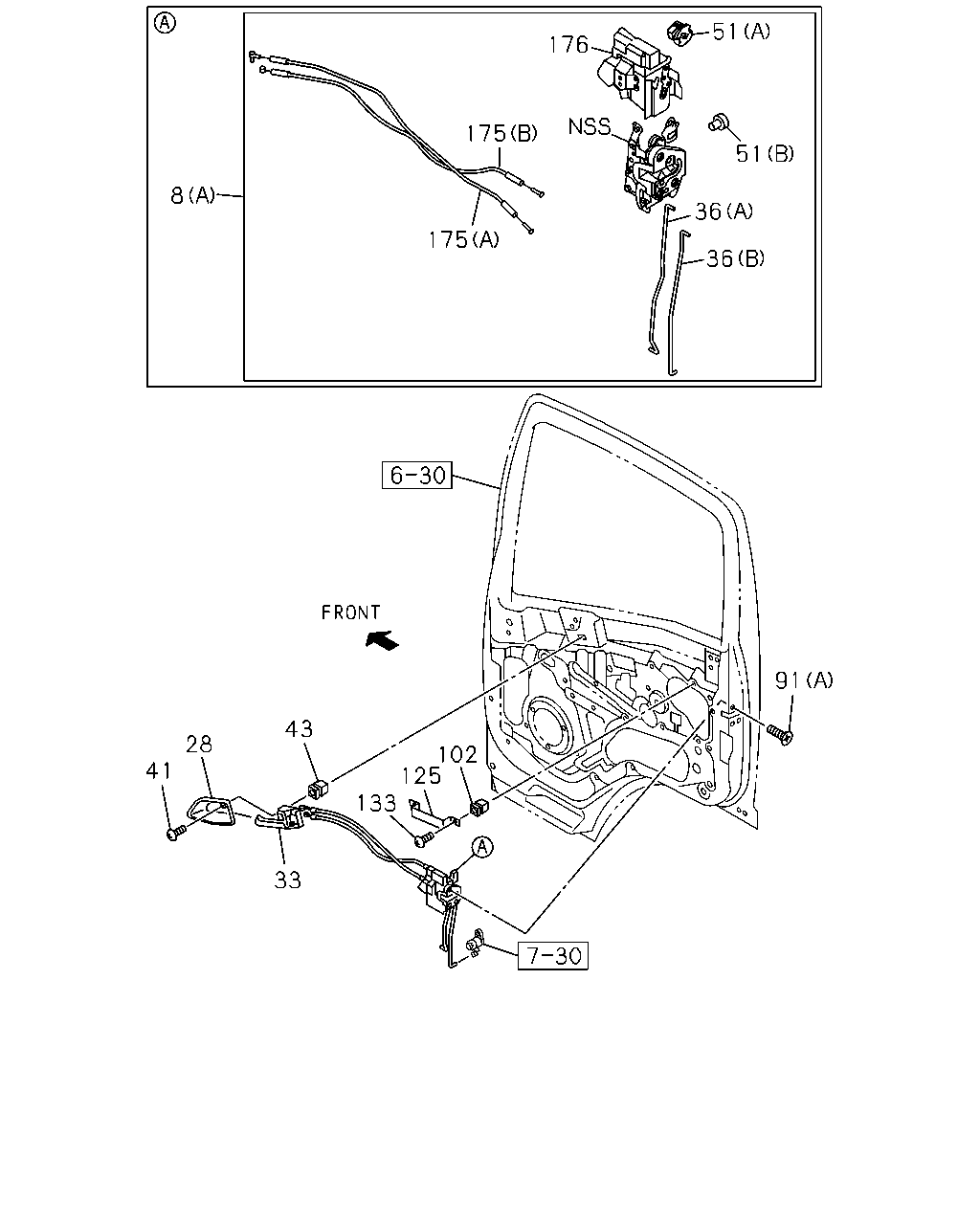

8
176
175
175
51
51
36
36
41
28
43
33
133
125
102
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
LOCK; DOOR,FRT DOOR
(A)
8-98029-053-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(A)
8-98029-052-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(B)
8-98029-055-2
01
1
1305-
●
8
LOCK; DOOR,FRT DOOR
(B)
8-98029-054-3
01
1
1305-
●
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-312-0
01
1
1305-
●
●
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY
8-97405-311-0
01
1
1305-
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97405-310-1
01
1
1305-
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97405-309-1
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(A)
8-98058-532-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(B)
8-98058-536-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(A)
8-98058-531-0
01
1
1305-
●
●
36
LINK; DOOR LOCK,OUTSIDE
(B)
8-98058-535-0
01
1
1305-
●
●
41
SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
02
1
1305-
●
●
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-227-0
02
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-226-0
02
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-229-0
01
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-228-0
01
1
1305-
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-227-0
01
1
1305-
●
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-226-0
01
1
1305-
●
91
BOLT; DOOR LOCK
(A) M6X14.5 THA
8-98004-342-0
06
1
1305-
●
●
91
BOLT; DOOR LOCK
(B) M6X10 FLANGE THA
0-28050-610-0
02
1
1305-
●
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1305-
●
●
125
BRACKET; DOOR PULL
8-97585-927-0
02
1
1305-
●
●
133
SCREW; DOOR PULL STAY
T25 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(B)
8-98058-539-0
02
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(A)
8-98058-538-0
01
1
1305-
●
●
175
CABLE ASM; LOCK CONTROL
(A)
8-98058-537-0
01
1
1305-
●
●
176
COVER; DOOR LOCK
THA
8-98058-239-0
01
1
1305-
●
●
176
COVER; DOOR LOCK
THA
8-98058-238-0
01
1
1305-
●
●
