◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#119844) — 156 parça

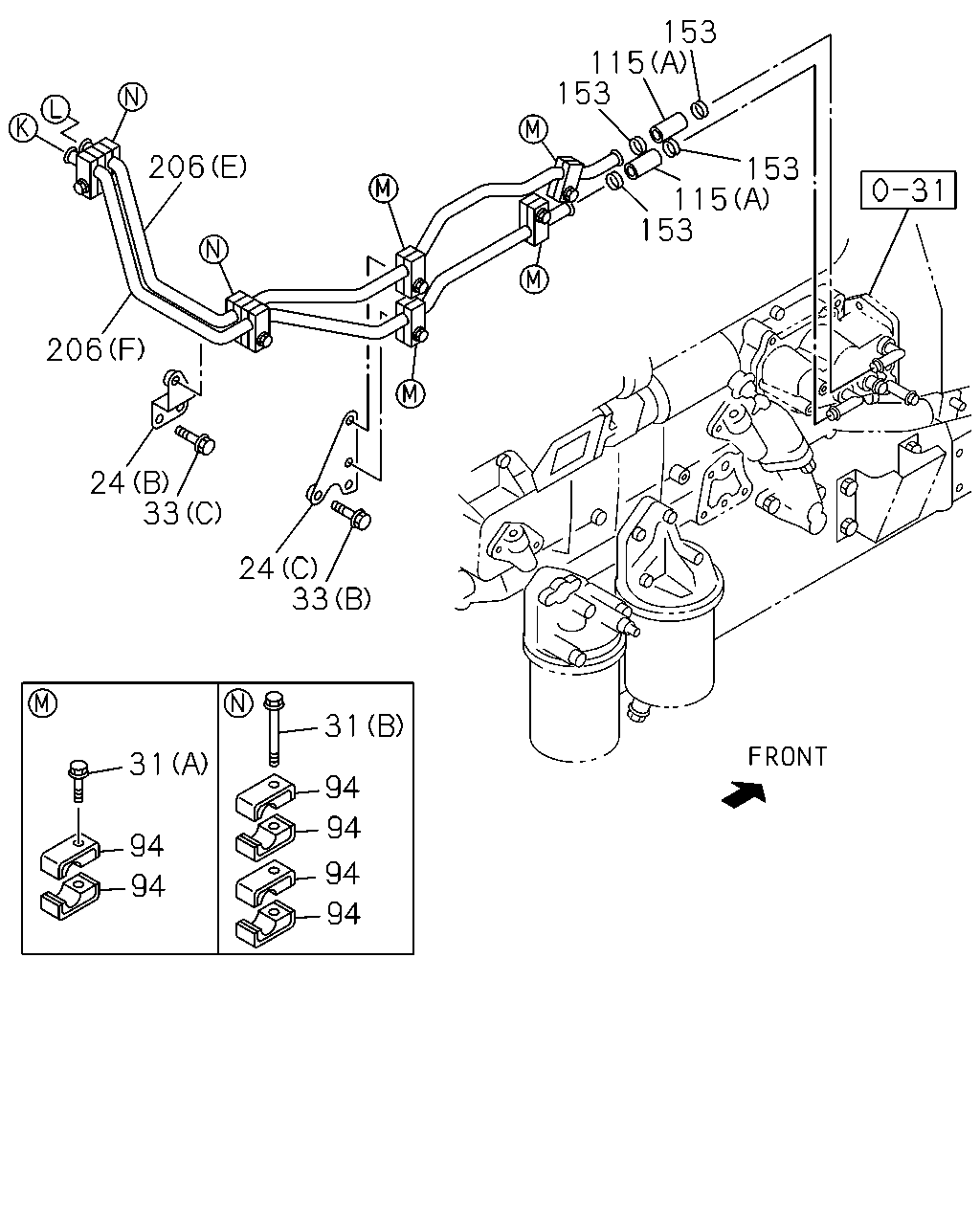

çizim 350226
153 115 153 153 115 153 206 206 24 24 33 33 31 31 94 94 94 94 94 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(A) 		8-97640-528-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(F) 		8-97640-851-0 01 1 1305- ● ●
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1305- ● ●
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1305- ● ●
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1305- ● ●
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1305- ● ●
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1305- ● ●
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1305- ● ●
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1305- ● ●
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1305- ● ●
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1305- ● ●
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1305- ● ●
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1305- ● ●
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1305- ● ●
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1305- ● ●
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1305- ● ●
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1305- ● ●
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97640-526-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-97640-527-0 01 1 1305- ● ●

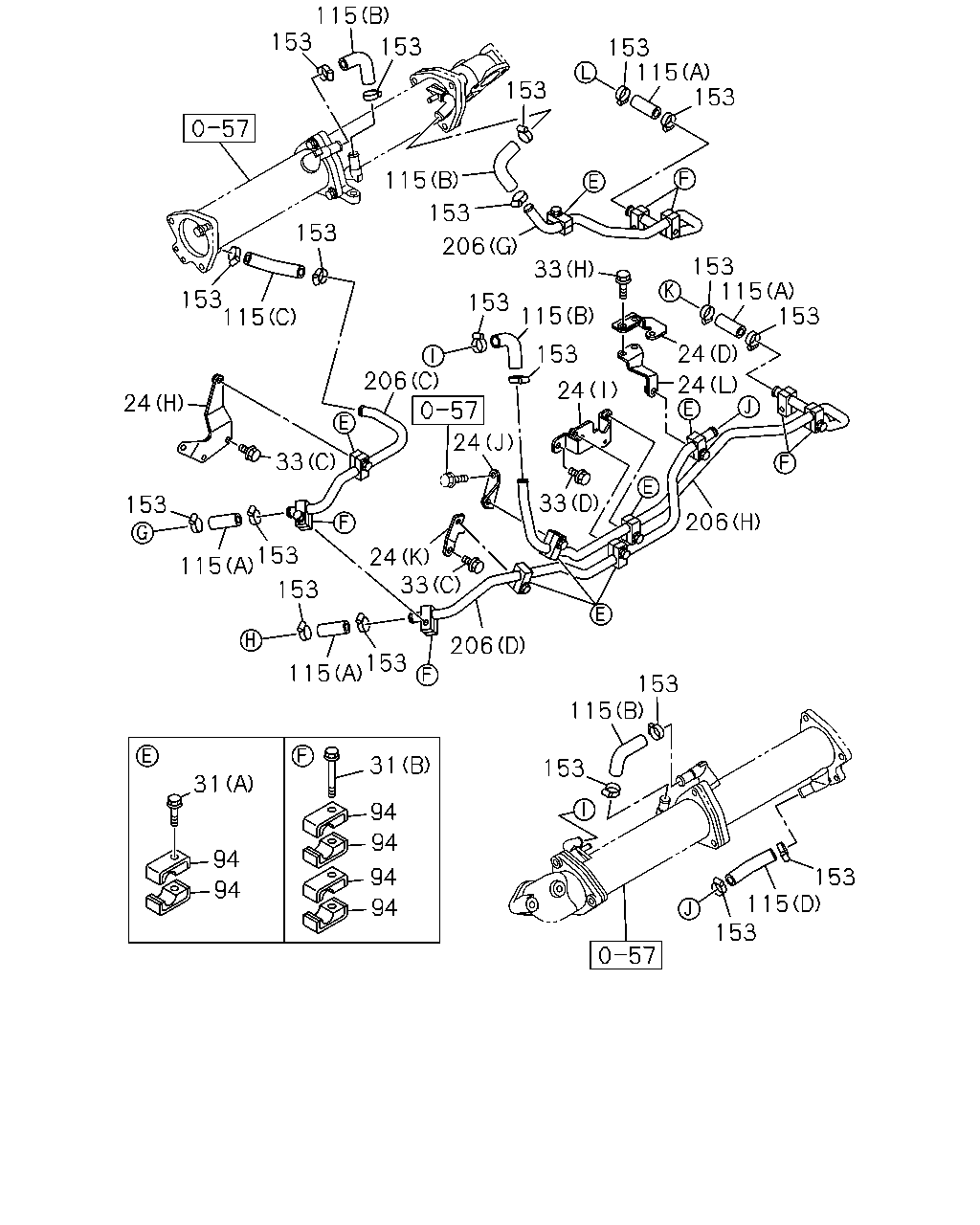

çizim 350642
115 153 153 153 153 115 115 153 153 33 206 153 153 153 24 24 206 33 24 153 115 206 24 33 24 206 153 115 153 115 153 24 33 153 115 153 153 153 115 153 153 115 153 31 94 94 94 94 31 94 94 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(A) 		8-97640-528-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(F) 		8-97640-851-0 01 1 1305- ● ●
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1305- ● ●
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1305- ● ●
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1305- ● ●
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1305- ● ●
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1305- ● ●
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1305- ● ●
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1305- ● ●
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1305- ● ●
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1305- ● ●
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1305- ● ●
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1305- ● ●
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1305- ● ●
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1305- ● ●
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1305- ● ●
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1305- ● ●
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97640-526-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-97640-527-0 01 1 1305- ● ●

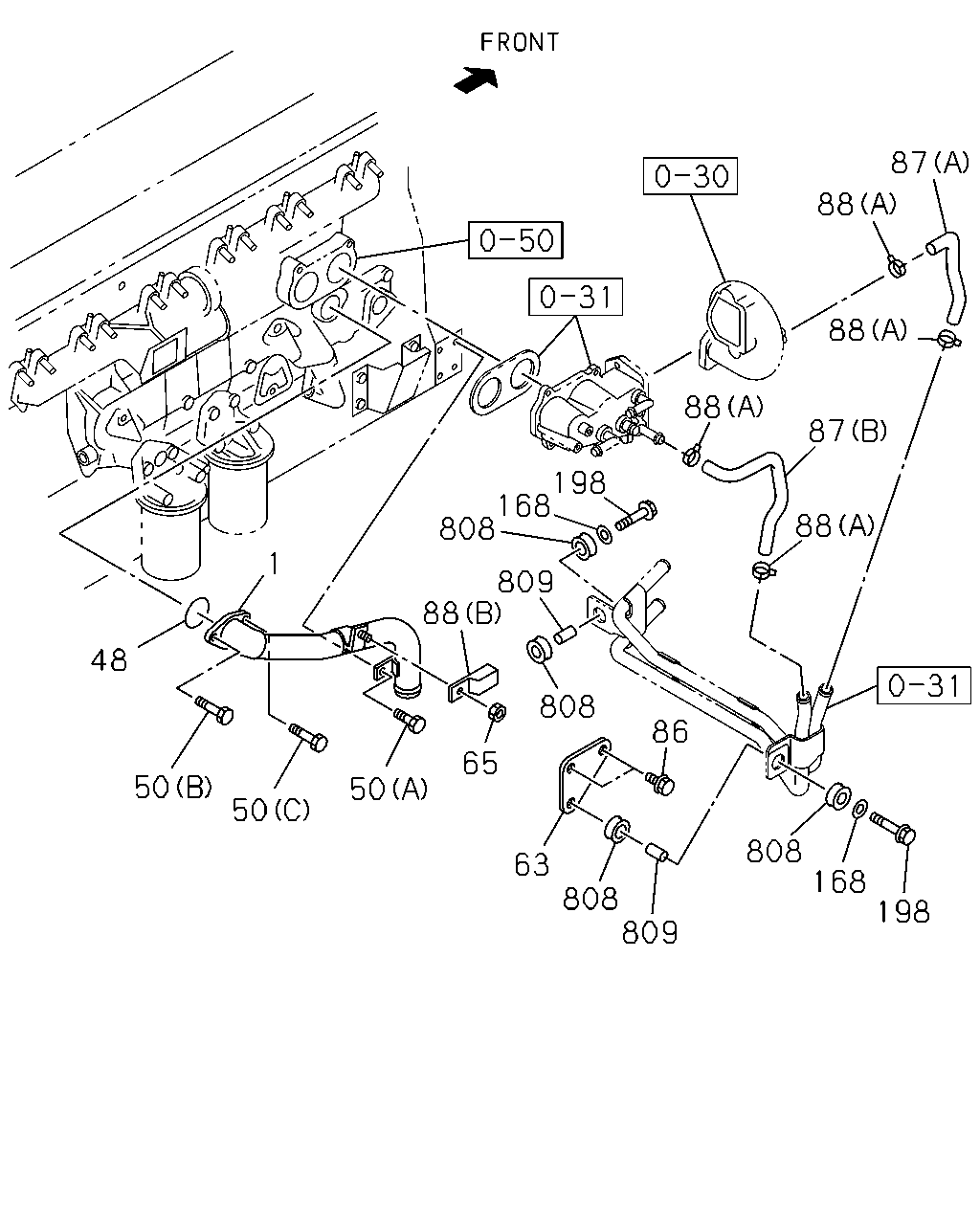

çizim 351888
87 88 88 88 87 88 198 168 808 88 808 86 808 168 198 809 808 63 65 50 50 50 48 809 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; WATER PUMP,INL 8-97606-255-2 01 1 1305- ● ●
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 1305- ● ●
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28051-090-0 01 1 1305-1306 ● ●
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28151-090-0 01 1 1307- ● ●
50 BOLT; WATER PIPE INL
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1305- ● ●
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 1305- ● ●
63 BRACKET; WATER PIPE 8-98202-988-1 01 1 1305- ● ●
65 NUT
M10 FLANGE 		0-91180-110-0 01 1 1305- ● ●
86 BOLT; BRKT,HTR PIPE
M14X25 FLANGE 		0-28951-425-0 02 1 1305- ● ●
87 HOSE; RUBBER,HTR
(B) 		1-83565-572-0 01 1 1305- ● ●
87 HOSE; RUBBER,HTR
(A) 		1-83565-577-0 01 1 1305- ● ●
88 CLIP; HOSE,HTR
(A) ID=20 		1-09707-084-1 04 1 1305- ● ●
88 CLIP; HOSE,HTR
(B) 		8-98166-024-0 01 1 1305- ● ●
168 WASHER; PL,PIPE
ID=10.5 OD=26 		0-91614-710-0 02 1 1305- ● ●
198 BOLT; PIPE
M10X50 FLANGE 		0-28051-050-0 02 1 1305- ● ●
808 RUBBER; MTG 1-09337-017-0 04 1 1305- ● ●
809 TUBE; DIST
ID=11.8 L=27 		1-21559-149-0 02 1 1305- ● ●
çizim 351918
91 90 90 91 92 91 91 90 89 91 91 90 89 91 91 91 90 90 91 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
89 PIPE; WATER,AIR CMPR,IN
(B) 		1-13722-007-0 01 1 1305- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		1-13722-008-0 01 1 1305- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 06 1 1305- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 12 1 1305- ● ●
92 PIPE; WATER,AIR CMPR,OUT 1-13722-009-0 01 1 1305- ● ●

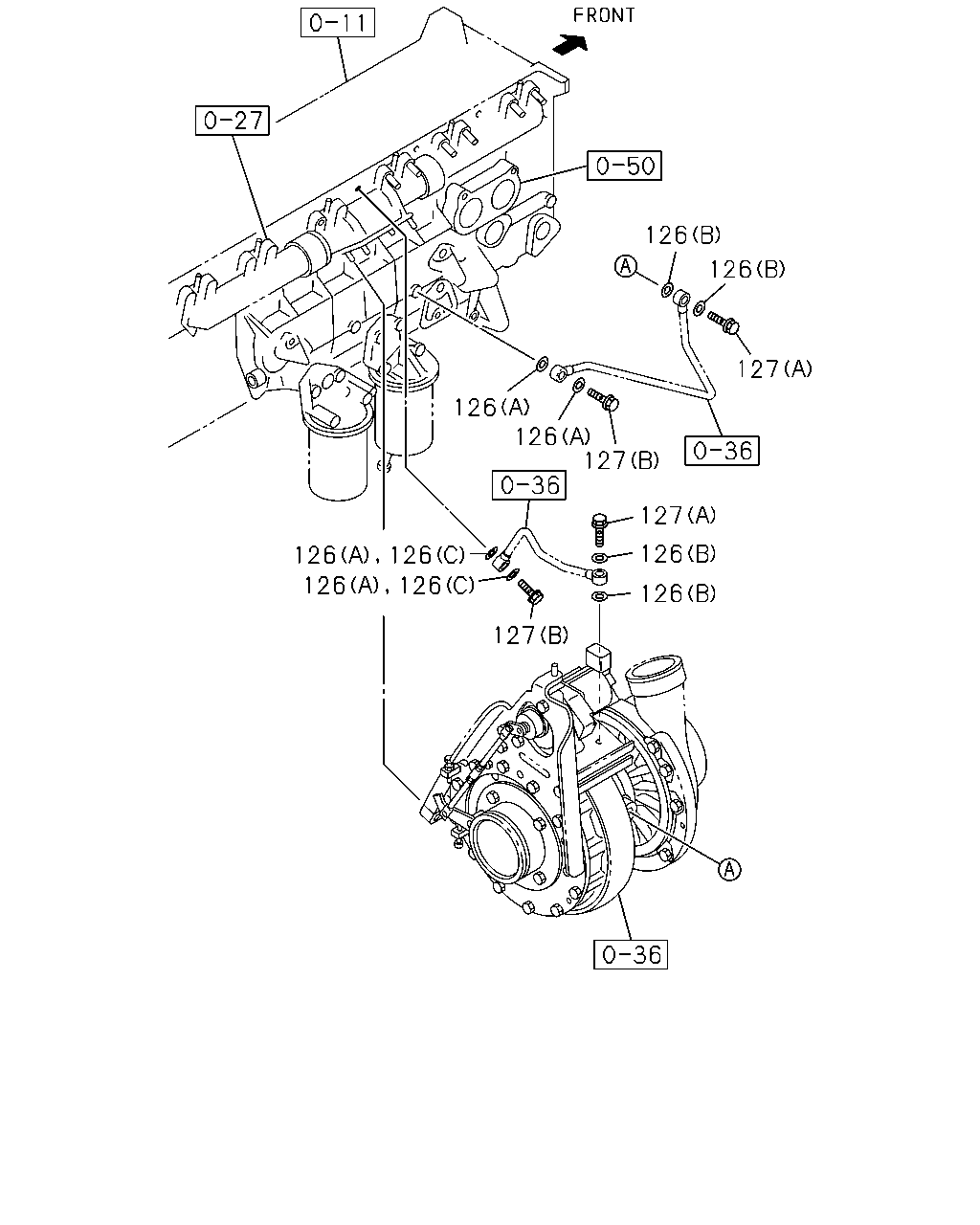

çizim 351970
126 126 127 127 126 126 127 126 126 127 126 126 126 126
BalonParca AdiParca NoAdetTipApplied Date A B
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1305-1312 ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1305- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 04 1 1305- ● ●
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 02 1 1305- ● ●
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1305- ● ●

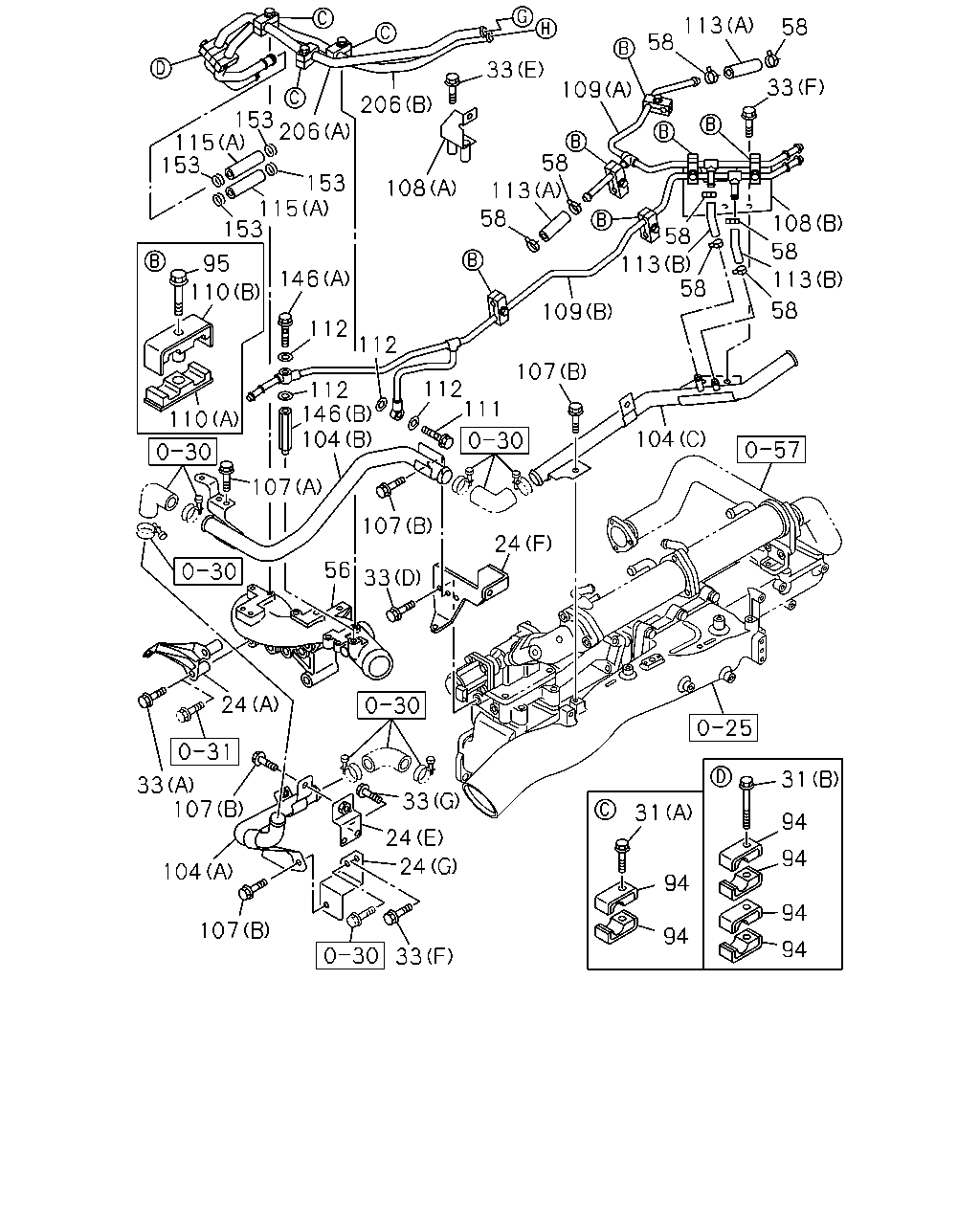

çizim 352036
153 206 206 115 153 153 115 153 108 33 109 113 58 58 33 58 108 58 113 58 58 113 58 113 58 109 107 104 111 112 112 112 146 95 110 112 110 107 104 146 24 107 33 56 24 33 24 24 104 107 33 31 31 94 94 94 94 94 94 107 33
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(A) 		8-97640-528-0 01 1 1305- ● ●
24 BRACKET; WATER PIPE
(F) 		8-97640-851-0 01 1 1305- ● ●
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1305- ● ●
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1305- ● ●
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1305- ● ●
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1305- ● ●
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1305- ● ●
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1305- ● ●
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1305- ● ●
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1305- ● ●
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1305- ● ●
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1305- ● ●
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 1305- ● ●
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1305- ● ●
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1305- ● ●
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 06 1 1305- ● ●
104 PIPE; WATER CHARGE
(C) 		8-97640-850-2 01 1 1305- ● ●
104 PIPE; WATER CHARGE
(B) 		8-98192-816-2 01 1 1305- ● ●
104 PIPE; WATER CHARGE
(A) 		8-98192-817-0 01 1 1305- ● ●
107 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1305- ● ●
107 BOLT; WATER PIPE
(B) M10X20 FLANGE 		0-28151-020-0 04 1 1305- ● ●
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 1305- ● ●
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 1305- ● ●
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97640-818-0 01 1 1305- ● ●
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-98191-343-0 01 1 1305- ● ●
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 06 1 1305- ● ●
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 06 1 1305- ● ●
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1305- ● ●
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 05 1 1305- ● ●
113 HOSE; RUBBER,AIR LEAK
(A) L=100 SERVICED BY L=3000 		0-03559-300-0 02 1 1305- ● ●
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1305- ● ●
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1305- ● ●
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1305- ● ●
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1305- ● ●
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1305- ● ●
146 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1305- ● ●
146 BOLT; EYE
(B) 		8-97640-875-0 01 1 1305- ● ●
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97640-526-0 01 1 1305- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-97640-527-0 01 1 1305- ● ●
