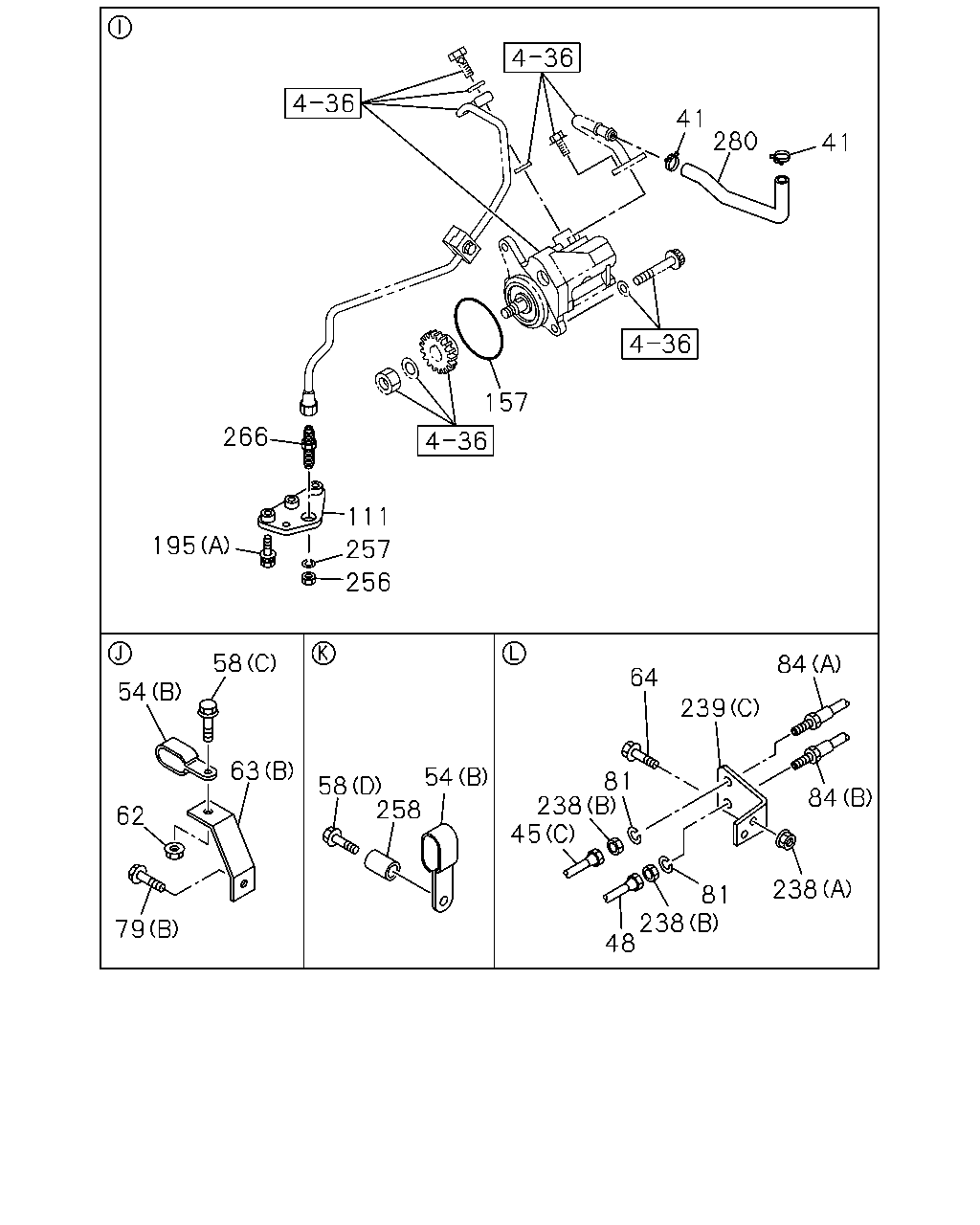

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#119842) — 114 parça

41 41 280 157 266 111 257 256 195 64 239 84 84 238 238 81 238 81 45 48 54 58 258 63 58 54 62 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1305-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1305-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1305-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1305-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1305-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1305-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1305-
62	NUT; CLIP FIX M8 FLANGE THA	0-91180-108-0	02	1	1305-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	02	1	1305-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1305-
64	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1305-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1305-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-620-0	02	1	1305-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1305-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1305-
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1305-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1305-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1305-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1305-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1305-
238	NUT; FLEX HOSE (A) M8 FLANGE THA	0-91180-108-0	02	1	1305-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1305-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1305-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1305-
256	NUT; UNION M22	0-91111-522-0	01	1	1305-
256	NUT; UNION M22	0-91111-522-0	01	1	1305-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1305-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1305-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	1305-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1305-
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1305-

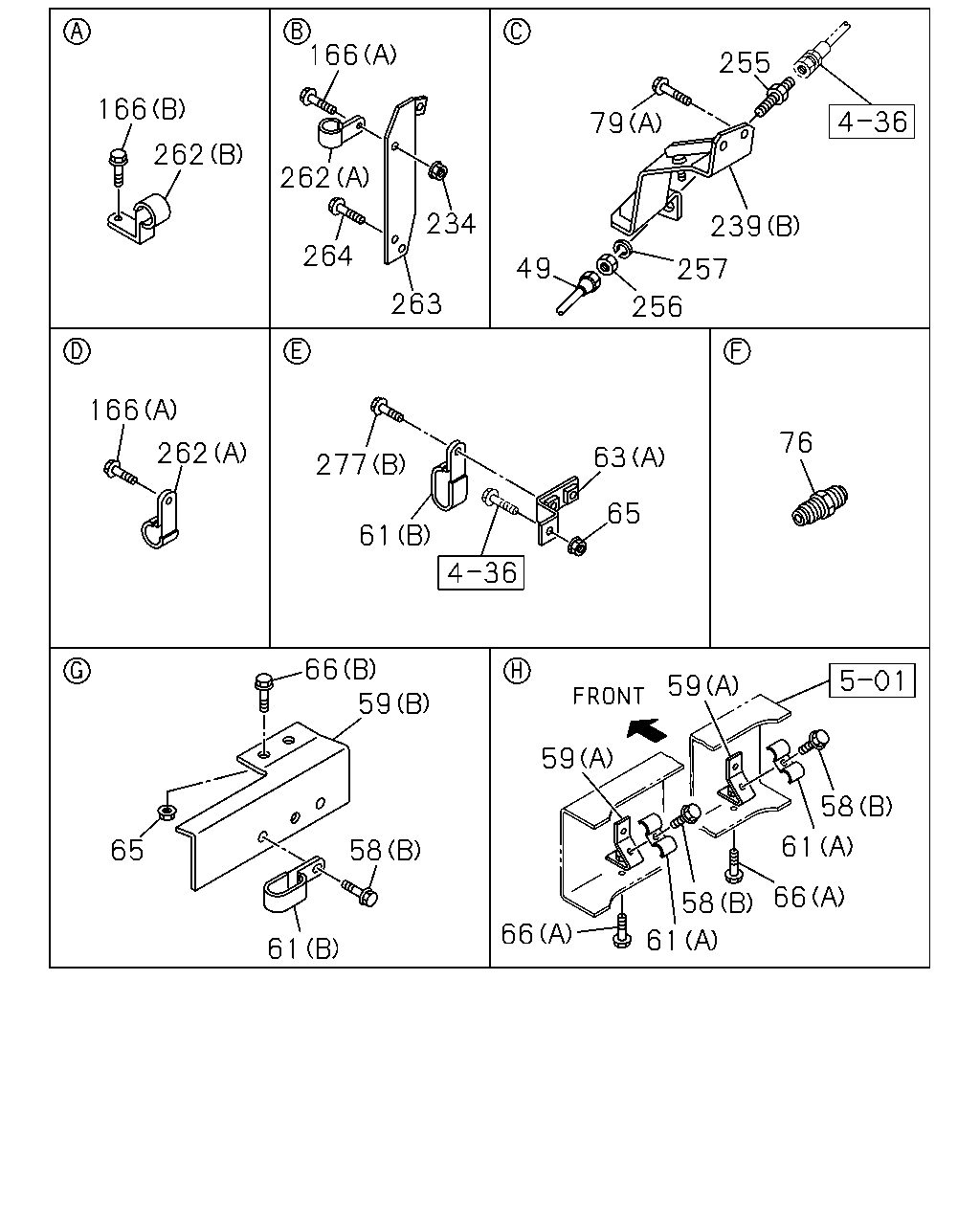

76 63 65 61 277 262 166 262 166 262 264 263 234 166 79 255 239 257 256 49 66 59 58 61 66 61 66 61 59 59 58 58 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1305-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1305-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1305-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1305-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1305-
59	BRACKET; CLIP,OIL PIPE (B)	8-97618-675-0	01	1	1305-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1305-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1305-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	02	1	1305-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1305-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1305-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1305-
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-
76	UNION; OIL PIPE M22	0-92123-015-0	02	1	1305-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1305-
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1305-
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1305-
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1305-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1305-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1305-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1305-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1305-
256	NUT; UNION M22	0-91111-522-0	01	1	1305-
256	NUT; UNION M22	0-91111-522-0	01	1	1305-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1305-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1305-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1305-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1305-
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1305-
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1305-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1305-

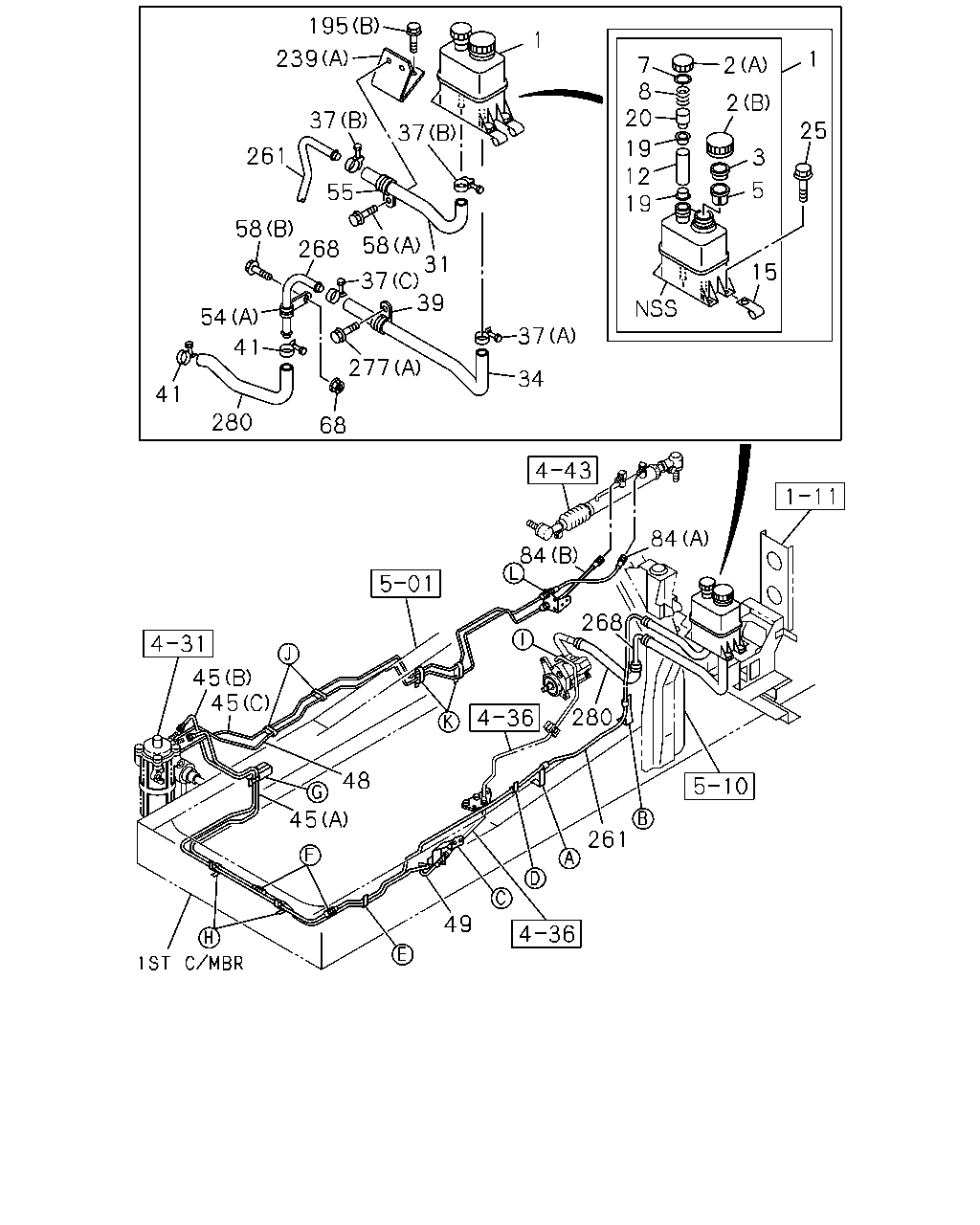

37 39 277 68 280 41 41 54 58 261 239 195 1 37 37 55 58 268 31 34 37 1 7 20 8 2 3 2 19 19 15 5 25 45 45 48 45 49 261 84 84 268 280 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1305-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1305-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1305-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1305-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1305-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1305-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1305-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1305-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1305-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1305-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1305-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1305-
31	HOSE; P/S OIL TANK,INL	8-98166-662-0	01	1	1305-
34	HOSE; P/S OIL TANK,OUTLET	8-98166-663-0	01	1	1305-
37	CLIP; HOSE,P/S (C) ID=32	1-09704-085-0	01	1	1305-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	1305-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1305-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1305-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1305-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1305-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1305-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1305-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1305-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1305-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1305-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1305-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1305-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1305-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1305-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1305-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1305-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1305-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1305-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1305-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1305-
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1305-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1305-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1305-
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1305-
