2-61 — TRANSFER CASE AND GEAR SHIFTER (#119839) — 21 parça

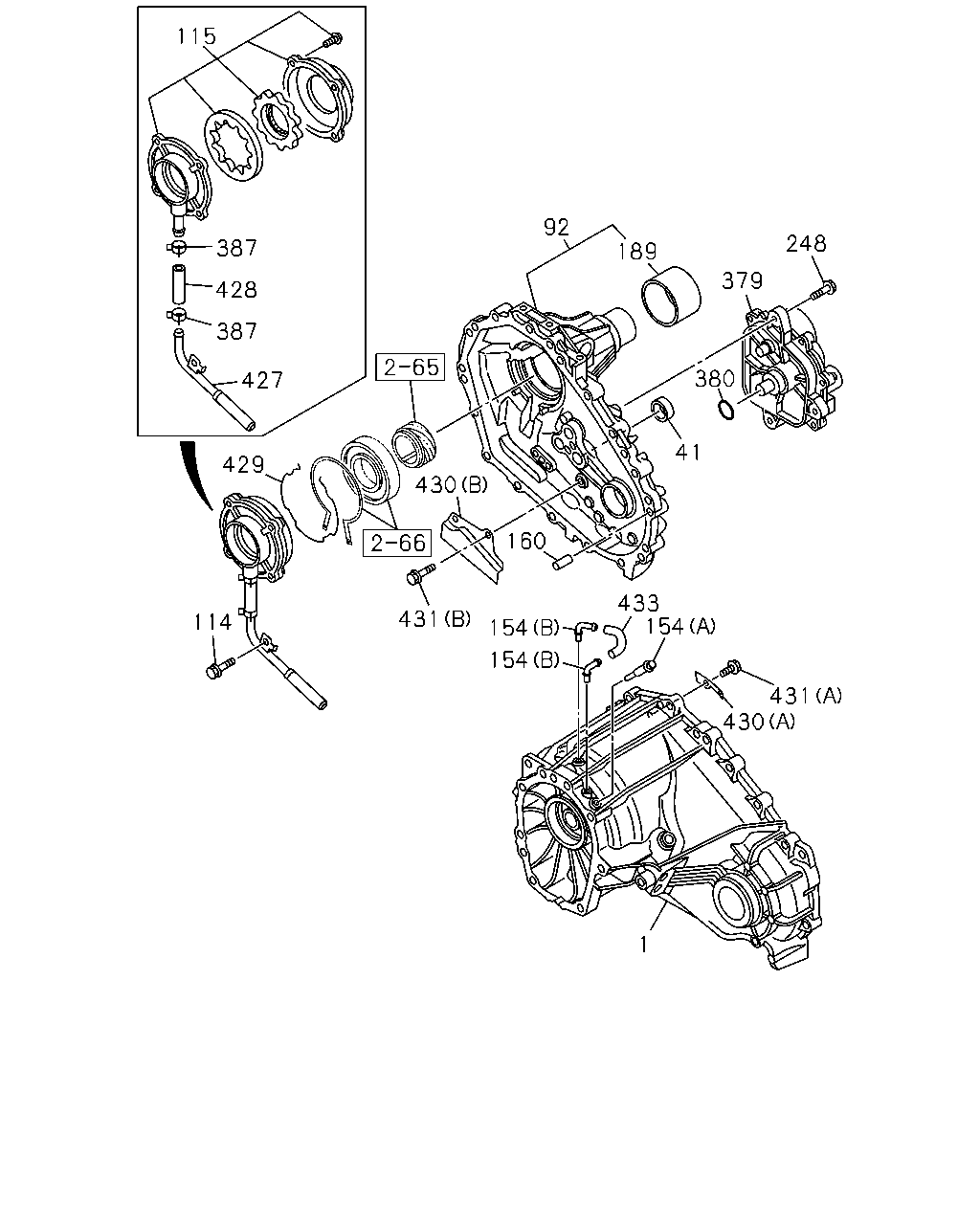

çizim 350749
431 430 1 154 433 154 154 431 430 41 160 380 379 248 189 92 427 429 114 387 428 387 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 8-98177-505-0 01 1 1305- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		8-97238-998-0 01 1 1305- ● ●
92 COVER; RR,TRANSFER 8-98118-921-0 01 1 1305- ● ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE 		0-28650-820-0 01 1 1305- ● ●
115 PUMP ASM; OIL,TRANSFER 8-98029-157-0 01 1 1305- ● ●
154 PIPE; BREATHER
(B) 		8-97358-318-0 02 1 1305- ● ●
154 PIPE; BREATHER
(A) 		8-97358-319-0 01 1 1305- ● ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 		8-97135-423-0 02 1 1305- ● ●
189 COVER; DUST,OIL SEAL 8-98173-748-0 01 1 1305- ● ●
248 BOLT
M8X30 FLANGE 		0-28650-830-0 03 1 1305- ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-98196-415-0 01 1 1305- ● ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 1305- ● ●
387 CLAMP; HOSE
ID=16 		8-97329-628-0 02 1 1305- ● ●
427 SCREEN; OIL PUMP 8-98063-358-0 01 1 1305- ● ●
428 HOSE; OIL PUMP
L=50 		8-98064-220-0 01 1 1305- ● ●
429 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 1305- ● ●
430 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 1305- ● ●
430 PLATE; BAFFLE
(B) 		8-98063-360-0 01 1 1305- ● ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1305- ● ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ● ●
433 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 1305- ● ●
