Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

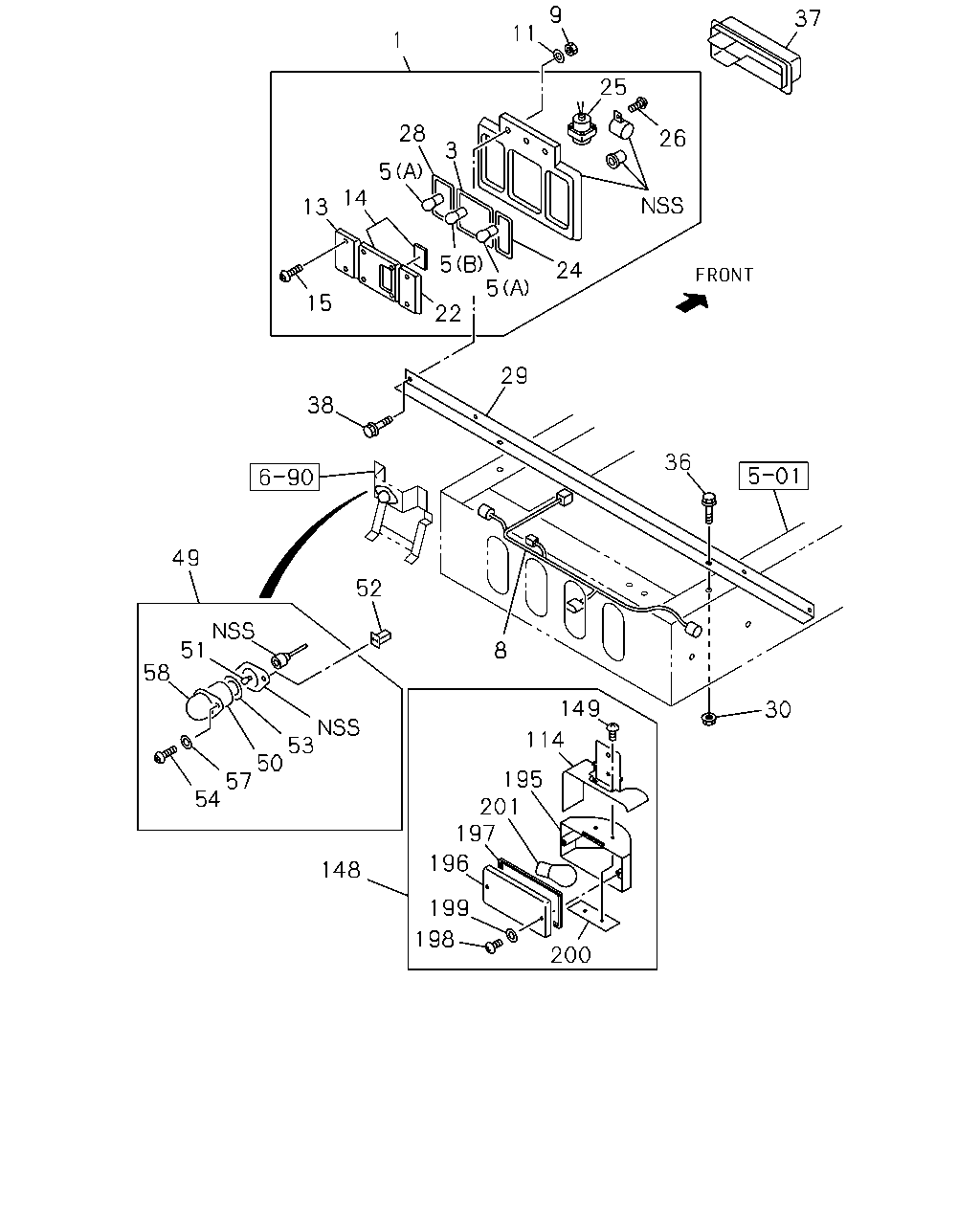

8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#119837) — 43 parça
1
11
9
25
26
37
24
5
5
3
28
5
14
13
15
22
29
38
36
52
8
149
30
114
195
201
197
196
199
198
200
148
53
50
57
54
58
49
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
1305-
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
1305-
3
GASKET; RR COMB LAMP
8-94257-505-0
02
1
1305-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
04
1
1305-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
1305-
8
HARNESS; RR COMB LAMP
8-98218-182-0
01
1
1305-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
1305-
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
1305-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
1305-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
1305-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
1305-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
1305-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1305-
22
LENS; BACKUP,RR COMB LAMP
CLEAR
8-94257-512-1
02
1
1305-
24
GASKET; BACK,LAMP
8-94257-506-0
02
1
1305-
25
HORN ASM; BACK
8-94257-518-0
01
1
1305-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1305-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1305-
28
GASKET; TURN,LAMP
8-94257-507-0
02
1
1305-
29
BRACKET; LAMP,RR COMB
1-53487-021-1
01
1
1305-
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
02
1
1305-
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28651-040-0
02
1
1305-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
1305-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
1305-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
1305-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
1305-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
1305-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
1305-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
1305-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
1305-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
1305-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
1305-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
1305-
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
1305-
148
LAMP ASM; RR FOG
1-82110-477-0
01
1
1305-
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
1305-
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
1305-
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
1305-
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
1305-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1305-
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
1305-
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
1305-
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
1305-
