Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#11983) — 452 parça

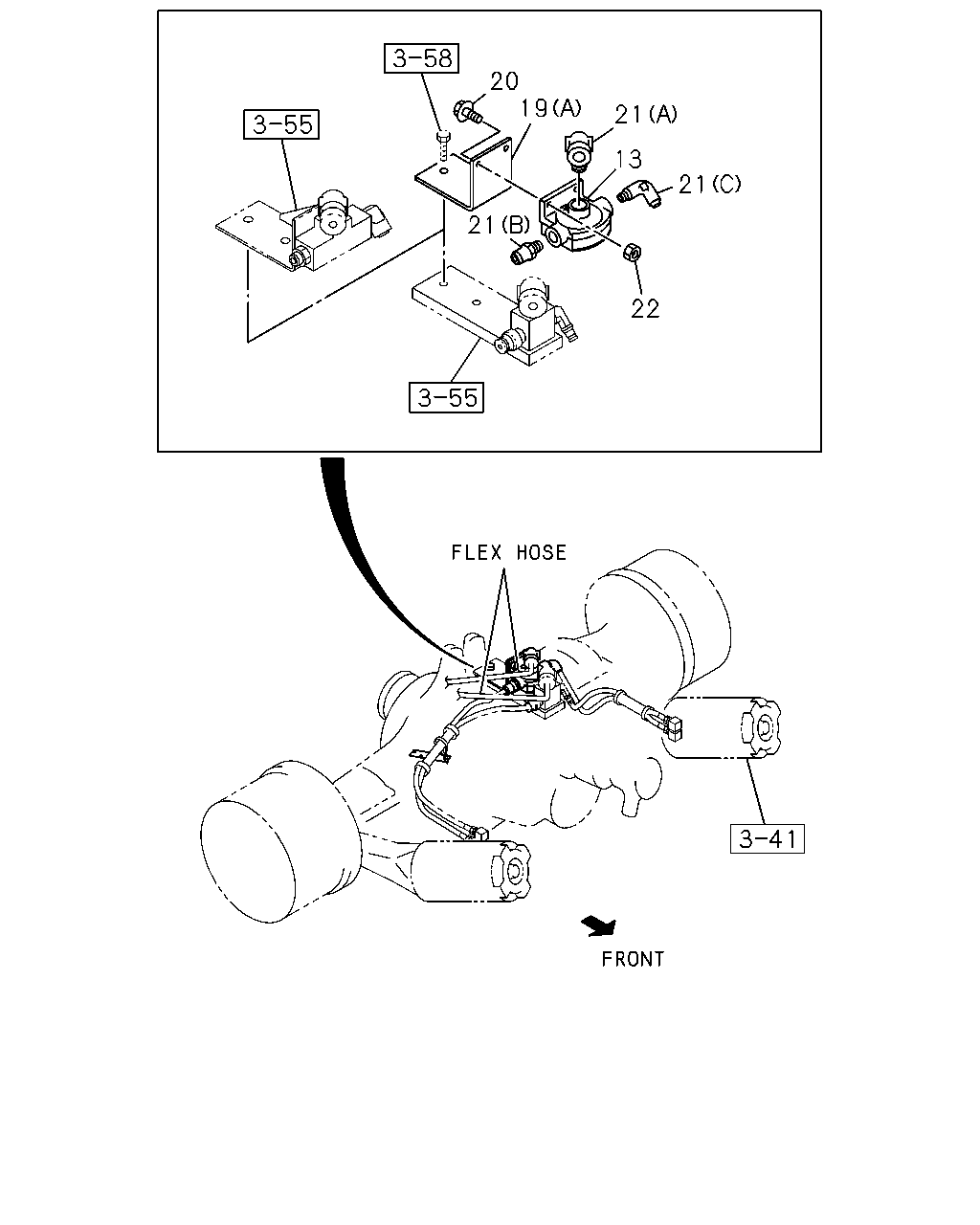

19 20 21 22 21 13 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-659-0	01	1	0110-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (B)	1-47477-702-0	01	1	0105-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47475-199-1	01	1	0105-
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (D) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0105-0109
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0105-0109
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0110-0602
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0110-0602
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-

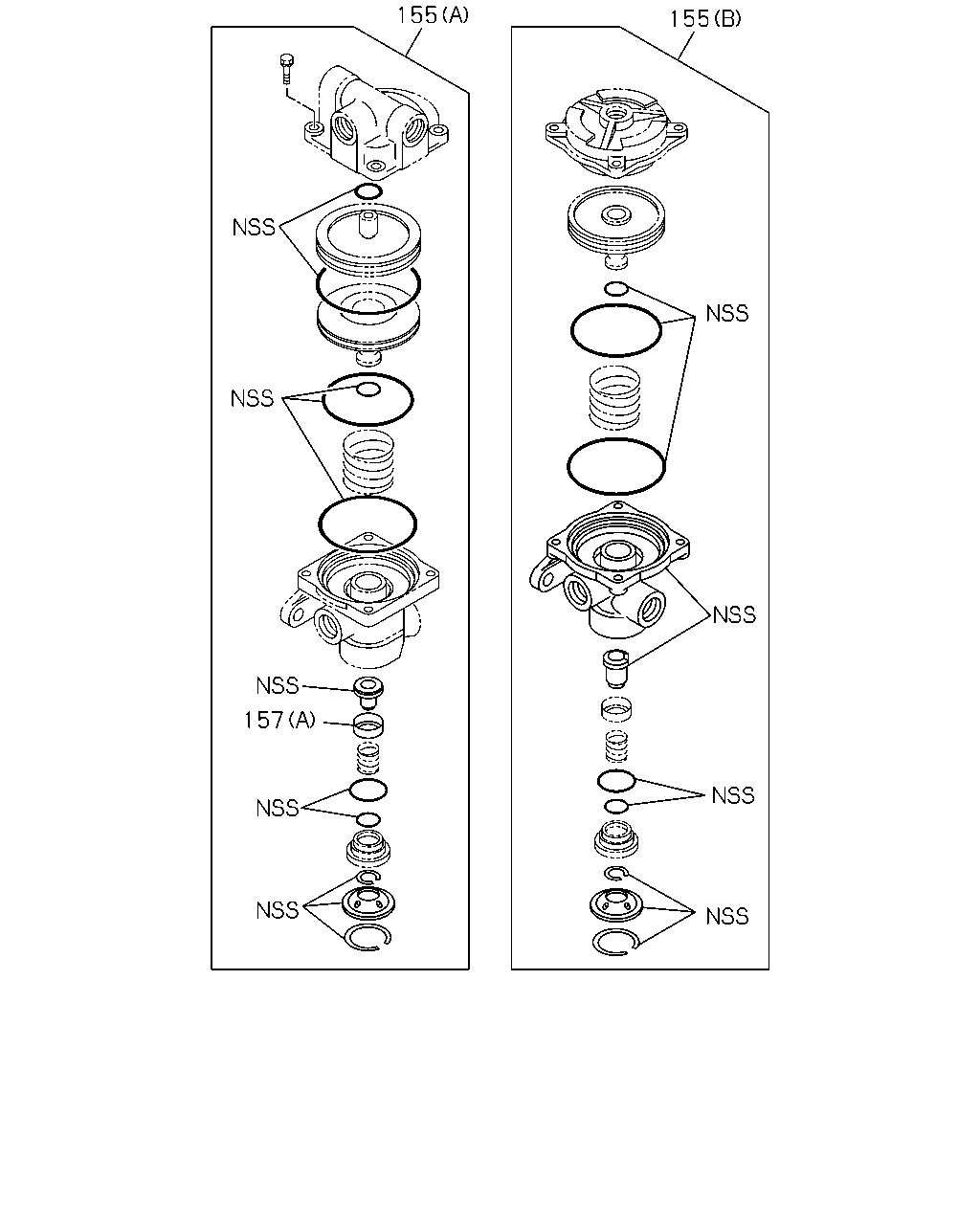

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	01	1	0105-
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	02	1	0105-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-85576-035-0	01	1	0105-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	0105-

20 19 21 13 21 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-659-0	01	1	0110-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (B)	1-47477-702-0	01	1	0105-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47475-199-1	01	1	0105-
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	02	1	0601-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (D) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0105-0109
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0105-0109
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0110-0602
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0110-0602
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0603-

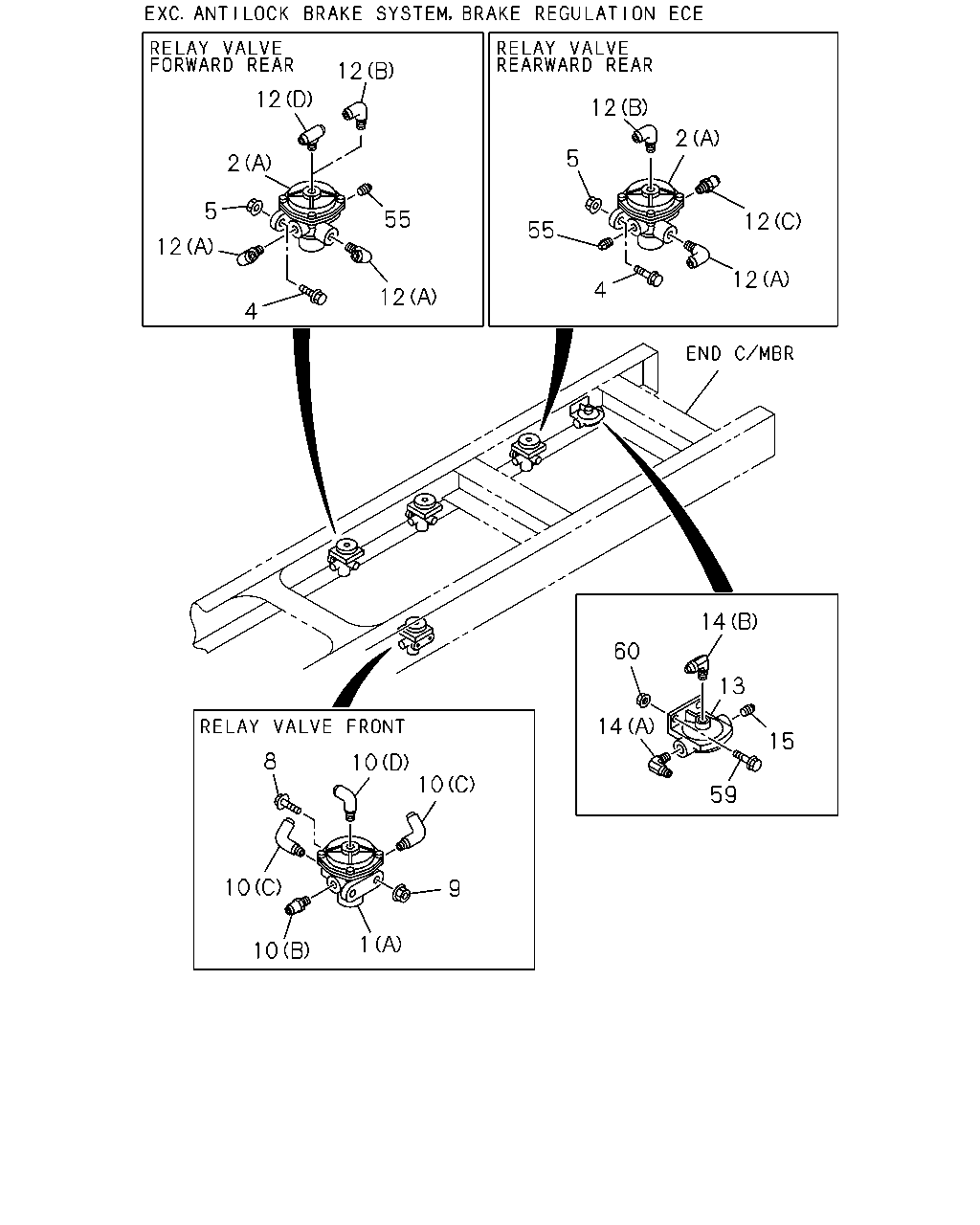

12 12 2 5 12 4 8 10 10 10 1 9 10 59 15 14 13 14 60 4 12 12 2 12 5 55 12 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0106-
1	VALVE; RELAY RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-875-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48240-041-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	04	1	0105-0602
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-659-0	01	1	0110-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (H) M20 & PT1/4	9-09902-386-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
15	PLUG; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT3/8	9-09204-517-0	01	1	0105-0105
15	PLUG; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	01	1	0106-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	02	1	0105-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
59	BOLT; RELEASE VALVE FIX EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	0601-
60	NUT; RELEASE VALVE FIX EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0105-0105
60	NUT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0106-0602
60	NUT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-

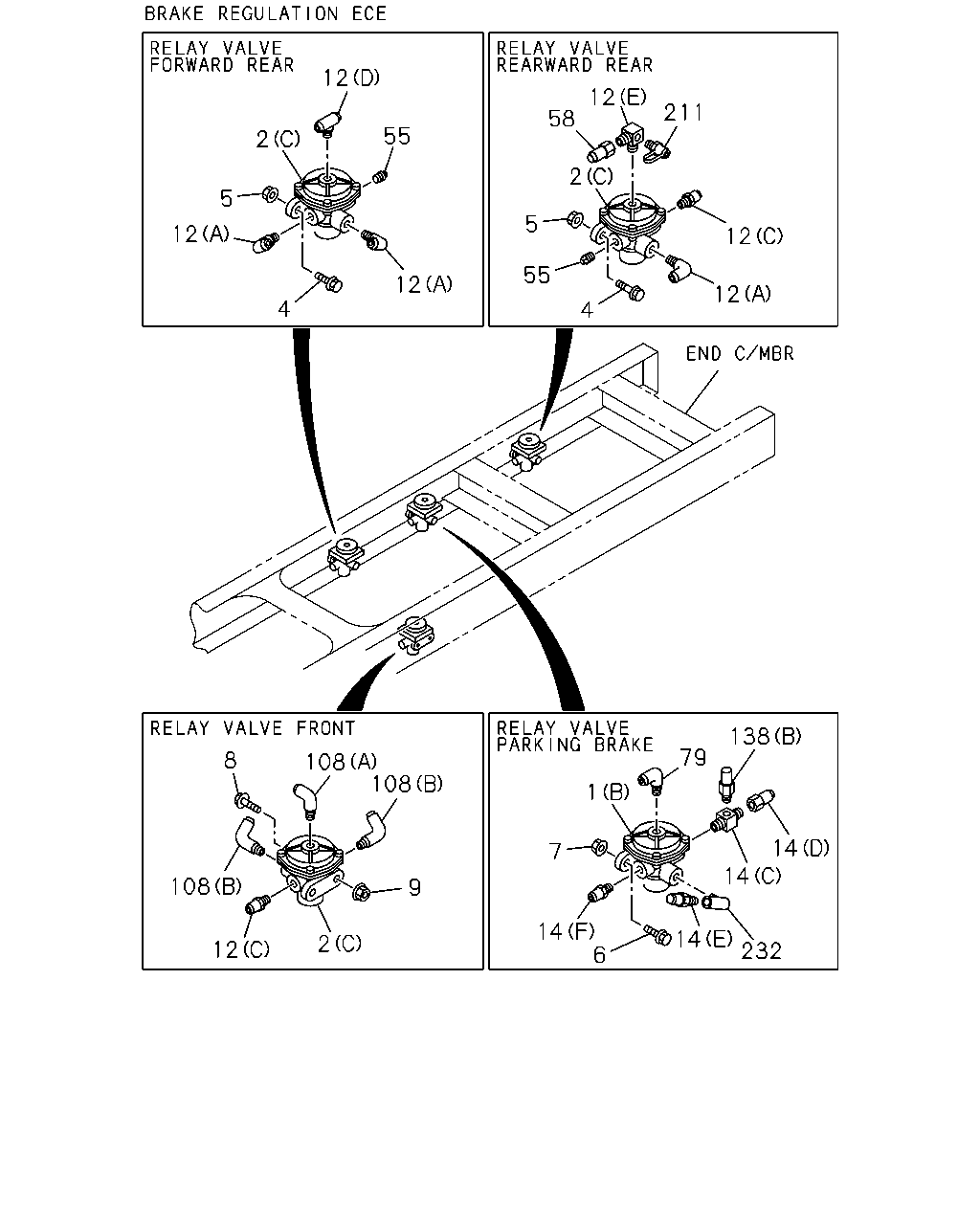

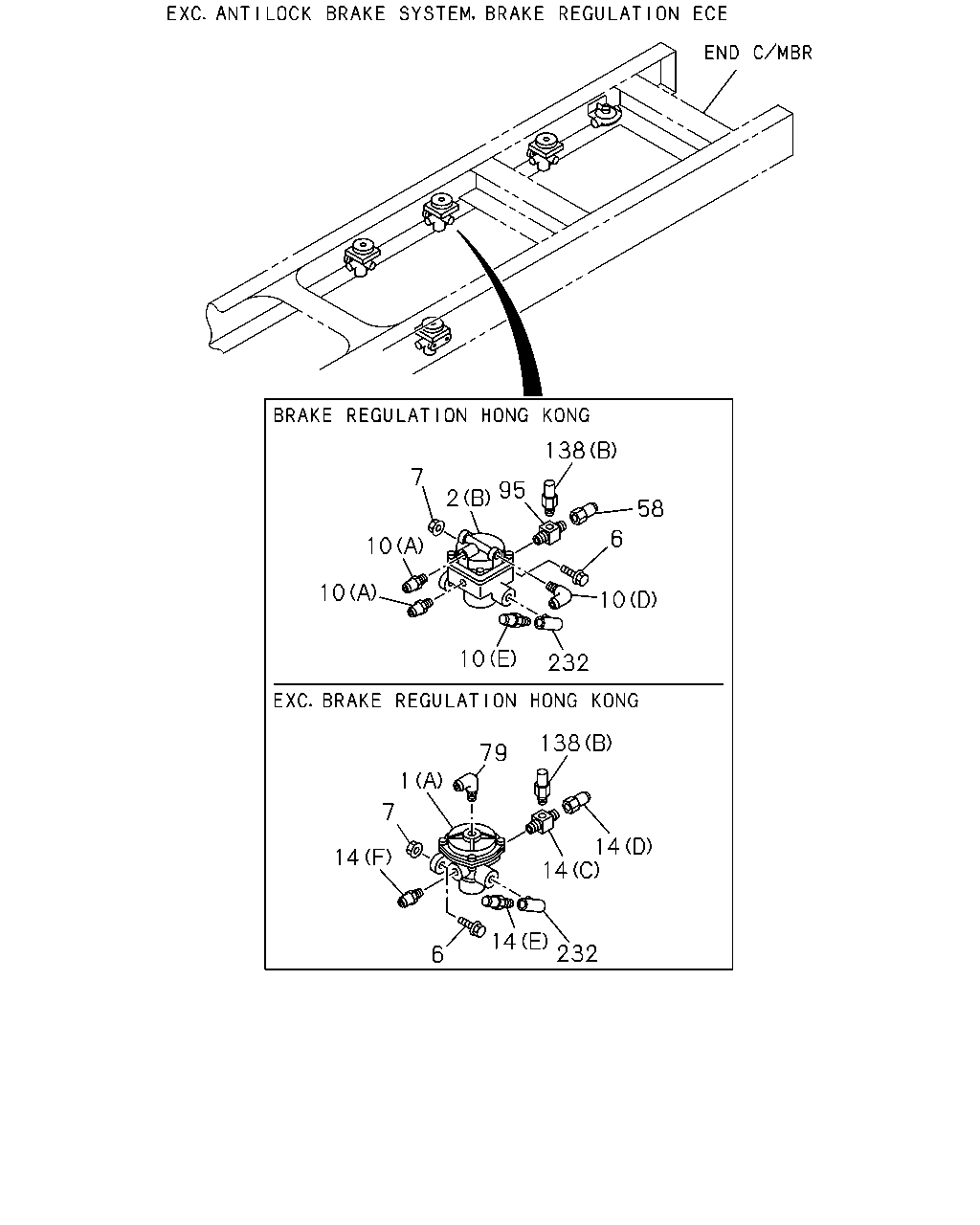

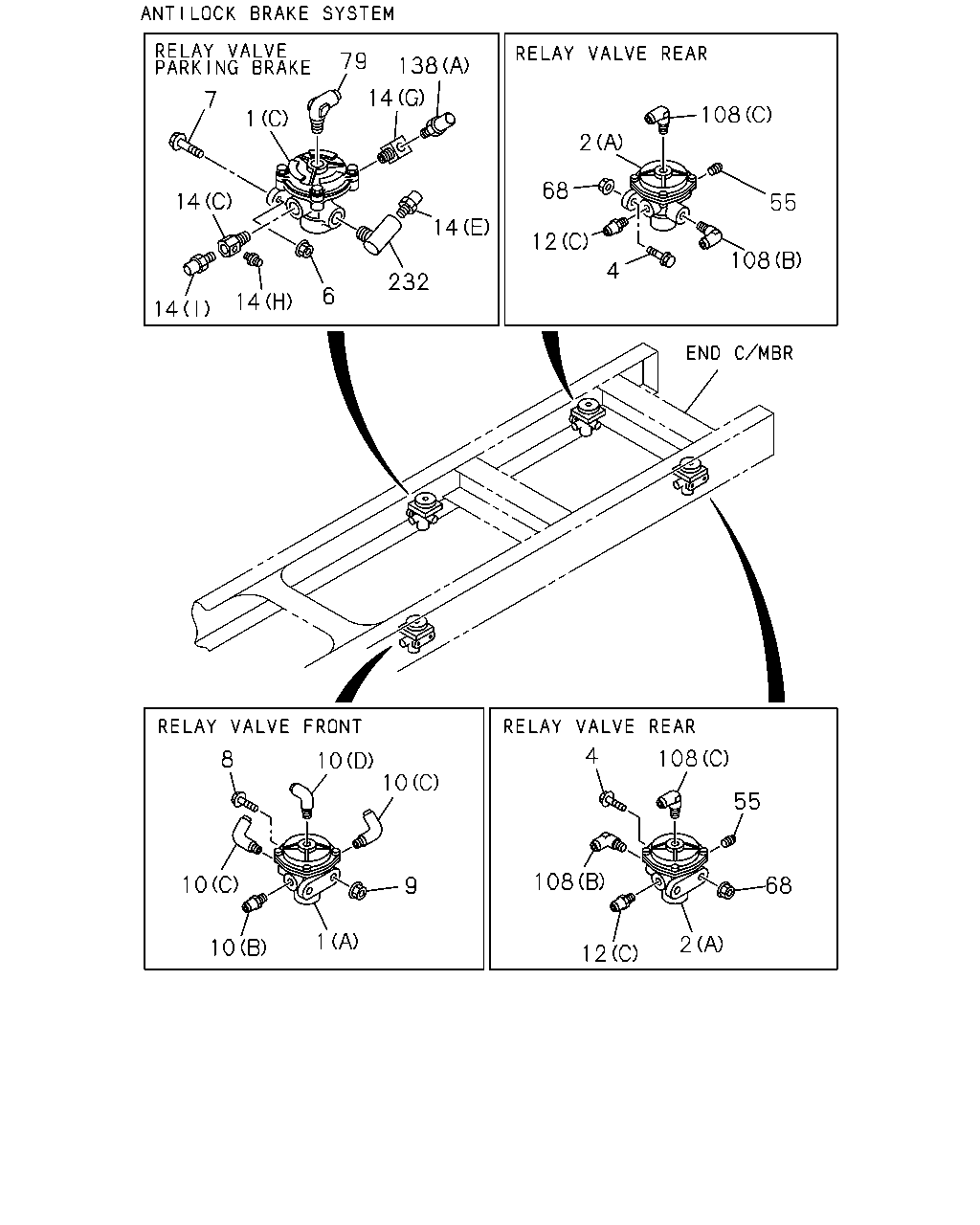

138 95 2 7 10 10 10 79 1 7 14 6 14 232 14 14 138 232 10 6 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0106-
1	VALVE; RELAY RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-875-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48240-041-0	01	1	0105-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (H) M20 & PT1/4	9-09902-386-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ> M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0105-
138	SWITCH; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48340-064-1	01	1	0105-0312
138	SWITCH; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48340-067-0	01	1	0401-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-068-0	01	1	0401-
138	SWITCH; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-068-0	01	1	0401-
232	VALVE; CHECK	1-48320-031-1	01	1	0105-

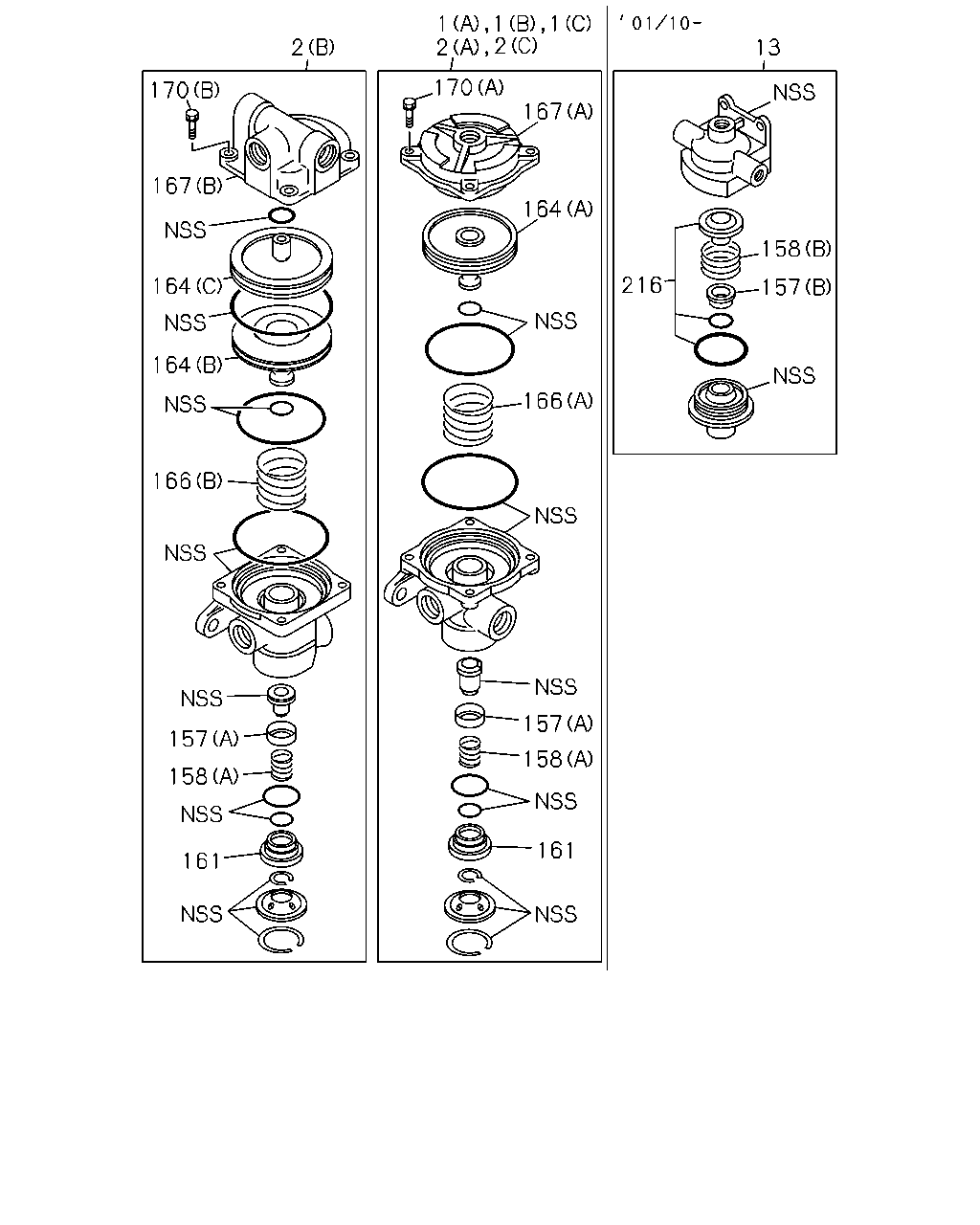

161 161 158 157 158 157 166 164 164 167 170 2 1 2 170 1 2 167 1 164 166 216 157 158 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0106-
1	VALVE; RELAY RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-875-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48240-041-0	01	1	0105-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0105-0105
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0106-0109
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-659-0	01	1	0110-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-659-0	01	1	0110-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0105-
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	0105-
158	SPRING; VALVE BRAKE REGULATION ECE<TDV> (B)	9-48419-003-0	01	1	0110-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	9-48419-003-0	01	1	0110-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	9-48419-003-0	01	1	0110-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0105-
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	0105-
161	GUIDE; VALVE	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	0105-
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	02	1	0105-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	01	1	0105-
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	02	1	0105-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	0105-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	0105-
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-090-0	02	1	0105-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	0105-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	0105-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	0105-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0105-
166	SPRING; PISTON EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0105-
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	01	1	0105-
166	SPRING; PISTON EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0105-
166	SPRING; PISTON EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-090-0	01	1	0105-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	0105-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0105-
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	0105-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	0105-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	04	1	0105-
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	08	1	0105-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	0105-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV>	1-85576-235-0	01	1	0110-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-85576-235-0	01	1	0110-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-85576-235-0	01	1	0110-

12 2 5 12 4 12 55 58 12 211 12 12 2 5 55 4 79 14 14 232 14 6 14 7 1 9 2 12 108 5 108 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0106-
1	VALVE; RELAY RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-875-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48240-041-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	04	1	0601-
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	04	1	0105-0602
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	0603-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (H) M20 & PT1/4	9-09902-386-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	02	1	0105-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
108	CONNECTOR; ELBOW (F) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-
232	VALVE; CHECK	1-48320-031-1	01	1	0105-

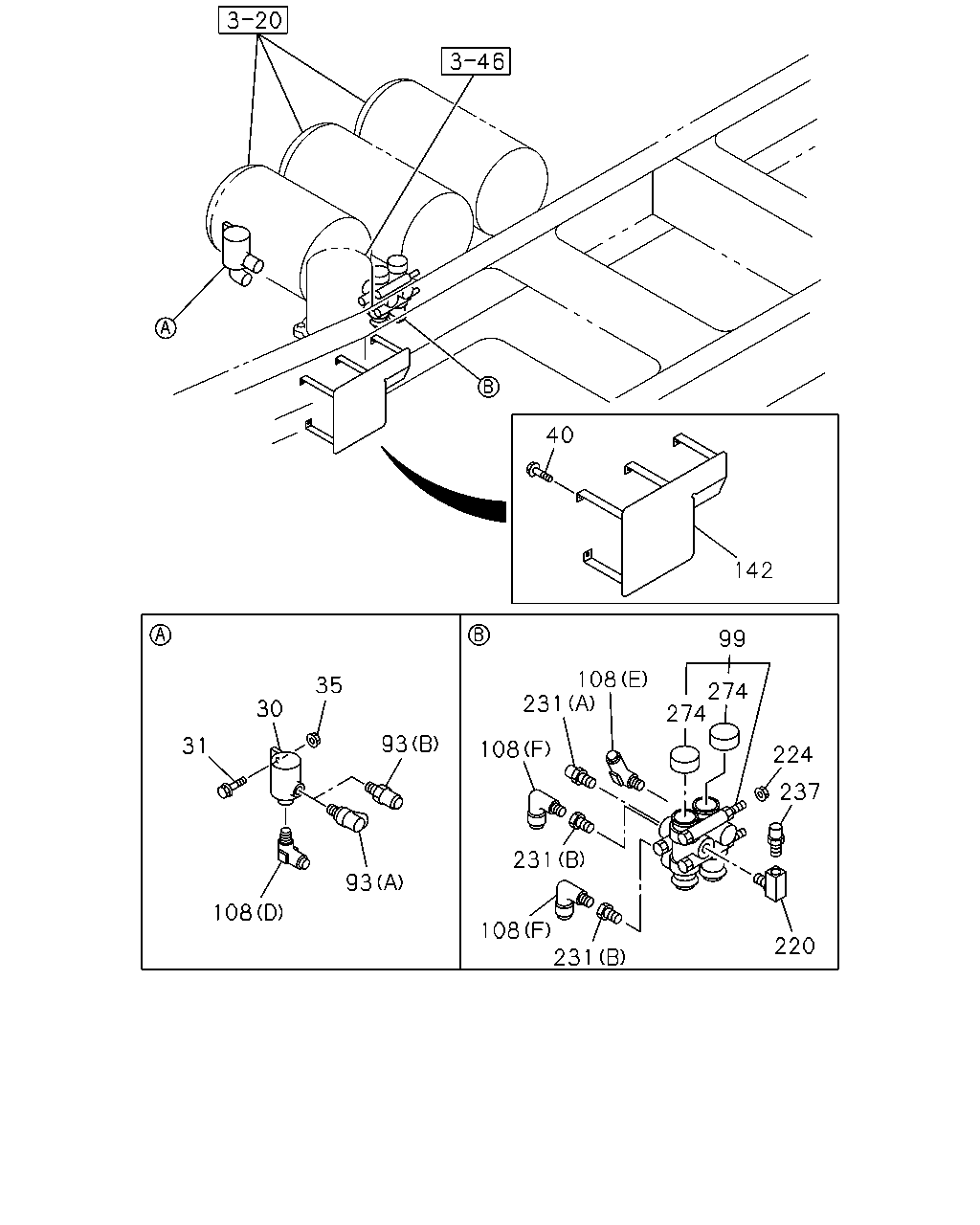

40 142 99 274 224 237 220 231 108 231 108 274 108 231 93 93 108 31 30 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0105-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0105-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
40	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	05	1	0105-0512
40	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	05	1	0601-
93	CONNECTOR; GOV AIR DRYER<PS7> (A) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0105-
93	CONNECTOR; GOV EXC. AIR DRYER<PS7> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0105-
99	VALVE; PROTECTION	1-48110-175-1	01	1	0105-
108	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
108	CONNECTOR; ELBOW (F) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
142	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48219-143-0	01	1	0105-
220	CONNECTOR; 3WAY	1-09661-232-0	01	1	0105-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0105-0602
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
231	CONNECTOR; NYLON TUBE (B) R3/8 OD=15.9	1-09661-082-0	02	1	0105-
237	VALVE; SAFETY	1-48320-012-2	01	1	0105-
274	COVER; DUST	1-48119-450-0	02	1	0105-

7 1 79 138 14 2 108 55 108 68 12 4 14 232 6 14 14 14 8 10 10 10 10 1 9 4 108 55 68 2 12 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48240-052-0	01	1	0106-
1	VALVE; RELAY RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-875-0	01	1	0105-0105
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0105-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48240-041-0	01	1	0105-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	0105-0512
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	04	1	0601-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0105-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	0105-0512
8	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (C) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0105-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0105-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
12	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (H) M20 & PT1/4	9-09902-386-0	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0105-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0105
14	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	02	1	0105-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY NEW ZEALAND EQUIPMENT(PK5) BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
55	PLUG; SUPPLY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0105-
68	NUT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	04	1	0105-0602
68	NUT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	0603-
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
108	CONNECTOR; ELBOW (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0105-
108	CONNECTOR; ELBOW (F) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0105-
138	SWITCH; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48340-064-1	01	1	0105-0312
138	SWITCH; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48340-067-0	01	1	0401-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-057-1	01	1	0105-0312
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-068-0	01	1	0401-
138	SWITCH; RELAY VALVE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (B)	1-48340-068-0	01	1	0401-
232	VALVE; CHECK	1-48320-031-1	01	1	0105-

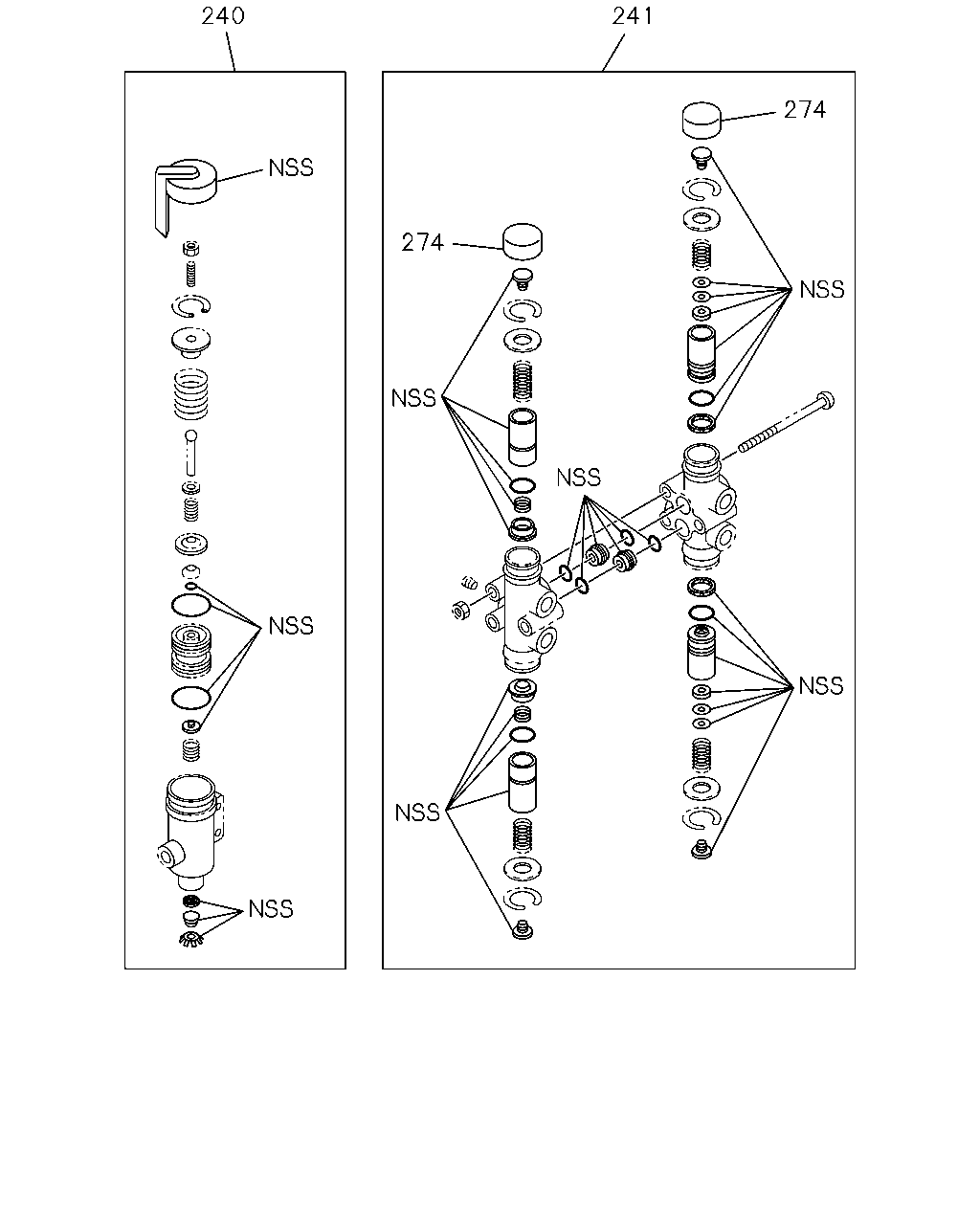

240 274 274 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0105-
241	REPAIR KIT; PROTECTION VALVE	1-85576-240-0	01	1	0105-
274	COVER; DUST	1-48119-450-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
