2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#119824) — 23 parça
çizim 350699
6 49 474 316 300 6 493 474 474 1 3 296 296 1 199 225 221 3 296 3 1 474 316
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1305-1311
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1312-
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 1305-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1305-
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 1305-
49 WASHER; LK
ID=14.2 		0-91510-614-0 01 1 1305-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1305-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1305-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1305-
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE THA 		0-28050-820-0 03 1 1305-
300 BOLT; CLIP
M8X20 FLANGE THA 		0-28050-820-0 01 1 1305-
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 1305-
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 1305-1412
316 BRACKET; CLIP
(B) 		8-98294-156-0 01 1 1501-
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 1305-
474 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1305-
474 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 01 1 1305-
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 1305-
493 SEAL; CABLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1305-

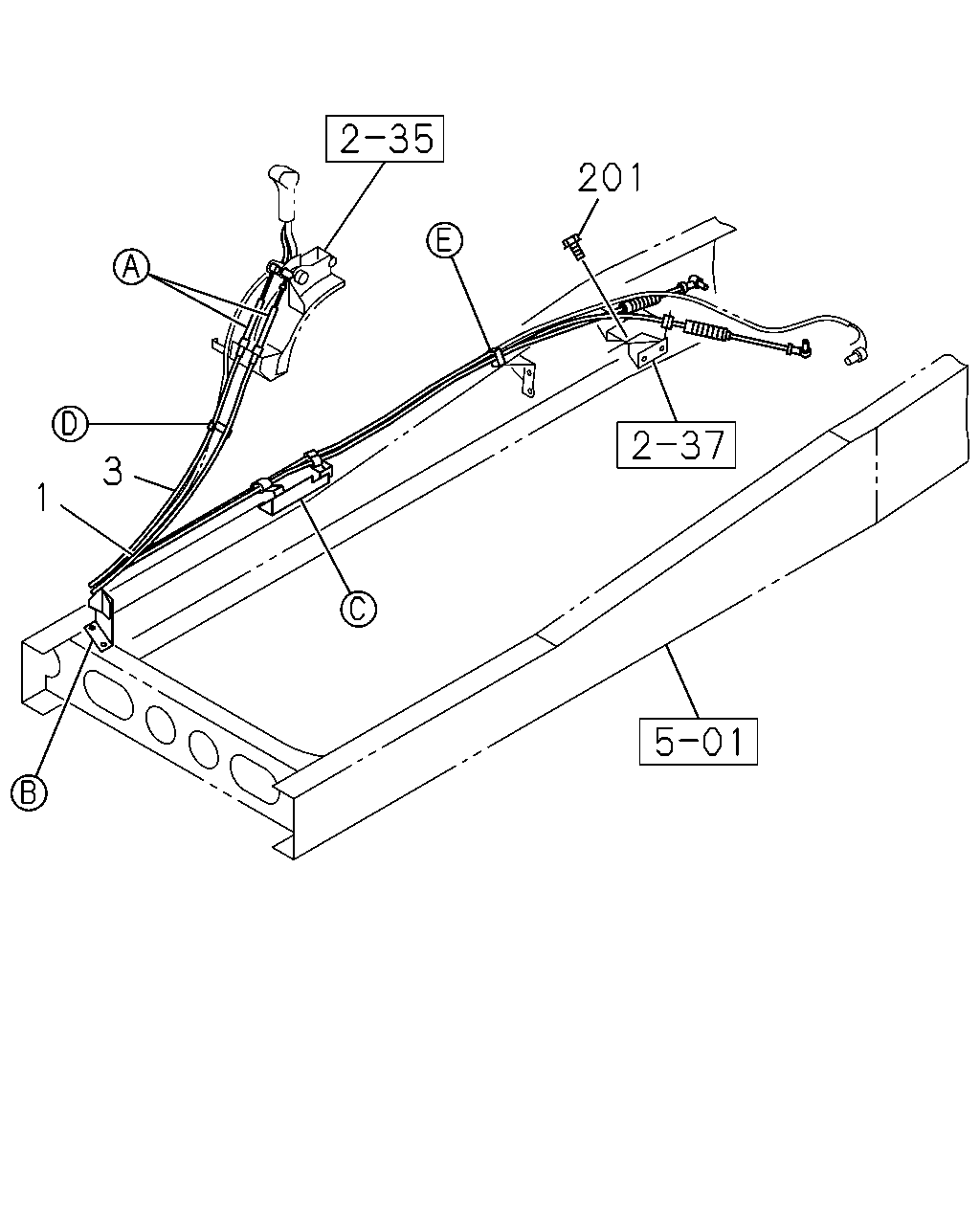

çizim 352406
1 3 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1305-1311
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1312-
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 1305-
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1305-
