Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#11982) — 221 parça

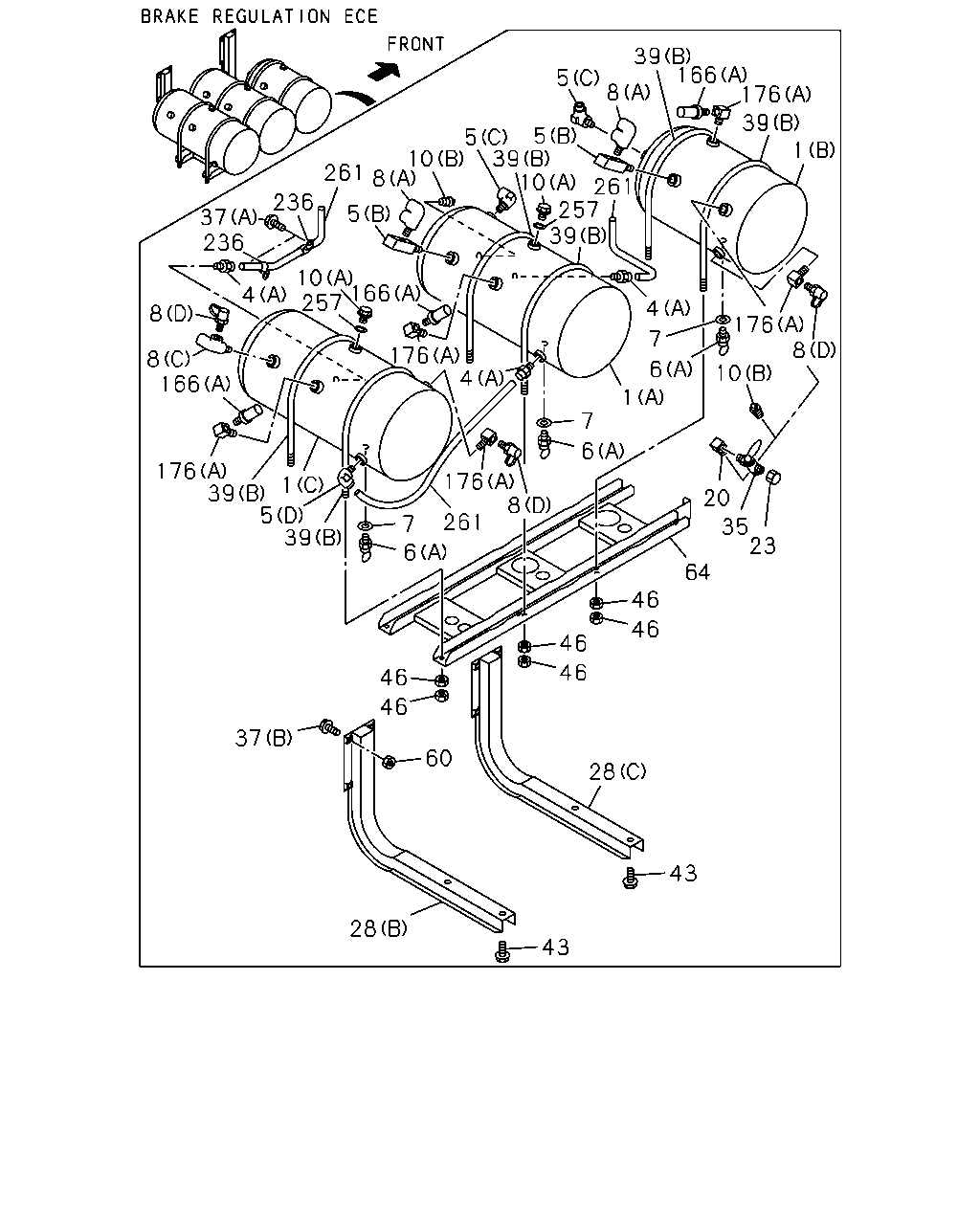

43 43 28 28 60 37 46 46 46 46 46 46 64 23 35 20 10 6 7 10 261 4 1 7 6 10 261 6 7 39 5 1 39 176 166 5 4 257 176 4 166 10 236 37 236 203 5 261 8 10 5 39 10 257 39 5 5 8 39 166 176 39 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (D)	1-48370-942-1	01	1	0105-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0606-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	03	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
60	NUT; AIR TANK FIX M10 FLANGE	0-91150-210-0	02	1	0105-0602
60	NUT; AIR TANK FIX M10 FLANGE	0-91180-210-0	02	1	0603-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	05	1	0105-
176	ADAPTER EXC. BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
203	NUT EXC. BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0105-0602
203	NUT EXC. BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	01	1	0603-
236	CLIP; BAND ID=14 H=50 L=20	1-09700-843-0	02	1	0105-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0105-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

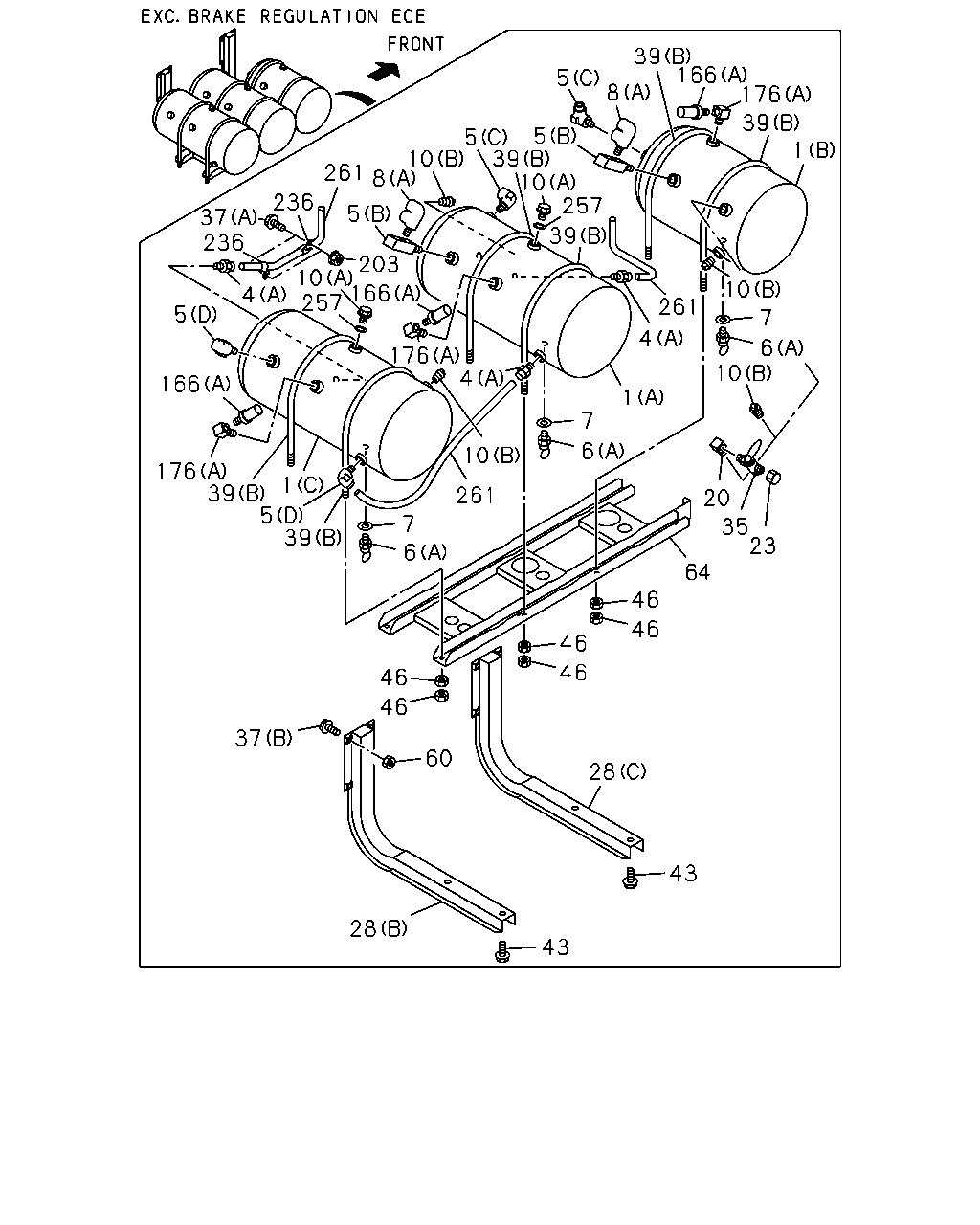

43 43 28 37 60 28 46 46 46 46 46 46 64 23 35 20 8 10 176 1 39 176 166 39 8 5 5 261 257 39 10 39 5 10 8 261 5 236 37 236 10 166 257 4 8 8 166 176 39 1 5 39 7 176 176 4 4 7 6 1 7 6 8 261 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (D)	1-48370-942-1	01	1	0105-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0606-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	03	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-0512
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
60	NUT; AIR TANK FIX M10 FLANGE	0-91150-210-0	02	1	0105-0602
60	NUT; AIR TANK FIX M10 FLANGE	0-91180-210-0	02	1	0603-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	05	1	0105-
176	ADAPTER EXC. BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
236	CLIP; BAND ID=14 H=50 L=20	1-09700-843-0	02	1	0105-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0105-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

216 215 216 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
208	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
208	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0601-
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=24 L=32	1-09700-766-1	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=21	8-94242-034-0	01	1	0105-

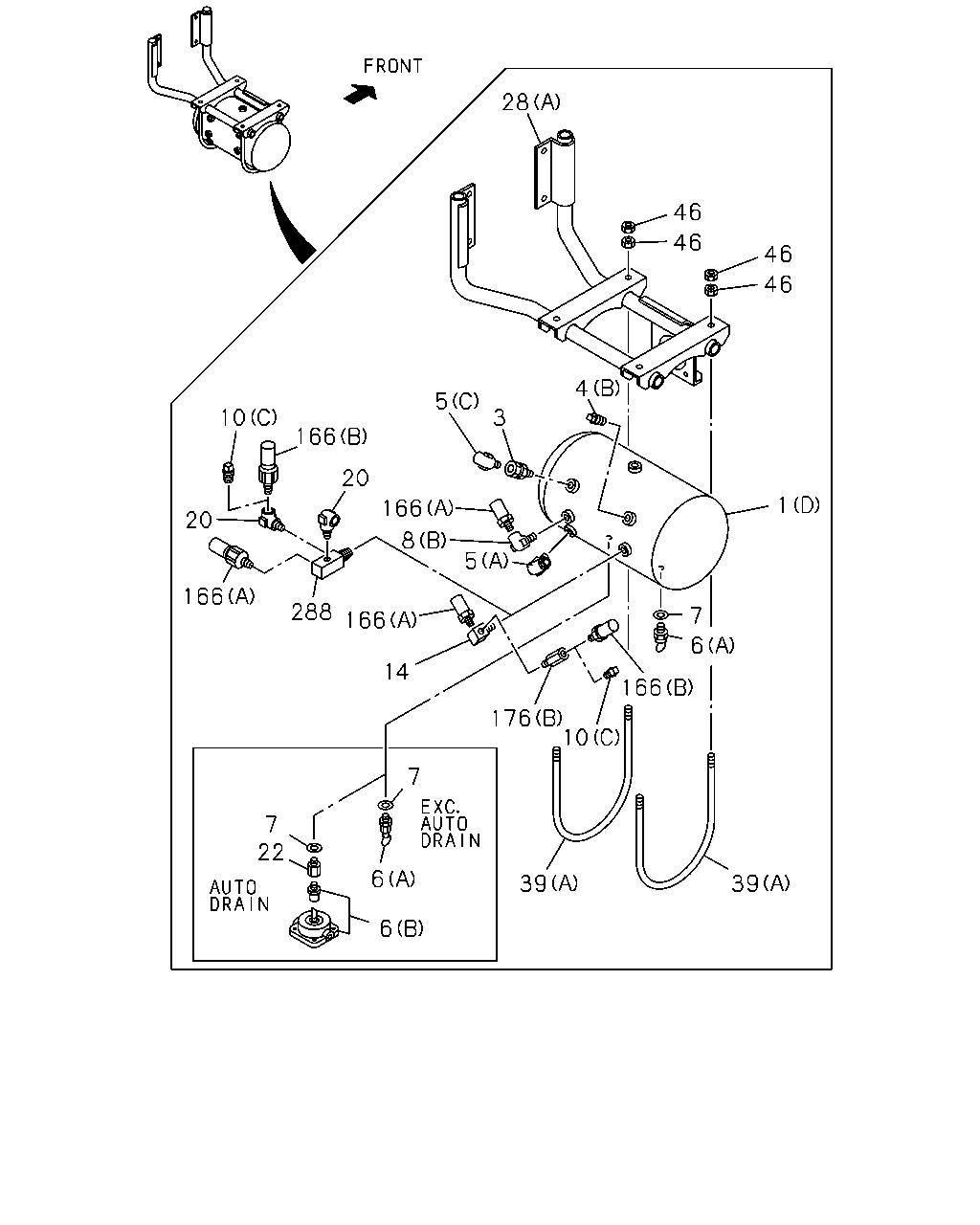

28 46 46 46 46 4 1 7 6 166 39 39 10 176 7 6 6 22 7 14 166 288 166 20 10 166 20 166 8 5 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (D)	1-48370-942-1	01	1	0105-
3	VALVE; CHECK,AIR TANK	1-48320-013-2	01	1	0105-
4	CONNECTOR; FLARE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
5	UNION; AIR TANK (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0105-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-0605
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	01	1	0606-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) PT3/8	9-09204-517-0	03	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-0605
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0606-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0606-
14	UNION; 3 WAY,AIR TANK PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-0207
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	05	1	0105-
176	ADAPTER EXC. BRAKE REGULATION ECE<TDV> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
288	CONNECTOR; PRESSURE UNIT PT1/4 4WAY	1-09660-358-0	01	1	0208-

104 102 109 335 101 103 102 335 109 100 335 100 335 103 126 103 102 101 126 107 100 278 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0212-0512
80	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28080-880-0	08	1	0105-0512
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	08	1	0601-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	12	1	0105-0602
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	12	1	0603-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-092-0	02	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-094-0	01	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47478-494-0	01	1	0105-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M10X30 FLANGE	0-28681-030-0	04	1	0105-0512
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0105-0602
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0105-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0105-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	02	1	0105-
278	BRACKET; CONNECTOR L=90 B=25	1-47476-630-0	01	1	0212-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0105-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-0512
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
