◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51483 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#119818) — 125 parça

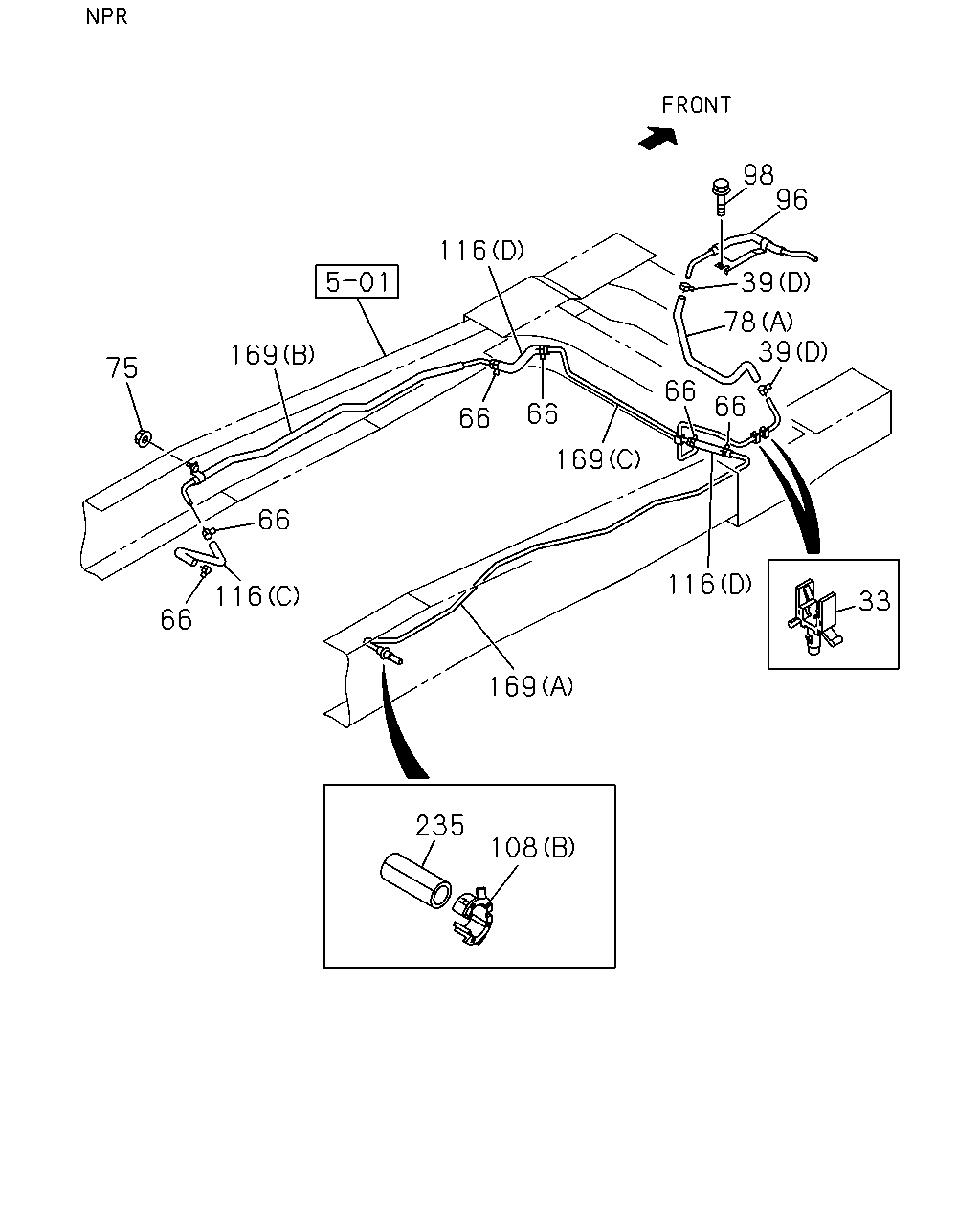

çizim 350482
75 169 116 66 66 66 116 66 169 235 108 116 66 66 78 39 39 96 98 169 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 IMA 		8-94462-219-0 02 1 1304- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1304- ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1304- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1304- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 IMA 		8-98173-762-1 08 1 1304- ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 02 1 1304- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 04 1 1304- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) IMA 		8-98112-680-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) IMA 		8-98080-833-1 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) IMA 		8-97386-589-0 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) IMA 		8-98136-613-0 01 1 1304- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> IMA 		8-98220-579-0 01 1 1304- ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 1304- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M6X12 FLANGE THA 		0-28050-612-0 01 1 1304- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 1304- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
(A) IMA 		9-09956-353-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1304- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 1304- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (E) THA 		8-98048-901-0 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-98048-903-0 01 1 1304- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
çizim 350912
116 39 39 184 165
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1304- ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1304- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1304- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 IMA 		8-98173-762-1 08 1 1304- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1304- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1304- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER IMA 		8-98031-842-0 02 1 1304- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1304- ●
184 BRACKET; UNION FIX
(A) IMA 		8-98183-467-1 01 1 1304- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98017-628-1 01 1 1304- ● ●
184 BRACKET; UNION FIX
(D) IMA 		8-98156-526-0 01 1 1304- ●
184 BRACKET; UNION FIX
(C) IMA 		8-98193-145-0 01 1 1304- ●

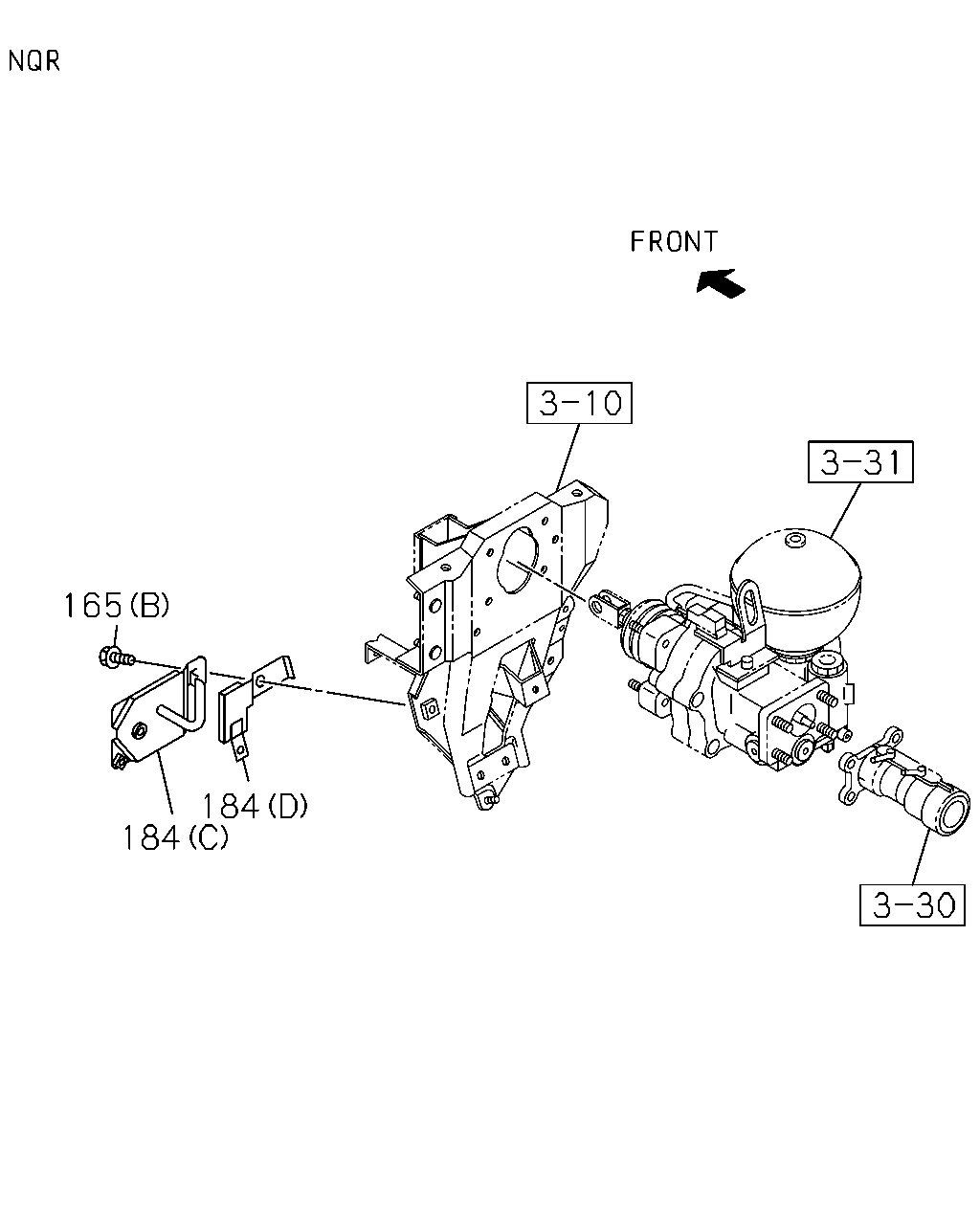

çizim 350919
165 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER IMA 		8-98031-842-0 02 1 1304- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1304- ●
184 BRACKET; UNION FIX
(A) IMA 		8-98183-467-1 01 1 1304- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98017-628-1 01 1 1304- ● ●
184 BRACKET; UNION FIX
(D) IMA 		8-98156-526-0 01 1 1304- ●
184 BRACKET; UNION FIX
(C) IMA 		8-98193-145-0 01 1 1304- ●

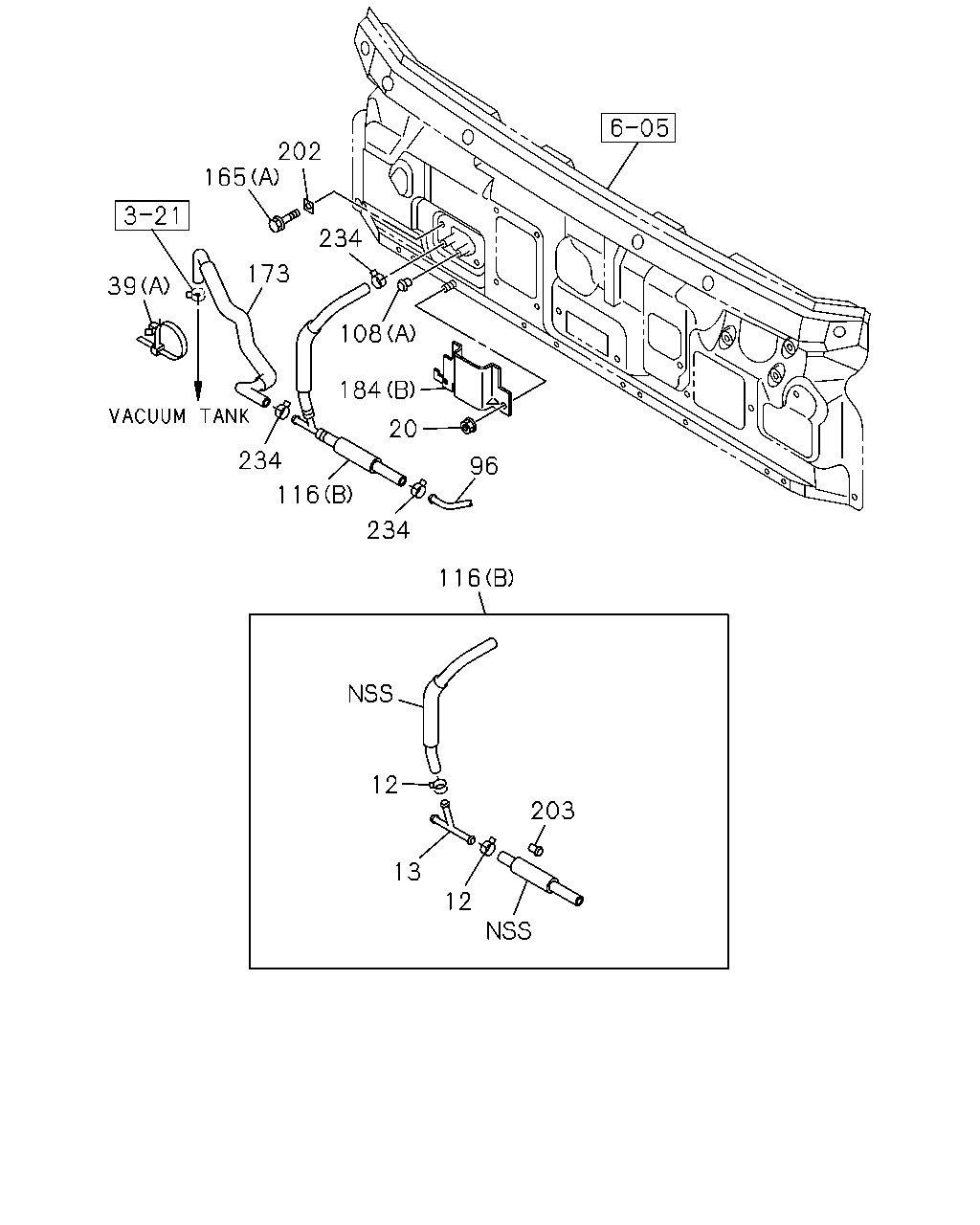

çizim 350923
202 165 39 173 234 234 116 96 20 184 108 234 116 12 13 12 203
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
ID=15.5 THA 		8-98008-097-0 02 1 1304- ●
13 JOINT; HOSE,VAC
THA 		8-98035-106-0 01 1 1304- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 1304- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1304- ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1304- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1304- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 IMA 		8-98173-762-1 08 1 1304- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> IMA 		8-98220-579-0 01 1 1304- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
(A) IMA 		9-09956-353-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1304- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1304- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER IMA 		8-98031-842-0 02 1 1304- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1304- ●
173 HOSE; VAC,VAC TANK SIDE
THA 		8-98107-558-0 01 1 1304- ●
184 BRACKET; UNION FIX
(A) IMA 		8-98183-467-1 01 1 1304- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98017-628-1 01 1 1304- ● ●
184 BRACKET; UNION FIX
(D) IMA 		8-98156-526-0 01 1 1304- ●
184 BRACKET; UNION FIX
(C) IMA 		8-98193-145-0 01 1 1304- ●
202 SEAL
IMA 		8-97856-616-0 02 1 1304- ● ●
203 VALVE; CHECK
IMA 		8-94386-540-0 01 1 1304- ●
234 CLAMP; PIPE
ID=16 IMA 		8-94238-568-0 03 1 1304- ●
çizim 350928
116 66 66 116 169 75 66 116 66 169 66 66 169 235 108
BalonParca AdiParca NoAdetTipApplied Date A B
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 02 1 1304- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 04 1 1304- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1304- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 IMA 		8-94128-319-2 01 1 1304- ● ●
108 GROMMET; PIPE
(A) IMA 		9-09956-353-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1304- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1304- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 1304- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (E) THA 		8-98048-901-0 01 1 1304- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-98048-903-0 01 1 1304- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
çizim 350930
122 235 136 136 136 158 78 136 236 44 136 78 136 44 78 136 136
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98057-425-1 01 1 1304- ● ●
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98070-194-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) IMA 		8-98112-680-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) IMA 		8-98080-833-1 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) IMA 		8-97386-589-0 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) IMA 		8-98136-613-0 01 1 1304- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> THA 		8-98189-104-0 01 1 1304- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 02 1 1304- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 IMA 		8-98008-098-0 06 1 1304- ● ●
158 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 IMA 		8-97061-603-0 01 1 1304- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 IMA 		8-97214-235-0 01 1 1304- ● ●
236 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1304- ● ●

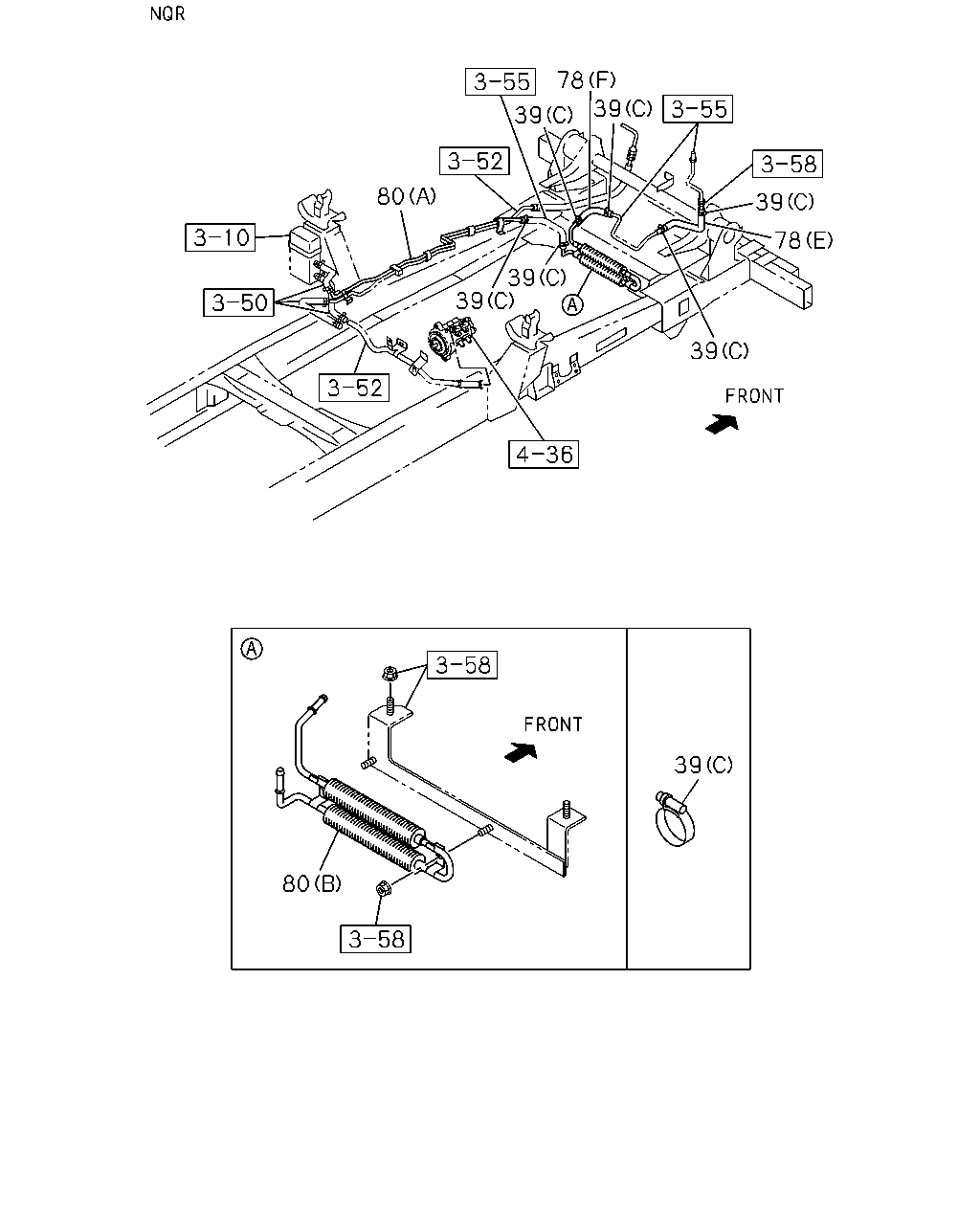

çizim 350931
80 39 39 39 78 39 39 78 39 80 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1304- ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1304- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1304- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 IMA 		8-98173-762-1 08 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) IMA 		8-98112-680-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1304- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) IMA 		8-98080-833-1 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) IMA 		8-97386-589-0 01 1 1304- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) IMA 		8-98136-613-0 01 1 1304- ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (B) IMA 		8-97386-605-0 01 1 1304- ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98097-788-0 01 1 1304- ●
