Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#119808) — 261 parça

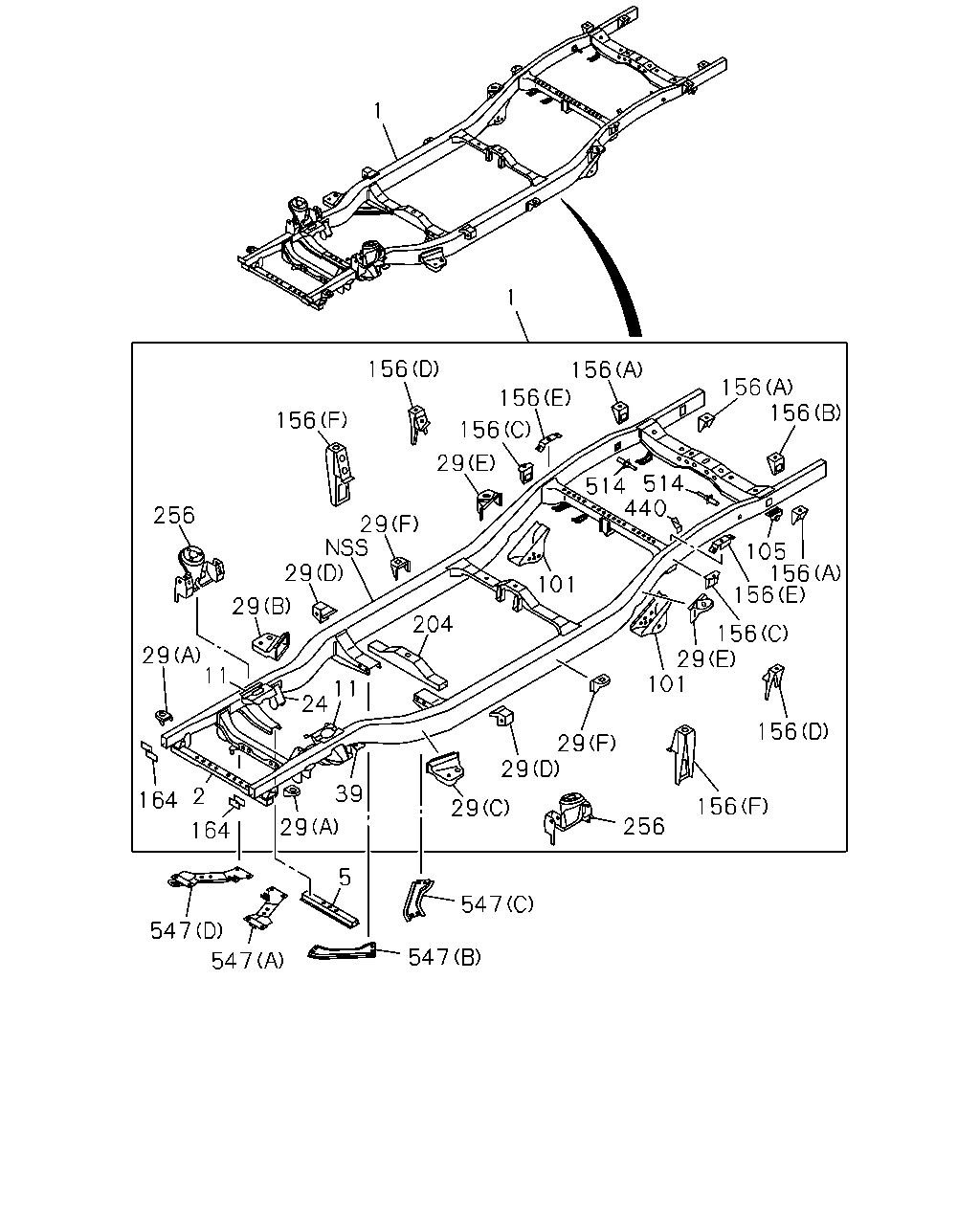

497 497 497 497 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
485	NUT; TRANS MTG MBR,FRAME M10 FLANGE	0-91180-210-0	04	1	1305-	●	●	●	●
497	BOLT; C/MBR (B) M10X35 FLANGE	0-28661-035-0	04	1	1305-1409	●
497	BOLT; C/MBR EXC. HIGH RIDE SUSPENSION(7YC) (B) M10X35 FLANGE	0-28661-035-0	04	1	1305-1409		●
497	BOLT; C/MBR (B) M10X35 FLANGE	0-28661-035-0	04	1	1410-	●
497	BOLT; C/MBR EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) (B) M10X35 FLANGE	0-28661-035-0	04	1	1410-		●
497	BOLT; C/MBR (C) M10X120 FLANGE	0-28066-012-0	04	1	1305-	●	●	●	●
497	BOLT; C/MBR 4JA1-T ENG(LP0) EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1305-1409	●
497	BOLT; C/MBR 4JA1-T ENG(LP0) EXC. SKID PLATE<7WE>,HIGH RIDE SUSPENSION(7YC) (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1305-1409		●
497	BOLT; C/MBR 4JA1-T ENG(LP0) EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1410-	●
497	BOLT; C/MBR 4JA1-T ENG(LP0) EXC. EQUIPMENT IMPACT<EPS>,SKID PLATE<7WE>,HIGH RIDE SUSPENSION(7YC) (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1410-		●
497	BOLT; C/MBR (D) M12X30 FLANGE	0-28651-230-0	08	1	1305-	●	●	●	●
497	BOLT; C/MBR HIGH RIDE SUSPENSION(7YC) EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1305-1409		●
497	BOLT; C/MBR 4JK1-TCX ENG(LR0) EXC. SKID PLATE<7WE>,HIGH RIDE SUSPENSION(7YC) (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1305-1409		●
497	BOLT; C/MBR HIGH RIDE SUSPENSION(7YC) EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1410-		●
497	BOLT; C/MBR 4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS>,SKID PLATE<7WE>,HIGH RIDE SUSPENSION(7YC) (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1410-		●
497	BOLT; C/MBR HIGH RIDE SUSPENSION(7YC) (B) M10X35 FLANGE	0-28661-035-0	06	1	1305-		●
497	BOLT; C/MBR (B) M10X35 FLANGE	0-28661-035-0	06	1	1305-			●	●

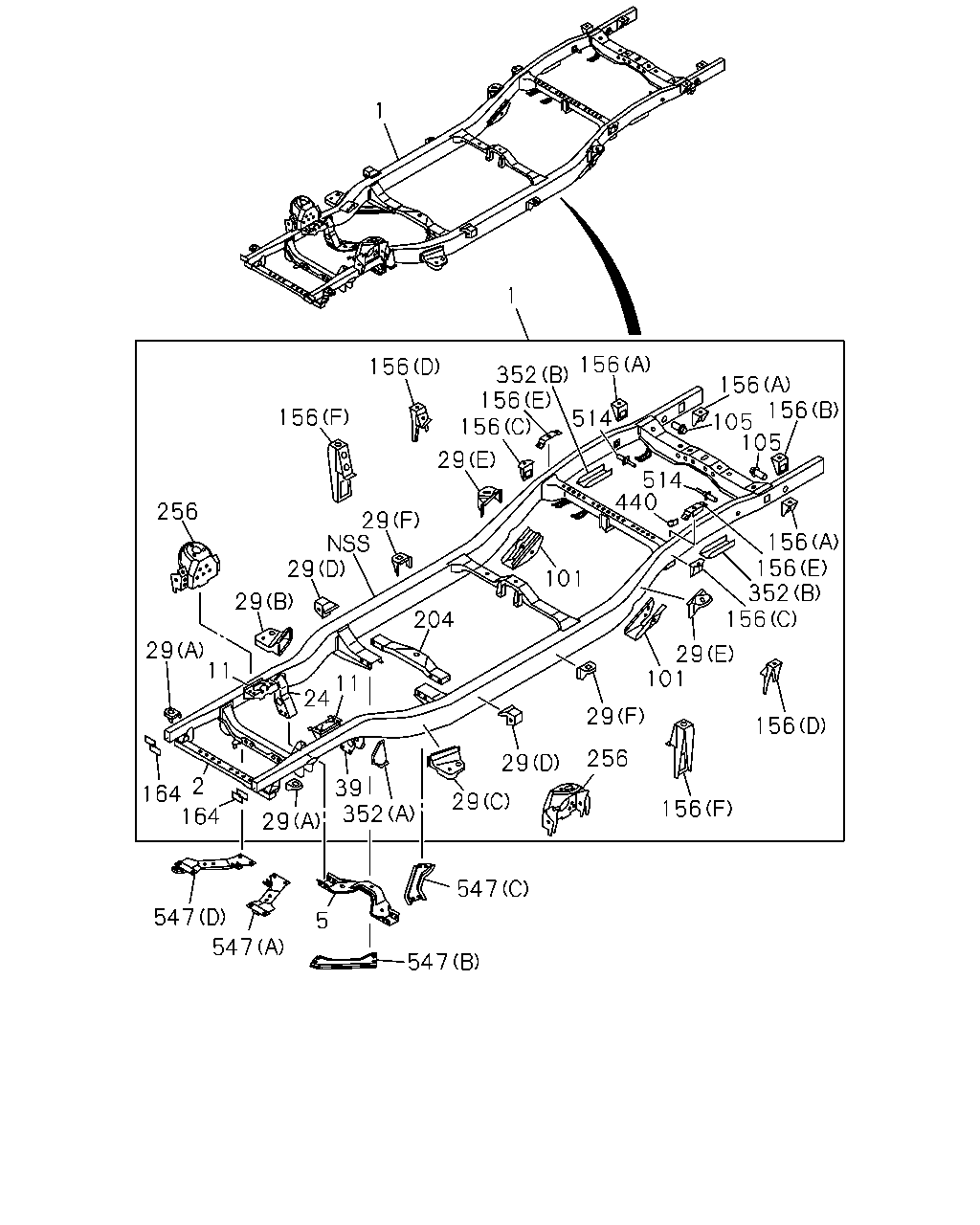

1 1 156 156 156 29 156 29 29 256 29 29 11 24 11 204 29 29 29 256 547 547 5 29 39 164 164 2 547 547 101 440 514 514 156 156 156 105 156 156 156 29 101 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC)	8-98275-099-0	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC)	8-98275-100-0	01	1	1410-		●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS>	8-98275-086-0	01	1	1410-			●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS>	8-98275-103-0	01	1	1410-				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS>	8-98275-104-0	01	1	1410-				●
1	FRAME ASM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP)	8-98159-164-4	01	1	1305-	●
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98177-756-2	01	1	1305-1409		●
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. EQUIPMENT IMPACT<EPS>	8-98177-756-2	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98177-753-3	01	1	1305-1409		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. EQUIPMENT IMPACT<EPS>	8-98177-753-3	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98177-754-4	01	1	1305-1409		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98177-754-4	01	1	1410-		●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98159-170-2	01	1	1305-1409			●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS>	8-98159-170-2	01	1	1410-			●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98177-755-2	01	1	1305-1409				●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS>	8-98177-755-2	01	1	1410-				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98177-752-2	01	1	1305-1409				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS>	8-98177-752-2	01	1	1410-				●
2	MEMBER; CROSS,1ST	8-98106-701-1	01	1	1305-	●	●	●	●
5	MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1305-	●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1305-		●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1305-		●
5	MEMBER; CROSS,SUSPENSION 4JK1-TCX ENG(LR0)	8-98173-916-0	01	1	1305-1307			●	●
5	MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	BRACKET; ENG MTG	8-98106-793-2	01	1	1305-1409	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1305-1409		●
11	BRACKET; ENG MTG	8-98106-793-2	01	1	1410-	●
11	BRACKET; ENG MTG EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1410-		●
11	BRACKET; ENG MTG	8-98106-795-1	01	1	1305-1409	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1305-1409		●
11	BRACKET; ENG MTG	8-98106-795-1	01	1	1410-	●
11	BRACKET; ENG MTG EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1410-		●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1305-		●
11	BRACKET; ENG MTG	8-98106-794-2	01	1	1305-			●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1305-		●
11	BRACKET; ENG MTG	8-98106-796-2	01	1	1305-			●	●
24	BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1305-1409	●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1305-1409		●
24	BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1410-	●
24	BRACKET; FRT SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1410-		●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1305-		●
24	BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1305-			●	●
29	BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1305-		●		●
29	BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1305-		●		●
39	BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1305-1409	●
39	BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1305-1409		●
39	BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1410-	●
39	BRACKET; FRT SPR,RR EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1410-		●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1305-		●
39	BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1305-			●	●
101	BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1305-1409	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1305-1409		●
101	BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1410-	●
101	BRACKET; RR SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1410-		●
101	BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1305-1409	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1305-1409		●
101	BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1410-	●
101	BRACKET; RR SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1410-		●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1305-		●
101	BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1305-			●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1305-		●
101	BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1305-			●	●
105	BRACKET; RR SPR,RR	8-97942-294-0	02	1	1305-1409	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1305-1409		●
105	BRACKET; RR SPR,RR	8-97942-294-0	02	1	1410-	●
105	BRACKET; RR SPR,RR EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1410-		●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1305-		●
105	BRACKET; RR SPR,RR	8-98106-870-0	02	1	1305-			●	●
156	BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1305-	●	●	●	●
156	BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1305-	●	●	●	●
156	BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1305-		●		●
164	PLATE; FRT	8-98106-814-0	01	1	1305-	●	●	●	●
164	PLATE; FRT	8-98106-815-0	01	1	1305-	●	●	●	●
204	MEMBER; CROSS,TRANS MTG	8-98106-759-4	01	1	1305-	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1305-		●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1305-		●
204	MEMBER; CROSS,TRANS MTG	8-98106-761-4	01	1	1305-			●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1305-				●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1305-				●
256	BRACKET; S/ABS	8-98106-800-2	01	1	1305-1409	●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1305-1409		●
256	BRACKET; S/ABS	8-98106-800-2	01	1	1410-	●
256	BRACKET; S/ABS EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1410-		●
256	BRACKET; S/ABS	8-98106-802-1	01	1	1305-1409	●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1305-1409		●
256	BRACKET; S/ABS	8-98106-802-1	01	1	1410-	●
256	BRACKET; S/ABS EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1410-		●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1305-		●
256	BRACKET; S/ABS	8-98106-801-6	01	1	1305-			●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1305-		●
256	BRACKET; S/ABS	8-98106-803-4	01	1	1305-			●	●
440	BRACKET; HOSE	8-98106-872-1	01	1	1305-1409	●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1305-1409		●
440	BRACKET; HOSE	8-98106-872-1	01	1	1410-	●
440	BRACKET; HOSE EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1410-		●
440	BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1305-		●
440	BRACKET; HOSE	8-98106-873-1	01	1	1305-			●	●
514	PIN; S/ABS	8-97942-395-1	02	1	1305-	●	●	●	●
547	BRACE; C/MBR (A)	8-98173-910-1	01	1	1305-	●	●
547	BRACE; C/MBR (D)	8-98177-568-3	01	1	1305-	●	●
547	BRACE; C/MBR (B)	8-98173-913-0	01	1	1305-	●	●
547	BRACE; C/MBR (C)	8-98173-914-0	01	1	1305-	●	●
547	BRACE; C/MBR (D)	8-98173-907-1	01	1	1305-1307			●	●
547	BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	BRACE; C/MBR (A)	8-98173-908-0	01	1	1305-1307			●	●
547	BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	BRACE; C/MBR (B)	8-98173-911-0	01	1	1305-			●	●
547	BRACE; C/MBR (C)	8-98173-912-0	01	1	1305-			●	●

1 1 156 156 156 105 105 514 156 156 29 156 156 29 29 29 29 256 24 11 204 101 101 29 156 352 156 156 156 29 256 156 29 29 547 352 39 29 164 2 164 11 352 514 440 547 5 547 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC)	8-98275-099-0	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC)	8-98275-100-0	01	1	1410-		●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS>	8-98275-086-0	01	1	1410-			●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS>	8-98275-103-0	01	1	1410-				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS>	8-98275-104-0	01	1	1410-				●
1	FRAME ASM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP)	8-98159-164-4	01	1	1305-	●
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98177-756-2	01	1	1305-1409		●
1	FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. EQUIPMENT IMPACT<EPS>	8-98177-756-2	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98177-753-3	01	1	1305-1409		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) EXC. EQUIPMENT IMPACT<EPS>	8-98177-753-3	01	1	1410-		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98177-754-4	01	1	1305-1409		●
1	FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98177-754-4	01	1	1410-		●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98159-170-2	01	1	1305-1409			●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS>	8-98159-170-2	01	1	1410-			●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98177-755-2	01	1	1305-1409				●
1	FRAME ASM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS>	8-98177-755-2	01	1	1410-				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98177-752-2	01	1	1305-1409				●
1	FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS>	8-98177-752-2	01	1	1410-				●
2	MEMBER; CROSS,1ST	8-98106-701-1	01	1	1305-	●	●	●	●
5	MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1305-	●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1305-		●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1305-		●
5	MEMBER; CROSS,SUSPENSION 4JK1-TCX ENG(LR0)	8-98173-916-0	01	1	1305-1307			●	●
5	MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	BRACKET; ENG MTG	8-98106-793-2	01	1	1305-1409	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1305-1409		●
11	BRACKET; ENG MTG	8-98106-793-2	01	1	1410-	●
11	BRACKET; ENG MTG EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1410-		●
11	BRACKET; ENG MTG	8-98106-795-1	01	1	1305-1409	●
11	BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1305-1409		●
11	BRACKET; ENG MTG	8-98106-795-1	01	1	1410-	●
11	BRACKET; ENG MTG EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1410-		●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1305-		●
11	BRACKET; ENG MTG	8-98106-794-2	01	1	1305-			●	●
11	BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1305-		●
11	BRACKET; ENG MTG	8-98106-796-2	01	1	1305-			●	●
24	BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1305-1409	●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1305-1409		●
24	BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1410-	●
24	BRACKET; FRT SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1410-		●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1305-		●
24	BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1305-			●	●
29	BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1305-	●	●	●	●
29	BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1305-		●		●
29	BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1305-		●		●
39	BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1305-1409	●
39	BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1305-1409		●
39	BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1410-	●
39	BRACKET; FRT SPR,RR EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1410-		●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1305-		●
39	BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1305-			●	●
101	BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1305-1409	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1305-1409		●
101	BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1410-	●
101	BRACKET; RR SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1410-		●
101	BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1305-1409	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1305-1409		●
101	BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1410-	●
101	BRACKET; RR SPR,FRT EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1410-		●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1305-		●
101	BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1305-			●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1305-		●
101	BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1305-			●	●
105	BRACKET; RR SPR,RR	8-97942-294-0	02	1	1305-1409	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1305-1409		●
105	BRACKET; RR SPR,RR	8-97942-294-0	02	1	1410-	●
105	BRACKET; RR SPR,RR EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1410-		●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1305-		●
105	BRACKET; RR SPR,RR	8-98106-870-0	02	1	1305-			●	●
156	BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1305-	●	●	●	●
156	BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1305-	●	●	●	●
156	BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1305-	●		●
156	BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1305-		●		●
164	PLATE; FRT	8-98106-814-0	01	1	1305-	●	●	●	●
164	PLATE; FRT	8-98106-815-0	01	1	1305-	●	●	●	●
204	MEMBER; CROSS,TRANS MTG	8-98106-759-4	01	1	1305-	●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1305-		●
204	MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1305-		●
204	MEMBER; CROSS,TRANS MTG	8-98106-761-4	01	1	1305-			●
204	MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1305-				●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1305-				●
256	BRACKET; S/ABS	8-98106-800-2	01	1	1305-1409	●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1305-1409		●
256	BRACKET; S/ABS	8-98106-800-2	01	1	1410-	●
256	BRACKET; S/ABS EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1410-		●
256	BRACKET; S/ABS	8-98106-802-1	01	1	1305-1409	●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1305-1409		●
256	BRACKET; S/ABS	8-98106-802-1	01	1	1410-	●
256	BRACKET; S/ABS EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1410-		●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1305-		●
256	BRACKET; S/ABS	8-98106-801-6	01	1	1305-			●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1305-		●
256	BRACKET; S/ABS	8-98106-803-4	01	1	1305-			●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-835-3	01	1	1305-		●
352	BRACKET; BUMPER RUBBER (A)	8-98106-835-3	01	1	1305-			●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-836-3	01	1	1305-		●
352	BRACKET; BUMPER RUBBER (A)	8-98106-836-3	01	1	1305-			●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (B)	8-98106-871-1	02	1	1305-		●
352	BRACKET; BUMPER RUBBER (B)	8-98106-871-1	02	1	1305-			●	●
440	BRACKET; HOSE	8-98106-872-1	01	1	1305-1409	●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1305-1409		●
440	BRACKET; HOSE	8-98106-872-1	01	1	1410-	●
440	BRACKET; HOSE EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1410-		●
440	BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1305-		●
440	BRACKET; HOSE	8-98106-873-1	01	1	1305-			●	●
514	PIN; S/ABS	8-97942-395-1	02	1	1305-	●	●	●	●
547	BRACE; C/MBR (A)	8-98173-910-1	01	1	1305-	●	●
547	BRACE; C/MBR (D)	8-98177-568-3	01	1	1305-	●	●
547	BRACE; C/MBR (B)	8-98173-913-0	01	1	1305-	●	●
547	BRACE; C/MBR (C)	8-98173-914-0	01	1	1305-	●	●
547	BRACE; C/MBR (D)	8-98173-907-1	01	1	1305-1307			●	●
547	BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	BRACE; C/MBR (A)	8-98173-908-0	01	1	1305-1307			●	●
547	BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	BRACE; C/MBR (B)	8-98173-911-0	01	1	1305-			●	●
547	BRACE; C/MBR (C)	8-98173-912-0	01	1	1305-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
