0-41 — FUEL FILTER AND BRACKET (#1198) — 51 parça

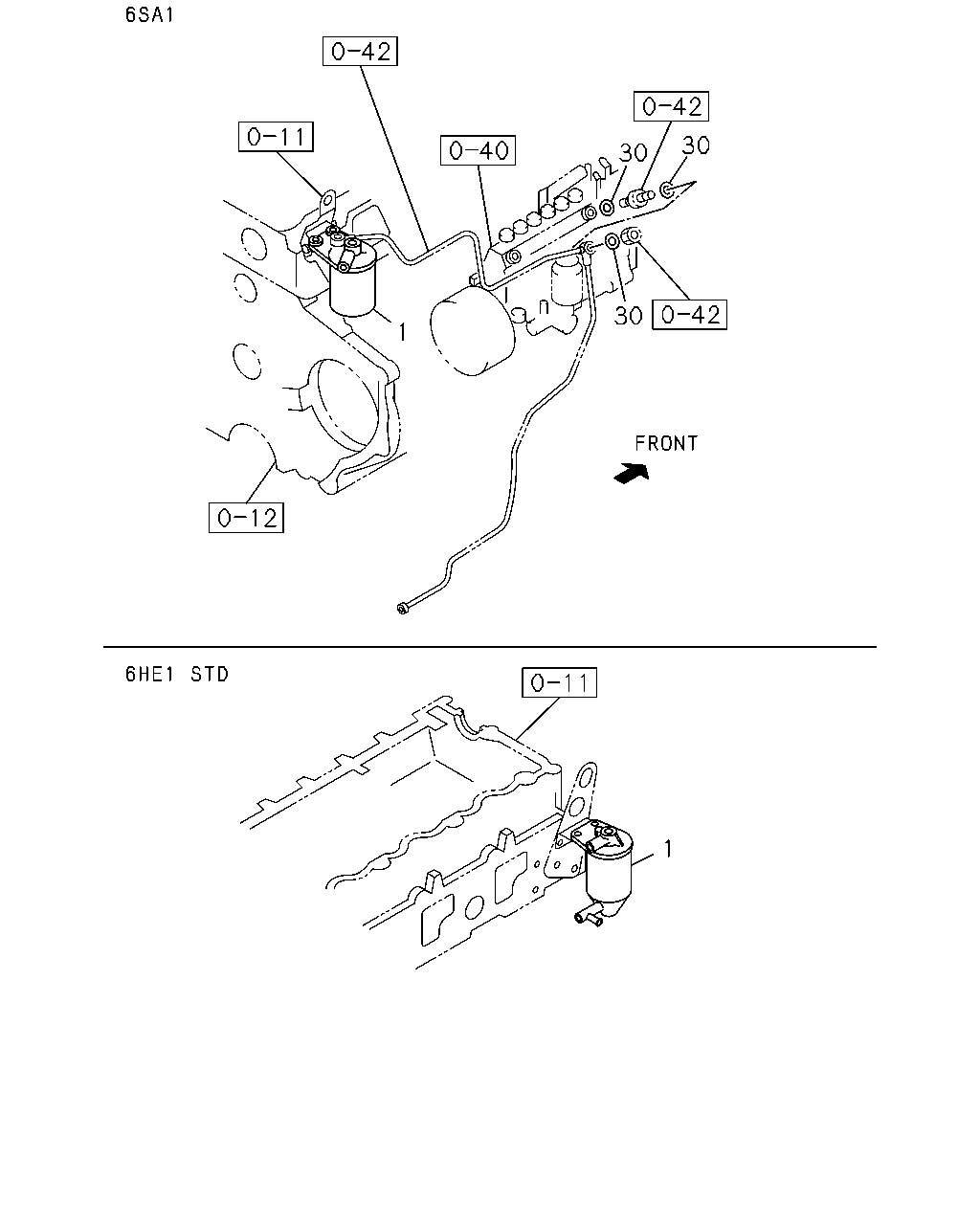

çizim 92426
30 30 30 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 1-13200-668-0 01 1 9202- ● ●
1 FILTER ASM; FUEL 8-94393-448-1 01 1 9202-9411 ●
1 FILTER ASM; FUEL 8-94397-113-3 01 1 9412- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 05 1 9202- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9202- ●
çizim 92480
2 1 29 30 42 30 21 27 26 27 26 27 27 41 61 14 75 38 13 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 1-13200-668-0 01 1 9202- ● ●
1 FILTER ASM; FUEL 8-94393-448-1 01 1 9202-9411 ●
1 FILTER ASM; FUEL 8-94397-113-3 01 1 9412- ●
2 ELEMENT KIT; FUEL FILTER 9-88511-191-1 01 1 9202- ● ● ●
12 BOLT; CENTER,FUEL FILTER 1-13231-033-0 01 1 9202- ● ●
12 BOLT; CENTER,FUEL FILTER 1-13231-053-0 01 1 9202- ●
13 GASKET; CENTER BOLT 9-09720-541-0 01 1 9202- ● ● ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 9-09742-109-0 01 1 9202- ● ● ●
21 COVER; UPR,FUEL FILTER 9-13212-804-0 01 1 9202- ● ● ●
26 GASKET; COVER TO BODY 9-13213-601-0 01 1 9202- ● ● ●
27 GASKET; ELEMENT 9-09720-542-0 02 1 9202- ● ● ●
29 VALVE; OVERFLOW 1-13260-047-0 01 1 9202- ● ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9202- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 05 1 9202- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9202- ●
38 PLUG; DRAIN
M8X10 		9-09862-068-0 01 1 9202- ● ●
38 PLUG; DRAIN 1-13219-052-0 01 1 9202- ●
41 BRACKET; FUEL FILTER 8-94399-441-0 01 1 9202- ●
42 BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9202- ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28081-035-0 02 1 9202- ●
61 SEAT; SPR ELEMENT 9-09651-068-0 01 1 9202- ● ● ●
75 BODY; FUEL FILTER 1-13211-136-0 01 1 9202- ● ●
75 BODY; FUEL FILTER 8-94393-518-1 01 1 9202- ●
çizim 92724
1 42 1 29 30 21 26 2 27 26 27 27 61 14 27 75 13 13 12 39 39 38
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 1-13200-668-0 01 1 9202- ● ●
1 FILTER ASM; FUEL 8-94393-448-1 01 1 9202-9411 ●
1 FILTER ASM; FUEL 8-94397-113-3 01 1 9412- ●
2 ELEMENT KIT; FUEL FILTER 9-88511-191-1 01 1 9202- ● ● ●
12 BOLT; CENTER,FUEL FILTER 1-13231-033-0 01 1 9202- ● ●
12 BOLT; CENTER,FUEL FILTER 1-13231-053-0 01 1 9202- ●
13 GASKET; CENTER BOLT 9-09720-541-0 01 1 9202- ● ● ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 9-09742-109-0 01 1 9202- ● ● ●
21 COVER; UPR,FUEL FILTER 9-13212-804-0 01 1 9202- ● ● ●
26 GASKET; COVER TO BODY 9-13213-601-0 01 1 9202- ● ● ●
27 GASKET; ELEMENT 9-09720-542-0 02 1 9202- ● ● ●
29 VALVE; OVERFLOW 1-13260-047-0 01 1 9202- ● ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9202- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 05 1 9202- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9202- ●
38 PLUG; DRAIN
M8X10 		9-09862-068-0 01 1 9202- ● ●
38 PLUG; DRAIN 1-13219-052-0 01 1 9202- ●
39 GASKET; DRAIN PLUG 9-09920-255-0 01 1 9202- ● ●
42 BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9202- ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28081-035-0 02 1 9202- ●
61 SEAT; SPR ELEMENT 9-09651-068-0 01 1 9202- ● ● ●
75 BODY; FUEL FILTER 1-13211-136-0 01 1 9202- ● ●
75 BODY; FUEL FILTER 8-94393-518-1 01 1 9202- ●
