4-61 — SHOCK ABSORBER; REAR SUSPENSION (#119798) — 13 parça

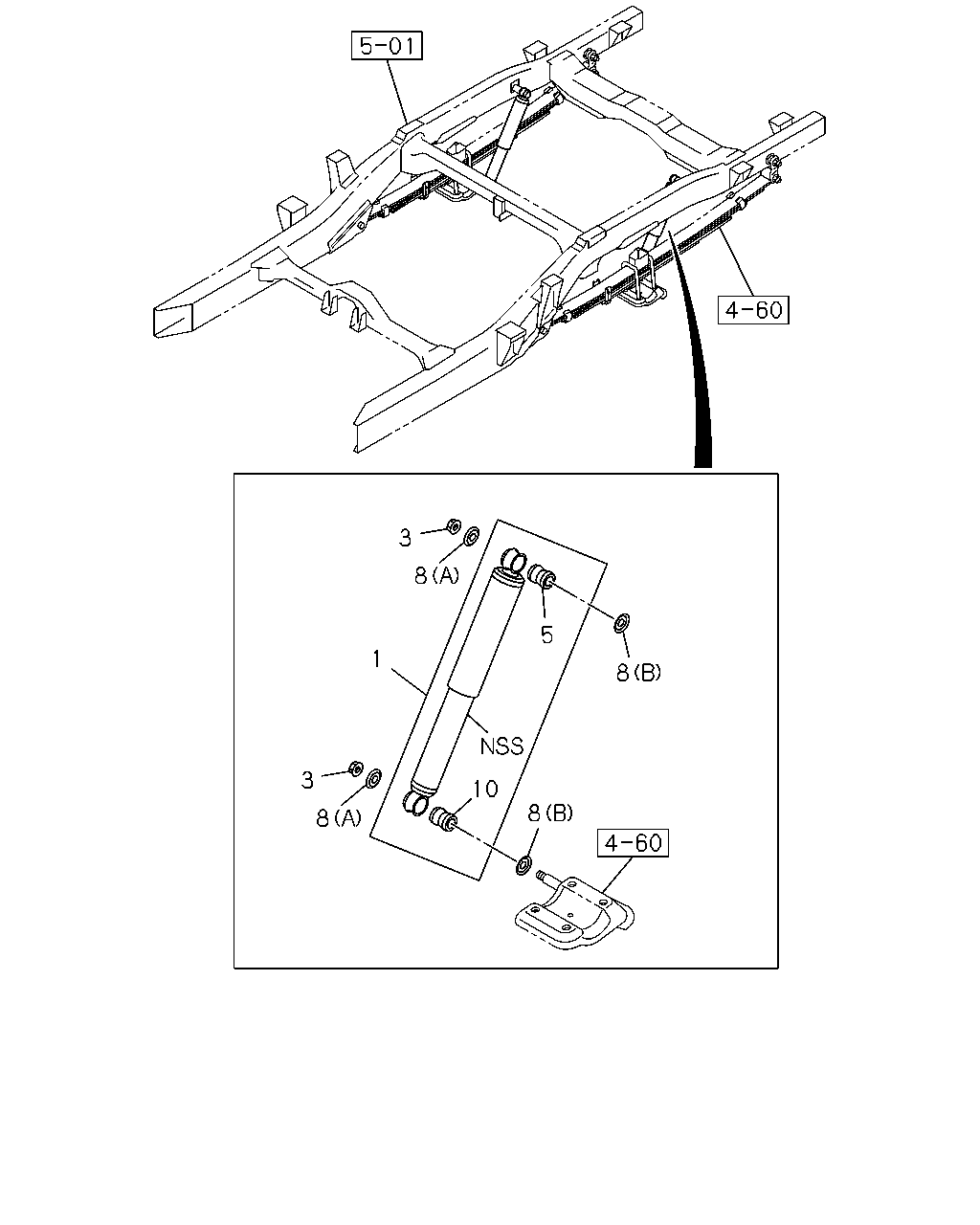

çizim 352523
3 1 3 8 10 5 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ABSORBER ASM; SHOCK,RR 8-97947-013-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) 		8-97947-013-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) 		8-97947-018-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-97947-018-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-015-1 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-97947-016-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR 8-97947-016-2 02 1 1305- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-97947-016-2 02 1 1305- ●
3 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 1305- ● ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 1305- ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 		8-98005-969-0 04 1 1305- ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 		8-98005-970-0 04 1 1305- ● ● ● ●
10 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 1305- ● ● ● ●
