2-30 — GEAR SHIFTER AND QUADRANT BOX (#119793) — 57 parça

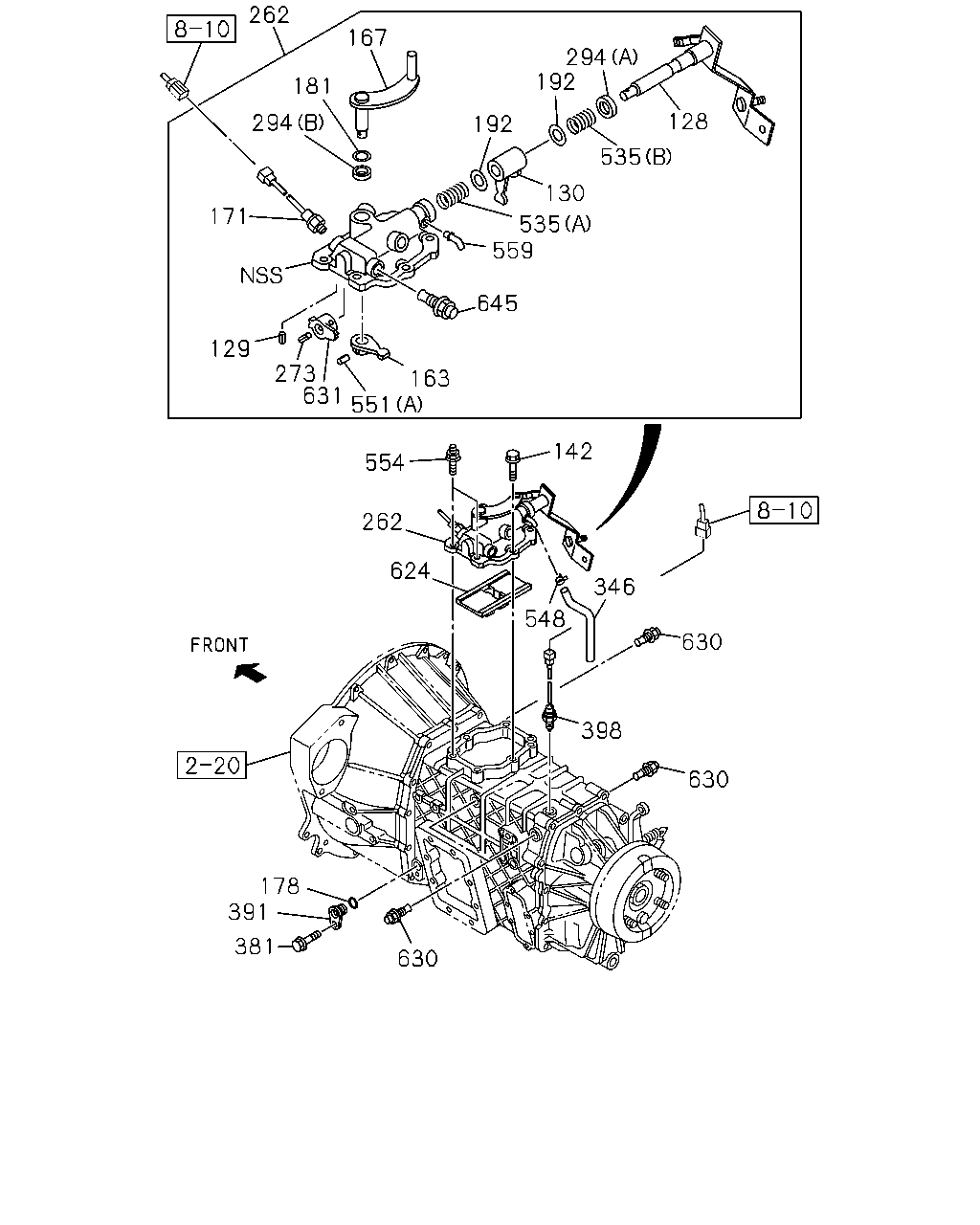

çizim 350655
178 391 630 630 398 346 548 624 262 554 142 381 630 551 163 631 273 129 171 294 181 167 262 645 559 535 130 192 192 535 128 294
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL
IMA 		8-98021-595-0 01 1 1304- ● ●
129 PIN; SPR,SHIFT
L=30 OD=4 IMA 		1-09748-031-0 01 1 1304- ● ●
130 LEVER; SHIFT,INTERNAL
IMA 		8-97306-647-0 01 1 1304- ● ●
142 BOLT; QUAD BOX
M8X22 FLANGE IMA 		8-97365-376-0 04 1 1304- ● ●
163 LEVER; SELECT,INTERNAL
IMA 		8-97305-663-0 01 1 1304- ● ●
167 LEVER; SELECT,EXTERNAL
IMA 		8-98039-444-0 01 1 1304- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1304-1312 ● ●
171 SWITCH; NEUTRAL
IMA 		8-98242-172-1 01 1 1401- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). IMA 		9-09567-113-0 01 1 1304- ● ●
181 WASHER; PL,SELECT LEVER
IMA 		8-97367-327-0 01 1 1304- ● ●
192 WASHER; PL
IMA 		8-97305-661-0 02 1 1304- ● ●
262 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 1304-1312 ● ●
262 BOX ASM; SHIFT CONT
IMA 		8-98240-994-1 01 1 1401- ● ●
273 PIN; SPR,STOPPER
D=4.2 L=25 IMA 		8-97103-142-0 01 1 1304- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) IMA 		8-97305-662-0 01 1 1304- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) IMA 		8-97363-225-0 01 1 1304- ● ●
346 HOSE; AIR
IMA 		8-97309-855-0 01 1 1304- ● ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1304- ● ●
391 PLUG; SW HOLE
IMA 		8-97300-273-1 01 1 1304- ● ●
398 SWITCH; REV LAMP 8-98186-003-0 01 1 1304-1311 ● ●
398 SWITCH; REV LAMP
IMA 		8-98256-418-0 01 1 1312- ● ●
535 SPRING; LEVER
(A) IMA 		8-97305-659-0 01 1 1304- ● ●
535 SPRING; LEVER
(B) IMA 		8-97305-660-0 01 1 1304- ● ●
548 CLIP; HOSE
IMA 		8-97031-674-0 01 1 1304- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 05 1 1304- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1304- ● ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 IMA 		8-97365-378-0 02 1 1304- ● ●
559 PIPE; BREATHER
IMA 		8-97358-318-0 01 1 1304- ● ●
624 PLATE; INTER LOCK
IMA 		8-97241-317-3 01 1 1304- ● ●
630 DETENT ASM
IMA 		8-98019-536-0 04 1 1304- ● ●
631 STOPPER; SPRING
IMA 		8-97305-666-0 01 1 1304- ● ●
645 DETENT ASM
IMA 		8-98019-536-0 01 1 1304- ● ●

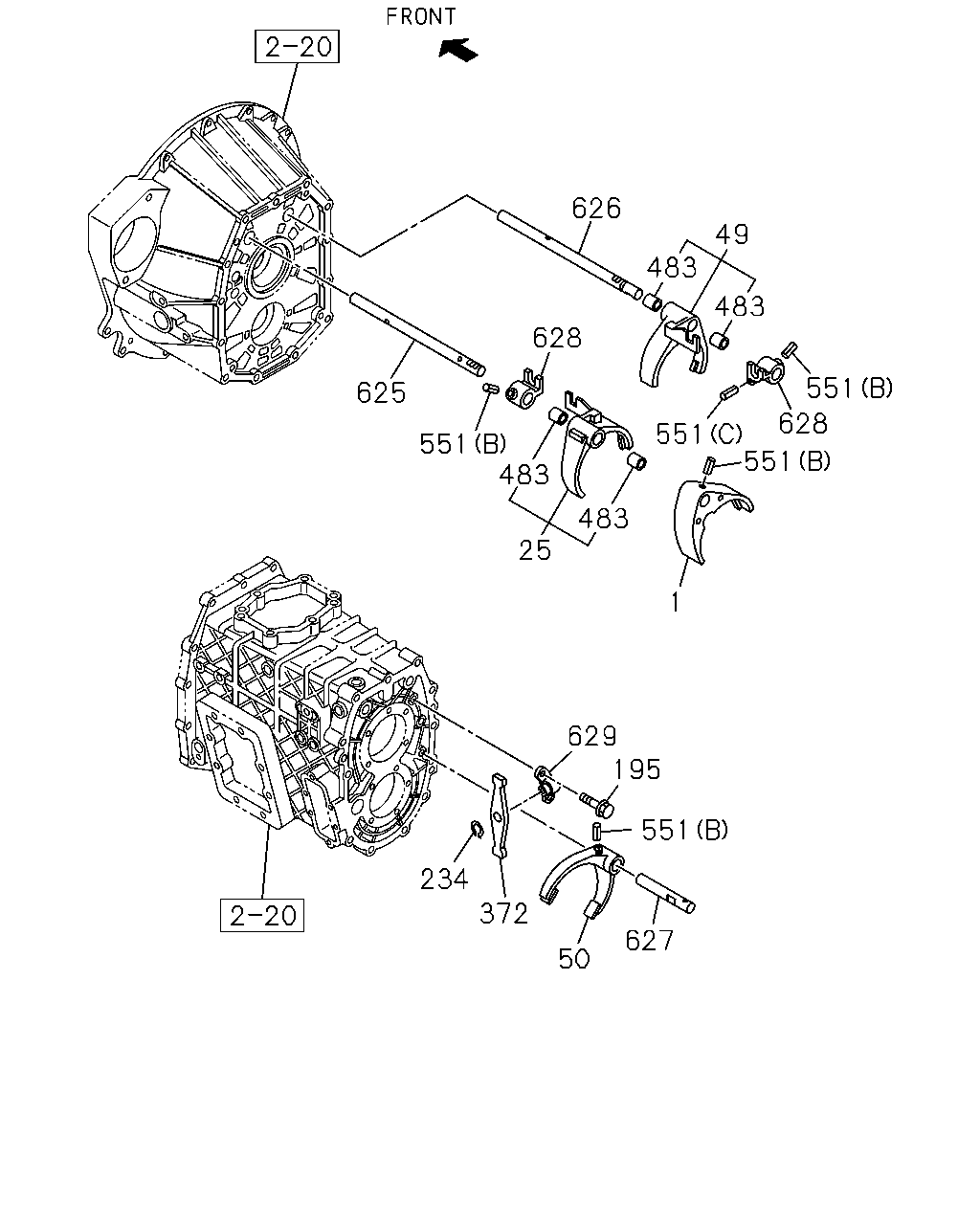

çizim 350661
50 551 195 234 629 372 483 1 551 628 551 551 483 551 625 628 49 483 626 483 627 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
IMA 		8-97241-320-2 01 1 1304- ●
1 ARM; SHIFT,1ST & REV
IMA 		8-97241-319-2 01 1 1304- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1304-1407 ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-98255-926-1 01 1 1408- ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-97362-737-1 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-732-1 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-738-1 01 1 1304- ●
50 ARM; SHIFT,6TH
IMA 		8-97241-325-1 01 1 1304- ●
50 ARM; SHIFT,6TH
IMA 		8-97241-324-1 01 1 1304- ●
195 BOLT
M10X28 FLANGE REAMER IMA 		8-97365-375-0 02 1 1304- ● ●
234 RING; SNAP
ID=16.5 IMA 		0-91800-618-0 01 1 1304- ● ●
372 LEVER; RELAY,6TH
IMA 		8-97241-343-0 01 1 1304- ●
372 LEVER; RELAY,6TH
IMA 		8-97241-342-0 01 1 1304- ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 04 1 1304- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 05 1 1304- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1304- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-741-0 01 1 1304- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-735-0 01 1 1304- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
IMA 		8-97366-024-1 01 1 1304- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
IMA 		8-98107-548-0 01 1 1304- ●
627 ROD; GEAR SHIFT,6TH SUB
IMA 		8-98119-293-0 01 1 1304- ● ●
628 BLOCK; SHIFT,LOW,REV & 6TH
IMA 		8-97241-327-1 02 1 1304- ● ●
629 BRIDGE; LEVER
IMA 		8-97241-345-1 01 1 1304- ● ●
