◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶

2-26 — MANUAL TRANSMISSION GEAR (#119792) — 181 parça

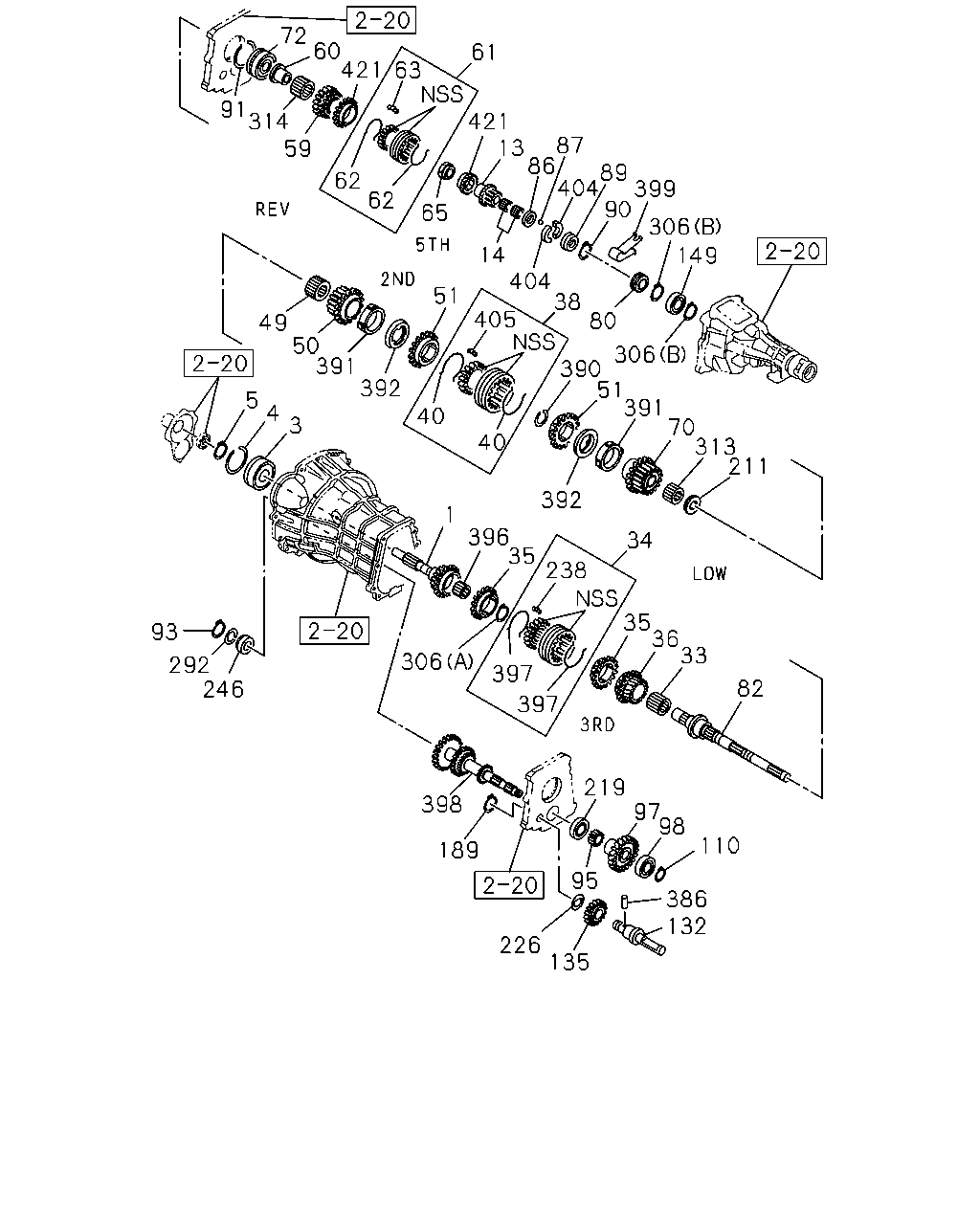

132 135 226 386 95 110 98 97 219 189 398 397 306 82 33 36 35 246 292 93 211 34 238 35 396 1 392 3 4 5 392 391 50 49 40 40 313 70 391 51 390 306 80 38 404 405 51 14 149 306 399 90 89 404 87 86 13 421 61 63 421 60 72 91 59 314 62 62 65 397

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1305-1307	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1308-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-248-0	01	1	1305-1307		●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1308-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1305-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1305-	●	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1305-	●	●
13	GEAR; 5TH,MAINSHAFT Z=24	8-98210-254-0	01	1	1305-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1305-		●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1305-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1305-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1305-1401	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1402-	●	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1305-	●	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1305-	●	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1305-1401	●	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1402-	●	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1305-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1305-	●	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1305-	●	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1305-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1305-	●	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1305-	●	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1305-	●	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1305-	●	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1305-	●	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1305-	●	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1305-	●	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1305-	●	●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1305-	●
80	GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1305-		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1305-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1305-		●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1305-		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1305-	●	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1305-	●	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1305-	●	●
90	RING; SNAP,THRUST RING ID=29.6	9-09180-032-0	01	1	1305-	●
90	RING; SNAP,THRUST RING 4X2(TFB***) ID=29.6	9-09180-032-0	01	1	1305-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1305-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1305-	●	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1305-	●	●
97	GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	1305-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1305-		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1305-	●	●
132	SHAFT; REV	8-97019-155-1	01	1	1305-1308	●	●
132	SHAFT; REV	8-98245-493-0	01	1	1309-	●	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1305-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	8-94173-863-0	01	1	1305-	●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) NSK	8-94173-863-0	01	1	1305-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1305-	●	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1305-	●	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1305-	●	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1305-	●	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1305-	●	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1305-	●	●
238	INSERT	8-94448-202-2	03	1	1305-	●	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1305-	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1305-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1305-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1305-		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1305-	●	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1305-	●	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1305-	●	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1305-	●	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1305-	●	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1305-	●	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1305-	●	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1305-	●	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1305-	●	●
399	CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1305-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1305-		●
404	PLATE; THRUST	8-94421-892-0	02	1	1305-	●	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1305-	●	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1305-	●	●

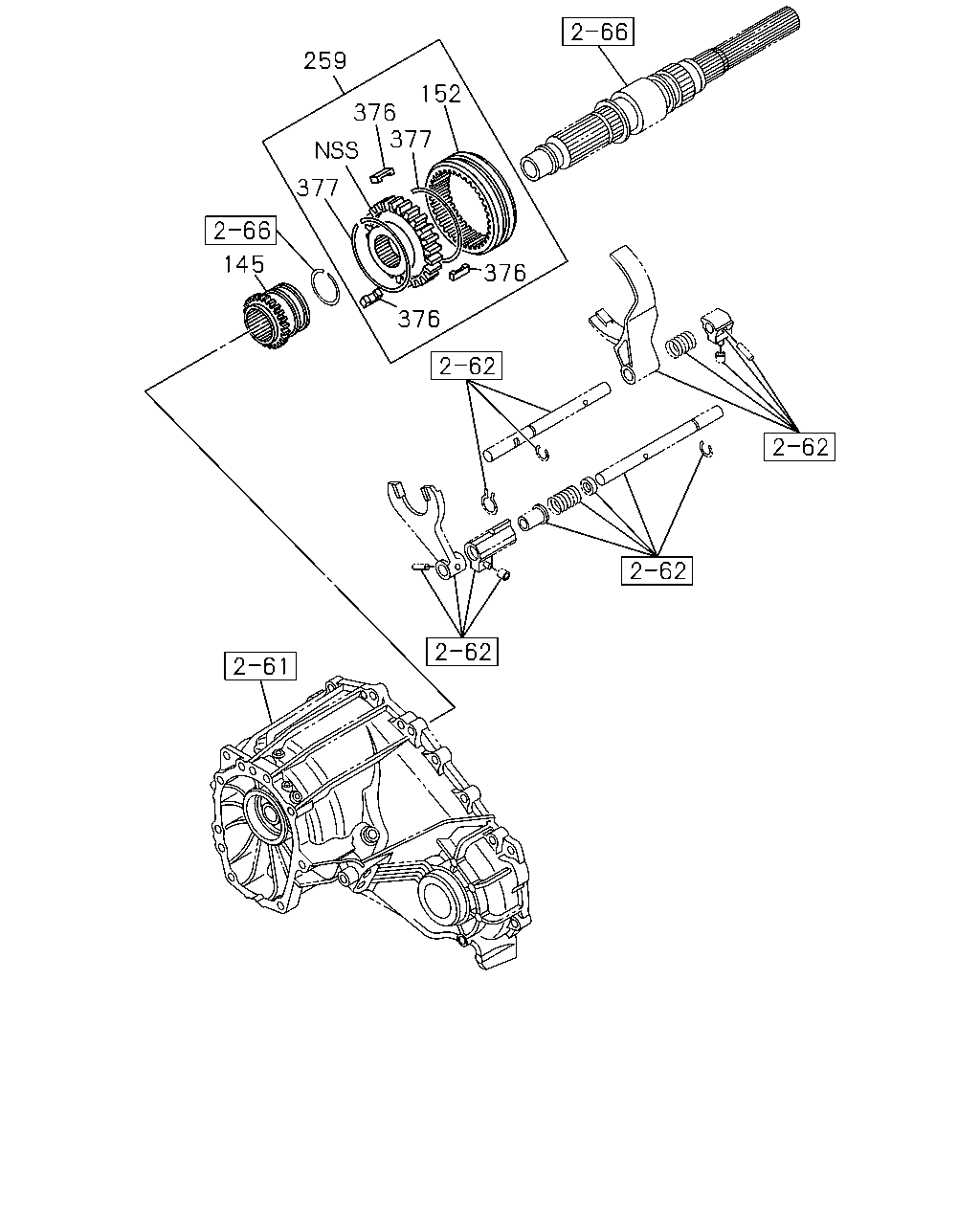

259 145 376 376 152 376 377 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1305-	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1305-	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1305-	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1305-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-94448-045-0	02	1	1305-	●	●

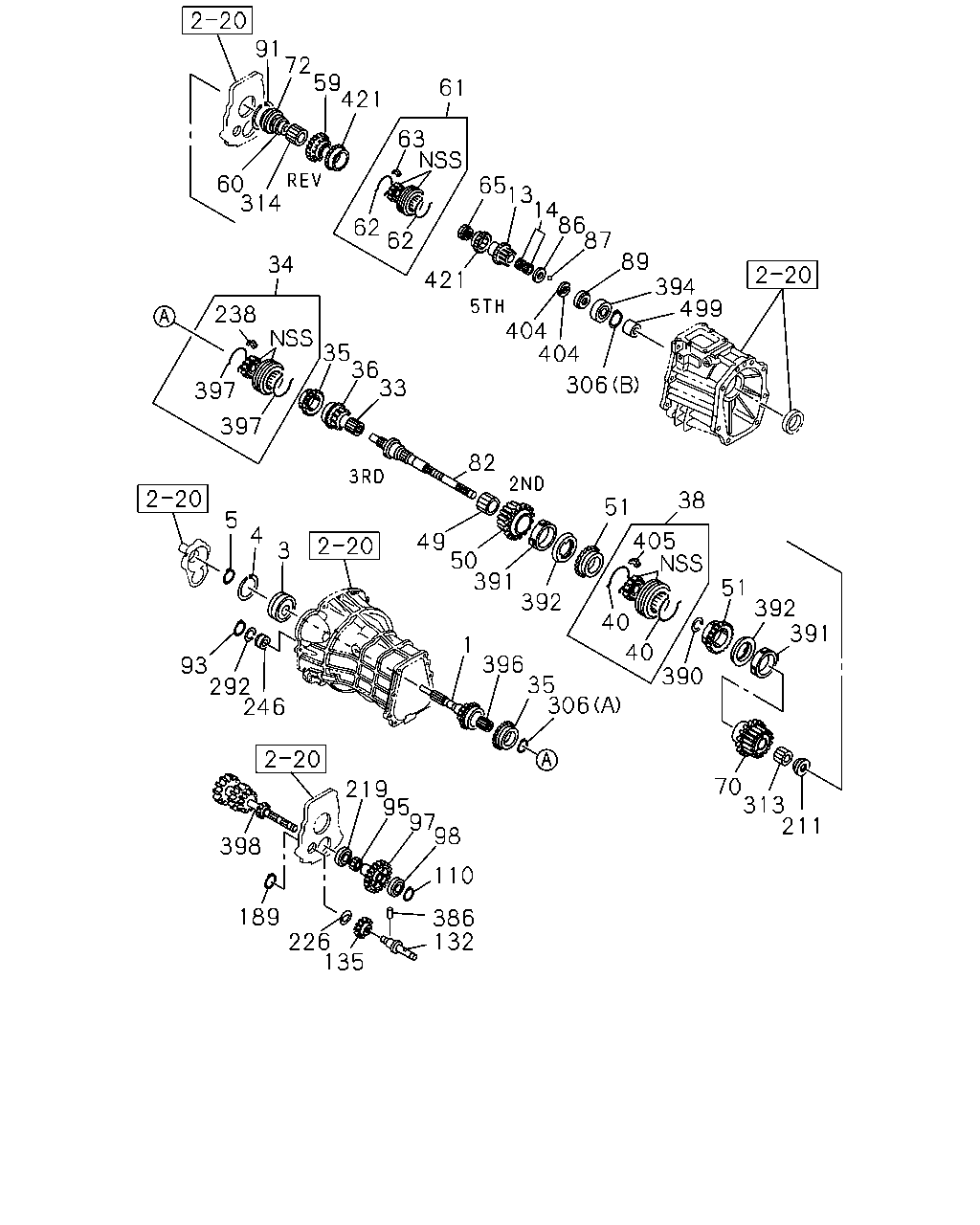

91 61 72 60 59 314 421 65 421 62 63 62 13 404 14 404 86 394 89 87 499 38 51 82 33 36 35 34 238 397 49 392 50 391 396 1 35 40 40 405 392 51 390 391 70 313 211 219 95 97 98 110 386 132 135 226 189 398 246 292 93 5 4 3 306 397 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1305-1307	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1308-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-248-0	01	1	1305-1307		●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1308-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1305-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1305-	●	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1305-	●	●
13	GEAR; 5TH,MAINSHAFT Z=24	8-98210-254-0	01	1	1305-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1305-		●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1305-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1305-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1305-1401	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1402-	●	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1305-	●	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1305-	●	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1305-1401	●	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1402-	●	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1305-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1305-	●	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1305-	●	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1305-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1305-	●	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1305-	●	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1305-	●	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1305-	●	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1305-	●	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1305-	●	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1305-	●	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1305-	●	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1305-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1305-		●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1305-		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1305-	●	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1305-	●	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1305-	●	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1305-	●	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1305-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1305-	●	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1305-	●	●
97	GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	1305-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1305-		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1305-	●	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1305-	●	●
132	SHAFT; REV	8-97019-155-1	01	1	1305-1308	●	●
132	SHAFT; REV	8-98245-493-0	01	1	1309-	●	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1305-	●	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1305-	●	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1305-	●	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1305-	●	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1305-	●	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1305-	●	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1305-	●	●
238	INSERT	8-94448-202-2	03	1	1305-	●	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1305-	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1305-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1305-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1305-	●	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1305-		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1305-	●	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1305-	●	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1305-	●	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1305-	●	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1305-	●	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1305-	●	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1305-	●	●
394	BEARING; BALL,MAINSHAFT RR 4X4(TFS***) NSK	8-97018-921-1	01	1	1305-		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1305-	●	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1305-	●	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1305-	●	●
404	PLATE; THRUST	8-94421-892-0	02	1	1305-	●	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1305-	●	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1305-	●	●
499	COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
