2-25 — SPEEDOMETER DRIVEN GEAR (#119790) — 68 parça

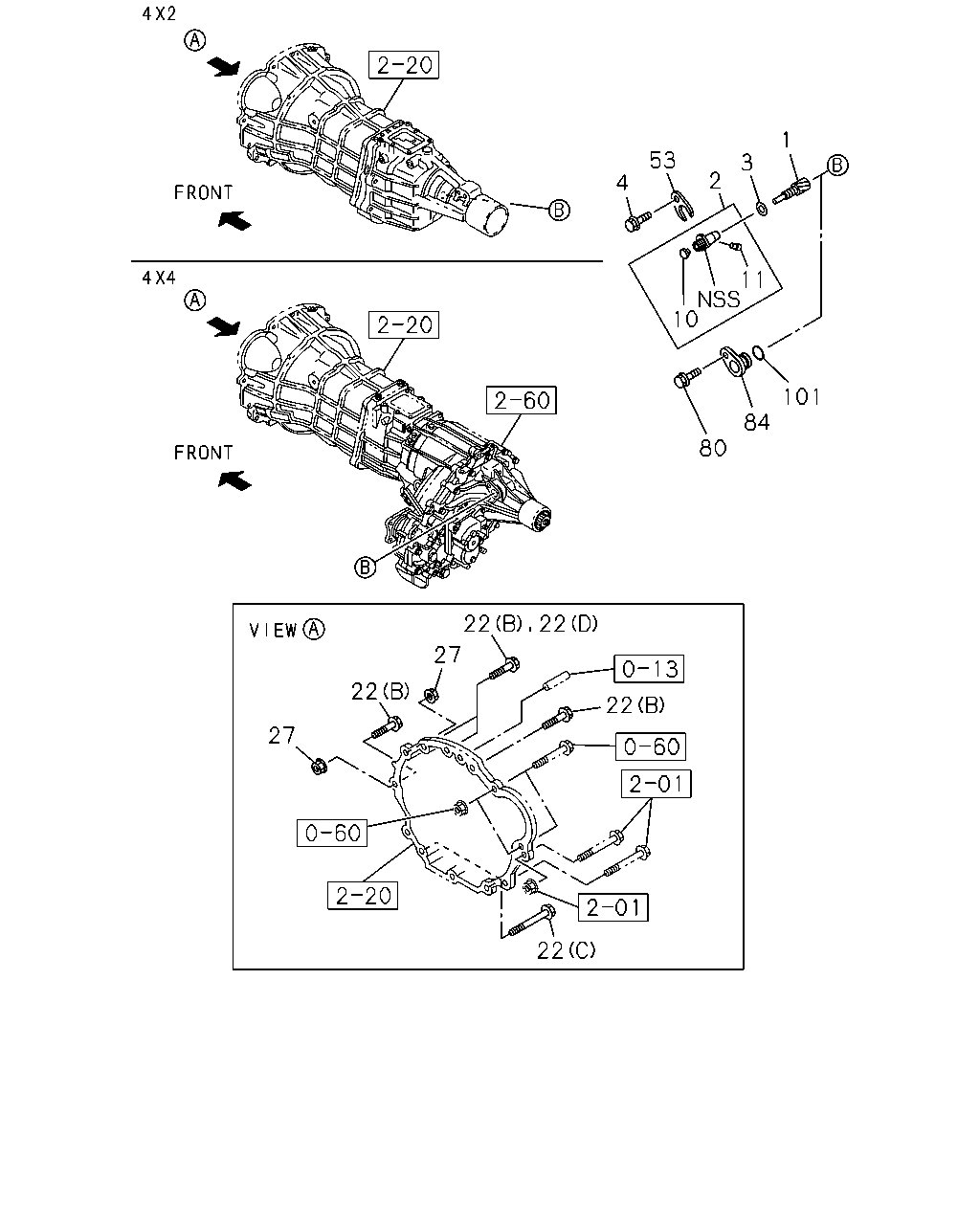

80 84 101 10 4 53 3 1 2 27 22 22 27 22 22 22 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1305-	●
1	GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1305-		●
1	GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1305-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1305-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1305-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1305-		●	●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-		●
3	GASKET; BUSHING 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1305-	●
4	BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-		●
4	BOLT; RET,DRIVEN GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-			●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1305-	●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1305-		●
10	SEAL; OIL,DRIVE GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1305-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	1305-	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1305-		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1305-			●
22	BOLT; TRANS CASE TO ENG (B) M10X40 FLANGE	0-28051-040-0	04	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE	0-28051-060-0	02	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (D) M12X40 FLANGE	0-28051-240-0	01	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (A) M12X50 FLANGE	0-28051-250-0	08	1	1305-			●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	1305-	●	●
27	NUT; CLU HSG TO TRANS M12 FLANGE	0-91180-112-0	02	1	1305-			●
53	PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1305-	●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1305-		●
53	PLATE; LOCK,DRIVEN GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1305-			●
80	BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-		●
80	BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-			●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1305-		●
84	CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1305-			●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-		●
101	GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-			●

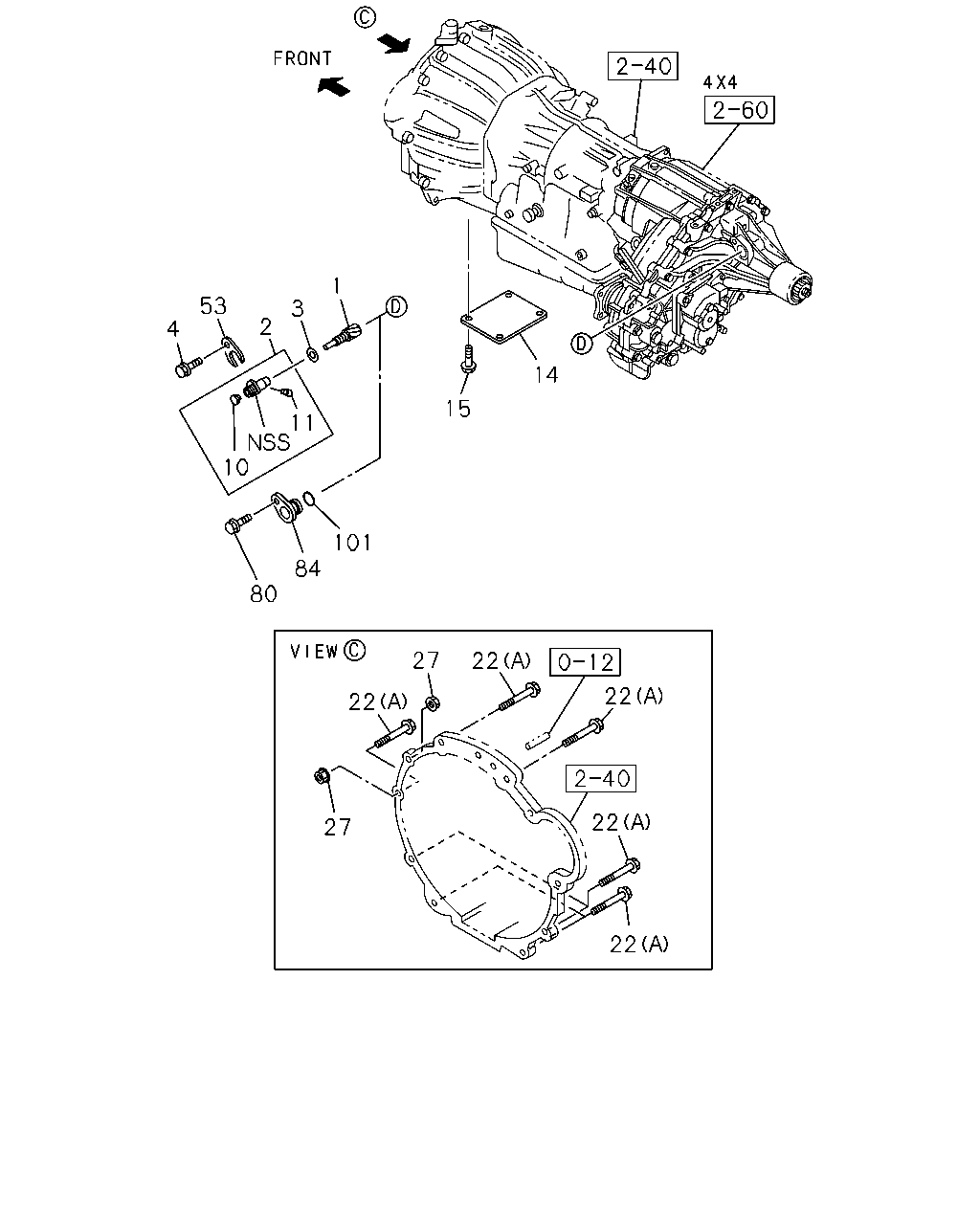

14 15 1 3 2 53 4 101 11 10 80 84 22 27 27 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1305-	●
1	GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1305-		●
1	GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1305-		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1305-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1305-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1305-		●	●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-	●
3	GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-		●
3	GASKET; BUSHING 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1305-	●
4	BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-		●
4	BOLT; RET,DRIVEN GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-			●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1305-	●
10	SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1305-		●
10	SEAL; OIL,DRIVE GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1305-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	1305-	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1305-		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1305-			●
14	COVER; UNDER,TRANS	8-98049-857-0	01	1	1305-			●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE	0-28650-616-0	04	1	1305-			●
22	BOLT; TRANS CASE TO ENG (B) M10X40 FLANGE	0-28051-040-0	04	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE	0-28051-060-0	02	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (D) M12X40 FLANGE	0-28051-240-0	01	1	1305-	●	●
22	BOLT; TRANS CASE TO ENG (A) M12X50 FLANGE	0-28051-250-0	08	1	1305-			●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	1305-	●	●
27	NUT; CLU HSG TO TRANS M12 FLANGE	0-91180-112-0	02	1	1305-			●
53	PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1305-	●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1305-		●
53	PLATE; LOCK,DRIVEN GEAR 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1305-			●
80	BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-		●
80	BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1305-			●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1305-		●
84	CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1305-			●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-		●
101	GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1305-			●
