Sayfa 3-30 - Isuzu EPC

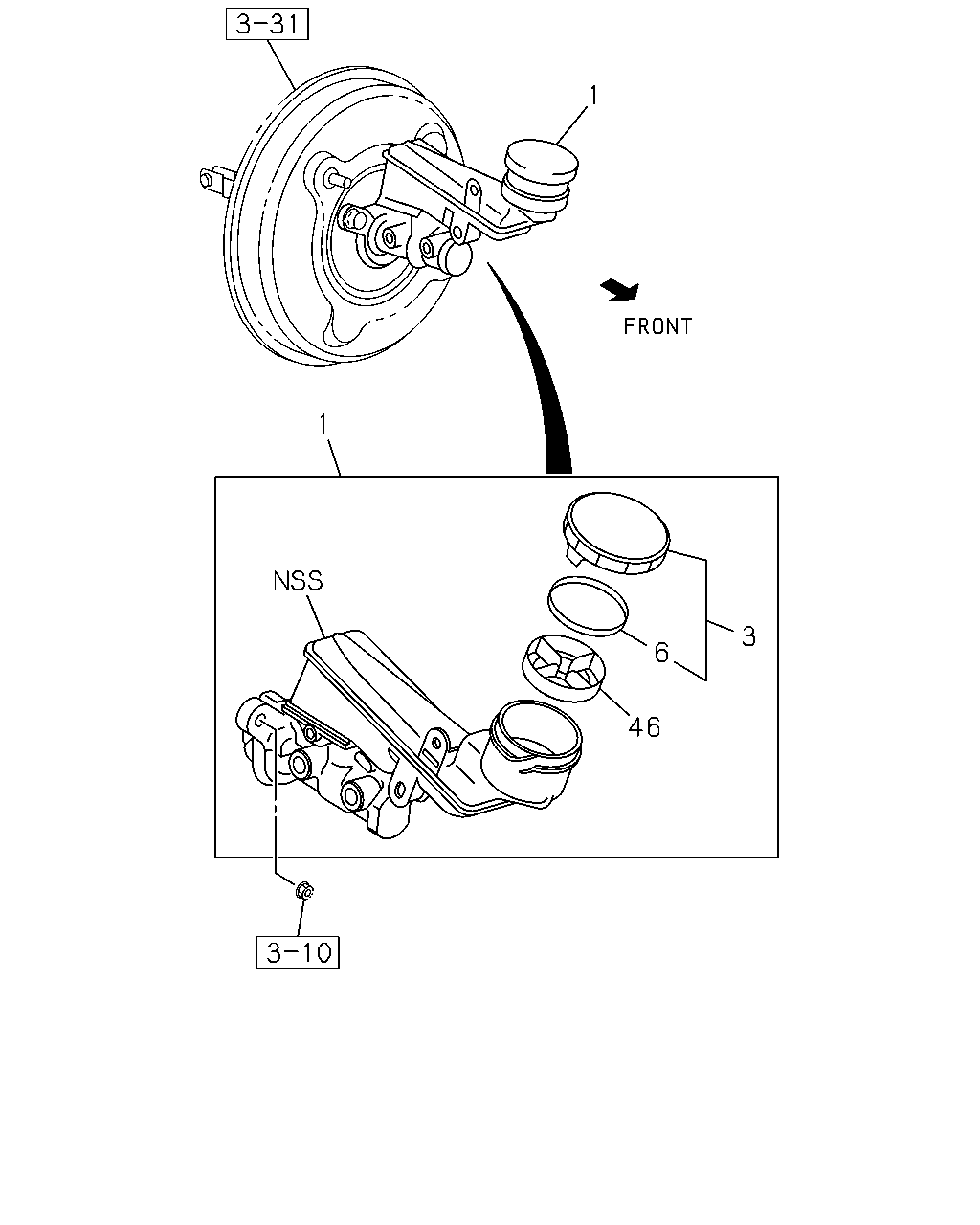

3-30 — BRAKE MASTER CYLINDER (#119783) — 7 parça

3 6 46 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CYLINDER ASM; BRK MASTER M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98163-227-0	01	1	1305-	●	●	●	●
1	CYLINDER ASM; BRK MASTER A/T 5 SPEED-AISIN(MA1) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98163-230-0	01	1	1305-		●		●
1	CYLINDER ASM; BRK MASTER A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98163-228-0	01	1	1305-		●		●
1	CYLINDER ASM; BRK MASTER M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98163-229-0	01	1	1305-		●		●
3	CAP; OIL TANK	8-98047-704-0	01	1	1305-	●	●	●	●
6	DIAPHRAGM; BRK M/CYL	8-98047-706-0	01	1	1305-	●	●	●	●
46	FILTER; OIL TANK,M/CYL	8-98047-702-0	01	1	1305-	●	●	●	●
