2-07 — CLUTCH BOOSTER; MINIPACK (#119777) — 135 parça

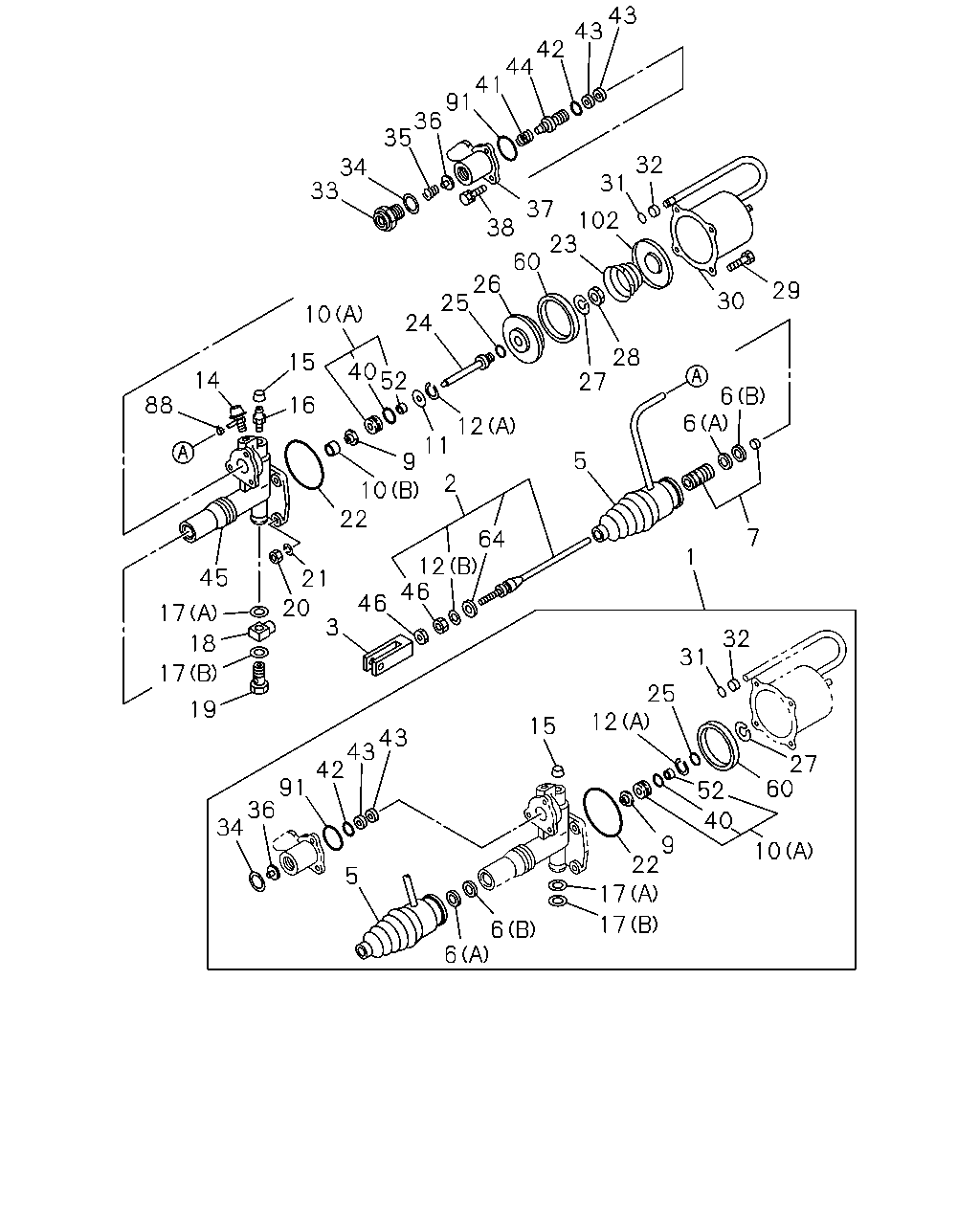

çizim 352164
43 43 42 44 41 91 36 35 34 33 10 15 14 88 16 10 22 21 20 45 17 18 17 19 34 42 91 36 43 43 3 12 64 46 46 2 11 9 12 52 40 24 25 26 60 23 37 38 102 31 32 29 30 28 27 5 6 6 7 1 32 27 60 10 40 52 25 12 31 15 22 17 17 9 6 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-523-0 01 1 1305- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1305- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-257-0 01 1 1305- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1305- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1305- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1305- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1305- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1305- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1305- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1305- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1305- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1305- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1305- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1305- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1305- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1305- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1305- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1305- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1305- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1305- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1305- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1305- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1305- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1305- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1305- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1305- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1305- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1305- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1305- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1305- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1305- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1305- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1305- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1305- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1305- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1305- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1305- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1305- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1305- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1305- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1305- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1305- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1305- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1305- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1305- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1305- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1305- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1305- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1305- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1305- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1305- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1305- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1305- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1305- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 1305- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1305- ●
45 PLATE; END,CLU BOOSTER 1-31811-121-0 01 1 1305- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1305- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 02 1 1305- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1305- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1305- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1305- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1305- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1305- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1305- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1305- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1305- ●

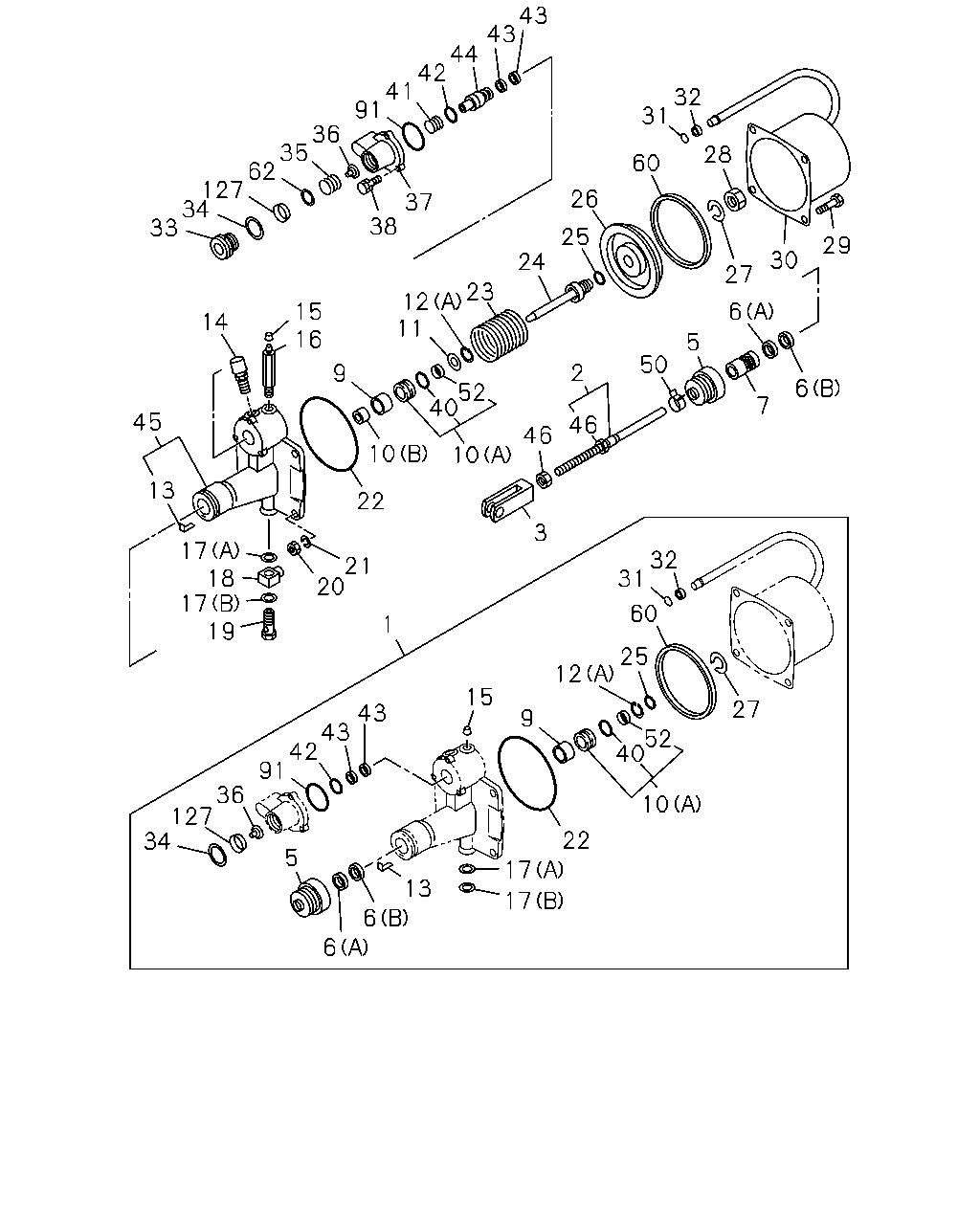

çizim 352658
34 127 91 36 43 42 5 43 1 15 9 22 12 31 60 27 25 32 52 40 10 17 17 13 6 6 7 6 6 27 30 29 5 50 2 46 46 10 3 10 22 40 52 23 12 24 25 26 60 31 32 28 9 16 15 14 45 13 17 18 17 19 20 11 21 38 37 43 43 44 42 41 91 36 35 62 127 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-523-0 01 1 1305- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1305- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-257-0 01 1 1305- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1305- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1305- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1305- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1305- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1305- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1305- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1305- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1305- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1305- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1305- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1305- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1305- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1305- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1305- ●
13 PIN; SPR 1-31829-109-0 01 1 1305- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1305- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1305- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1305- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1305- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1305- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1305- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1305- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1305- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1305- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1305- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1305- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1305- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1305- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1305- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1305- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1305- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1305- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1305- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1305- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1305- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1305- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1305- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1305- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1305- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1305- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1305- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1305- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1305- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1305- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1305- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1305- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1305- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1305- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1305- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1305- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1305- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1305- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 1305- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1305- ●
45 PLATE; END,CLU BOOSTER 1-31811-121-0 01 1 1305- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1305- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 02 1 1305- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1305- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1305- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1305- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1305- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1305- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1305- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1305- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1305- ●
