Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#119775) — 64 parça

235 101 210 16 210 16 42 207 210 16 27 51 42 107 30 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1305-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1305-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1305-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1305-	●	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1305-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1305-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1305-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1305-	●	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1305-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1305-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1305-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1305-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1305-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1305-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1305-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1305-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1305-	●	●

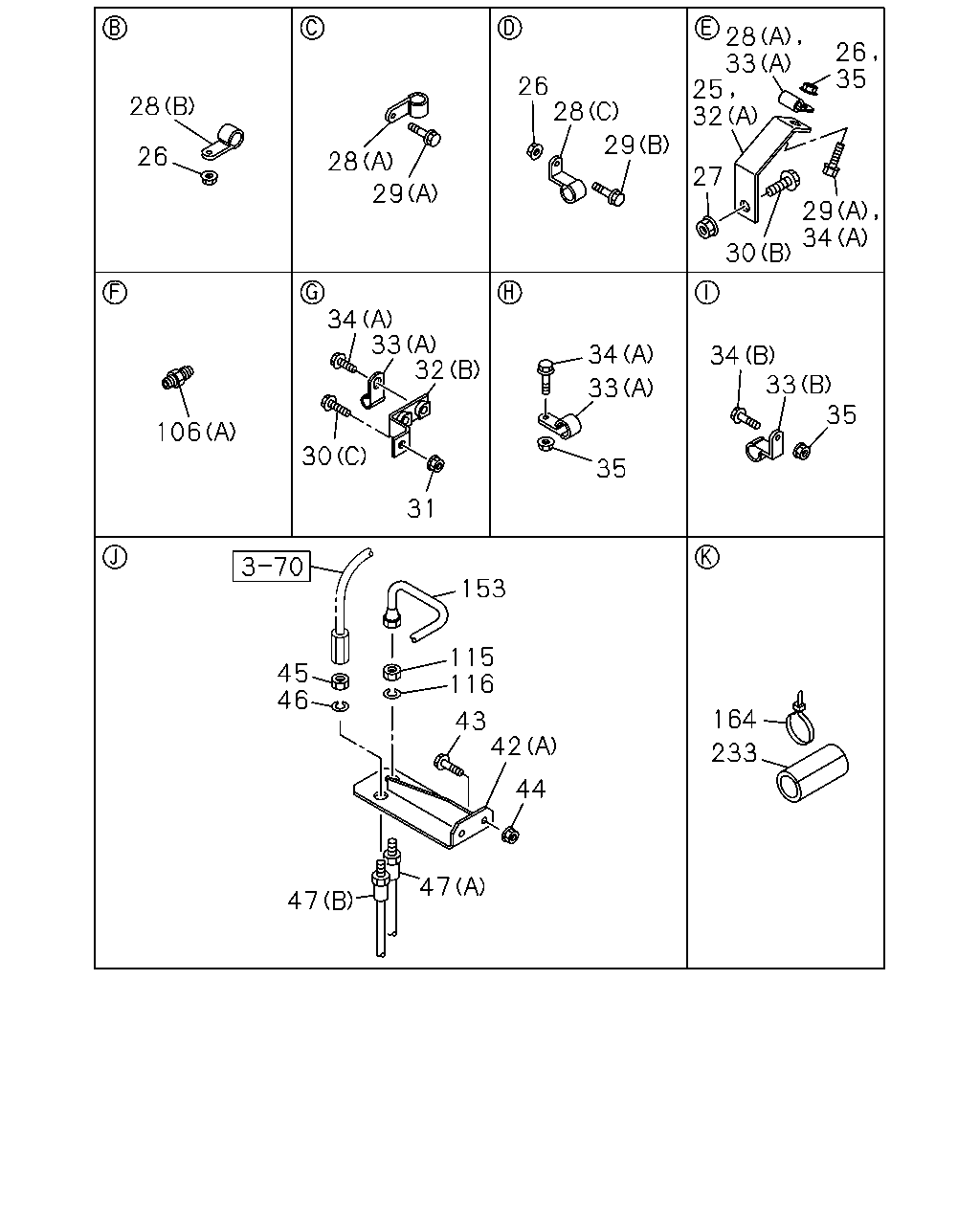

28 26 106 28 29 26 29 28 26 25 33 35 32 27 30 29 34 28 34 35 33 34 35 33 164 233 44 42 43 153 115 116 45 46 47 47 31 30 32 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE	8-98123-059-0	01	1	1305-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1305-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1305-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1305-	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1305-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1305-	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1305-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1305-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1305-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1305-	●	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1305-	●	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1305-	●	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1305-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1305-	●	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-059-0	01	1	1305-	●	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1305-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1305-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1305-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1305-	●	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1305-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1305-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1305-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1305-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1305-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1305-	●	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1305-	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1305-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1305-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1305-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1305-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1305-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1305-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1305-	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1305-	●	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1305-	●	●

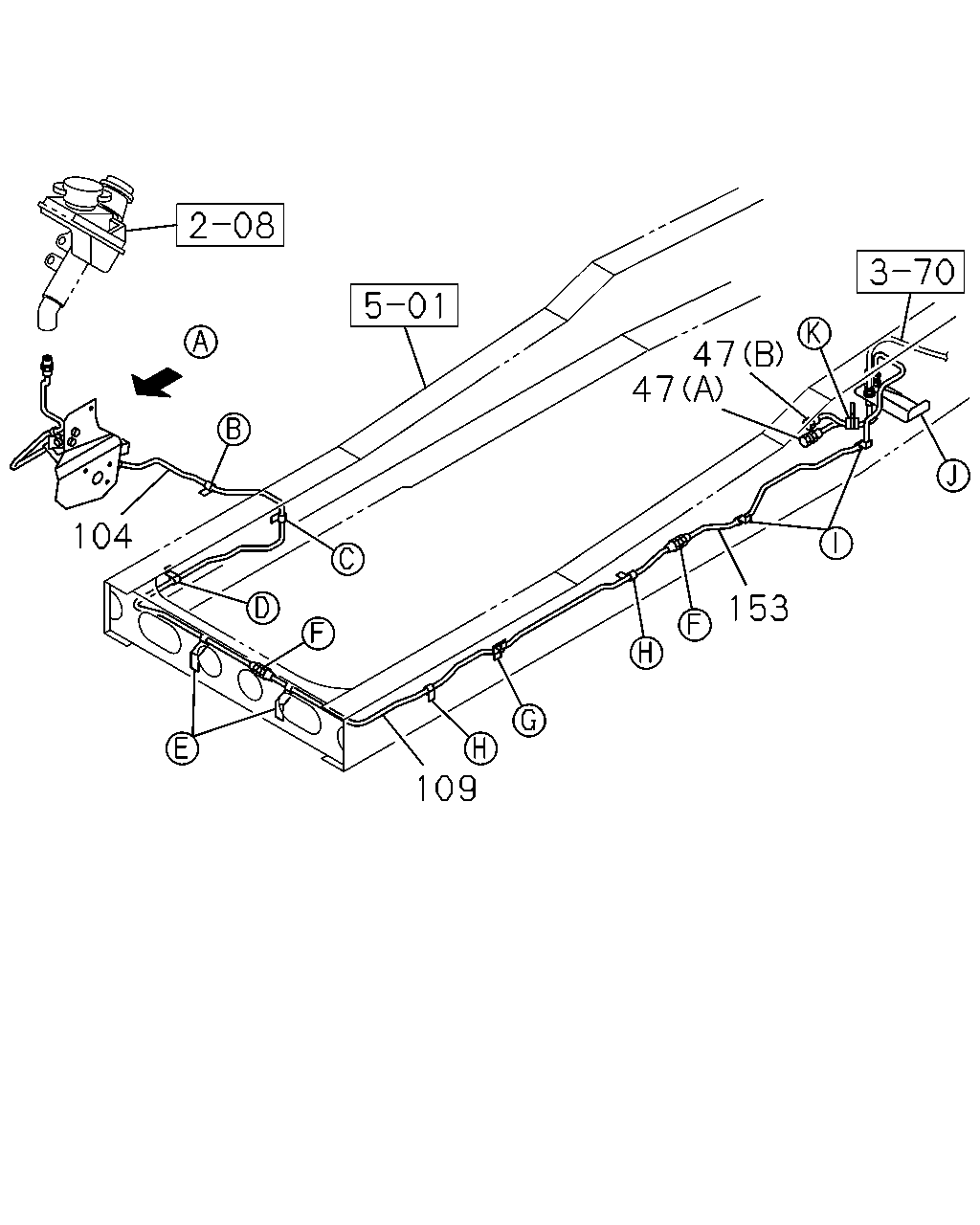

104 47 47 109 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1305-	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1305-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1305-	●	●
109	PIPE; AIR,UNION TO UNION L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1305-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
