Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

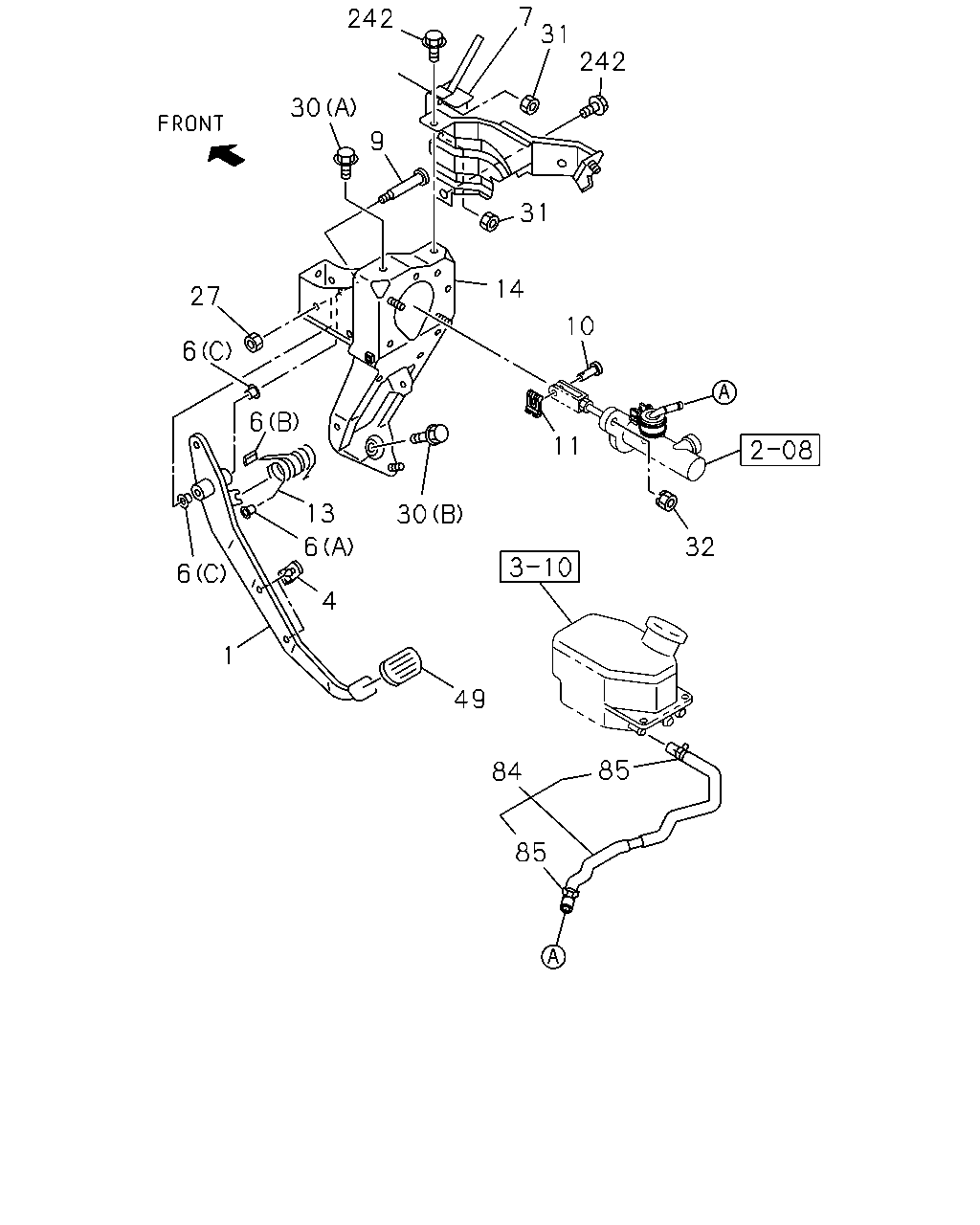

2-03 — CLUTCH PEDAL AND CONTROL
(#119774) — 20 parça
30
242
7
31
242
31
14
10
32
11
85
84
49
85
4
1
6
13
6
6
6
27
9
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
IMA
8-98034-754-0
01
1
1304-
4
STOPPER; CLU PEDAL
THA
8-97853-534-1
02
1
1304-
6
BUSHING; CLU PEDAL
(C) IMA
8-94238-596-0
02
1
1304-
6
BUSHING; CLU PEDAL
(A) IMA
8-97853-619-0
02
1
1304-
6
BUSHING; CLU PEDAL
(B) IMA
8-97853-620-0
01
1
1304-
7
BRACKET; CLU PEDAL
IMA
8-98029-186-4
01
1
1304-
9
PIN; CLU PEDAL
IMA
8-97866-667-0
01
1
1304-
10
PIN; CLU PEDAL
IMA
8-98147-657-0
01
1
1304-
11
PIN; SNAP,PUSH ROD TO PEDAL
IMA
8-98007-161-0
01
1
1304-
13
SPRING; ASSIST,CLU PEDAL
IMA
8-98034-014-0
01
1
1304-
14
BRACKET ASM; CLU PEDAL MTG
IMA
8-98034-750-0
01
1
1304-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE THA
0-91380-010-0
01
1
1304-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE THA
0-28661-025-0
01
1
1304-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER IMA
8-97313-188-0
01
1
1304-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER IMA
8-94279-050-0
02
1
1304-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER IMA
8-94279-050-0
02
1
1304-
49
RUBBER; PAD,CLU PEDAL
IMA
8-97853-413-2
01
1
1304-
84
HOSE; RUBBER,CLU LINE
8-98218-207-1
01
1
1304-
85
CLIP; HOSE TO M/CYL
IMA
8-98168-080-0
02
1
1304-
242
BOLT; BRKT,CLUTCH
M8X16 FLANGE IMA
0-28450-816-0
02
1
1304-
