3-77 — BRAKE PIPING; AIR,REAR
(#119769) — 46 parça
◀

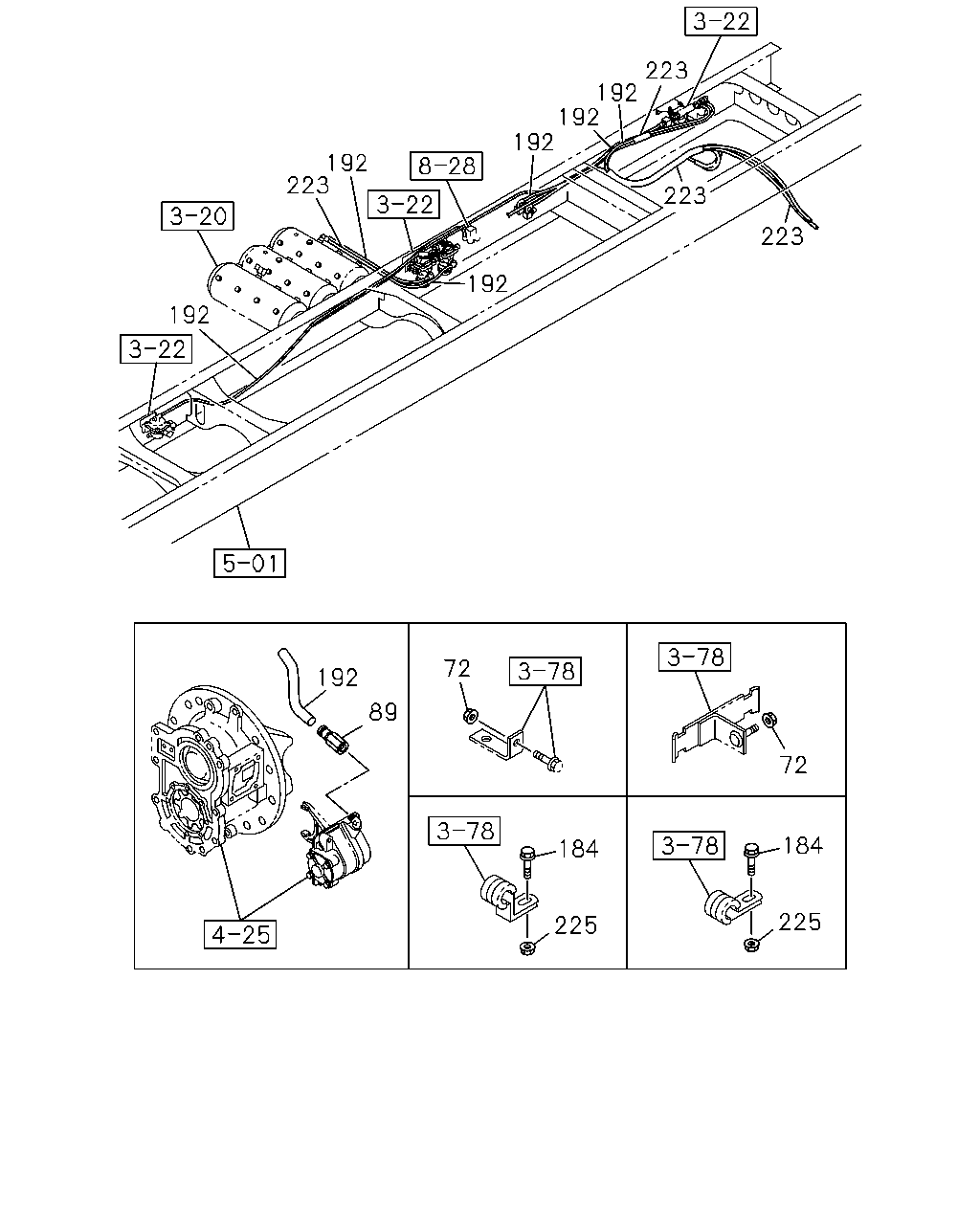

[377A] FRAME SIDE NO.2 (15 parça)

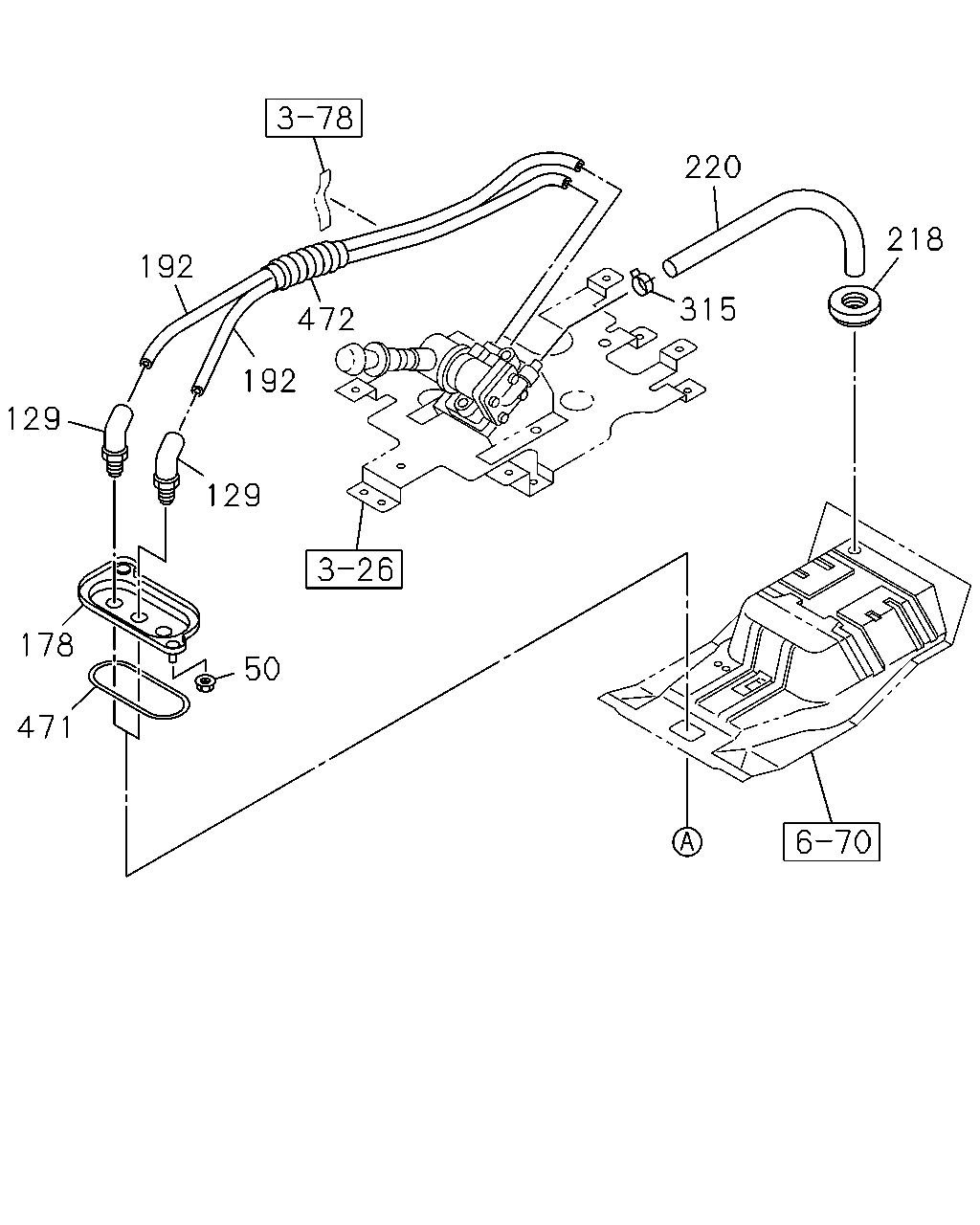

[377A] CAB SIDE (14 parça)
[377A] FRAME SIDE NO.1 (11 parça)

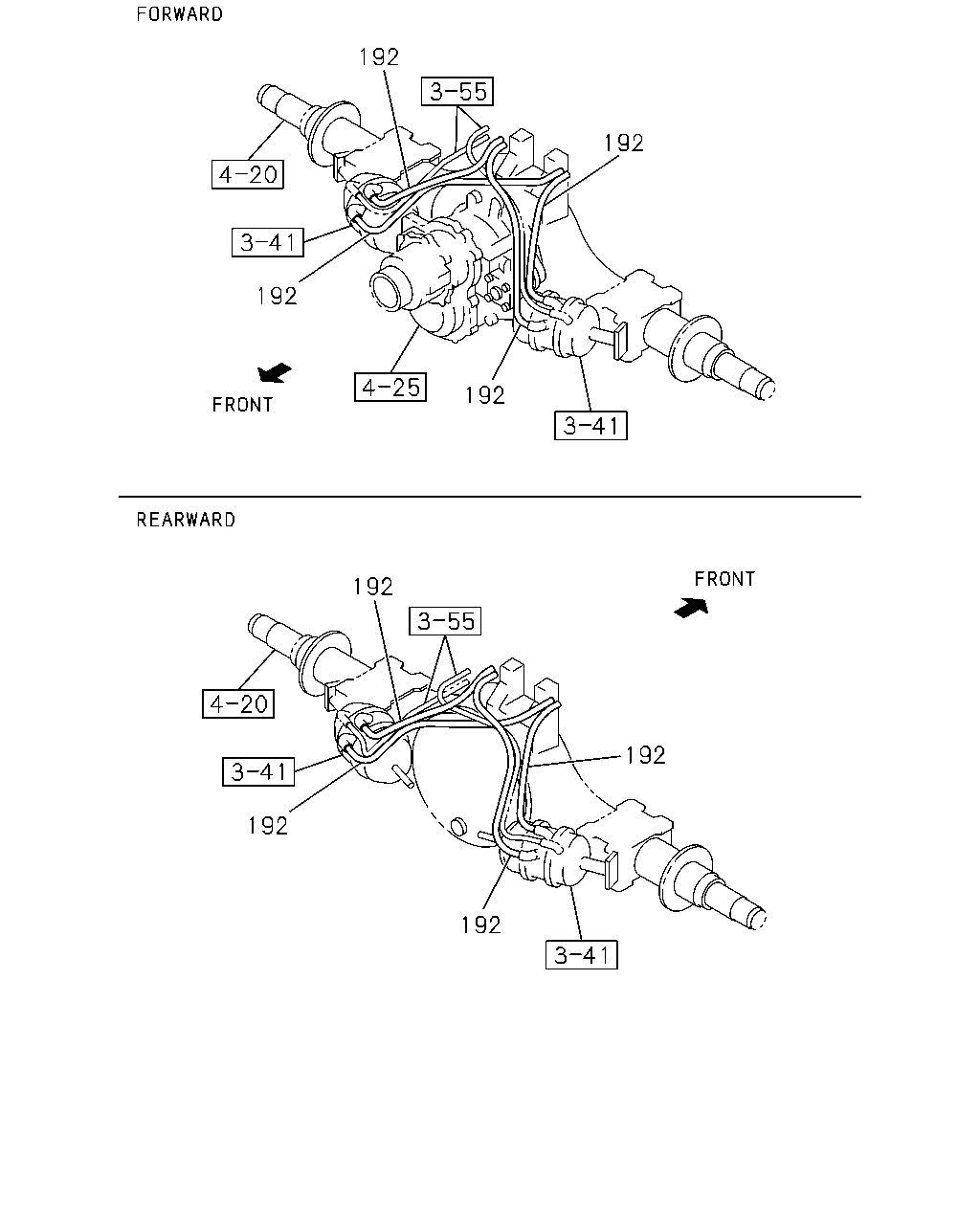

[377A] REAR AXLE SIDE (6 parça)
▶
223
192
192
192
223
223
223
192
192
192
192
89
72
72
184
225
225
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1305-
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1305-
184
BOLT; TUBE CLIP
M8X25 FLANGE THA
0-28650-825-0
03
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA
1-87411-026-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1305-
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1305-
315
192
472
192
129
129
50
178
471
220
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1305-
129
CONNECTOR; NYLON TUBE
8-97611-963-1
02
1
1305-
178
BRACKET; UNION
8-98017-054-1
01
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1305-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1305-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1305-
315
CLIP
ID=14
8-94238-572-0
01
1
1305-
471
SEAL; BRKT
1-79738-832-0
01
1
1305-
472
TUBE; SPUTTER
THA
8-98108-051-0
01
1
1305-
192
223
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA
1-87411-026-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1305-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1305-
192
192
192
192
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1305-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1305-
