Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#119757) — 50 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

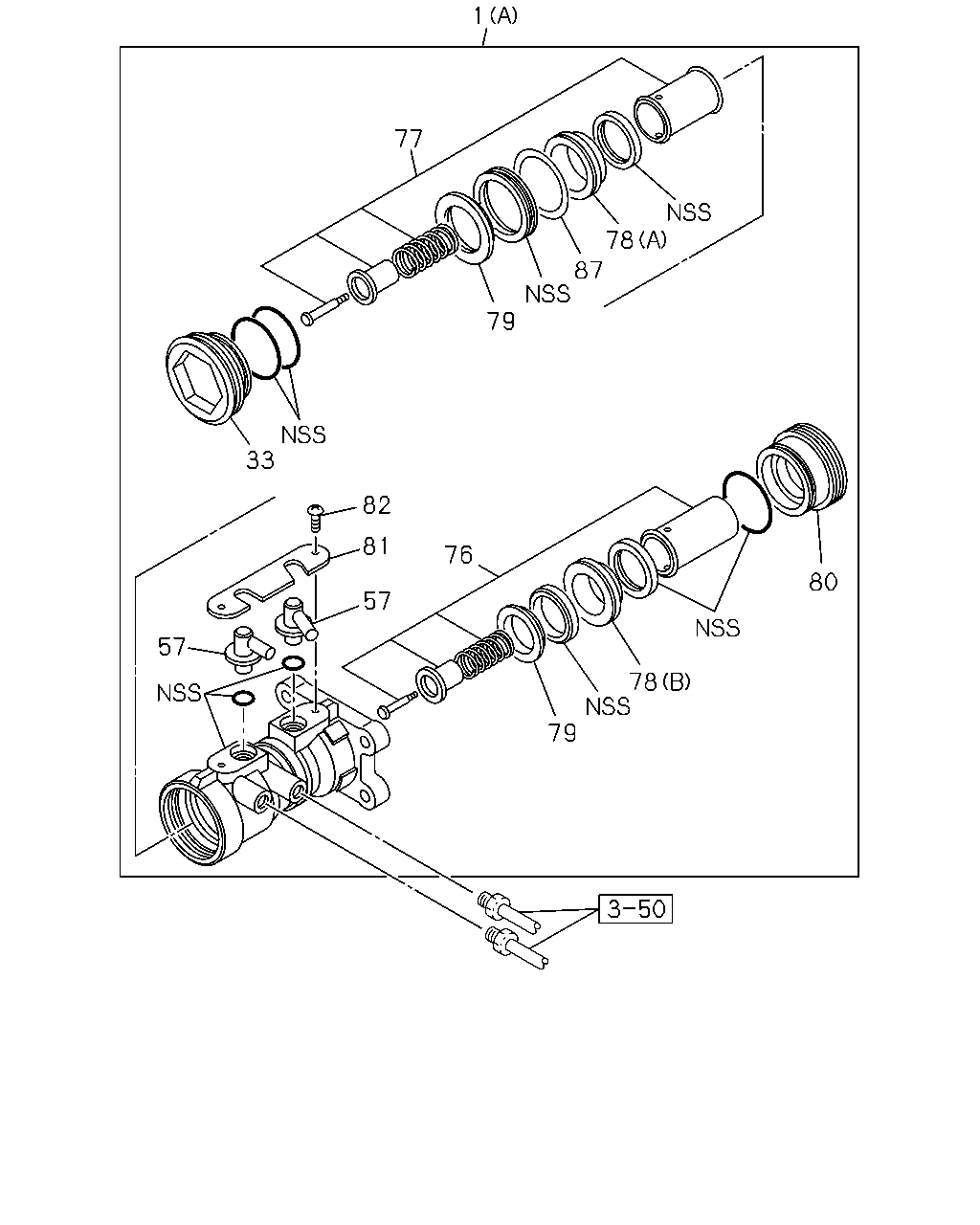

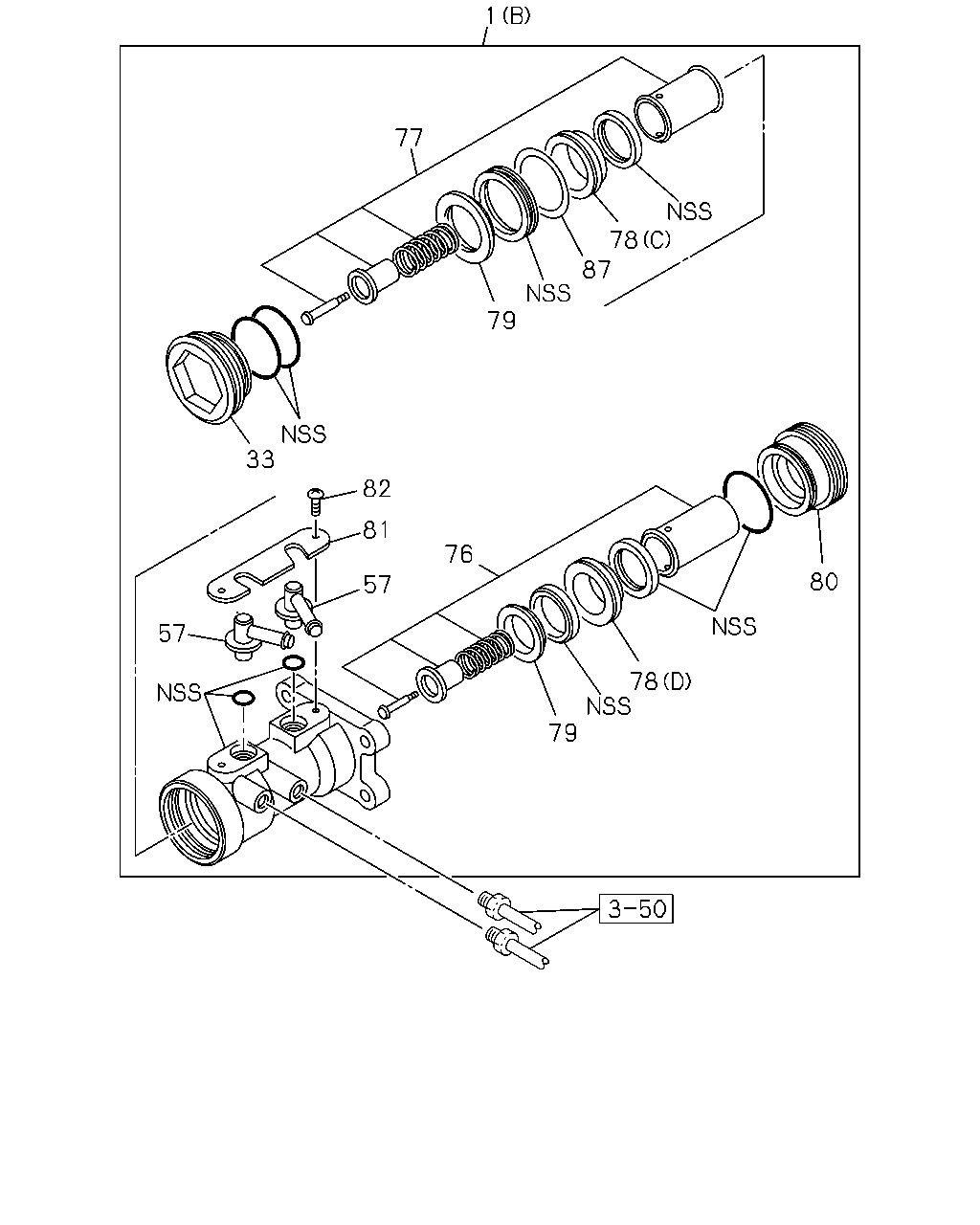

[330A] COMPONENT;NPR (23 parça)

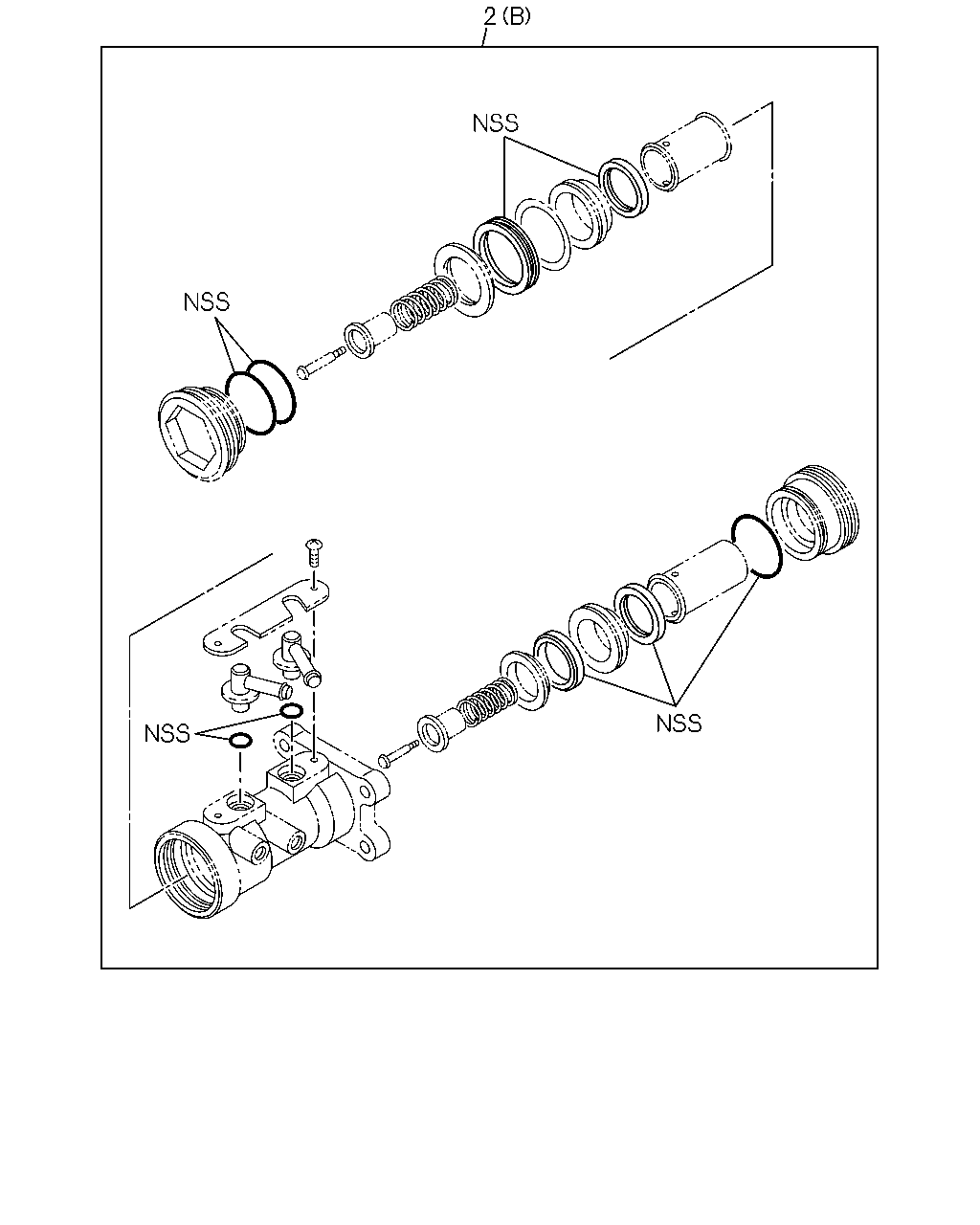

[330A] REPAIR KIT;NPR (2 parça)
[330A] COMPONENT;NQR (23 parça)
[330A] REPAIR KIT;NQR (2 parça)
▶
80
78
79
87
1
77
33
82
76
81
57
57
78
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER ASM; BRK MASTER
(A) IMA
8-98032-600-0
01
1
1304-
●
1
CYLINDER ASM; BRK MASTER
(B) IMA
8-98032-618-0
01
1
1304-
●
33
PLUG; END,M/CYL
IMA
8-97186-697-0
01
1
1304-
●
33
PLUG; END,M/CYL
IMA
8-97186-699-0
01
1
1304-
●
57
NIPPLE; BRK M/CYL
IMA
8-97130-442-0
02
1
1304-
●
57
NIPPLE; BRK M/CYL
IMA
8-97130-441-0
02
1
1304-
●
76
PISTON ASM; PRIMARY
IMA
8-97224-643-0
01
1
1304-
●
76
PISTON ASM; PRIMARY
IMA
8-97224-641-0
01
1
1304-
●
77
PISTON ASM; SECONDARY
IMA
8-97224-642-0
01
1
1304-
●
77
PISTON ASM; SECONDARY
IMA
8-97224-640-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(A) IMA
8-97130-455-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(B) IMA
8-97217-312-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(C) IMA
8-97170-695-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(D) IMA
8-97207-685-0
01
1
1304-
●
79
SUPPORTER; CUP
IMA
8-97130-463-0
02
1
1304-
●
79
SUPPORTER; CUP
IMA
8-97170-698-0
02
1
1304-
●
80
COVER; MASTER CYL
IMA
8-97130-449-0
01
1
1304-
●
80
COVER; MASTER CYL
IMA
8-97170-692-0
01
1
1304-
●
81
HOLDER; NIPPLE
IMA
8-97130-445-0
01
1
1304-
●
81
HOLDER; NIPPLE
IMA
8-97130-444-0
01
1
1304-
●
82
SCREW; HOLDER
IMA
8-97130-446-0
02
1
1304-
●
●
87
SPACER; CUP
IMA
8-97130-459-0
01
1
1304-
●
87
SPACER; CUP
IMA
8-97170-696-0
01
1
1304-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK,M/CYL
(A) IMA
8-97130-471-0
01
1
1304-
●
2
REPAIR KIT; BRK,M/CYL
(B) IMA
8-97254-775-0
01
1
1304-
●
80
78
79
76
81
57
82
33
57
79
78
87
77
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER ASM; BRK MASTER
(A) IMA
8-98032-600-0
01
1
1304-
●
1
CYLINDER ASM; BRK MASTER
(B) IMA
8-98032-618-0
01
1
1304-
●
33
PLUG; END,M/CYL
IMA
8-97186-697-0
01
1
1304-
●
33
PLUG; END,M/CYL
IMA
8-97186-699-0
01
1
1304-
●
57
NIPPLE; BRK M/CYL
IMA
8-97130-442-0
02
1
1304-
●
57
NIPPLE; BRK M/CYL
IMA
8-97130-441-0
02
1
1304-
●
76
PISTON ASM; PRIMARY
IMA
8-97224-643-0
01
1
1304-
●
76
PISTON ASM; PRIMARY
IMA
8-97224-641-0
01
1
1304-
●
77
PISTON ASM; SECONDARY
IMA
8-97224-642-0
01
1
1304-
●
77
PISTON ASM; SECONDARY
IMA
8-97224-640-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(A) IMA
8-97130-455-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(B) IMA
8-97217-312-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(C) IMA
8-97170-695-0
01
1
1304-
●
78
BUSHING; MASTER CYL
(D) IMA
8-97207-685-0
01
1
1304-
●
79
SUPPORTER; CUP
IMA
8-97130-463-0
02
1
1304-
●
79
SUPPORTER; CUP
IMA
8-97170-698-0
02
1
1304-
●
80
COVER; MASTER CYL
IMA
8-97130-449-0
01
1
1304-
●
80
COVER; MASTER CYL
IMA
8-97170-692-0
01
1
1304-
●
81
HOLDER; NIPPLE
IMA
8-97130-445-0
01
1
1304-
●
81
HOLDER; NIPPLE
IMA
8-97130-444-0
01
1
1304-
●
82
SCREW; HOLDER
IMA
8-97130-446-0
02
1
1304-
●
●
87
SPACER; CUP
IMA
8-97130-459-0
01
1
1304-
●
87
SPACER; CUP
IMA
8-97170-696-0
01
1
1304-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK,M/CYL
(A) IMA
8-97130-471-0
01
1
1304-
●
2
REPAIR KIT; BRK,M/CYL
(B) IMA
8-97254-775-0
01
1
1304-
●
