5-40 — ENGINE ROOM INSULATOR (#119752) — 9 parça

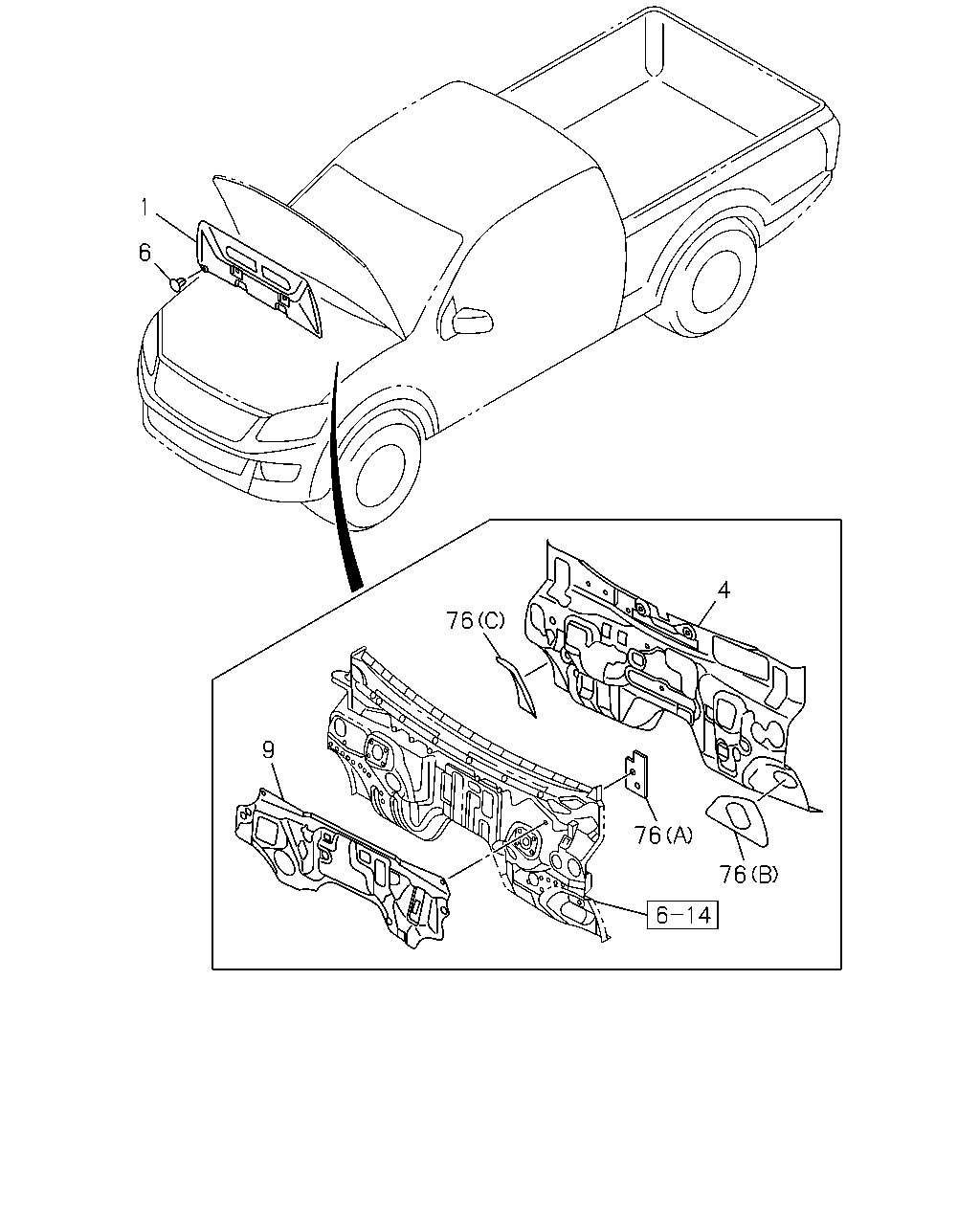

çizim 351238
6 1 4 76 76 76 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 INSULATION; ENG HOOD 8-98074-100-1 01 1 1305- ● ● ● ●
4 INSULATION; DASH PNL,INNER
EQUIPMENT IMPACT<EPS> 		8-98276-090-0 01 1 1410- ● ● ●
4 INSULATION; DASH PNL,INNER 8-98074-011-1 01 1 1305-1409 ● ● ● ●
4 INSULATION; DASH PNL,INNER
EXC. EQUIPMENT IMPACT<EPS> 		8-98074-011-1 01 1 1410- ● ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 09 1 1305- ● ● ● ●
9 INSULATION; DASH ENG ROOM 8-98074-008-0 01 1 1305- ● ● ● ●
76 DEADENER; DASH ENG ROOM
(A) 		8-98104-578-2 01 1 1305- ● ● ● ●
76 DEADENER; DASH ENG ROOM
(B) 		8-98161-052-0 01 1 1305- ● ● ● ●
76 DEADENER; DASH ENG ROOM
(C) 		8-98161-053-0 01 1 1305- ● ● ● ●
