Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

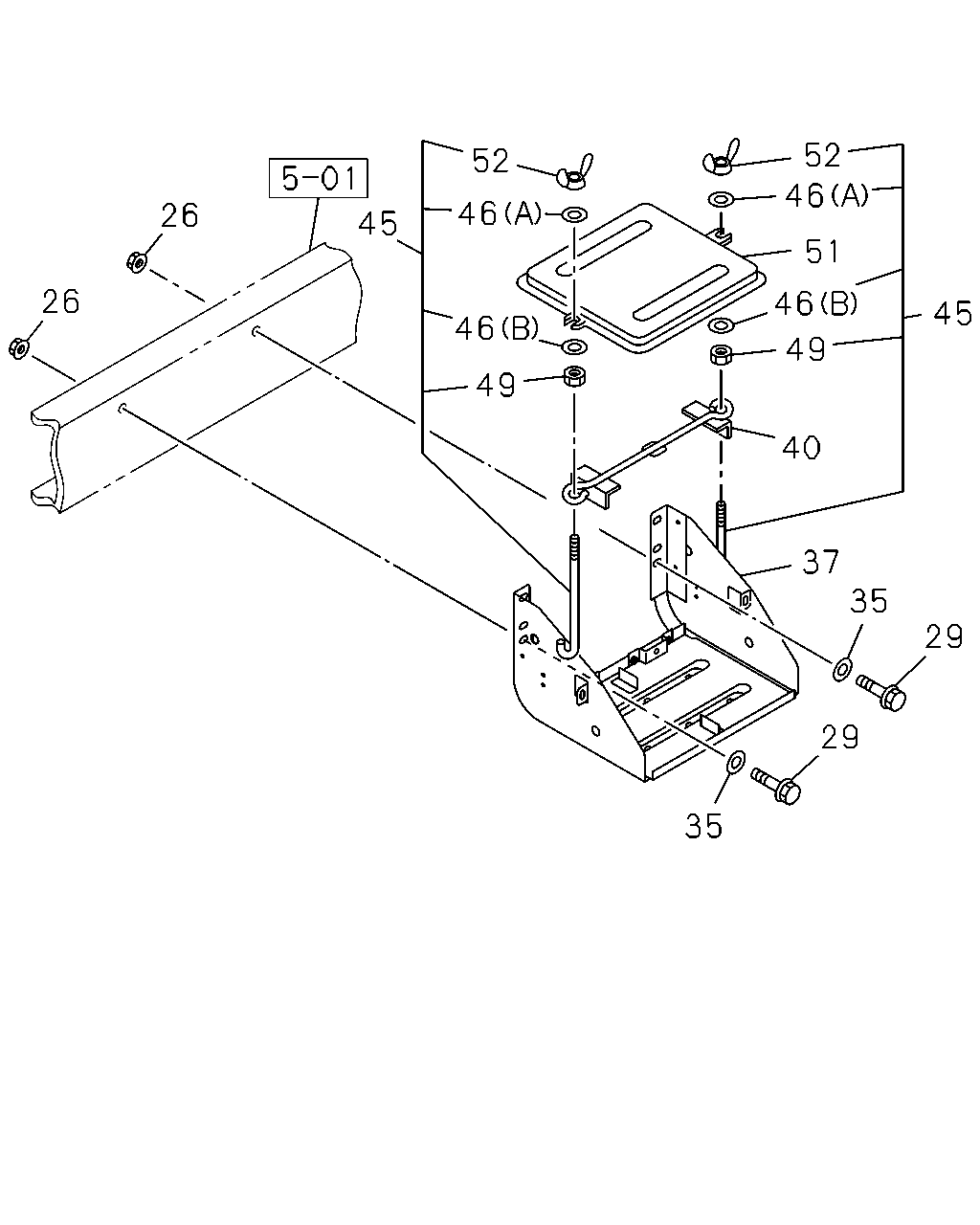

5-20 — BATTERY CARRIER
(#119746) — 13 parça
45
52
46
46
51
49
40
37
29
35
29
35
49
46
46
52
45
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1304-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28661-035-0
04
1
1304-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6 IMA
0-91610-610-0
04
1
1304-
37
BRACKET; BATTERY
THA
8-97923-653-1
01
1
1304-
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
1304-
45
ROD; TENSION,BATTERY
8-97915-640-1
02
1
1304-1305
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 IMA
0-91610-608-0
02
1
1304-1305
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 IMA
0-91614-608-0
02
1
1306-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1304-
49
NUT; ROD,BATTERY
M8 IMA
0-91110-508-0
02
1
1304-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1304-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1304-
