1-40 — FUEL TANK (#119745) — 24 parça

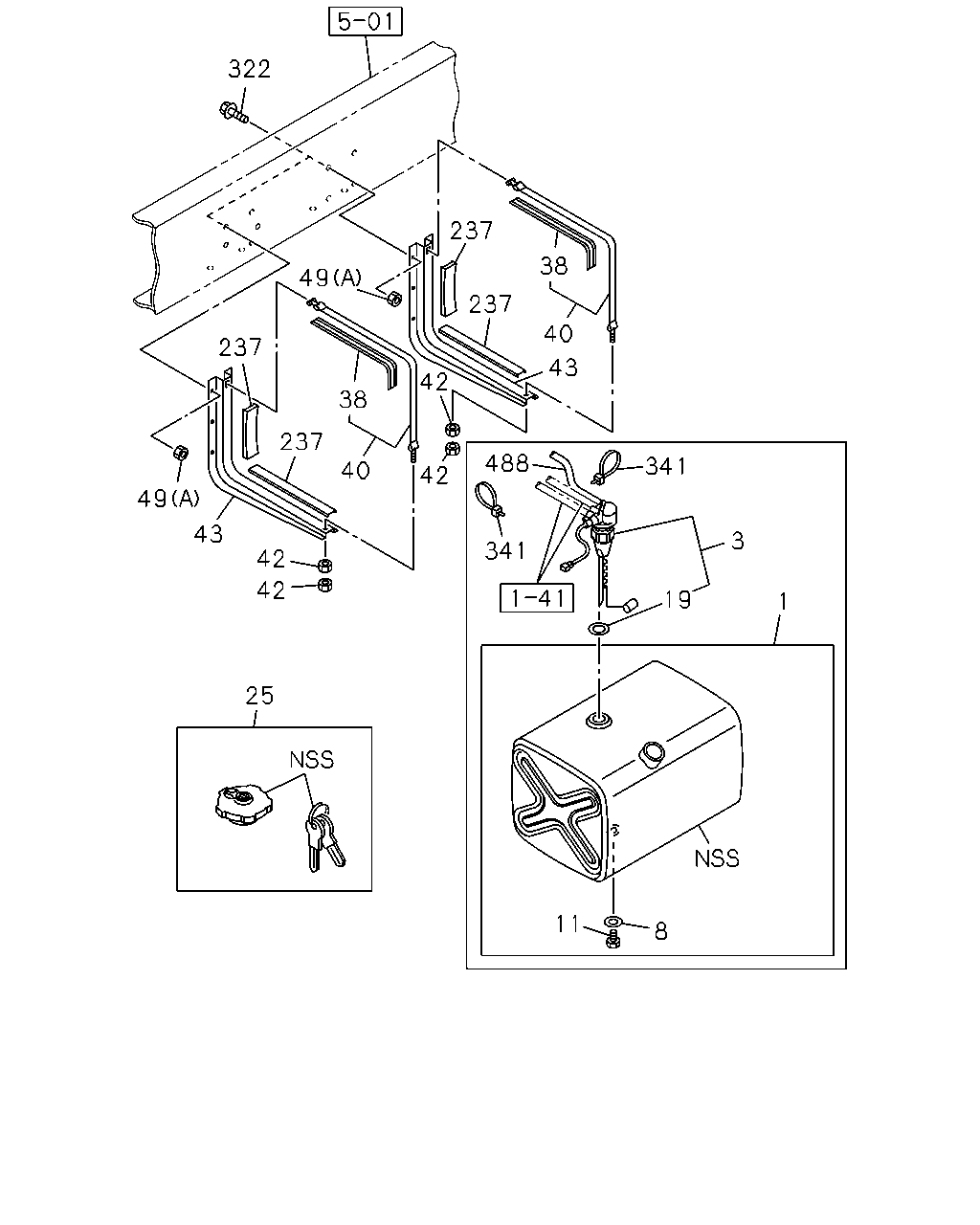

çizim 350471
322 237 49 237 38 237 49 43 42 42 40 42 488 341 341 3 19 1 25 11 8 38 237 40 43 42
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1050X680X625 400L 		1-87412-299-1 01 1 1305-
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1305-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1305-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1305-
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1305-
25 CAP; FILLER,FUEL TANK 8-98108-595-0 01 1 1305-
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 1305-
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1305-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1305-
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 1305-
49 NUT; BRKT
(A) M12 		0-91110-512-0 06 1 1305-
49 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1305-
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 1305-
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 12 1 1305-
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 1305-
488 HOSE; RUBBER 8-98134-936-0 01 1 1305-

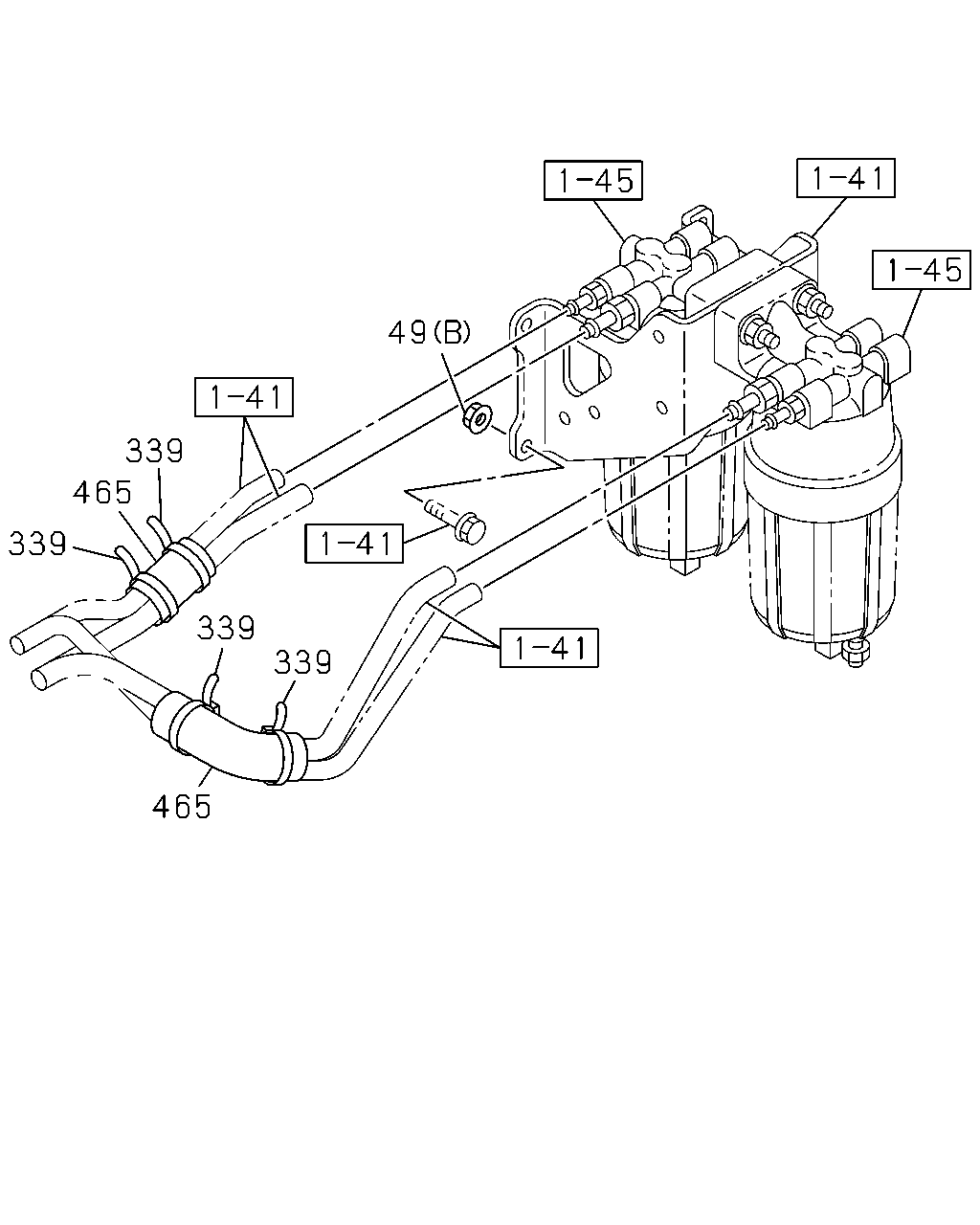

çizim 352474
49 339 465 339 339 339 465
BalonParca AdiParca NoAdetTipApplied Date
49 NUT; BRKT
(A) M12 		0-91110-512-0 06 1 1305-
49 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1305-
339 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-1 04 1 1305-1306
339 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-1 04 1 1305-1306
339 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-1 04 1 1307-
465 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1305-1306
465 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1305-1306
465 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1307-
