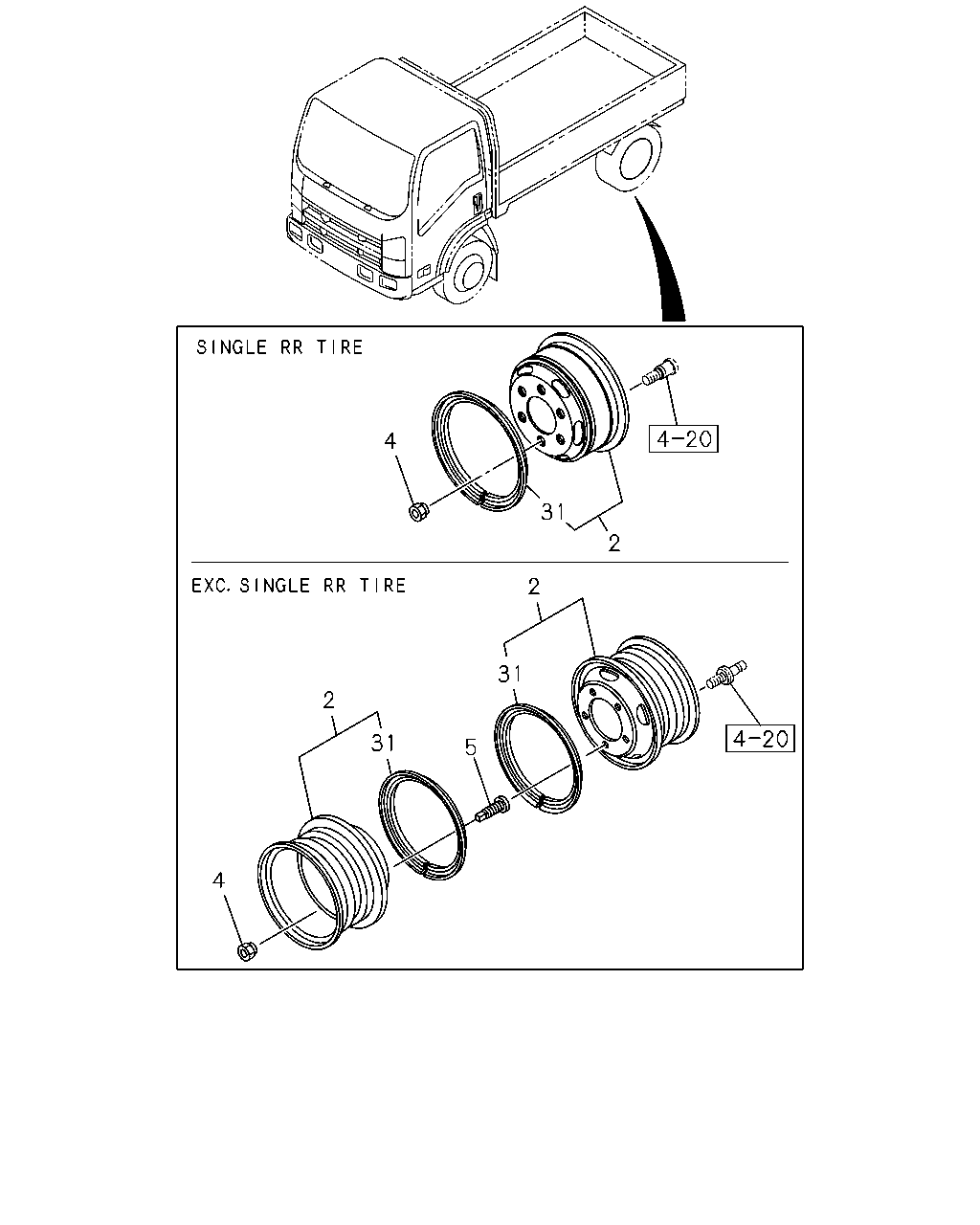

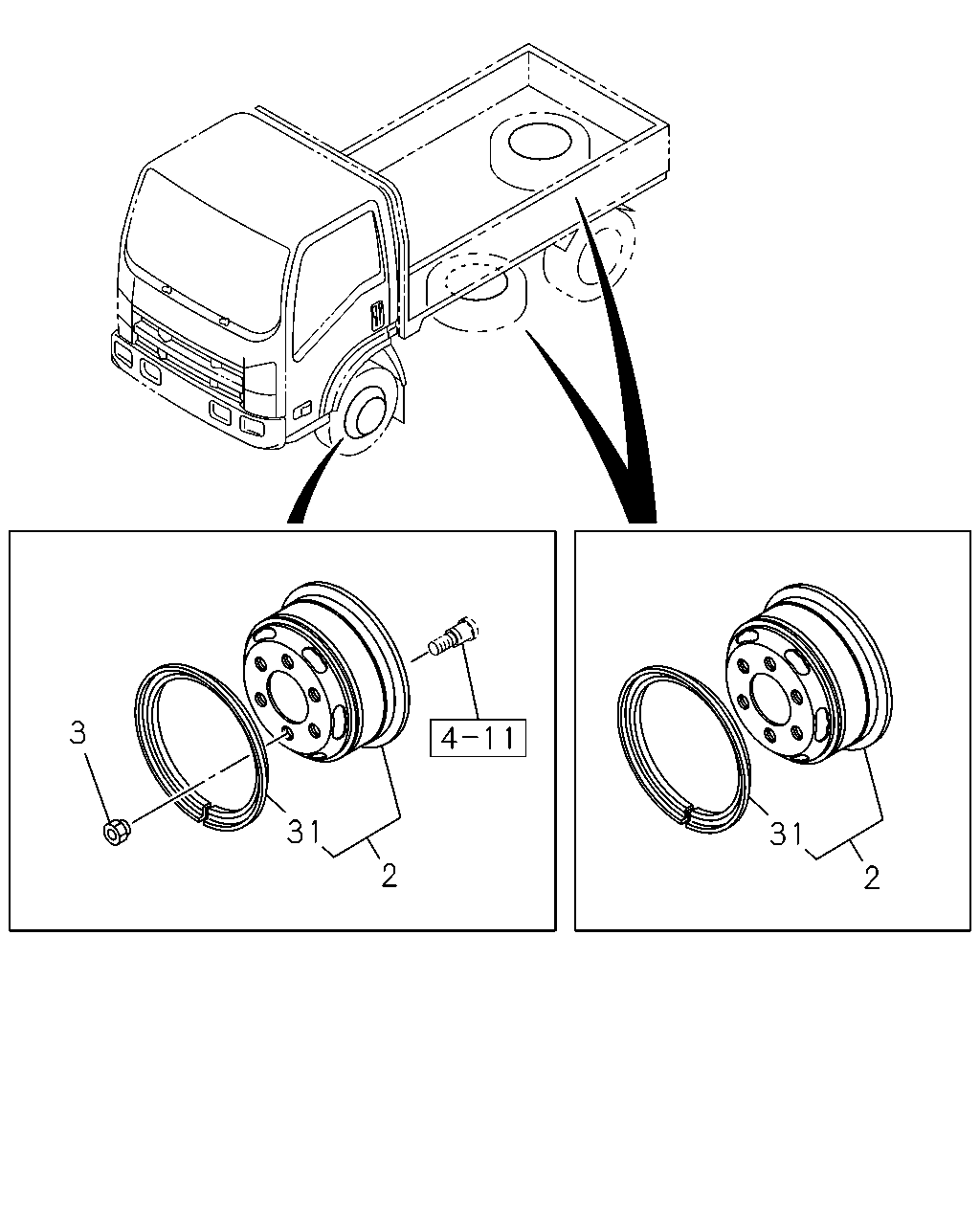

4-80 — ROAD WHEEL (#119741) — 48 parça

31 2 2 31 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	1304-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	1304-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	1304-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	1304-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE THA	8-97915-709-0	01	1	1304-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR THA	8-97915-709-0	06	1	1304-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> SPARE THA	8-97916-975-0	01	1	1304-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR THA	8-97916-975-0	06	1	1304-		●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 RH THREAD IMA	8-98007-905-0	06	1	1304-	●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 LH THREAD IMA	8-98007-906-0	06	1	1304-	●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 RH THREAD IMA	8-98007-907-0	05	1	1304-	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD IMA	8-98007-907-0	05	1	1304-		●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 LH THREAD IMA	8-98007-908-0	05	1	1304-	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD IMA	8-98007-908-0	05	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 16X5.50F STAMP, BLACK IMA	8-94135-601-0	01	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 16X5.50F STAMP, BLACK IMA	8-94135-601-0	04	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE THA	8-97916-782-0	01	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR THA	8-97916-782-0	06	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> SPARE THA	8-97916-781-0	01	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR THA	8-97916-781-0	06	1	1304-		●

4 31 2 2 2 4 31 31 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	1304-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	1304-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	01	1	1304-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE THA	8-94116-196-0	04	1	1304-	●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE THA	8-97915-709-0	01	1	1304-		●
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR THA	8-97915-709-0	06	1	1304-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> SPARE THA	8-97916-975-0	01	1	1304-		●
2	WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR THA	8-97916-975-0	06	1	1304-		●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 RH THREAD IMA	8-98007-905-0	06	1	1304-	●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 LH THREAD IMA	8-98007-906-0	06	1	1304-	●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 RH THREAD IMA	8-98007-824-0	05	1	1304-	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD IMA	8-98007-824-0	05	1	1304-		●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 LH THREAD IMA	8-98007-825-0	05	1	1304-	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD IMA	8-98007-825-0	05	1	1304-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 RH THREAD IMA	8-98007-810-0	05	1	1304-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD IMA	8-98007-810-0	05	1	1304-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 LH THREAD IMA	8-98007-811-0	05	1	1304-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD IMA	8-98007-811-0	05	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> SPARE 16X5.50F STAMP, BLACK IMA	8-94135-601-0	01	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-125<CVP> FRONT,REAR 16X5.50F STAMP, BLACK IMA	8-94135-601-0	04	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25<09V> FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1304-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> SPARE THA	8-97916-782-0	01	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> FRONT,REAR THA	8-97916-782-0	06	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> SPARE THA	8-97916-781-0	01	1	1304-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115<46H> FRONT,REAR THA	8-97916-781-0	06	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
