◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#11974) — 58 parça
çizim 24495
48 305 250 55
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=430 		1-09363-677-0 01 1 0107-
55 GROMMET; CABLE 1-09983-068-0 01 1 0105-
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0307
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0107-
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0308-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0308-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0107-
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (A) L=150 		1-83129-031-1 01 1 0105-
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0308-

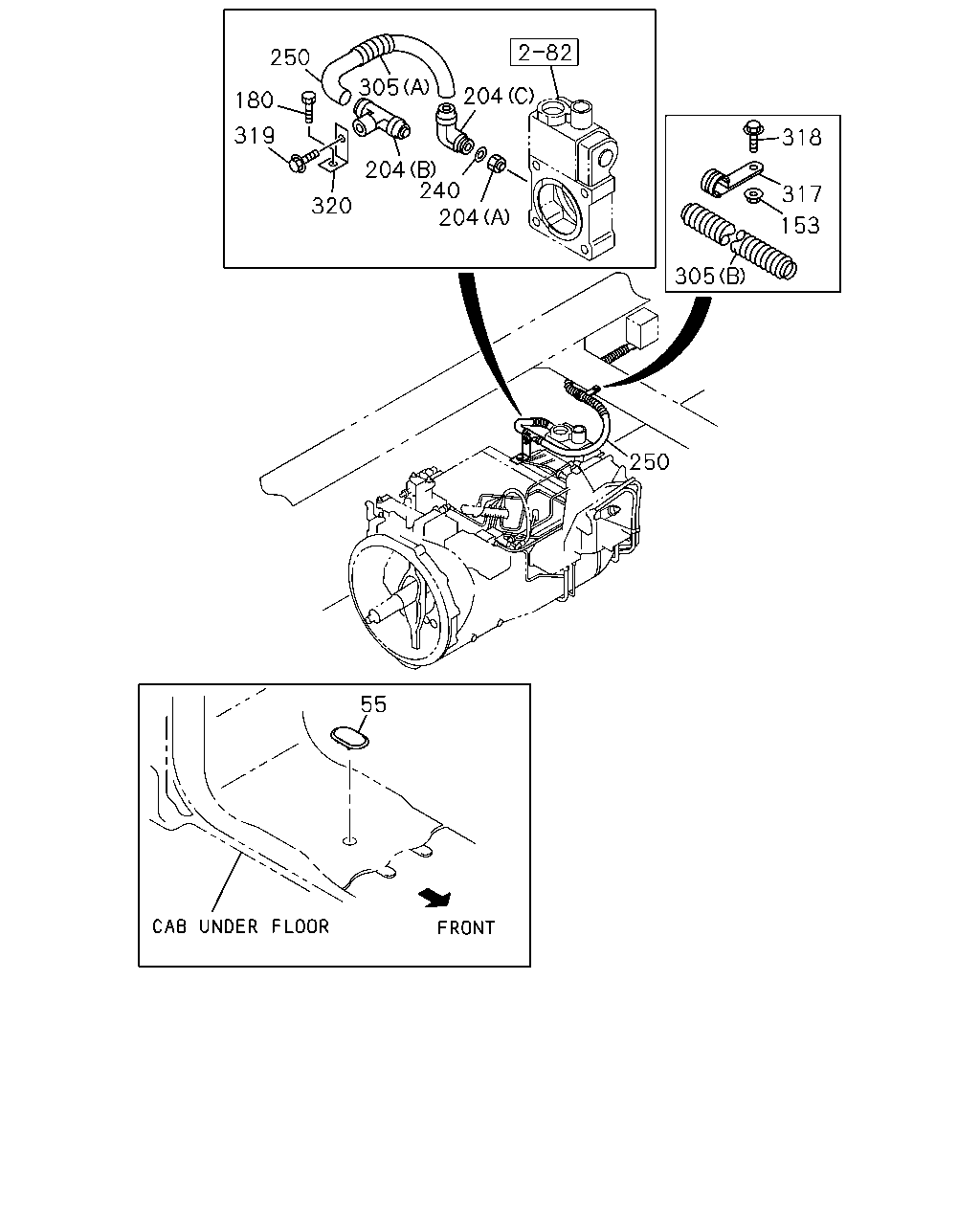

çizim 81019
250 204 305 180 320 319 204 240 204 318 153 317 305 250 55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 0105-
153 NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 0105-0307
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 0308-0602
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0603-
180 BOLT; BRKT
ZF M/T<X9E> PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 0105-0512
180 BOLT; BRKT
ZF M/T<X9E> PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28851-625-0 01 1 0601-
204 CONNECTOR; NYLON TUBE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 0105-
204 CONNECTOR; NYLON TUBE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 0105-
204 CONNECTOR; NYLON TUBE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-
240 GASKET; CONNECTOR,PTO
ZF M/T<X9E> PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0105-
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0307
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0308-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0107-
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0105-0106
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=2000 OD=8 		1-87410-073-0 01 1 0107-0212
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0307
250 TUBE; NYLON
ZF M/T<X9E> PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0308-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0308-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0107-
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (A) L=150 		1-83129-031-1 01 1 0105-
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) L=2000 ID=10 		1-87410-088-0 01 1 0107-0307
305 TUBE; CORRUGATE
ZF M/T<X9E> PTO ZF TRANS RR(BDM) (B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0308-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=18 L=28 		1-09701-067-0 01 1 0308-
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ID=14.5 L=40 		1-09701-014-0 01 1 0105-
318 BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0307
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
319 BOLT; CONNECTOR
ZF M/T<X9E> PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
319 BOLT; CONNECTOR
ZF M/T<X9E> PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
320 BRACKET; UNION
ZF M/T<X9E> PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 0105-
