6-03 — RADIATOR GRILLE (#119736) — 29 parça

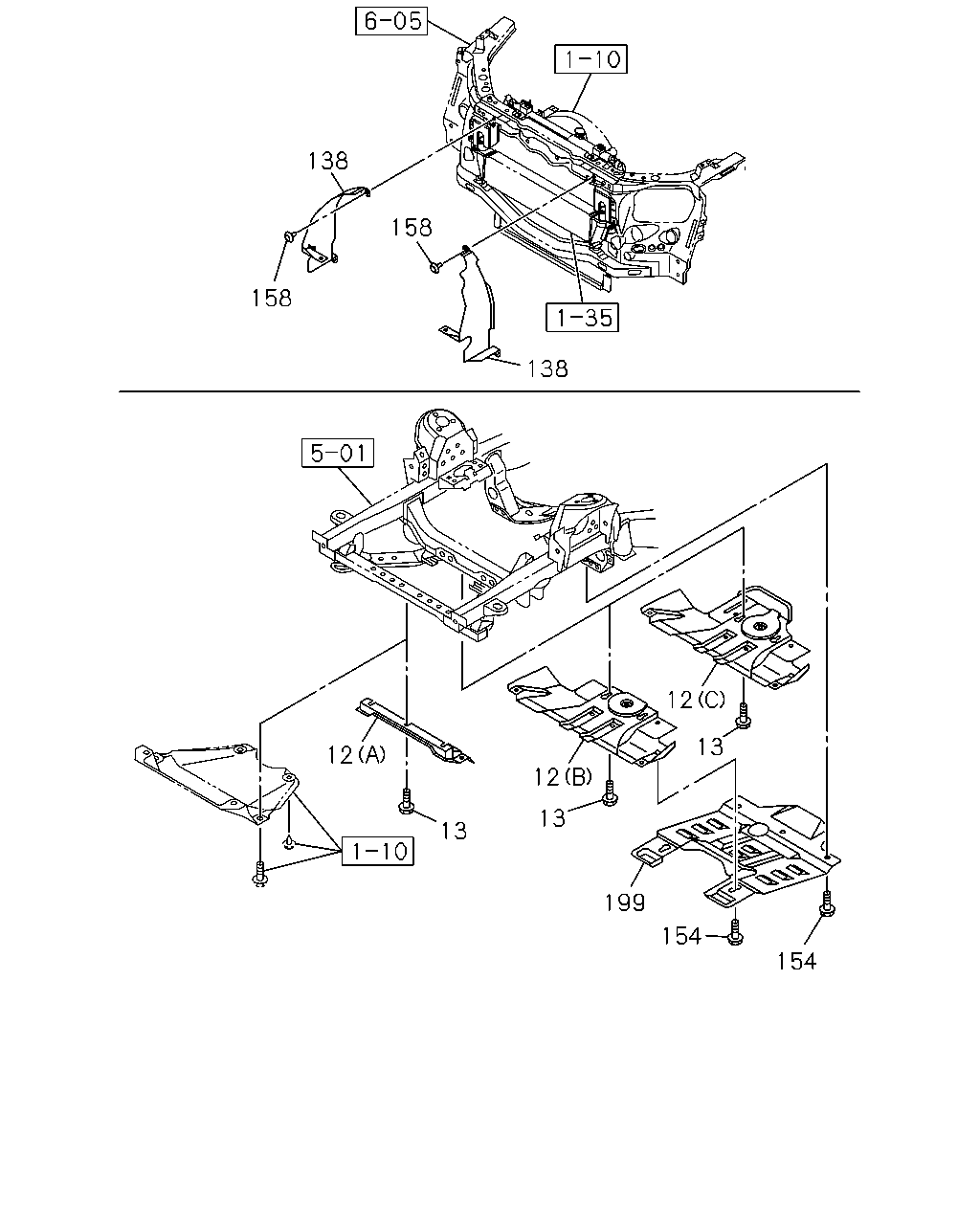

çizim 351250
138 158 158 138 12 13 13 12 13 12 154 199 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 PLATE; SKID,RAD
4JA1-T ENG(LP0) SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1305- ●
12 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1305- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG(LR0) (A) 		8-98102-129-1 01 1 1305- ● ●
12 PLATE; SKID,RAD
4JA1-T ENG(LP0) SKID PLATE<7WE> (B) 		8-98102-133-3 01 1 1305-1307 ●
12 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98102-133-3 01 1 1305-1307 ●
12 PLATE; SKID,RAD
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> (B) 		8-98102-133-3 01 1 1305-1307 ● ●
12 PLATE; SKID,RAD
4JA1-T ENG(LP0) SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1308- ●
12 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1308- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1308- ● ●
12 PLATE; SKID,RAD
4JK1-TCX ENG(LR0) EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1305- ● ●
13 BOLT; RAD SKID PLATE
4JA1-T ENG(LP0) SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1305- ●
13 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1305- ●
13 BOLT; RAD SKID PLATE
4JK1-TCX ENG(LR0) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1305- ● ●
138 GUIDE; AIR
4JK1-TCX ENG(LR0) 		8-98137-586-1 01 1 1305- ● ● ●
138 GUIDE; AIR
4JK1-TCX ENG(LR0) 		8-98137-587-1 01 1 1305- ● ● ●
154 BOLT; COVER
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> M10X28 W/PL WASHER 		8-98186-487-0 04 1 1305-1307 ● ●
154 BOLT; COVER
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> M12X25 FLANGE 		8-98230-015-0 04 1 1308- ● ●
158 CLIP; PROTECTOR
4JK1-TCX ENG(LR0) OD=22 L=10.7 		8-94215-211-0 06 1 1305- ● ● ●
199 PLATE; OIL PAN
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> 		8-98131-898-1 01 1 1305-1307 ● ●
199 PLATE; OIL PAN
4JK1-TCX ENG(LR0) UNDER FRT GUARD<6RJ> 		8-98229-404-0 01 1 1308- ● ●

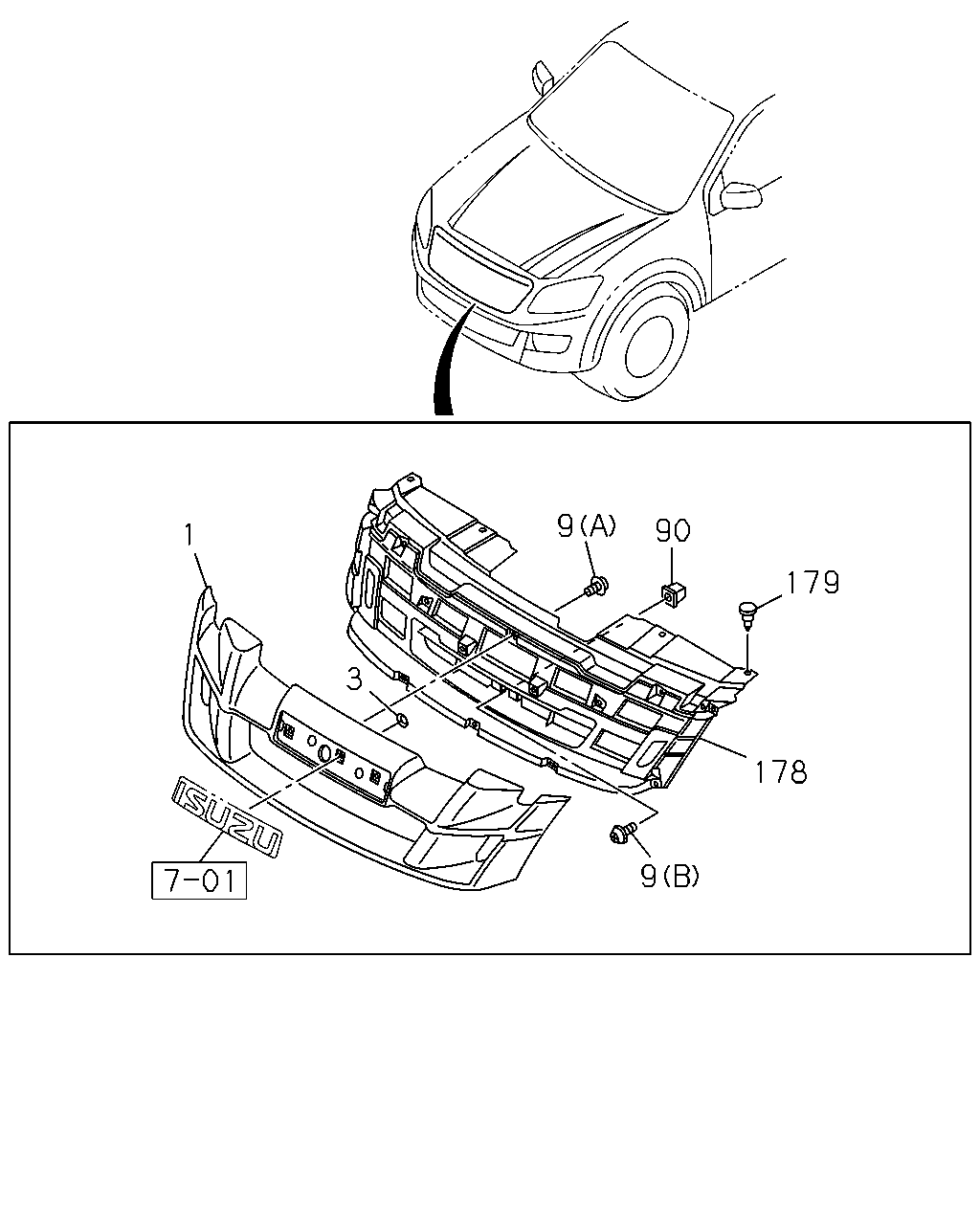

çizim 351260
1 3 9 90 179 178 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD 8-98193-867-0 01 1 1305- ● ●
1 GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1305- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1305- ● ●
3 CLIP; GRILLE 8-98211-687-0 03 1 1305- ● ● ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1305- ● ● ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1305- ● ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 		8-94291-927-0 01 1 1305- ● ● ● ●
178 GRILLE; INNER,RAD 8-98193-871-0 01 1 1305- ● ● ● ●
179 RETAINER; GRILLE,RAD 8-97301-188-0 04 1 1305- ● ● ● ●
