◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11525 - CYZ CHINA EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#119731) — 27 parça

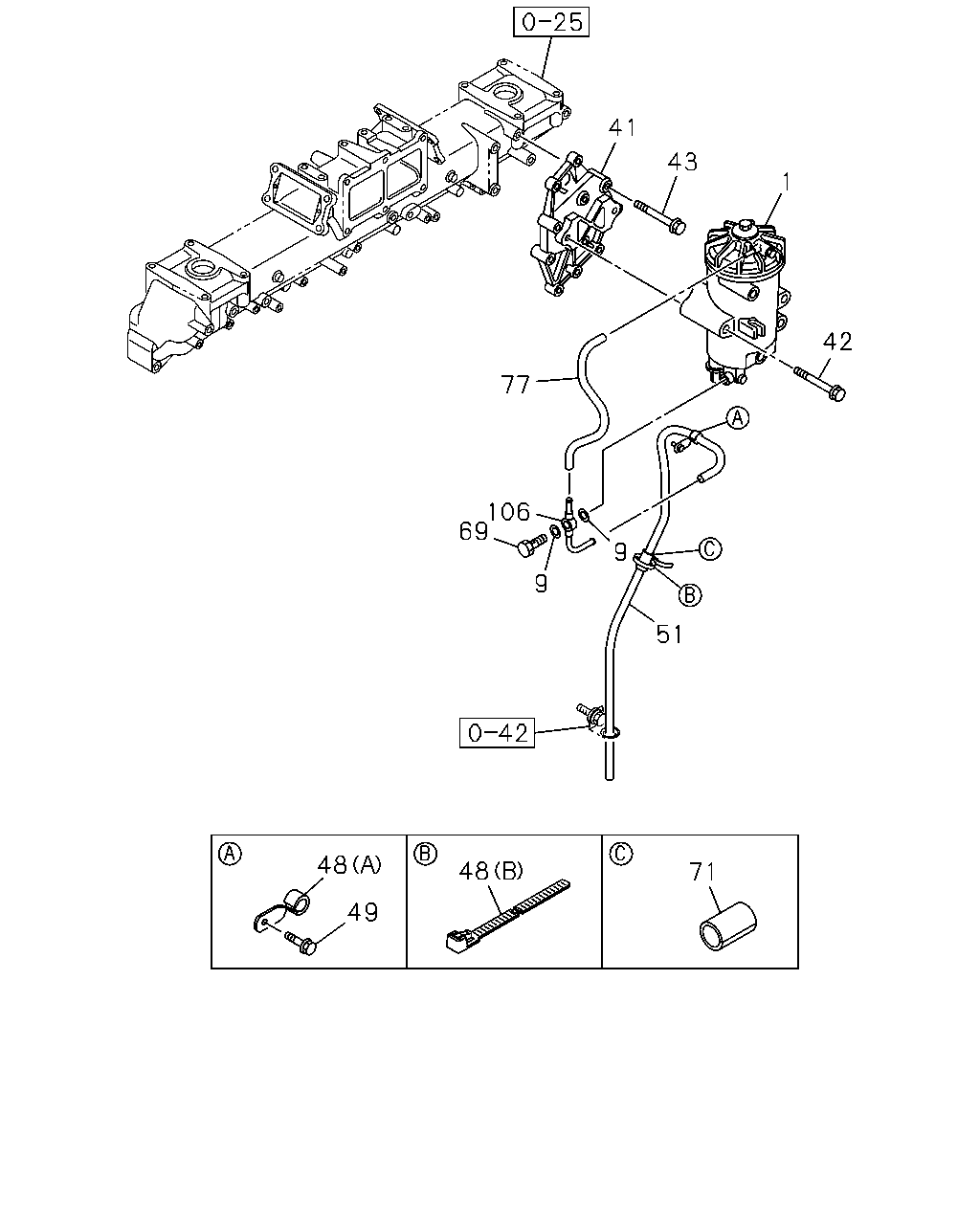

çizim 350261
41 1 43 42 51 9 69 9 106 77 71 48 48 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1305-1402 ● ●
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403- ● ●
9 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 1305- ● ●
41 BRACKET; FUEL FILTER 8-97628-208-0 01 1 1305- ● ●
42 BOLT; FUEL FILTER
M12X100 FLANGE 		0-28151-200-0 02 1 1305- ● ●
43 BOLT; BRKT
M10X60 FLANGE 		0-28151-060-0 04 1 1305- ● ●
48 CLIP; VINYL PIPE
(A) ID=11 L=40 		8-94123-171-1 01 1 1305- ● ●
48 CLIP; VINYL PIPE
(B) L=250 		8-98216-430-0 01 1 1305- ● ●
49 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1305- ● ●
51 PIPE; VINYL
L=1000 SERVICED BY L=10000 		9-09914-909-0 01 1 1305- ● ●
69 BOLT; EYE,FUEL FILTER
M10X21 FLANGE 		8-97372-239-0 01 1 1305- ● ●
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1305- ● ●
77 HOSE; FUEL FILTER 8-98118-453-0 01 1 1305- ● ●
106 PIPE; FUEL 8-97631-785-0 01 1 1305- ● ●
çizim 350282
22 24 21 23 26 14 61 146 32 144 24 26 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 8-98167-975-1 01 1 1305-1402 ● ●
1 FILTER ASM; FUEL 8-98258-016-0 01 1 1403- ● ●
2 ELEMENT KIT; FUEL FILTER 8-98116-662-0 01 1 1305- ● ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 8-98116-657-0 01 1 1305- ● ●
21 COVER; UPR,FUEL FILTER 8-98116-653-0 01 1 1305- ● ●
22 BOLT; CENTER TUBE,COVER 8-98117-014-0 01 1 1305- ● ●
23 PLUG; COVER 8-98116-652-0 01 1 1305- ● ●
24 GASKET; CENTER TUBE BOLT 8-98116-655-0 01 1 1305- ● ●
26 GASKET; COVER TO BODY 8-98116-661-0 01 1 1305- ● ●
32 BOLT; DRAIN,FUEL FILTER 8-98116-652-0 01 1 1305- ● ●
61 SEAT; SPR ELEMENT 8-98116-658-0 01 1 1305- ● ●
144 PLUG; BODY 8-98153-286-0 01 1 1305- ● ●
146 PLUG KIT; BODY 8-98195-093-0 01 1 1305- ● ●
