0-52 — OIL AND VACUUM PIPING; ENGINE (#119728) — 14 parça

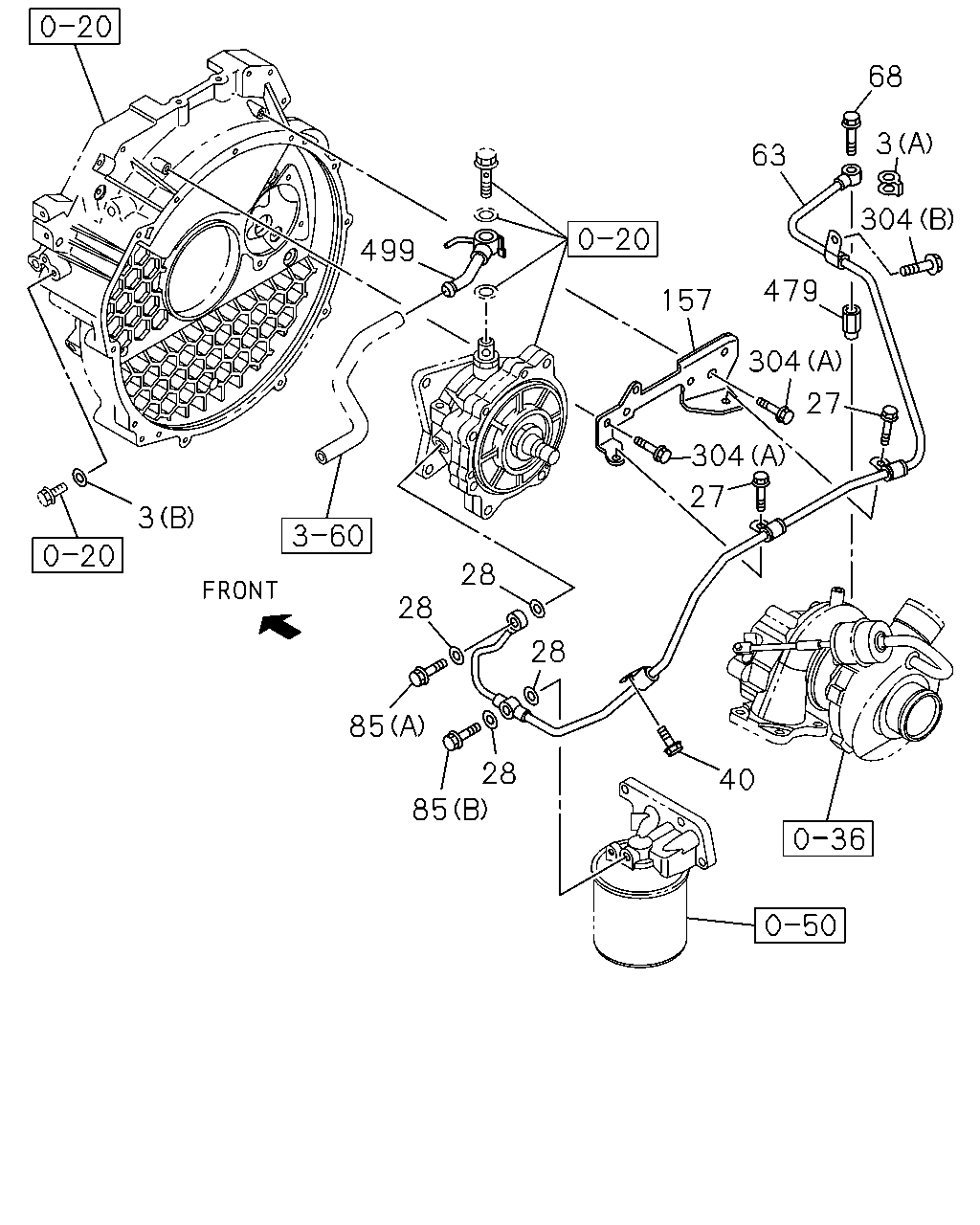

çizim 350302
40 28 28 28 28 85 85 3 157 304 479 63 68 3 304 27 27 304 499
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 IMA 		1-09630-083-0 01 1 1304- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.6 IMA 		8-97331-137-1 01 1 1304- ● ●
27 BOLT; OIL PIPE FIX
M8X16 FLANGE THA 		0-28050-816-0 02 1 1304- ● ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 IMA 		1-09630-083-0 04 1 1304- ● ●
40 BOLT; OIL PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 1304- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
IMA 		8-98092-070-0 01 1 1304- ● ●
68 BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M12X28 FLANGE IMA 		8-97166-518-1 01 1 1304- ● ●
85 BOLT; EYE,OIL PIPE FIX
(A) M10X22 IMA 		1-09675-028-0 01 1 1304- ● ●
85 BOLT; EYE,OIL PIPE FIX
(B) M10X28 IMA 		8-98037-823-0 01 1 1304- ● ●
157 BRACKET; OIL PIPE
IMA 		8-98077-403-0 01 1 1304- ● ●
304 BOLT; BRKT,OIL PIPE
(A) M10X16 FLANGE THA 		0-28151-016-0 02 1 1304- ● ●
304 BOLT; BRKT,OIL PIPE
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1304- ● ●
479 ADAPTER
IMA 		8-94436-891-0 01 1 1304- ● ●
499 PIPE; VACUUM
IMA 		8-98075-832-0 01 1 1304- ● ●
