1-40 — FUEL TANK (#119725) — 173 parça

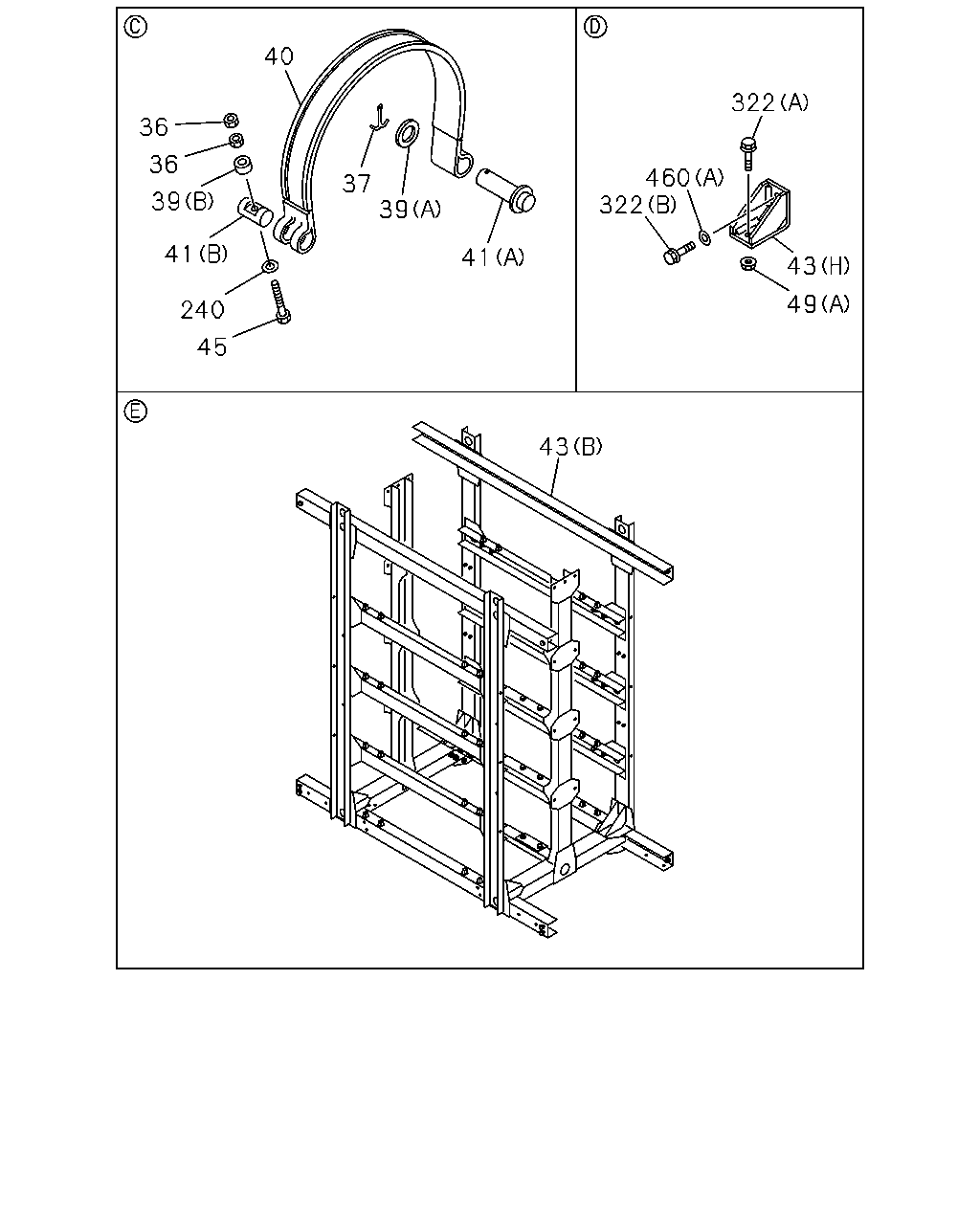

çizim 350474
40 37 41 45 240 41 39 36 36 322 460 322 43 49 39 43
BalonParca AdiParca NoAdetTipApplied Date A B
36 NUT; SPACER,FUEL TANK
M12 		0-91110-512-0 32 1 1305- ● ●
37 PIN; SPLIT,SUPPORT BELT
OD=4.6 L=45 		0-81125-045-0 16 1 1305- ● ●
39 WASHER; PL,SUPPORT BELT
(A) THA 		8-97925-678-0 16 1 1305- ● ●
39 WASHER; PL,SUPPORT BELT
(B) THA 		8-97925-807-0 16 1 1305- ● ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97925-676-1 16 1 1305- ● ●
41 PIN; SUPPORT BELT
(A) THA 		8-97925-677-0 16 1 1305- ● ●
41 PIN; SUPPORT BELT
(B) THA 		8-97925-806-0 16 1 1305- ● ●
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1305- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1305- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1305- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1305- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1305- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1305- ●
45 BOLT; BRKT,FUEL TANK
THA 		8-97925-718-0 16 1 1305- ● ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1305- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1305- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1305- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1305- ●
240 WASHER; PL,FUEL TANK
ID=12.5 		0-91614-512-0 16 1 1305- ● ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1305- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1305- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1305- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1305- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1305- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1305- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1305- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1305- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1305- ● ●

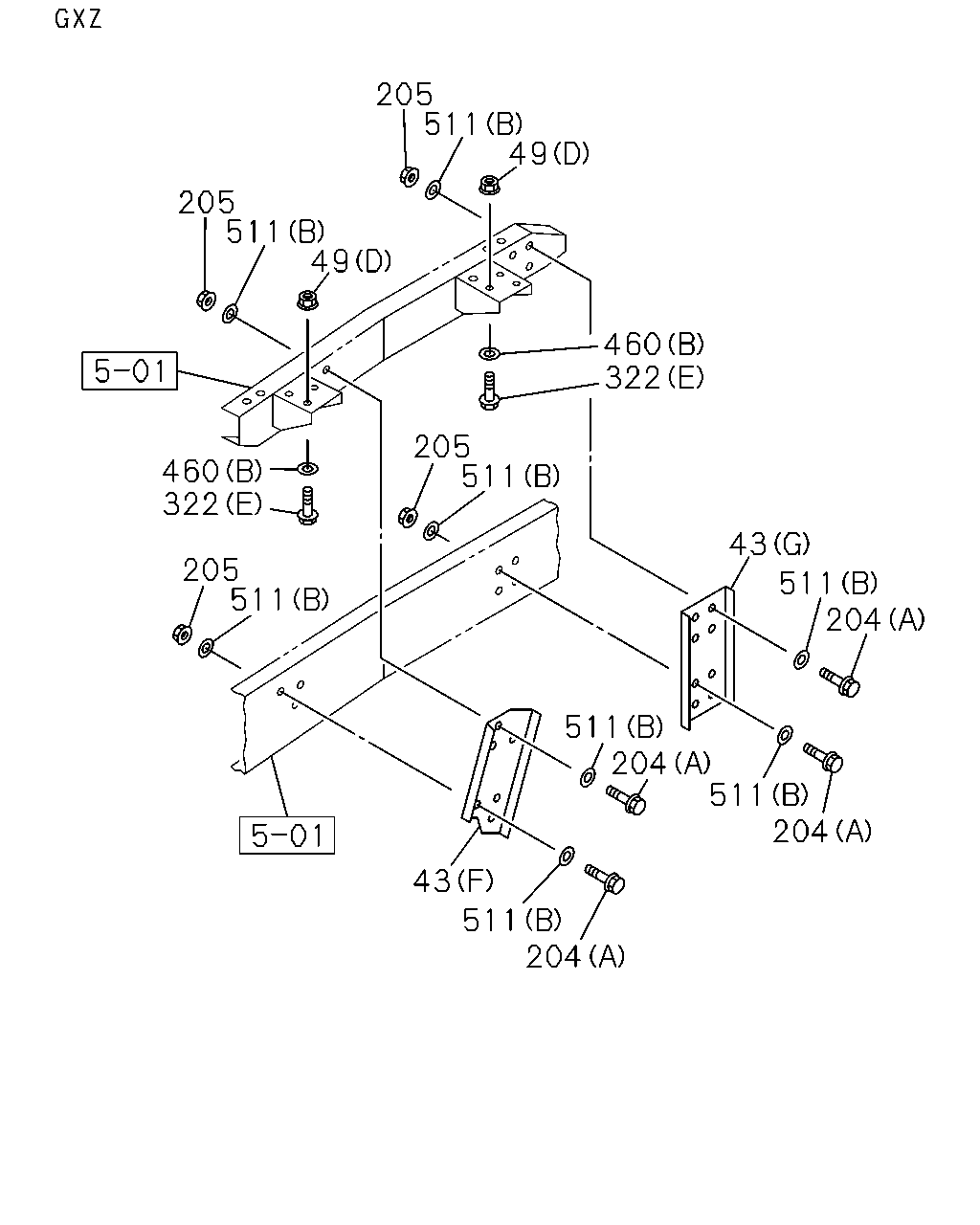

çizim 350476
205 205 49 511 460 205 43 204 511 204 204 511 204 511 43 511 205 322 460 511 49 511 511 322
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1305- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1305- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1305- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1305- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1305- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1305- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1305- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1305- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1305- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1305- ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1305- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1305- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1305- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1305- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1305- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1305- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1305- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1305- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1305- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1305- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1305- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1305- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1305- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1305- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1305- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1305- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1305- ●
çizim 350481
534 533 508 43 49 322 534 508 533 322 43 49 322 322 322 322 49 49 49 499 49 43 498 500 43 43 322
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1305- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1305- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1305- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1305- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1305- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1305- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1305- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1305- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1305- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1305- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1305- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1305- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1305- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1305- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1305- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1305- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1305- ●
498 STAY; BRKT
THA 		8-97926-073-0 08 1 1305- ● ●
499 BOLT; STAY
M8X25 FLANGE THA 		0-28650-825-0 16 1 1305- ● ●
500 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 08 1 1305- ● ●
508 STOPPER
(B) THA 		8-97925-975-0 04 1 1305- ● ●
508 STOPPER
(A) THA 		8-97926-074-0 04 1 1305- ● ●
533 BOLT; STOPPER
M8X20 FLANGE THA 		0-28650-820-0 32 1 1305- ● ●
534 NUT; STOPPER
M8 FLANGE THA 		0-91180-108-0 32 1 1305- ● ●

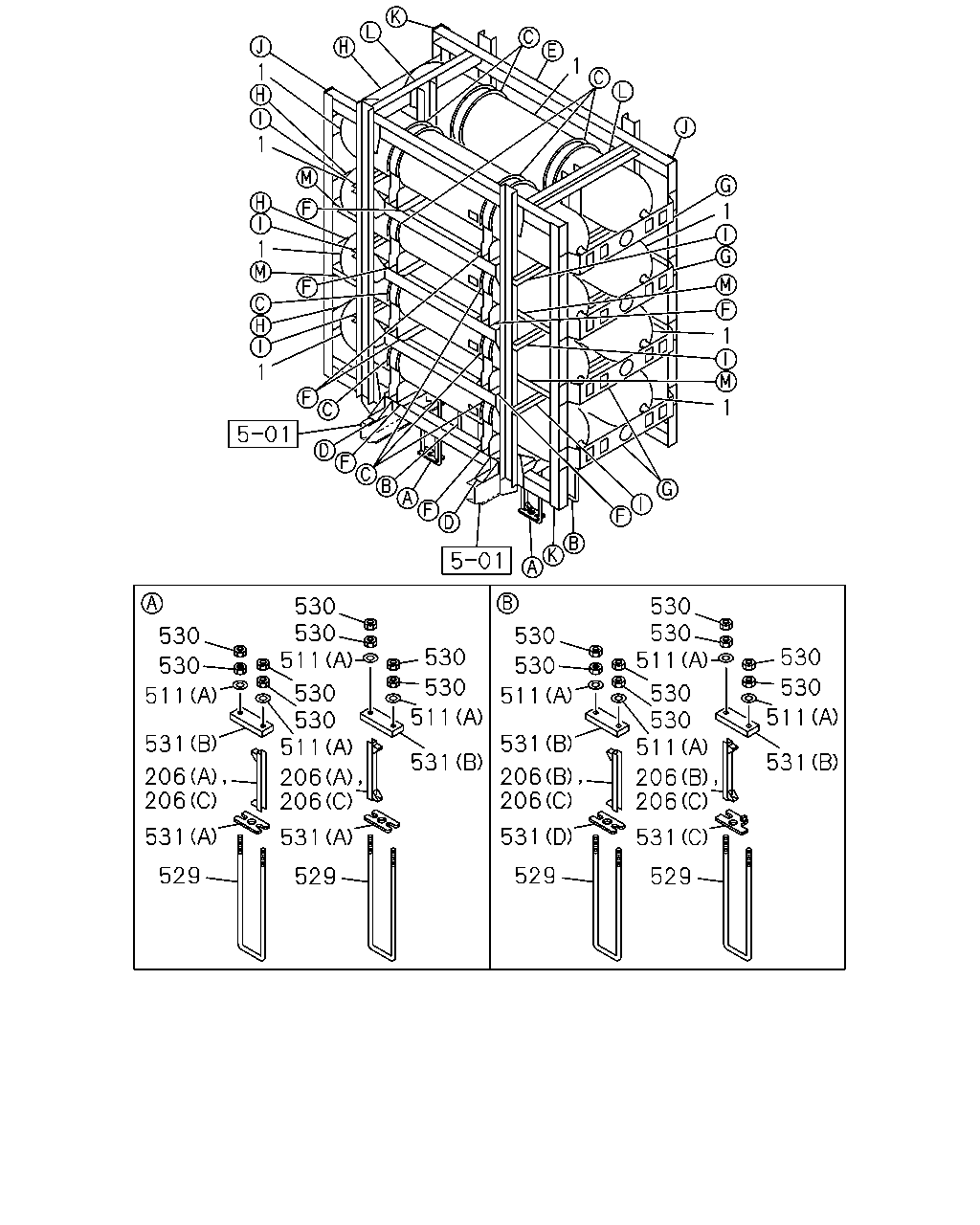

çizim 352191
1 1 1 1 1 1 1 1 530 530 511 531 206 206 531 529 529 531 530 511 206 206 530 511 530 530 530 530 511 531 530 530 511 531 206 206 531 529 529 206 531 206 530 511 530 530 530 511 530 530 511 531
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-97925-969-0 08 1 1305-1408 ● ●
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-98285-752-0 08 1 1409- ● ●
206 SLEEPER; FUEL TANK
(C) THA 		8-97925-881-2 04 1 1305- ●
206 SLEEPER; FUEL TANK
(A) THA 		8-97925-683-2 02 1 1305- ●
206 SLEEPER; FUEL TANK
(B) THA 		8-97925-713-1 02 1 1305- ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1305- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1305- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1305- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1305- ●
529 U-BOLT
THA 		8-97925-880-0 04 1 1305- ●
529 U-BOLT
THA 		8-97925-717-0 04 1 1305- ●
530 NUT; U-BOLT
M20 		0-91110-520-0 16 1 1305- ● ●
531 PLATE; U-BOLT
(C) THA 		8-97926-364-0 01 1 1305- ●
531 PLATE; U-BOLT
(D) THA 		8-97926-038-0 01 1 1305- ●
531 PLATE; U-BOLT
(B) THA 		8-97925-685-0 04 1 1305- ● ●
531 PLATE; U-BOLT
(A) THA 		8-97925-684-0 02 1 1305- ●
çizim 352545
457 279 285
BalonParca AdiParca NoAdetTipApplied Date A B
279 UNION; FUEL PIPE 1-22427-070-0 01 1 1305- ● ●
285 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 1305- ● ●
457 BRACKET; UNION,FUEL PIPE
THA 		8-97925-750-0 01 1 1305- ● ●

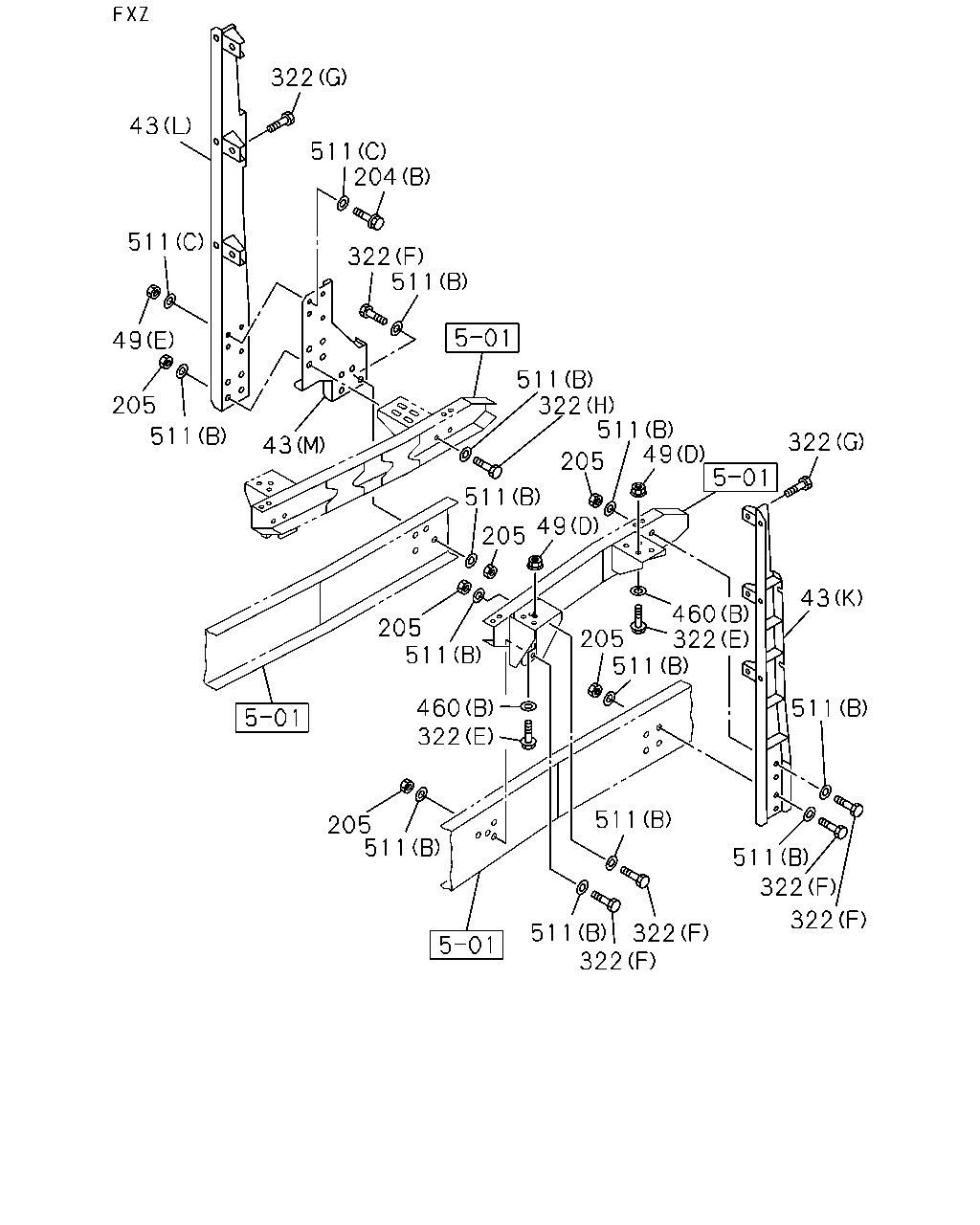

çizim 352619
322 511 322 511 43 49 205 43 511 511 511 322 43 460 322 511 511 322 322 322 322 511 511 205 322 511 460 205 205 205 49 322 511 511 511 205 511 204 49
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1305- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1305- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1305- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1305- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1305- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1305- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1305- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1305- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1305- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1305- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1305- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1305- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1305- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1305- ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1305- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1305- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1305- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1305- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1305- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1305- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1305- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1305- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1305- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1305- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1305- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1305- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1305- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1305- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1305- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1305- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1305- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
