2-81C — POWER TAKE OFF; TRANSMISSION SIDE (#11972) — 117 parça

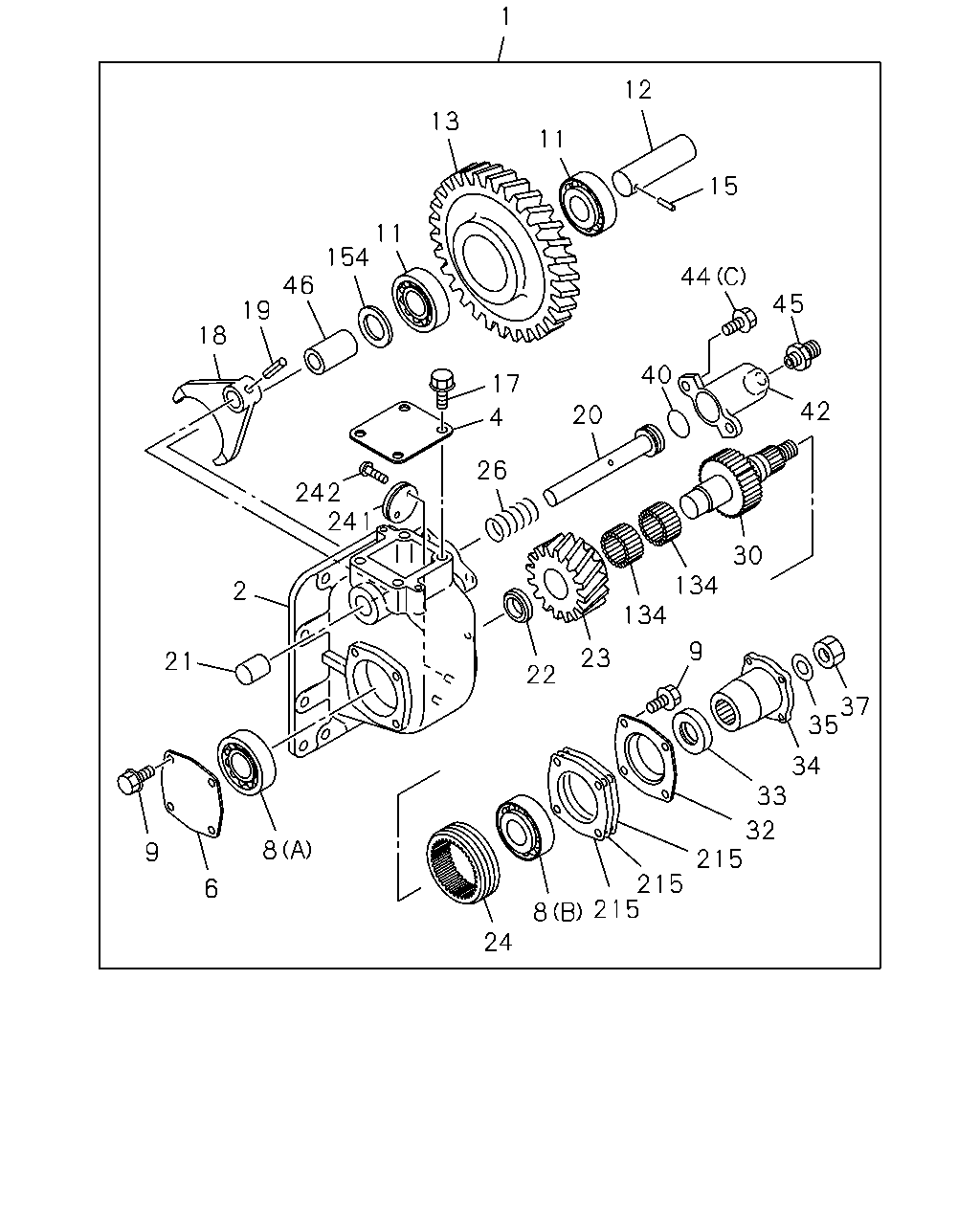

1 12 13 11 11 15 44 45 42 40 4 17 20 242 154 46 19 18 26 241 2 21 9 6 8 24 215 8 215 215 22 23 134 134 30 32 33 34 35 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-1	01	1	0107-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38000-352-1	01	1	0107-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0107-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38111-112-0	01	1	0107-		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-38121-002-0	01	1	0107-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38151-024-0	01	1	0107-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	0107-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	5-09820-012-0	01	1	0107-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE	0-28781-025-0	08	1	0107-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09810-264-0	02	1	0107-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-039-0	01	1	0107-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=34	1-38241-131-0	01	1	0107-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	0107-		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X20 FLANGE	0-28181-020-0	04	1	0107-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38361-041-0	01	1	0107-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	0107-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-048-1	01	1	0107-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-33545-001-0	01	1	0107-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38226-082-0	01	1	0107-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=18	1-38241-129-0	01	1	0107-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0107-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	0107-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38121-008-0	01	1	0107-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0107-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-034-0	01	1	0107-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38161-029-0	01	1	0107-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0107-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	5-09625-089-0	01	1	0107-0512		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	0601-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0107-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38512-015-0	01	1	0107-		●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09503-013-0	01	1	0107-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0107-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	5-09409-021-0	01	1	0107-		●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09561-324-0	01	1	0107-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0107-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	0107-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M10X25 FLANGE	0-28781-025-0	02	1	0107-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-		●
46	COLLAR; DIST,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38216-060-0	01	1	0107-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09811-429-0	02	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.55	1-38216-047-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.60	1-38216-048-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.65	1-38216-049-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.70	1-38216-050-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.75	1-38216-051-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.80	1-38216-052-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.85	1-38216-053-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.90	1-38216-054-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.95	1-38216-055-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.00	1-38216-056-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.05	1-38216-057-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.10	1-38216-058-0	01	1	0107-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.15	1-38216-059-0	01	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	5-33156-010-0	04	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	5-33156-011-0	04	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.20	5-33156-012-0	04	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40	5-33156-013-0	04	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65	5-33156-014-0	04	1	0107-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80	5-33156-015-0	04	1	0107-		●
241	BRACKET; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-32579-019-0	01	1	0107-		●
242	SCREW; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09129-017-0	02	1	0107-		●

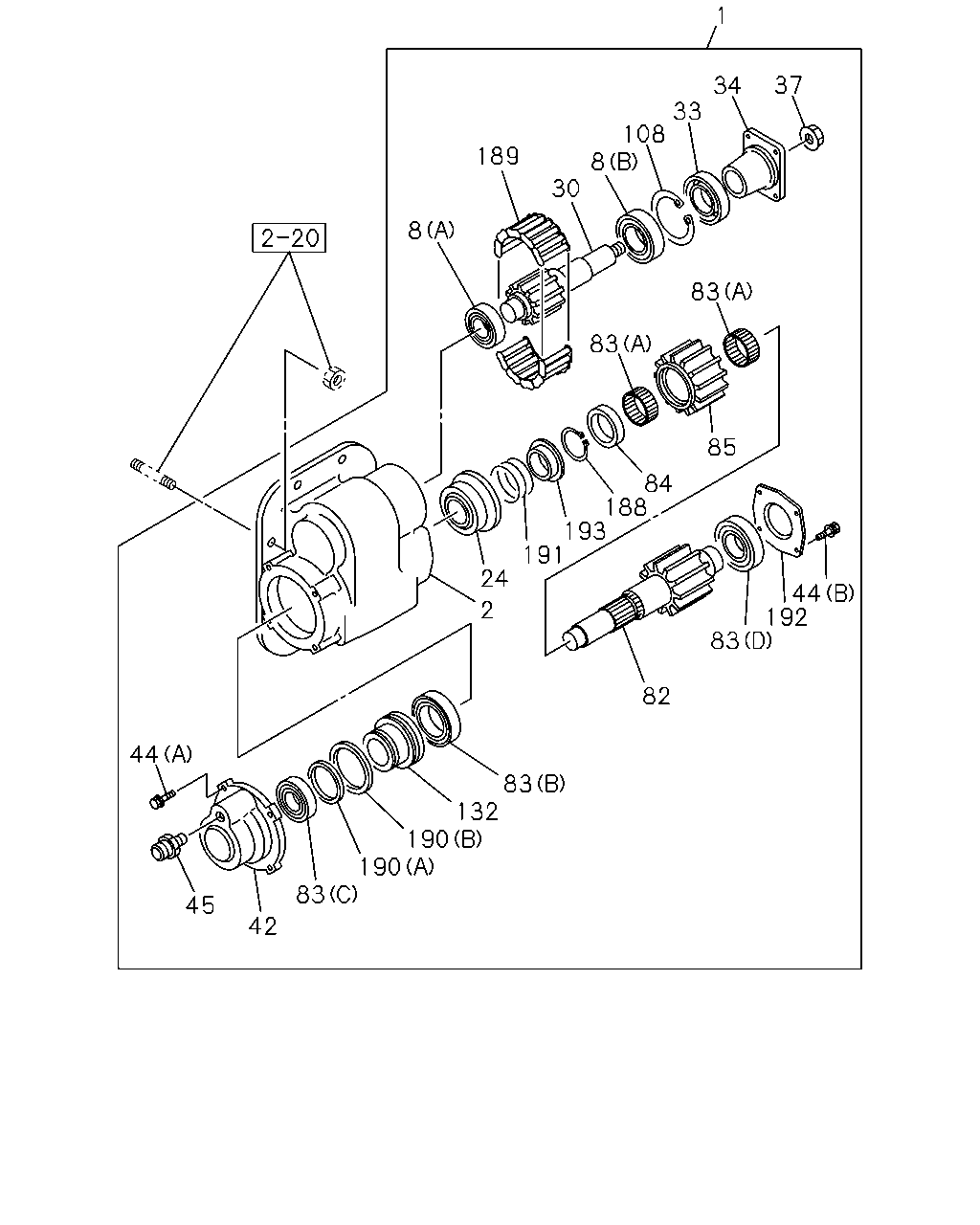

189 1 37 34 8 33 30 108 83 8 83 85 84 188 44 192 193 191 24 2 83 82 83 132 190 190 83 42 45 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-1	01	1	0107-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38000-352-1	01	1	0107-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0107-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38111-112-0	01	1	0107-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0107-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	0107-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	5-09820-012-0	01	1	0107-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0107-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	0107-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0107-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-034-0	01	1	0107-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0107-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	5-09625-089-0	01	1	0107-0512		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	0601-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0107-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38512-015-0	01	1	0107-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0107-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	5-09409-021-0	01	1	0107-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0107-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	0107-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M10X25 FLANGE	0-28781-025-0	02	1	0107-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	0107-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	0107-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	0107-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	0107-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	0107-	●
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	0107-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	0107-	●
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	0107-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	0107-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	0107-	●
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	0107-	●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	0107-	●
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	0107-	●
