◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11500 - FYH(THAILAND)EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#119718) — 79 parça

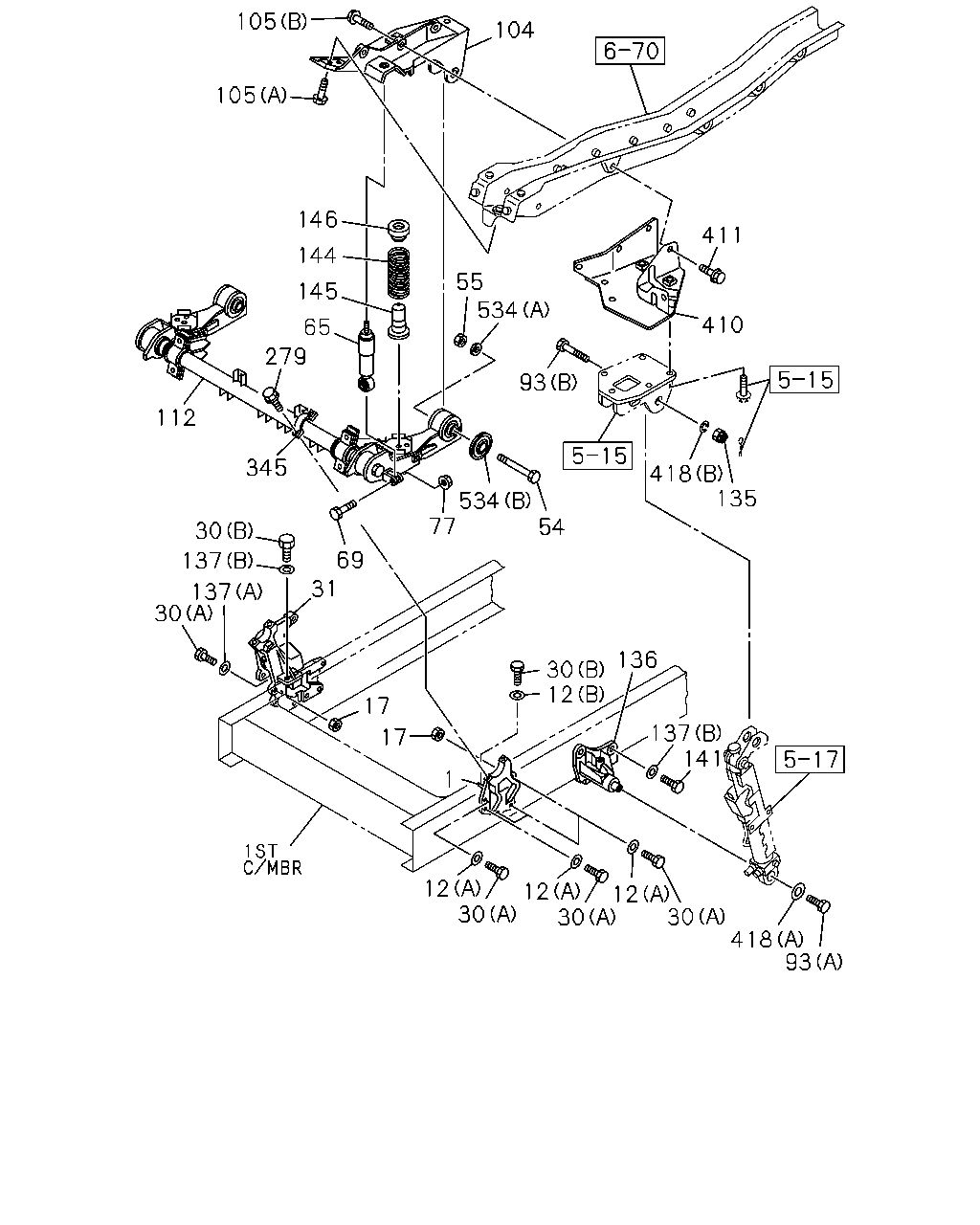

çizim 351179
105 104 411 410 418 54 77 69 30 137 137 30 31 17 17 1 12 30 136 137 141 12 30 30 12 12 30 418 534 93 534 55 65 145 144 146 105 112 279 345 135 93
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1305-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 12 1 1305-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1305-
17 NUT; BRKT,CAB TILT
M16 THA 		0-91110-516-0 06 1 1305-
17 NUT; BRKT,CAB TILT
M16 FLANGE 		0-91180-216-0 05 1 1305-
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1305-
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 11 1 1305-
31 BRACKET; CAB 8-98152-797-0 01 1 1305-
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1305-
55 NUT; RUBBER
M18 THA 		0-91110-518-0 02 1 1305-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1305-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1305-
77 NUT
M12 FLANGE THA 		0-91180-212-0 02 1 1305-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1305-
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1305-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1305-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1305-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1305-
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE THA 		0-28661-030-0 08 1 1305-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1305-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1305-
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1305-
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1305-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1305-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1305-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1305-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1305-
145 RUBBER; CUSHION,CAB FRT SUSPENSION
THA 		8-97948-023-0 02 1 1305-
146 SEAT; SPRING,CAB FRT SUSPENSION
THA 		1-53366-138-0 02 1 1305-
279 BOLT
M12X40 FLANGE THA 		0-28061-240-0 04 1 1305-
345 CAP; CAB 1-53458-336-3 02 1 1305-
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1305-
411 BOLT; REINFORCEMENT
M8X20 FLANGE THA 		0-28650-820-0 03 1 1305-
411 BOLT; REINFORCEMENT
M10X30 FLANGE THA 		0-28661-030-0 02 1 1305-
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1305-
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1305-
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1305-
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1305-

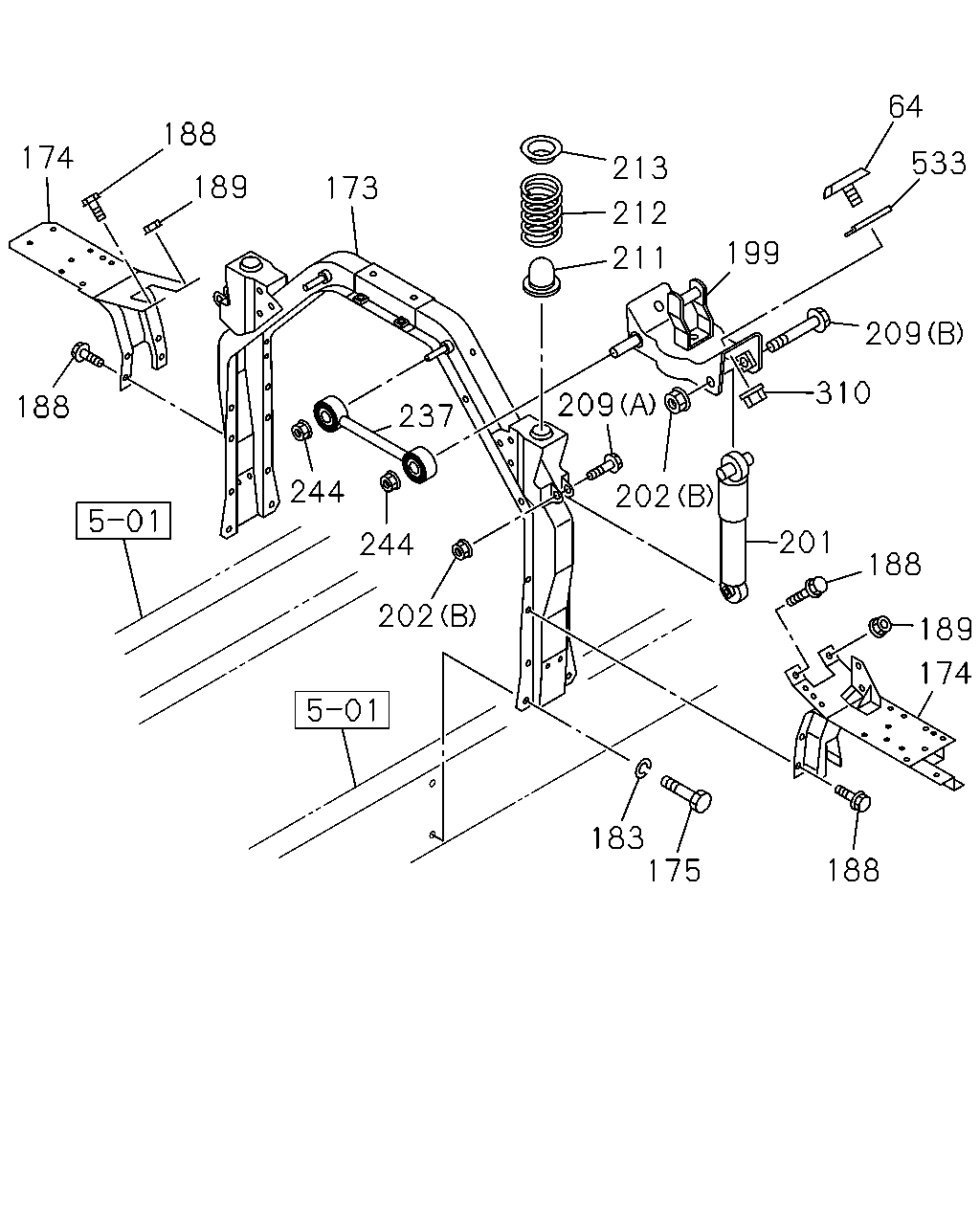

çizim 351199
174 188 189 173 237 244 188 244 202 202 209 213 212 211 199 64 533 209 310 201 188 189 174 188 175 183
BalonParca AdiParca NoAdetTipApplied Date
64 RUBBER; CUSHION 8-97113-340-0 04 1 1305-
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1305-
174 OUTRIGGER 8-98054-839-2 01 1 1305-
174 OUTRIGGER 8-98054-838-1 01 1 1305-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1305-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1305-
188 BOLT; OUTRIGGER
M12X30 FLANGE THA 		0-28661-230-0 10 1 1305-
189 NUT; OUTRIGGER
M12 FLANGE THA 		0-91180-212-0 02 1 1305-
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1305-
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1305-
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1305-1401
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402-
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1305-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1305-
209 BOLT; S/ABS
(A) M12X60 FLANGE THA 		0-28051-260-0 02 1 1305-
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1305-
211 RUBBER; CUSHION,S/ABS
THA 		8-97926-572-0 02 1 1305-
212 SPRING; COIL 1-09580-398-1 02 1 1305-
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1305-
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1305-
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1305-
310 NUT; CUSHION
M8 FLANGE THA 		0-91180-108-0 04 1 1305-
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1305-
çizim 351211
112 535 191 191 535 51 48 27 536 535 535 535 191 535 535 535 51 27 536 51 191 51 48 204 204 205 203 203 202 65 202
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1305-
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1305-
51 BUSHING; RUBBER 1-53458-714-0 04 1 1305-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1305-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1305-
191 BOLT; BRKT FIX
M12X35 FLANGE THA 		0-28051-235-0 08 1 1305-
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1305-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1305-
203 WASHER; RUBBER,SHOCK
(A) THA 		1-51631-005-0 02 1 1305-
203 WASHER; RUBBER,SHOCK
(B) THA 		1-51631-104-0 02 1 1305-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1305-
205 WASHER; RUBBER,SHOCK
THA 		1-51631-079-0 02 1 1305-
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1305-
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1305-
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1305-
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1305-
