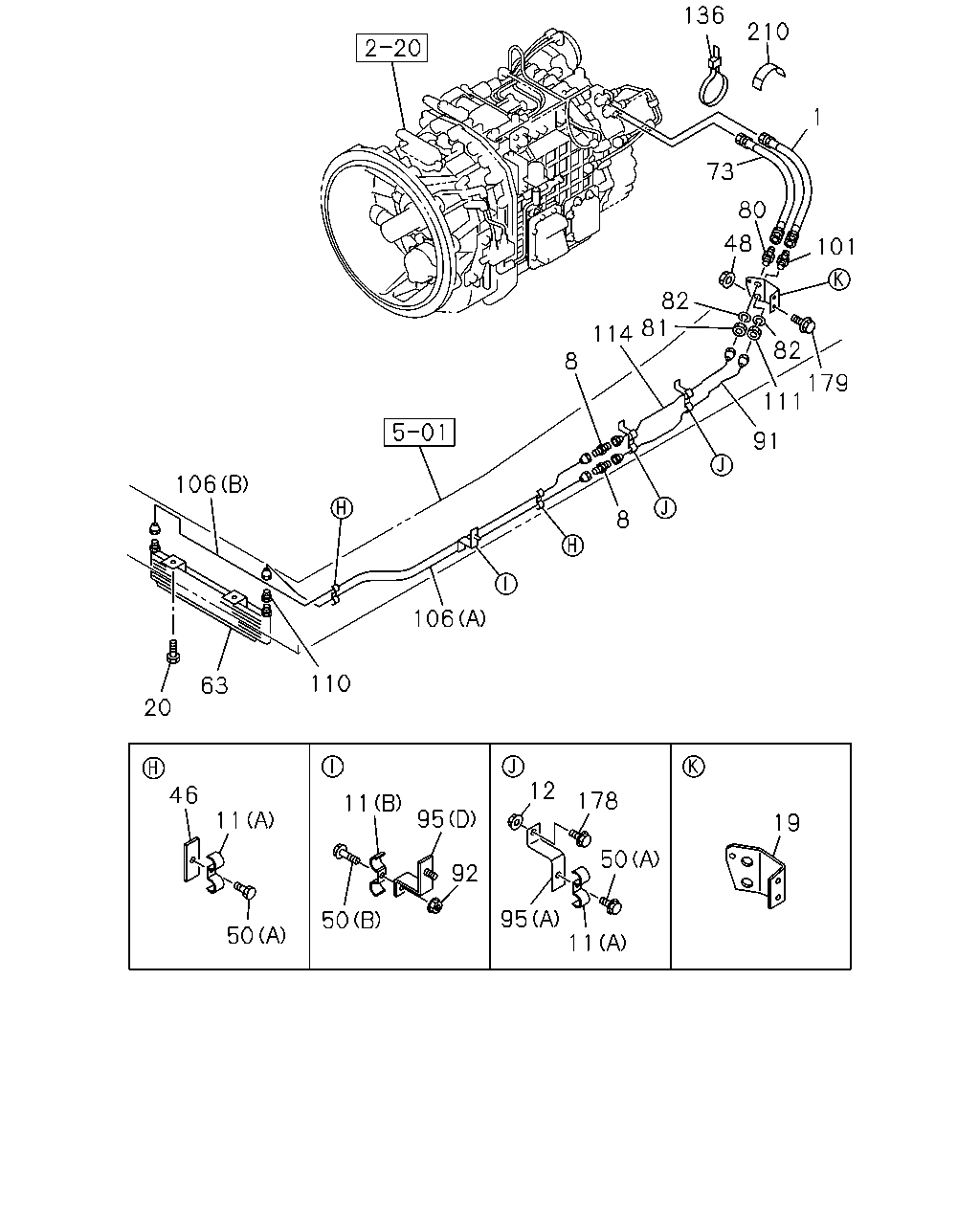

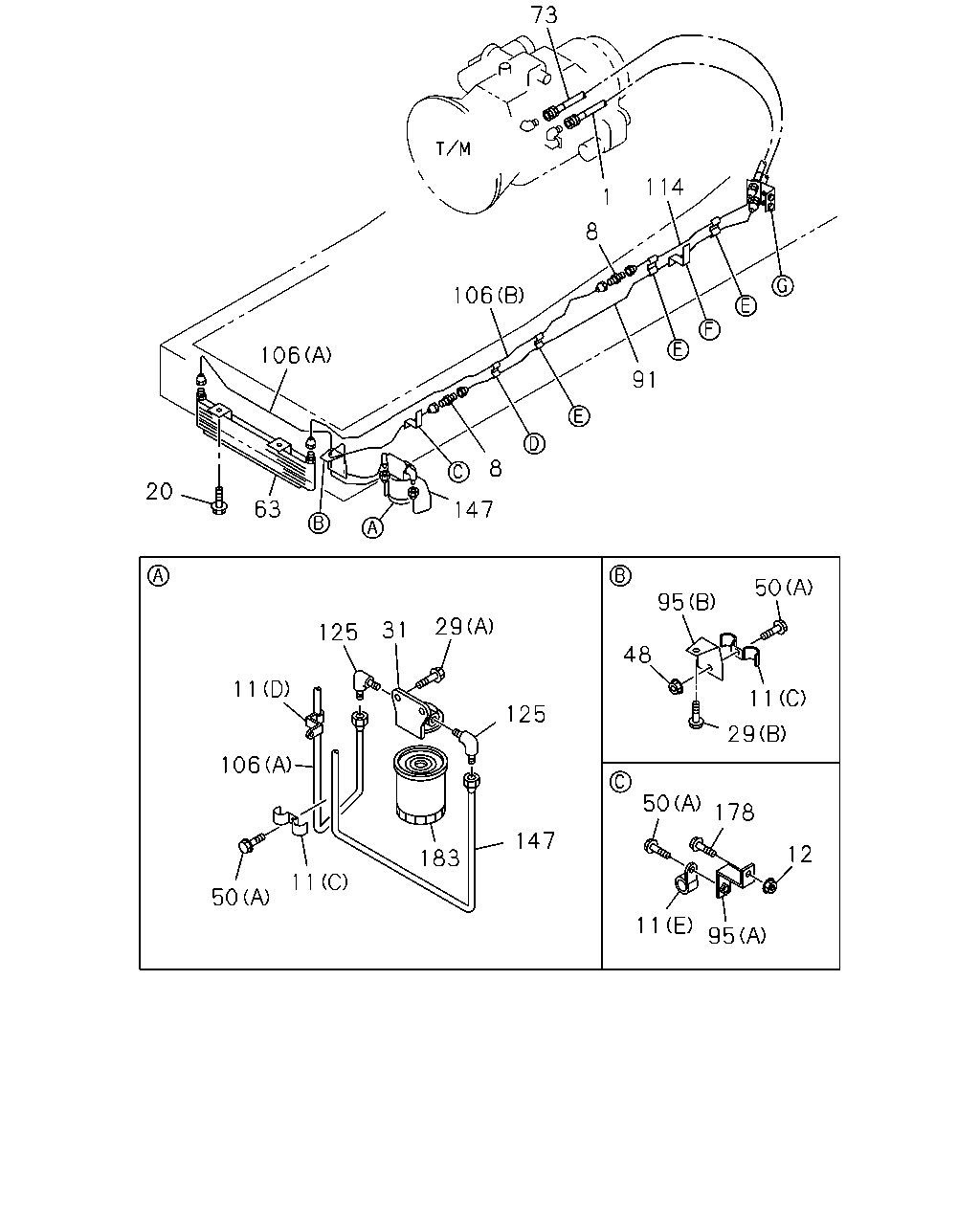

2-53C — TRANSMISSION OIL COOLER SYSTEM (#11971) — 225 parça

136 210 1 73 101 80 82 48 82 179 81 111 114 91 8 8 106 106 110 63 20 19 11 50 12 178 95 95 11 50 11 46 50 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=450	1-09364-625-0	01	1	0107-	●
1	HOSE; ATF L=460	1-09365-008-0	01	1	0107-0107		●
1	HOSE; ATF L=570	1-09365-197-0	01	1	0107-0112		●
1	HOSE; ATF L=550	1-09365-223-0	01	1	0201-		●
8	UNION M22	9-09233-015-1	02	1	0107-0607		●
8	UNION M22 L=51	0-92123-015-0	02	1	0608-		●
8	UNION M16 L=42	9-09233-010-1	02	1	0107-0607	●
8	UNION M16 L=42	0-92123-010-0	02	1	0608-	●
11	CLIP; PIPE (E) ID=11 L=20	9-09525-035-0	02	1	0107-0606	●
11	CLIP; PIPE (E) ID=11 L=20	0-95235-035-0	02	1	0607-	●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-		●
11	CLIP; PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-		●
11	CLIP; PIPE (F) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0107-	●
11	CLIP; PIPE (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0107-	●
11	CLIP; PIPE (D) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
19	BRACKET; FLEX HOSE SILENCER SINGLE VERTICAL<N28>	1-47479-212-0	01	1	0311-	●
19	BRACKET; FLEX HOSE	1-47478-566-0	01	1	0107-		●
19	BRACKET; FLEX HOSE	1-47478-344-0	01	1	0107-0310	●
19	BRACKET; FLEX HOSE EXC. SILENCER SINGLE VERTICAL<N28>	1-47478-344-0	01	1	0311-	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
46	BRACKET; OIL PIPE L=50	1-47475-299-2	02	1	0107-		●
46	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	0107-	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0310	●	●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512		●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
63	COOLER; OIL	1-21700-290-0	01	1	0105-0609	●	●
63	COOLER; OIL	1-21700-394-0	01	1	0610-	●	●
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0107-	●
73	HOSE; FLEX,TRANS L=520	1-09365-009-0	01	1	0107-0107		●
73	HOSE; FLEX,TRANS	1-09365-220-0	01	1	0107-		●
80	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0107-0107		●
81	NUT; UNION M22	9-09111-422-0	01	1	0107-0512		●
81	NUT; UNION M22	0-91111-522-0	01	1	0601-		●
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-0603		●
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-		●
91	PIPE; OIL,FLEX HOSE TO UNION L=1790 SERVICED BY L=1900	1-47428-881-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION	1-49166-215-0	01	1	0107-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●
95	BRACKET; CLIP (D)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP (D)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0107-	●
95	BRACKET; CLIP (B)	1-47478-863-0	01	1	0107-	●
101	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0107-0107		●
106	PIPE ASM; OIL,COOLER TO UNION (A)	1-49165-581-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (B)	1-49166-240-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2324	1-49166-216-0	01	1	0107-0206		●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2305	1-49166-669-0	01	1	0207-		●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=1695	1-49166-217-0	01	1	0107-		●
110	UNION; OIL PIPE	1-09654-398-0	02	1	0107-		●
111	NUT; UNION M22	9-09111-422-0	01	1	0107-0512		●
111	NUT; UNION M22	0-91111-522-0	01	1	0601-		●
114	PIPE; OIL,UNION TO FLEX HOSE L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=1073	1-49166-218-0	01	1	0107-		●
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0109-		●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	03	1	0107-0512	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512		●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0109-		●

73 114 106 1 8 91 8 147 63 20 31 29 125 125 11 106 147 106 95 50 11 29 48 50 178 12 95 11 183 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=450	1-09364-625-0	01	1	0107-	●
1	HOSE; ATF L=460	1-09365-008-0	01	1	0107-0107		●
1	HOSE; ATF L=570	1-09365-197-0	01	1	0107-0112		●
1	HOSE; ATF L=550	1-09365-223-0	01	1	0201-		●
8	UNION M22	9-09233-015-1	02	1	0107-0607		●
8	UNION M22 L=51	0-92123-015-0	02	1	0608-		●
8	UNION M16 L=42	9-09233-010-1	02	1	0107-0607	●
8	UNION M16 L=42	0-92123-010-0	02	1	0608-	●
11	CLIP; PIPE (E) ID=11 L=20	9-09525-035-0	02	1	0107-0606	●
11	CLIP; PIPE (E) ID=11 L=20	0-95235-035-0	02	1	0607-	●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-		●
11	CLIP; PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-		●
11	CLIP; PIPE (F) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0107-	●
11	CLIP; PIPE (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0107-	●
11	CLIP; PIPE (D) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
29	BOLT; FILTER TO BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●
29	BOLT; FILTER TO BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
31	BRACKET; OIL FILTER	1-33119-222-0	01	1	0107-	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0310	●	●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512		●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
63	COOLER; OIL	1-21700-290-0	01	1	0105-0609	●	●
63	COOLER; OIL	1-21700-394-0	01	1	0610-	●	●
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0107-	●
73	HOSE; FLEX,TRANS L=520	1-09365-009-0	01	1	0107-0107		●
73	HOSE; FLEX,TRANS	1-09365-220-0	01	1	0107-		●
91	PIPE; OIL,FLEX HOSE TO UNION L=1790 SERVICED BY L=1900	1-47428-881-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION	1-49166-215-0	01	1	0107-		●
95	BRACKET; CLIP (D)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP (D)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0107-	●
95	BRACKET; CLIP (B)	1-47478-863-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (A)	1-49165-581-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (B)	1-49166-240-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2324	1-49166-216-0	01	1	0107-0206		●
106	PIPE ASM; OIL,COOLER TO UNION (A) L=2305	1-49166-669-0	01	1	0207-		●
106	PIPE ASM; OIL,COOLER TO UNION (B) L=1695	1-49166-217-0	01	1	0107-		●
114	PIPE; OIL,UNION TO FLEX HOSE L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=1073	1-49166-218-0	01	1	0107-		●
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0107-0607	●
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●
147	PIPE; OIL,UNION TO FILTER	1-49166-243-0	01	1	0107-	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	03	1	0107-0512	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512		●
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0107-	●

48 46 11 11 50 50 92 11 50 95 95 92 1 73 75 75 48 19 179 77 76 91 117 116 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=450	1-09364-625-0	01	1	0107-	●
1	HOSE; ATF L=460	1-09365-008-0	01	1	0107-0107		●
1	HOSE; ATF L=570	1-09365-197-0	01	1	0107-0112		●
1	HOSE; ATF L=550	1-09365-223-0	01	1	0201-		●
11	CLIP; PIPE (E) ID=11 L=20	9-09525-035-0	02	1	0107-0606	●
11	CLIP; PIPE (E) ID=11 L=20	0-95235-035-0	02	1	0607-	●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-		●
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-		●
11	CLIP; PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-		●
11	CLIP; PIPE (F) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0107-	●
11	CLIP; PIPE (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0107-	●
11	CLIP; PIPE (D) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●
19	BRACKET; FLEX HOSE SILENCER SINGLE VERTICAL<N28>	1-47479-212-0	01	1	0311-	●
19	BRACKET; FLEX HOSE	1-47478-566-0	01	1	0107-		●
19	BRACKET; FLEX HOSE	1-47478-344-0	01	1	0107-0310	●
19	BRACKET; FLEX HOSE EXC. SILENCER SINGLE VERTICAL<N28>	1-47478-344-0	01	1	0311-	●
46	BRACKET; OIL PIPE L=50	1-47475-299-2	02	1	0107-		●
46	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	0107-	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0310	●	●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0311-0602		●
48	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512		●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512		●
50	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●
50	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0107-	●
73	HOSE; FLEX,TRANS L=520	1-09365-009-0	01	1	0107-0107		●
73	HOSE; FLEX,TRANS	1-09365-220-0	01	1	0107-		●
75	GASKET; FLEX HOSE,TRANS ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0107-0108	●
76	NUT; FLEX HOSE M16	9-99111-416-0	01	1	0107-0512	●
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0601-	●
77	WASHER; LK ID=16.2	9-09150-516-0	01	1	0107-0603	●
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	0604-	●
91	PIPE; OIL,FLEX HOSE TO UNION L=1790 SERVICED BY L=1900	1-47428-881-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION	1-49166-215-0	01	1	0107-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●
95	BRACKET; CLIP (D)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP (D)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●	●
95	BRACKET; CLIP (A)	1-47477-669-1	01	1	0107-	●
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0107-	●
95	BRACKET; CLIP (B)	1-47478-863-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE L=1073	1-49166-218-0	01	1	0107-		●
116	NUT; BRKT,FLEX HOSE M16	9-99111-416-0	01	1	0107-0512	●
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	0601-	●
117	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	0107-0603	●
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	01	1	0604-	●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
