2-01 — CLUTCH
(#119707) — 40 parça
◀

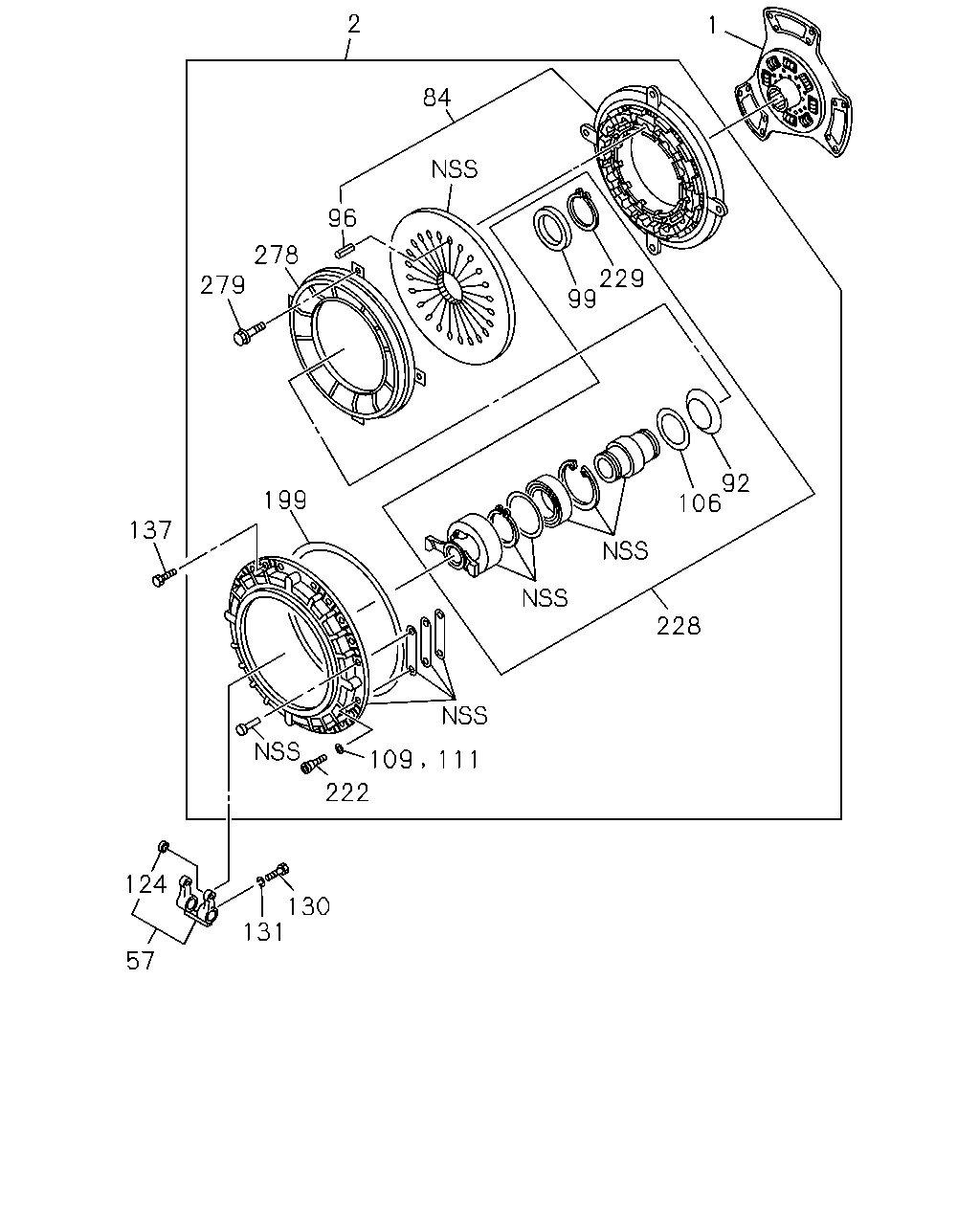

[201A] DISC AND PLATE (24 parça)
[201A] BOOSTER AND BRACKET (16 parça)
▶
2
1
84
96
278
279
199
137
109
222
111
228
106
92
130
131
124
57
229
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31260-036-0
01
1
1305-
2
PLATE ASM; PRESSURE,CLU
1-31220-452-0
01
1
1305-1404
2
PLATE ASM; PRESSURE,CLU
1-31220-464-0
01
1
1405-
57
FORK; SHIFT,CLU
1-31340-078-0
01
1
1305-
84
PLATE; PRESSURE
1-31221-142-0
01
1
1305-
92
SPRING; CLU
1-31239-052-0
01
1
1305-
96
PIN; RELEASE LEVER
1-31239-055-0
03
1
1305-
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
1305-
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
1305-
109
WASHER; LK,STRAP
ID=13
1-31239-038-0
04
1
1405-
111
WASHER; PL,STRAP
ID=13
1-31239-038-0
04
1
1305-1404
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1305-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1305-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1305-
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
1305-
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
1305-
222
BOLT; STRAP
1-31239-037-0
04
1
1305-
228
BEARING; RELEASE
1-31310-023-0
01
1
1305-1404
228
BEARING; RELEASE
1-31310-029-0
01
1
1405-
229
RING
1-31239-064-0
01
1
1305-
278
WHEEL; AIR
1-31239-056-0
01
1
1305-
279
BOLT; AIR WHEEL
1-31239-057-0
04
1
1305-1404
279
BOLT; AIR WHEEL
M8X12.7 W/LK&PL WASHER
1-31239-020-0
04
1
1405-
279
BOLT; AIR WHEEL
M8X12.7 W/LK&PL WASHER
1-31239-020-0
04
1
1405-

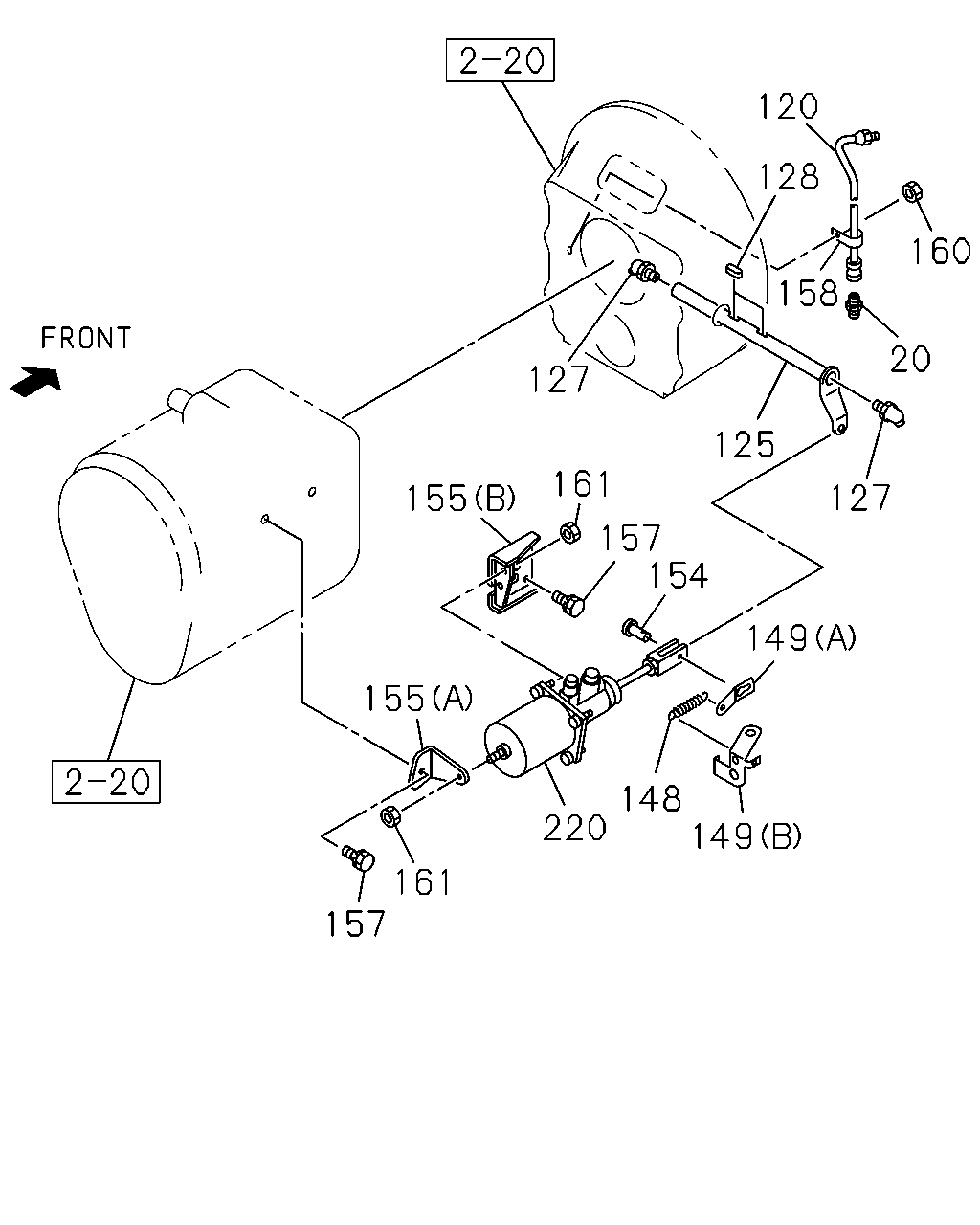

120
128
158
160
127
125
127
161
155
157
149
154
148
155
220
149
161
157
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
1305-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
1305-
125
SHAFT; CLU
1-31342-353-0
01
1
1305-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1305-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1305-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1305-
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1305-
149
EYE; SPRING,RETURN SPRING
(B)
1-47477-284-1
01
1
1305-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1305-
155
BRACKET; MINIPACK
(B)
8-98198-962-1
01
1
1305-
155
BRACKET; MINIPACK
(A)
8-98198-963-0
01
1
1305-
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1305-
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
1305-
160
NUT
M10 FLANGE
0-91180-210-0
01
1
1305-
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1305-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-563-0
01
1
1305-
