◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶
2-53B — TRANSMISSION OIL COOLER SYSTEM (#11970) — 81 parça
çizim 22299
37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
L=1120 		1-09365-010-0 02 1 0105-0309 ● ● ● ●

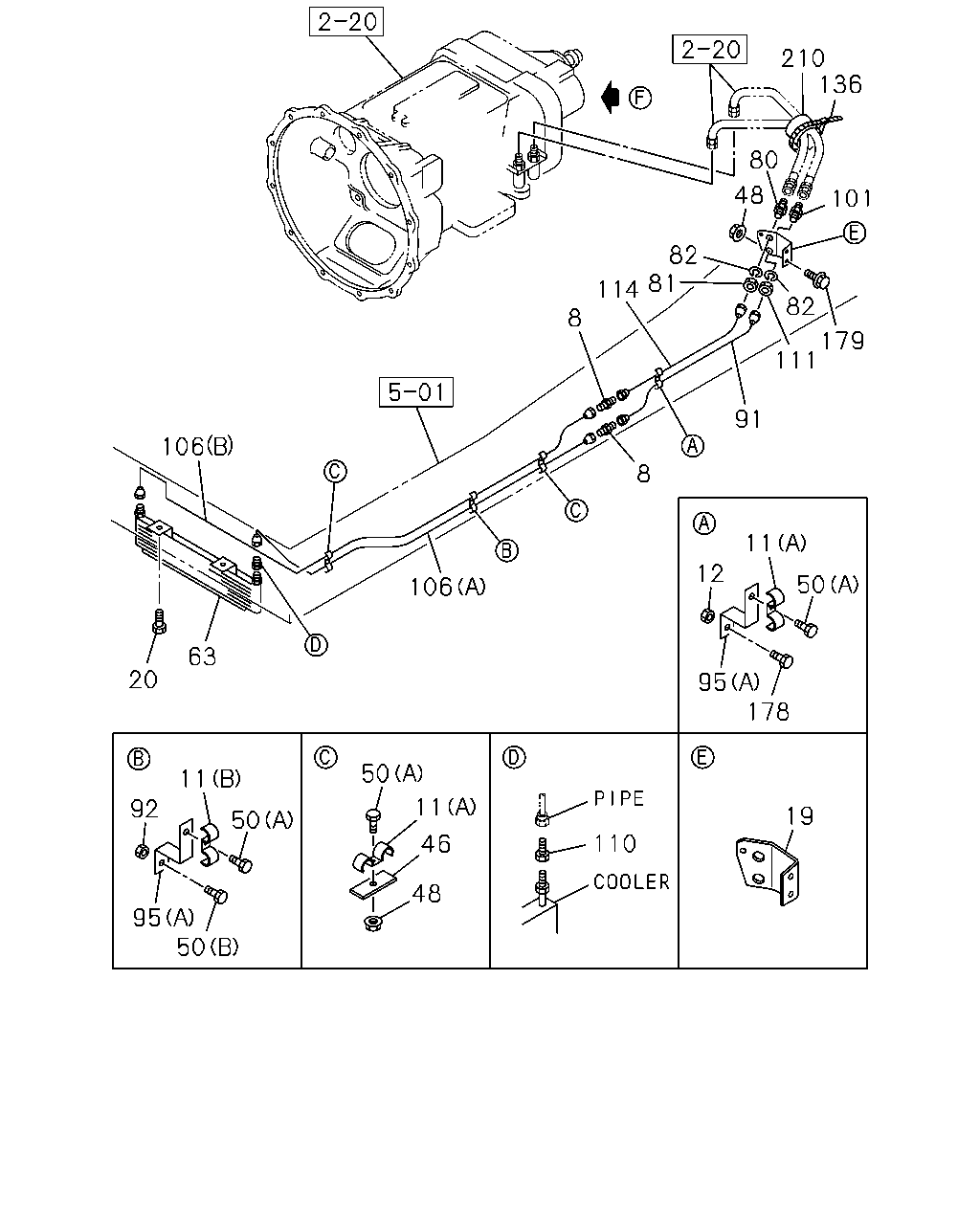

çizim 24442
210 136 101 80 82 48 82 179 81 111 114 91 8 8 106 106 63 20 92 50 95 50 50 11 46 48 110 19 178 12 11 50 95 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 UNION
M22 		9-09233-015-1 02 1 0105-0106 ● ● ● ●
8 UNION
M22 		9-09233-015-1 02 1 0107-0607 ● ● ● ●
8 UNION
M22 L=51 		0-92123-015-0 02 1 0608- ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0105-0106 ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0107- ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0105-0106 ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0107- ● ● ● ●
11 CLIP; PIPE
(B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0105-0106 ● ● ● ●
11 CLIP; PIPE
(B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0107- ● ● ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ● ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ● ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0105-0106 ● ● ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0107- ● ● ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ● ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ● ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0105-0106 ● ● ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0107- ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0310 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0310 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ● ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
50 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512 ● ● ● ●
50 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0105-0609 ● ● ● ●
63 COOLER; OIL 1-21700-394-0 01 1 0610- ● ● ● ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0105-0106 ● ● ● ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0107-0107 ● ● ● ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0108- ● ● ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106 ● ● ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ● ● ● ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0106 ● ● ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-0603 ● ● ● ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=837 		1-49163-182-0 01 1 0105-0106 ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=832 		1-49166-225-0 01 1 0107- ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106 ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106 ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107- ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107- ● ● ● ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0105-0106 ● ● ● ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0107-0107 ● ● ● ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0107- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2317 		1-49164-311-0 01 1 0105-0106 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2324 		1-49166-216-0 01 1 0107-0206 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2305 		1-49166-669-0 01 1 0207- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1703 		1-49164-312-0 01 1 0105-0106 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1695 		1-49166-217-0 01 1 0107- ● ● ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0105-0106 ● ● ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0107- ● ● ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106 ● ● ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ● ● ● ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=998 		1-49163-183-0 01 1 0105-0106 ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=998 		1-49166-226-0 01 1 0107- ● ● ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0108 ● ● ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0109- ● ● ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106 ● ● ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512 ● ● ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ● ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105-0108 ● ● ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0109- ● ● ● ●
